4.1 Assessment, Section and Item XSD Documentation

http://www.imsglobal.org/xsd/imsqti_v2p1


	Elements BlockQuote.Type/feedbackBlock BlockQuote.Type/templateBlock FeedbackBlock.Type/feedbackBlock FeedbackBlock.Type/feedbackInline FeedbackBlock.Type/templateBlock FeedbackBlock.Type/templateInline FeedbackInline.Type/templateInline ItemBody.Type/feedbackBlock ItemBody.Type/templateBlock ModalFeedback.Type/templateBlock ModalFeedback.Type/templateInline OUL.Type/li ResponseCondition.Type/responseElse ResponseCondition.Type/responseElseIf ResponseCondition.Type/responseIf RubricBlock.Type/templateBlock RubricBlock.Type/templateInline RubricBlockTemplateBlock.Type/templateBlock RubricBlockTemplateInline.Type/templateInline TemplateBlock.Type/feedbackBlock TemplateBlock.Type/feedbackInline TemplateBlock.Type/templateBlock TemplateBlock.Type/templateInline TemplateBlockFeedbackBlock.Type/feedbackBlock TemplateBlockFeedbackBlock.Type/feedbackInline TemplateBlockFeedbackBlock.Type/templateBlock TemplateBlockFeedbackBlock.Type/templateInline TestFeedback.Type/templateBlock TestFeedback.Type/templateInline a abbr acronym address and anyN areaMapEntry areaMapping assessmentItem assessmentItemRef assessmentSection assessmentSectionRef assessmentTest associableHotspot associateInteraction b baseValue big blockquote br branchRule caption choiceInteraction cite code col colgroup containerSize contains correct correctResponse customInteraction customOperator dd default defaultValue delete dfn div divide dl drawingInteraction dt durationGTE durationLT em endAttemptInteraction equal equalRounded exitResponse exitTemplate exitTest extendedTextInteraction feedbackBlock feedbackInline fieldValue gap gapImg gapMatchInteraction gapText gcd graphicAssociateInteraction graphicGapMatchInteraction graphicOrderInteraction gt gte h1 h2 h3 h4 h5 h6 hotspotChoice hotspotInteraction hottext hottextInteraction hr i img index infoControl inlineChoice inlineChoiceInteraction inside integerDivide integerModulus integerToFloat interpolationTable interpolationTableEntry isNull itemBody itemSessionControl kbd lcm lookupOutcomeValue lt lte mapEntry mapResponse mapResponsePoint mapping match matchInteraction matchTable matchTableEntry mathConstant mathOperator max mediaInteraction member min modalFeedback multiple not null numberCorrect numberIncorrect numberPresented numberResponded numberSelected object ol or orderInteraction ordered ordering outcomeCondition outcomeDeclaration outcomeElse outcomeElseIf outcomeIf outcomeMaximum outcomeMinimum outcomeProcessing outcomeProcessingFragment p param patternMatch positionObjectInteraction positionObjectStage power pre preCondition printedVariable product prompt q random randomFloat randomInteger repeat responseCondition responseDeclaration responseProcessing responseProcessingFragment round roundTo rubricBlock samp selectPointInteraction selection setCorrectResponse setDefaultValue setOutcomeValue setTemplateValue simpleAssociableChoice simpleChoice simpleMatchSet sliderInteraction small span statsOperator stringMatch strong stylesheet sub substring subtract sum sup table tbody td templateBlock templateCondition templateConstraint templateDeclaration templateDefault templateElse templateElseIf templateIf templateInline templateProcessing testFeedback testPart testVariables textEntryInteraction tfoot th thead timeLimits tr truncate tt ul uploadInteraction value var variable variableMapping weight


	Simple Types Date.Type DateTime.Type EncVariableString.Type Identifier.Type IdentifierList.Type IntegerList.Type Length.Type MimeType.Type String256.Type StringList.Type ToleranceList.Type VariableString.Type View.Type


	Complex Types A.Type AnyN.Type AreaMapEntry.Type AreaMapping.Type AssessmentItem.Type AssessmentItemRef.Type AssessmentSection.Type AssessmentSectionRef.Type AssessmentTest.Type AssociableHotspot.Type AssociateInteraction.Type BR.Type BaseValue.Type BlockQuote.Type BranchRule.Type Caption.Type ChoiceInteraction.Type Col.Type ColGroup.Type Correct.Type CorrectResponse.Type CustomInteraction.Type CustomOperator.Type DD.Type DL.Type DT.Type Default.Type DefaultValue.Type Div.Type DrawingInteraction.Type EmptyPrimitiveType.Type EndAttemptInteraction.Type Equal.Type EqualRounded.Type ExtendedTextInteraction.Type FeedbackBlock.Type FeedbackInline.Type FieldValue.Type Gap.Type GapImg.Type GapMatchInteraction.Type GapText.Type GraphicAssociateInteraction.Type GraphicGapMatchInteraction.Type GraphicOrderInteraction.Type HR.Type HTMLText.Type HotText.Type HotTextInteraction.Type HotspotChoice.Type HotspotInteraction.Type Img.Type Index.Type InfoControl.Type InlineChoice.Type InlineChoiceInteraction.Type Inside.Type InterpolationTable.Type InterpolationTableEntry.Type ItemBody.Type ItemSessionControl.Type LI.Type Logic0toMany.Type Logic1toMany.Type LogicPair.Type LogicSingle.Type LookupOutcomeValue.Type MapEntry.Type MapResponse.Type Mapping.Type MatchInteraction.Type MatchTable.Type MatchTableEntry.Type MathConstant.Type MathOperator.Type MediaInteraction.Type ModalFeedback.Type Number.Type NumericLogic1toMany.Type OUL.Type Object.Type OrderInteraction.Type Ordering.Type OutcomeCondition.Type OutcomeDeclaration.Type OutcomeElse.Type OutcomeIf.Type OutcomeMinMax.Type OutcomeProcessing.Type OutcomeProcessingFragment.Type Param.Type PatternMatch.Type PositionObjectInteraction.Type PositionObjectStage.Type PrintedVariable.Type Prompt.Type Q.Type RandomFloat.Type RandomInteger.Type Repeat.Type ResponseCondition.Type ResponseDeclaration.Type ResponseElse.Type ResponseIf.Type ResponseProcessing.Type ResponseProcessingFragment.Type RoundTo.Type RubricBlock.Type RubricBlockTemplateBlock.Type RubricBlockTemplateInline.Type SelectPointInteraction.Type Selection.Type SetValue.Type SimpleAssociableChoice.Type SimpleChoice.Type SimpleMatchSet.Type SliderInteraction.Type StatsOperator.Type StringMatch.Type StyleSheet.Type Substring.Type TDH.Type TR.Type Table.Type TablePart.Type TemplateBlock.Type TemplateBlockFeedbackBlock.Type TemplateCondition.Type TemplateConstraint.Type TemplateDeclaration.Type TemplateDefault.Type TemplateElse.Type TemplateIf.Type TemplateInline.Type TemplateProcessing.Type TestFeedback.Type TestPart.Type TestVariables.Type TextEntryInteraction.Type TimeLimits.Type UploadInteraction.Type Value.Type Variable.Type VariableMapping.Type Weight.Type


	Element Groups grpLax.any


	Attribute Groups abbr.TDH.Attr access.TestFeedback.Attr adaptive.AssessmentItem.Attr align.TDH.Attr allowComment.ItemSessionControl.Attr allowLateSubmission.TimeLimits.Attr allowReview.ItemSessionControl.Attr allowSkipping.ItemSessionControl.Attr alt.Img.Attr autostart.MediaInteraction.Attr axis.TDH.Attr base.ExtendedTextInteraction.Attr base.PrintedVariable.Attr base.TextEntryInteraction.Attr baseType.BaseValue.Attr baseType.OutcomeDeclaration.Attr baseType.ResponseDeclaration.Attr baseType.TemplateDeclaration.Attr baseType.TestVariables.Attr baseType.Value.Attr cardinality.OutcomeDeclaration.Attr cardinality.ResponseDeclaration.Attr cardinality.TemplateDeclaration.Attr caseSensitive.MapEntry.Attr caseSensitive.StringMatch.Attr caseSensitive.Substring.Attr category.AssessmentItemRef.Attr centrePoint.PositionObjectInteraction.Attr cite.BlockQuote.Attr cite.Q.Attr class.A.Attr class.AssociableHotspot.Attr class.AssociateInteraction.Attr class.BR.Attr class.BlockQuote.Attr class.Caption.Attr class.ChoiceInteraction.Attr class.Col.Attr class.ColGroup.Attr class.CustomInteraction.Attr class.CustomOperator.Attr class.DD.Attr class.DL.Attr class.DT.Attr class.Div.Attr class.DrawingInteraction.Attr class.EndAttemptInteraction.Attr class.ExtendedTextInteraction.Attr class.FeedbackBlock.Attr class.FeedbackInline.Attr class.Gap.Attr class.GapImg.Attr class.GapMatchInteraction.Attr class.GapText.Attr class.GraphicAssociateInteraction.Attr class.GraphicGapMatchInteraction.Attr class.GraphicOrderInteraction.Attr class.HR.Attr class.HTMLText.Attr class.HotText.Attr class.HotTextInteraction.Attr class.HotspotChoice.Attr class.HotspotInteraction.Attr class.Img.Attr class.InfoControl.Attr class.InlineChoice.Attr class.InlineChoiceInteraction.Attr class.ItemBody.Attr class.LI.Attr class.MatchInteraction.Attr class.MediaInteraction.Attr class.OUL.Attr class.Object.Attr class.OrderInteraction.Attr class.PositionObjectInteraction.Attr class.PrintedVariable.Attr class.Prompt.Attr class.Q.Attr class.RubricBlock.Attr class.RubricBlockTemplateBlock.Attr class.RubricBlockTemplateInline.Attr class.SelectPointInteraction.Attr class.SimpleAssociableChoice.Attr class.SimpleChoice.Attr class.SliderInteraction.Attr class.TDH.Attr class.TR.Attr class.Table.Attr class.TablePart.Attr class.TemplateBlock.Attr class.TemplateBlockFeedbackBlock.Attr class.TemplateInline.Attr class.TextEntryInteraction.Attr class.UploadInteraction.Attr colspan.TDH.Attr coords.AreaMapEntry.Attr coords.AssociableHotspot.Attr coords.HotspotChoice.Attr coords.Inside.Attr countAttempt.EndAttemptInteraction.Attr data.Object.Attr defaultValue.AreaMapping.Attr defaultValue.InterpolationTable.Attr defaultValue.Mapping.Attr defaultValue.MatchTable.Attr definition.CustomOperator.Attr delimiter.PrintedVariable.Attr excludeCategory.Number.Attr excludeCategory.OutcomeMinMax.Attr excludeCategory.TestVariables.Attr expectedLength.ExtendedTextInteraction.Attr expectedLength.TextEntryInteraction.Attr expectedLines.ExtendedTextInteraction.Attr extension.CustomInteraction.Attr extension.CustomOperator.Attr extension.Ordering.Attr extension.Selection.Attr field.PrintedVariable.Attr fieldIdentifier.FieldValue.Attr fieldIdentifier.Value.Attr figures.EqualRounded.Attr figures.RoundTo.Attr fixed.AssessmentItemRef.Attr fixed.AssessmentSection.Attr fixed.AssociableHotspot.Attr fixed.Gap.Attr fixed.GapImg.Attr fixed.GapText.Attr fixed.HotText.Attr fixed.HotspotChoice.Attr fixed.InlineChoice.Attr fixed.SimpleAssociableChoice.Attr fixed.SimpleChoice.Attr format.ExtendedTextInteraction.Attr format.PrintedVariable.Attr headers.TDH.Attr height.Img.Attr height.Object.Attr hotspotLabel.AssociableHotspot.Attr hotspotLabel.HotspotChoice.Attr href.A.Attr href.AssessmentItemRef.Attr href.AssessmentSectionRef.Attr href.StyleSheet.Attr id.A.Attr id.AssociableHotspot.Attr id.AssociateInteraction.Attr id.BR.Attr id.BlockQuote.Attr id.Caption.Attr id.ChoiceInteraction.Attr id.Col.Attr id.ColGroup.Attr id.CustomInteraction.Attr id.DD.Attr id.DL.Attr id.DT.Attr id.Div.Attr id.DrawingInteraction.Attr id.EndAttemptInteraction.Attr id.ExtendedTextInteraction.Attr id.FeedbackBlock.Attr id.FeedbackInline.Attr id.Gap.Attr id.GapImg.Attr id.GapMatchInteraction.Attr id.GapText.Attr id.GraphicAssociateInteraction.Attr id.GraphicGapMatchInteraction.Attr id.GraphicOrderInteraction.Attr id.HR.Attr id.HTMLText.Attr id.HotText.Attr id.HotTextInteraction.Attr id.HotspotChoice.Attr id.HotspotInteraction.Attr id.Img.Attr id.InfoControl.Attr id.InlineChoice.Attr id.InlineChoiceInteraction.Attr id.ItemBody.Attr id.LI.Attr id.MatchInteraction.Attr id.MediaInteraction.Attr id.OUL.Attr id.Object.Attr id.OrderInteraction.Attr id.PositionObjectInteraction.Attr id.PrintedVariable.Attr id.Prompt.Attr id.Q.Attr id.RubricBlock.Attr id.RubricBlockTemplateBlock.Attr id.RubricBlockTemplateInline.Attr id.SelectPointInteraction.Attr id.SimpleAssociableChoice.Attr id.SimpleChoice.Attr id.SliderInteraction.Attr id.TDH.Attr id.TR.Attr id.Table.Attr id.TablePart.Attr id.TemplateBlock.Attr id.TemplateBlockFeedbackBlock.Attr id.TemplateInline.Attr id.TextEntryInteraction.Attr id.UploadInteraction.Attr identifier.AssessmentItem.Attr identifier.AssessmentItemRef.Attr identifier.AssessmentSection.Attr identifier.AssessmentSectionRef.Attr identifier.AssessmentTest.Attr identifier.AssociableHotspot.Attr identifier.Correct.Attr identifier.Default.Attr identifier.FeedbackBlock.Attr identifier.FeedbackInline.Attr identifier.Gap.Attr identifier.GapImg.Attr identifier.GapText.Attr identifier.HotText.Attr identifier.HotspotChoice.Attr identifier.InlineChoice.Attr identifier.LookupOutcomeValue.Attr identifier.MapResponse.Attr identifier.ModalFeedback.Attr identifier.OutcomeDeclaration.Attr identifier.PrintedVariable.Attr identifier.ResponseDeclaration.Attr identifier.RubricBlockTemplateBlock.Attr identifier.RubricBlockTemplateInline.Attr identifier.SetValue.Attr identifier.SimpleAssociableChoice.Attr identifier.SimpleChoice.Attr identifier.TemplateBlock.Attr identifier.TemplateBlockFeedbackBlock.Attr identifier.TemplateDeclaration.Attr identifier.TemplateInline.Attr identifier.TestFeedback.Attr identifier.TestPart.Attr identifier.Variable.Attr identifier.Weight.Attr includeBoundary.InterpolationTableEntry.Attr includeCategory.Number.Attr includeCategory.OutcomeMinMax.Attr includeCategory.TestVariables.Attr includeLowerBound.Equal.Attr includeUpperBound.Equal.Attr index.PrintedVariable.Attr interpretation.CorrectResponse.Attr interpretation.DefaultValue.Attr interpretation.OutcomeDeclaration.Attr keepTogether.AssessmentSection.Attr label.A.Attr label.AssessmentItem.Attr label.AssociableHotspot.Attr label.AssociateInteraction.Attr label.BR.Attr label.BlockQuote.Attr label.Caption.Attr label.ChoiceInteraction.Attr label.Col.Attr label.ColGroup.Attr label.CustomInteraction.Attr label.DD.Attr label.DL.Attr label.DT.Attr label.Div.Attr label.DrawingInteraction.Attr label.EndAttemptInteraction.Attr label.ExtendedTextInteraction.Attr label.FeedbackBlock.Attr label.FeedbackInline.Attr label.Gap.Attr label.GapImg.Attr label.GapMatchInteraction.Attr label.GapText.Attr label.GraphicAssociateInteraction.Attr label.GraphicGapMatchInteraction.Attr label.GraphicOrderInteraction.Attr label.HR.Attr label.HTMLText.Attr label.HotText.Attr label.HotTextInteraction.Attr label.HotspotChoice.Attr label.HotspotInteraction.Attr label.Img.Attr label.InfoControl.Attr label.InlineChoice.Attr label.InlineChoiceInteraction.Attr label.ItemBody.Attr label.LI.Attr label.MatchInteraction.Attr label.MediaInteraction.Attr label.OUL.Attr label.Object.Attr label.OrderInteraction.Attr label.PositionObjectInteraction.Attr label.PrintedVariable.Attr label.Prompt.Attr label.Q.Attr label.RubricBlock.Attr label.RubricBlockTemplateBlock.Attr label.RubricBlockTemplateInline.Attr label.SelectPointInteraction.Attr label.SimpleAssociableChoice.Attr label.SimpleChoice.Attr label.SliderInteraction.Attr label.TDH.Attr label.TR.Attr label.Table.Attr label.TablePart.Attr label.TemplateBlock.Attr label.TemplateBlockFeedbackBlock.Attr label.TemplateInline.Attr label.TextEntryInteraction.Attr label.UploadInteraction.Attr longInterpretation.OutcomeDeclaration.Attr longdesc.Img.Attr loop.MediaInteraction.Attr lowerBound.AreaMapping.Attr lowerBound.Mapping.Attr lowerBound.SliderInteraction.Attr mapKey.MapEntry.Attr mappedValue.AreaMapEntry.Attr mappedValue.MapEntry.Attr mappingIndicator.PrintedVariable.Attr masteryValue.OutcomeDeclaration.Attr matchGroup.AssociableHotspot.Attr matchGroup.Gap.Attr matchGroup.GapImg.Attr matchGroup.GapText.Attr matchGroup.SimpleAssociableChoice.Attr matchMax.AssociableHotspot.Attr matchMax.GapImg.Attr matchMax.GapText.Attr matchMax.SimpleAssociableChoice.Attr matchMin.AssociableHotspot.Attr matchMin.GapImg.Attr matchMin.GapText.Attr matchMin.SimpleAssociableChoice.Attr mathVariable.TemplateDeclaration.Attr max.AnyN.Attr max.RandomFloat.Attr max.RandomInteger.Attr maxAssociations.AssociateInteraction.Attr maxAssociations.GraphicAssociateInteraction.Attr maxAssociations.MatchInteraction.Attr maxAttempts.ItemSessionControl.Attr maxChoices.ChoiceInteraction.Attr maxChoices.GraphicOrderInteraction.Attr maxChoices.HotTextInteraction.Attr maxChoices.HotspotInteraction.Attr maxChoices.OrderInteraction.Attr maxChoices.PositionObjectInteraction.Attr maxChoices.SelectPointInteraction.Attr maxPlays.MediaInteraction.Attr maxStrings.ExtendedTextInteraction.Attr maxTime.TimeLimits.Attr media.StyleSheet.Attr min.AnyN.Attr min.RandomFloat.Attr min.RandomInteger.Attr minAssociations.AssociateInteraction.Attr minAssociations.GraphicAssociateInteraction.Attr minAssociations.MatchInteraction.Attr minChoices.ChoiceInteraction.Attr minChoices.GraphicOrderInteraction.Attr minChoices.HotTextInteraction.Attr minChoices.HotspotInteraction.Attr minChoices.OrderInteraction.Attr minChoices.PositionObjectInteraction.Attr minChoices.SelectPointInteraction.Attr minPlays.MediaInteraction.Attr minStrings.ExtendedTextInteraction.Attr minTime.TimeLimits.Attr n.Index.Attr name.MathConstant.Attr name.MathOperator.Attr name.Param.Attr name.StatsOperator.Attr navigationMode.TestPart.Attr normalMaximum.OutcomeDeclaration.Attr normalMinimum.OutcomeDeclaration.Attr objectLabel.GapImg.Attr orientation.ChoiceInteraction.Attr orientation.OrderInteraction.Attr orientation.SliderInteraction.Attr outcomeIdentifier.FeedbackBlock.Attr outcomeIdentifier.FeedbackInline.Attr outcomeIdentifier.ModalFeedback.Attr outcomeIdentifier.OutcomeMinMax.Attr outcomeIdentifier.TemplateBlockFeedbackBlock.Attr outcomeIdentifier.TestFeedback.Attr paramVariable.TemplateDeclaration.Attr pattern.PatternMatch.Attr patternMask.ExtendedTextInteraction.Attr patternMask.TextEntryInteraction.Attr placeholderText.ExtendedTextInteraction.Attr placeholderText.TextEntryInteraction.Attr powerForm.PrintedVariable.Attr required.AssessmentItemRef.Attr required.AssessmentSection.Attr required.Gap.Attr required.InlineChoiceInteraction.Attr responseIdentifier.AssociateInteraction.Attr responseIdentifier.ChoiceInteraction.Attr responseIdentifier.CustomInteraction.Attr responseIdentifier.DrawingInteraction.Attr responseIdentifier.EndAttemptInteraction.Attr responseIdentifier.ExtendedTextInteraction.Attr responseIdentifier.GapMatchInteraction.Attr responseIdentifier.GraphicAssociateInteraction.Attr responseIdentifier.GraphicGapMatchInteraction.Attr responseIdentifier.GraphicOrderInteraction.Attr responseIdentifier.HotTextInteraction.Attr responseIdentifier.HotspotInteraction.Attr responseIdentifier.InlineChoiceInteraction.Attr responseIdentifier.MatchInteraction.Attr responseIdentifier.MediaInteraction.Attr responseIdentifier.OrderInteraction.Attr responseIdentifier.PositionObjectInteraction.Attr responseIdentifier.SelectPointInteraction.Attr responseIdentifier.SliderInteraction.Attr responseIdentifier.TextEntryInteraction.Attr responseIdentifier.UploadInteraction.Attr reverse.SliderInteraction.Attr roundingMode.EqualRounded.Attr roundingMode.RoundTo.Attr rowspan.TDH.Attr scope.TDH.Attr sectionIdentifier.Number.Attr sectionIdentifier.OutcomeMinMax.Attr sectionIdentifier.TestVariables.Attr select.Selection.Attr shape.AreaMapEntry.Attr shape.AssociableHotspot.Attr shape.HotspotChoice.Attr shape.Inside.Attr showFeedback.ItemSessionControl.Attr showHide.AssociableHotspot.Attr showHide.FeedbackBlock.Attr showHide.FeedbackInline.Attr showHide.Gap.Attr showHide.GapImg.Attr showHide.GapText.Attr showHide.HotText.Attr showHide.HotspotChoice.Attr showHide.InlineChoice.Attr showHide.ModalFeedback.Attr showHide.RubricBlockTemplateBlock.Attr showHide.RubricBlockTemplateInline.Attr showHide.SimpleAssociableChoice.Attr showHide.SimpleChoice.Attr showHide.TemplateBlock.Attr showHide.TemplateBlockFeedbackBlock.Attr showHide.TemplateInline.Attr showHide.TestFeedback.Attr showSolution.ItemSessionControl.Attr shuffle.AssociateInteraction.Attr shuffle.ChoiceInteraction.Attr shuffle.GapMatchInteraction.Attr shuffle.InlineChoiceInteraction.Attr shuffle.MatchInteraction.Attr shuffle.OrderInteraction.Attr shuffle.Ordering.Attr sourceIdentifier.VariableMapping.Attr sourceValue.InterpolationTableEntry.Attr sourceValue.MatchTableEntry.Attr span.Col.Attr span.ColGroup.Attr src.Img.Attr step.RandomInteger.Attr step.SliderInteraction.Attr stepLabel.SliderInteraction.Attr stringIdentifier.ExtendedTextInteraction.Attr stringIdentifier.TextEntryInteraction.Attr submissionMode.TestPart.Attr substring.StringMatch.Attr summary.Table.Attr target.BranchRule.Attr targetIdentifier.VariableMapping.Attr targetType.MatchTableEntry.Attr targetValue.InterpolationTableEntry.Attr template.ResponseProcessing.Attr templateIdentifier.AssociableHotspot.Attr templateIdentifier.Gap.Attr templateIdentifier.GapImg.Attr templateIdentifier.GapText.Attr templateIdentifier.HotText.Attr templateIdentifier.HotspotChoice.Attr templateIdentifier.InlineChoice.Attr templateIdentifier.RubricBlockTemplateBlock.Attr templateIdentifier.RubricBlockTemplateInline.Attr templateIdentifier.SimpleAssociableChoice.Attr templateIdentifier.SimpleChoice.Attr templateIdentifier.TemplateBlock.Attr templateIdentifier.TemplateDefault.Attr templateIdentifier.TemplateInline.Attr templateLocation.ResponseProcessing.Attr timeDependent.AssessmentItem.Attr title.AssessmentItem.Attr title.AssessmentSection.Attr title.AssessmentTest.Attr title.EndAttemptInteraction.Attr title.InfoControl.Attr title.ModalFeedback.Attr title.StyleSheet.Attr title.TestFeedback.Attr tolerance.Equal.Attr toleranceMode.Equal.Attr toolName.AssessmentItem.Attr toolName.AssessmentTest.Attr toolVersion.AssessmentItem.Attr toolVersion.AssessmentTest.Attr type.A.Attr type.Object.Attr type.Param.Attr type.StyleSheet.Attr type.UploadInteraction.Attr upperBound.AreaMapping.Attr upperBound.Mapping.Attr upperBound.SliderInteraction.Attr use.RubricBlock.Attr validateResponses.ItemSessionControl.Attr valign.TDH.Attr value.Param.Attr value.Weight.Attr valuetype.Param.Attr variableIdentifier.TestVariables.Attr view.OutcomeDeclaration.Attr view.RubricBlock.Attr visible.AssessmentSection.Attr weightIdentifier.OutcomeMinMax.Attr weightIdentifier.TestVariables.Attr weightIdentifier.Variable.Attr width.Img.Attr width.Object.Attr withReplacement.Selection.Attr xmlbase.A.Attr xmlbase.AssociateInteraction.Attr xmlbase.BR.Attr xmlbase.BlockQuote.Attr xmlbase.ChoiceInteraction.Attr xmlbase.CustomInteraction.Attr xmlbase.DD.Attr xmlbase.DL.Attr xmlbase.DT.Attr xmlbase.Div.Attr xmlbase.DrawingInteraction.Attr xmlbase.EndAttemptInteraction.Attr xmlbase.ExtendedTextInteraction.Attr xmlbase.FeedbackBlock.Attr xmlbase.FeedbackInline.Attr xmlbase.GapMatchInteraction.Attr xmlbase.GraphicAssociateInteraction.Attr xmlbase.GraphicGapMatchInteraction.Attr xmlbase.GraphicOrderInteraction.Attr xmlbase.HR.Attr xmlbase.HTMLText.Attr xmlbase.HotText.Attr xmlbase.HotTextInteraction.Attr xmlbase.HotspotInteraction.Attr xmlbase.Img.Attr xmlbase.InlineChoiceInteraction.Attr xmlbase.MatchInteraction.Attr xmlbase.MediaInteraction.Attr xmlbase.OUL.Attr xmlbase.Object.Attr xmlbase.OrderInteraction.Attr xmlbase.PrintedVariable.Attr xmlbase.Q.Attr xmlbase.RubricBlock.Attr xmlbase.RubricBlockTemplateBlock.Attr xmlbase.RubricBlockTemplateInline.Attr xmlbase.SelectPointInteraction.Attr xmlbase.SliderInteraction.Attr xmlbase.Table.Attr xmlbase.TemplateBlock.Attr xmlbase.TemplateBlockFeedbackBlock.Attr xmlbase.TemplateInline.Attr xmlbase.TextEntryInteraction.Attr xmlbase.UploadInteraction.Attr xmllang.A.Attr xmllang.AssessmentItem.Attr xmllang.AssociableHotspot.Attr xmllang.AssociateInteraction.Attr xmllang.BR.Attr xmllang.BlockQuote.Attr xmllang.Caption.Attr xmllang.ChoiceInteraction.Attr xmllang.Col.Attr xmllang.ColGroup.Attr xmllang.CustomInteraction.Attr xmllang.DD.Attr xmllang.DL.Attr xmllang.DT.Attr xmllang.Div.Attr xmllang.DrawingInteraction.Attr xmllang.EndAttemptInteraction.Attr xmllang.ExtendedTextInteraction.Attr xmllang.FeedbackBlock.Attr xmllang.FeedbackInline.Attr xmllang.Gap.Attr xmllang.GapImg.Attr xmllang.GapMatchInteraction.Attr xmllang.GapText.Attr xmllang.GraphicAssociateInteraction.Attr xmllang.GraphicGapMatchInteraction.Attr xmllang.GraphicOrderInteraction.Attr xmllang.HR.Attr xmllang.HTMLText.Attr xmllang.HotTextInteraction.Attr xmllang.HotspotChoice.Attr xmllang.HotspotInteraction.Attr xmllang.Img.Attr xmllang.InfoControl.Attr xmllang.InlineChoice.Attr xmllang.InlineChoiceInteraction.Attr xmllang.ItemBody.Attr xmllang.LI.Attr xmllang.MatchInteraction.Attr xmllang.MediaInteraction.Attr xmllang.OUL.Attr xmllang.Object.Attr xmllang.OrderInteraction.Attr xmllang.PositionObjectInteraction.Attr xmllang.PrintedVariable.Attr xmllang.Prompt.Attr xmllang.Q.Attr xmllang.RubricBlock.Attr xmllang.RubricBlockTemplateBlock.Attr xmllang.RubricBlockTemplateInline.Attr xmllang.SelectPointInteraction.Attr xmllang.SimpleAssociableChoice.Attr xmllang.SimpleChoice.Attr xmllang.SliderInteraction.Attr xmllang.TDH.Attr xmllang.TR.Attr xmllang.Table.Attr xmllang.TablePart.Attr xmllang.TemplateBlock.Attr xmllang.TemplateBlockFeedbackBlock.Attr xmllang.TemplateInline.Attr xmllang.TextEntryInteraction.Attr xmllang.UploadInteraction.Attr xmllanguage.HotText.Attr

No namespace


	Attributes Repeat.Type/@numberRepeats abbr.TDH.Attr/@abbr access.TestFeedback.Attr/@access adaptive.AssessmentItem.Attr/@adaptive align.TDH.Attr/@align allowComment.ItemSessionControl.Attr/@allowComment allowLateSubmission.TimeLimits.Attr/@allowLateSubmission allowReview.ItemSessionControl.Attr/@allowReview allowSkipping.ItemSessionControl.Attr/@allowSkipping alt.Img.Attr/@alt autostart.MediaInteraction.Attr/@autostart axis.TDH.Attr/@axis base.ExtendedTextInteraction.Attr/@base base.PrintedVariable.Attr/@base base.TextEntryInteraction.Attr/@base baseType.BaseValue.Attr/@baseType baseType.OutcomeDeclaration.Attr/@baseType baseType.ResponseDeclaration.Attr/@baseType baseType.TemplateDeclaration.Attr/@baseType baseType.TestVariables.Attr/@baseType baseType.Value.Attr/@baseType cardinality.OutcomeDeclaration.Attr/@cardinality cardinality.ResponseDeclaration.Attr/@cardinality cardinality.TemplateDeclaration.Attr/@cardinality caseSensitive.MapEntry.Attr/@caseSensitive caseSensitive.StringMatch.Attr/@caseSensitive caseSensitive.Substring.Attr/@caseSensitive category.AssessmentItemRef.Attr/@category centrePoint.PositionObjectInteraction.Attr/@centrePoint cite.BlockQuote.Attr/@cite cite.Q.Attr/@cite class.A.Attr/@class class.AssociableHotspot.Attr/@class class.AssociateInteraction.Attr/@class class.BR.Attr/@class class.BlockQuote.Attr/@class class.Caption.Attr/@class class.ChoiceInteraction.Attr/@class class.Col.Attr/@class class.ColGroup.Attr/@class class.CustomInteraction.Attr/@class class.CustomOperator.Attr/@class class.DD.Attr/@class class.DL.Attr/@class class.DT.Attr/@class class.Div.Attr/@class class.DrawingInteraction.Attr/@class class.EndAttemptInteraction.Attr/@class class.ExtendedTextInteraction.Attr/@class class.FeedbackBlock.Attr/@class class.FeedbackInline.Attr/@class class.Gap.Attr/@class class.GapImg.Attr/@class class.GapMatchInteraction.Attr/@class class.GapText.Attr/@class class.GraphicAssociateInteraction.Attr/@class class.GraphicGapMatchInteraction.Attr/@class class.GraphicOrderInteraction.Attr/@class class.HR.Attr/@class class.HTMLText.Attr/@class class.HotText.Attr/@class class.HotTextInteraction.Attr/@class class.HotspotChoice.Attr/@class class.HotspotInteraction.Attr/@class class.Img.Attr/@class class.InfoControl.Attr/@class class.InlineChoice.Attr/@class class.InlineChoiceInteraction.Attr/@class class.ItemBody.Attr/@class class.LI.Attr/@class class.MatchInteraction.Attr/@class class.MediaInteraction.Attr/@class class.OUL.Attr/@class class.Object.Attr/@class class.OrderInteraction.Attr/@class class.PositionObjectInteraction.Attr/@class class.PrintedVariable.Attr/@class class.Prompt.Attr/@class class.Q.Attr/@class class.RubricBlock.Attr/@class class.RubricBlockTemplateBlock.Attr/@class class.RubricBlockTemplateInline.Attr/@class class.SelectPointInteraction.Attr/@class class.SimpleAssociableChoice.Attr/@class class.SimpleChoice.Attr/@class class.SliderInteraction.Attr/@class class.TDH.Attr/@class class.TR.Attr/@class class.Table.Attr/@class class.TablePart.Attr/@class class.TemplateBlock.Attr/@class class.TemplateBlockFeedbackBlock.Attr/@class class.TemplateInline.Attr/@class class.TextEntryInteraction.Attr/@class class.UploadInteraction.Attr/@class colspan.TDH.Attr/@colspan coords.AreaMapEntry.Attr/@coords coords.AssociableHotspot.Attr/@coords coords.HotspotChoice.Attr/@coords coords.Inside.Attr/@coords countAttempt.EndAttemptInteraction.Attr/@countAttempt data.Object.Attr/@data defaultValue.AreaMapping.Attr/@defaultValue defaultValue.InterpolationTable.Attr/@defaultValue defaultValue.Mapping.Attr/@defaultValue defaultValue.MatchTable.Attr/@defaultValue definition.CustomOperator.Attr/@definition delimiter.PrintedVariable.Attr/@delimiter excludeCategory.Number.Attr/@excludeCategory excludeCategory.OutcomeMinMax.Attr/@excludeCategory excludeCategory.TestVariables.Attr/@excludeCategory expectedLength.ExtendedTextInteraction.Attr/@expectedLength expectedLength.TextEntryInteraction.Attr/@expectedLength expectedLines.ExtendedTextInteraction.Attr/@expectedLines field.PrintedVariable.Attr/@field fieldIdentifier.FieldValue.Attr/@fieldIdentifier fieldIdentifier.Value.Attr/@fieldIdentifier figures.EqualRounded.Attr/@figures figures.RoundTo.Attr/@figures fixed.AssessmentItemRef.Attr/@fixed fixed.AssessmentSection.Attr/@fixed fixed.AssociableHotspot.Attr/@fixed fixed.Gap.Attr/@fixed fixed.GapImg.Attr/@fixed fixed.GapText.Attr/@fixed fixed.HotText.Attr/@fixed fixed.HotspotChoice.Attr/@fixed fixed.InlineChoice.Attr/@fixed fixed.SimpleAssociableChoice.Attr/@fixed fixed.SimpleChoice.Attr/@fixed format.ExtendedTextInteraction.Attr/@format format.PrintedVariable.Attr/@format headers.TDH.Attr/@headers height.Img.Attr/@height height.Object.Attr/@height hotspotLabel.AssociableHotspot.Attr/@hotspotLabel hotspotLabel.HotspotChoice.Attr/@hotspotLabel href.A.Attr/@href href.AssessmentItemRef.Attr/@href href.AssessmentSectionRef.Attr/@href href.StyleSheet.Attr/@href id.A.Attr/@id id.AssociableHotspot.Attr/@id id.AssociateInteraction.Attr/@id id.BR.Attr/@id id.BlockQuote.Attr/@id id.Caption.Attr/@id id.ChoiceInteraction.Attr/@id id.Col.Attr/@id id.ColGroup.Attr/@id id.CustomInteraction.Attr/@id id.DD.Attr/@id id.DL.Attr/@id id.DT.Attr/@id id.Div.Attr/@id id.DrawingInteraction.Attr/@id id.EndAttemptInteraction.Attr/@id id.ExtendedTextInteraction.Attr/@id id.FeedbackBlock.Attr/@id id.FeedbackInline.Attr/@id id.Gap.Attr/@id id.GapImg.Attr/@id id.GapMatchInteraction.Attr/@id id.GapText.Attr/@id id.GraphicAssociateInteraction.Attr/@id id.GraphicGapMatchInteraction.Attr/@id id.GraphicOrderInteraction.Attr/@id id.HR.Attr/@id id.HTMLText.Attr/@id id.HotText.Attr/@id id.HotTextInteraction.Attr/@id id.HotspotChoice.Attr/@id id.HotspotInteraction.Attr/@id id.Img.Attr/@id id.InfoControl.Attr/@id id.InlineChoice.Attr/@id id.InlineChoiceInteraction.Attr/@id id.ItemBody.Attr/@id id.LI.Attr/@id id.MatchInteraction.Attr/@id id.MediaInteraction.Attr/@id id.OUL.Attr/@id id.Object.Attr/@id id.OrderInteraction.Attr/@id id.PositionObjectInteraction.Attr/@id id.PrintedVariable.Attr/@id id.Prompt.Attr/@id id.Q.Attr/@id id.RubricBlock.Attr/@id id.RubricBlockTemplateBlock.Attr/@id id.RubricBlockTemplateInline.Attr/@id id.SelectPointInteraction.Attr/@id id.SimpleAssociableChoice.Attr/@id id.SimpleChoice.Attr/@id id.SliderInteraction.Attr/@id id.TDH.Attr/@id id.TR.Attr/@id id.Table.Attr/@id id.TablePart.Attr/@id id.TemplateBlock.Attr/@id id.TemplateBlockFeedbackBlock.Attr/@id id.TemplateInline.Attr/@id id.TextEntryInteraction.Attr/@id id.UploadInteraction.Attr/@id identifier.AssessmentItem.Attr/@identifier identifier.AssessmentItemRef.Attr/@identifier identifier.AssessmentSection.Attr/@identifier identifier.AssessmentSectionRef.Attr/@identifier identifier.AssessmentTest.Attr/@identifier identifier.AssociableHotspot.Attr/@identifier identifier.Correct.Attr/@identifier identifier.Default.Attr/@identifier identifier.FeedbackBlock.Attr/@identifier identifier.FeedbackInline.Attr/@identifier identifier.Gap.Attr/@identifier identifier.GapImg.Attr/@identifier identifier.GapText.Attr/@identifier identifier.HotText.Attr/@identifier identifier.HotspotChoice.Attr/@identifier identifier.InlineChoice.Attr/@identifier identifier.LookupOutcomeValue.Attr/@identifier identifier.MapResponse.Attr/@identifier identifier.ModalFeedback.Attr/@identifier identifier.OutcomeDeclaration.Attr/@identifier identifier.PrintedVariable.Attr/@identifier identifier.ResponseDeclaration.Attr/@identifier identifier.RubricBlockTemplateBlock.Attr/@identifier identifier.RubricBlockTemplateInline.Attr/@identifier identifier.SetValue.Attr/@identifier identifier.SimpleAssociableChoice.Attr/@identifier identifier.SimpleChoice.Attr/@identifier identifier.TemplateBlock.Attr/@identifier identifier.TemplateBlockFeedbackBlock.Attr/@identifier identifier.TemplateDeclaration.Attr/@identifier identifier.TemplateInline.Attr/@identifier identifier.TestFeedback.Attr/@identifier identifier.TestPart.Attr/@identifier identifier.Variable.Attr/@identifier identifier.Weight.Attr/@identifier includeBoundary.InterpolationTableEntry.Attr/@includeBoundary includeCategory.Number.Attr/@includeCategory includeCategory.OutcomeMinMax.Attr/@includeCategory includeCategory.TestVariables.Attr/@includeCategory includeLowerBound.Equal.Attr/@includeLowerBound includeUpperBound.Equal.Attr/@includeUpperBound index.PrintedVariable.Attr/@index interpretation.CorrectResponse.Attr/@interpretation interpretation.DefaultValue.Attr/@interpretation interpretation.OutcomeDeclaration.Attr/@interpretation keepTogether.AssessmentSection.Attr/@keepTogether label.A.Attr/@label label.AssessmentItem.Attr/@label label.AssociableHotspot.Attr/@label label.AssociateInteraction.Attr/@label label.BR.Attr/@label label.BlockQuote.Attr/@label label.Caption.Attr/@label label.ChoiceInteraction.Attr/@label label.Col.Attr/@label label.ColGroup.Attr/@label label.CustomInteraction.Attr/@label label.DD.Attr/@label label.DL.Attr/@label label.DT.Attr/@label label.Div.Attr/@label label.DrawingInteraction.Attr/@label label.EndAttemptInteraction.Attr/@label label.ExtendedTextInteraction.Attr/@label label.FeedbackBlock.Attr/@label label.FeedbackInline.Attr/@label label.Gap.Attr/@label label.GapImg.Attr/@label label.GapMatchInteraction.Attr/@label label.GapText.Attr/@label label.GraphicAssociateInteraction.Attr/@label label.GraphicGapMatchInteraction.Attr/@label label.GraphicOrderInteraction.Attr/@label label.HR.Attr/@label label.HTMLText.Attr/@label label.HotText.Attr/@label label.HotTextInteraction.Attr/@label label.HotspotChoice.Attr/@label label.HotspotInteraction.Attr/@label label.Img.Attr/@label label.InfoControl.Attr/@label label.InlineChoice.Attr/@label label.InlineChoiceInteraction.Attr/@label label.ItemBody.Attr/@label label.LI.Attr/@label label.MatchInteraction.Attr/@label label.MediaInteraction.Attr/@label label.OUL.Attr/@label label.Object.Attr/@label label.OrderInteraction.Attr/@label label.PositionObjectInteraction.Attr/@label label.PrintedVariable.Attr/@label label.Prompt.Attr/@label label.Q.Attr/@label label.RubricBlock.Attr/@label label.RubricBlockTemplateBlock.Attr/@label label.RubricBlockTemplateInline.Attr/@label label.SelectPointInteraction.Attr/@label label.SimpleAssociableChoice.Attr/@label label.SimpleChoice.Attr/@label label.SliderInteraction.Attr/@label label.TDH.Attr/@label label.TR.Attr/@label label.Table.Attr/@label label.TablePart.Attr/@label label.TemplateBlock.Attr/@label label.TemplateBlockFeedbackBlock.Attr/@label label.TemplateInline.Attr/@label label.TextEntryInteraction.Attr/@label label.UploadInteraction.Attr/@label longInterpretation.OutcomeDeclaration.Attr/@longInterpretation longdesc.Img.Attr/@longdesc loop.MediaInteraction.Attr/@loop lowerBound.AreaMapping.Attr/@lowerBound lowerBound.Mapping.Attr/@lowerBound lowerBound.SliderInteraction.Attr/@lowerBound mapKey.MapEntry.Attr/@mapKey mappedValue.AreaMapEntry.Attr/@mappedValue mappedValue.MapEntry.Attr/@mappedValue mappingIndicator.PrintedVariable.Attr/@mappingIndicator masteryValue.OutcomeDeclaration.Attr/@masteryValue matchGroup.AssociableHotspot.Attr/@matchGroup matchGroup.Gap.Attr/@matchGroup matchGroup.GapImg.Attr/@matchGroup matchGroup.GapText.Attr/@matchGroup matchGroup.SimpleAssociableChoice.Attr/@matchGroup matchMax.AssociableHotspot.Attr/@matchMax matchMax.GapImg.Attr/@matchMax matchMax.GapText.Attr/@matchMax matchMax.SimpleAssociableChoice.Attr/@matchMax matchMin.AssociableHotspot.Attr/@matchMin matchMin.GapImg.Attr/@matchMin matchMin.GapText.Attr/@matchMin matchMin.SimpleAssociableChoice.Attr/@matchMin mathVariable.TemplateDeclaration.Attr/@mathVariable max.AnyN.Attr/@max max.RandomFloat.Attr/@max max.RandomInteger.Attr/@max maxAssociations.AssociateInteraction.Attr/@maxAssociations maxAssociations.GraphicAssociateInteraction.Attr/@maxAssociations maxAssociations.MatchInteraction.Attr/@maxAssociations maxAttempts.ItemSessionControl.Attr/@maxAttempts maxChoices.ChoiceInteraction.Attr/@maxChoices maxChoices.GraphicOrderInteraction.Attr/@maxChoices maxChoices.HotTextInteraction.Attr/@maxChoices maxChoices.HotspotInteraction.Attr/@maxChoices maxChoices.OrderInteraction.Attr/@maxChoices maxChoices.PositionObjectInteraction.Attr/@maxChoices maxChoices.SelectPointInteraction.Attr/@maxChoices maxPlays.MediaInteraction.Attr/@maxPlays maxStrings.ExtendedTextInteraction.Attr/@maxStrings maxTime.TimeLimits.Attr/@maxTime media.StyleSheet.Attr/@media min.AnyN.Attr/@min min.RandomFloat.Attr/@min min.RandomInteger.Attr/@min minAssociations.AssociateInteraction.Attr/@minAssociations minAssociations.GraphicAssociateInteraction.Attr/@minAssociations minAssociations.MatchInteraction.Attr/@minAssociations minChoices.ChoiceInteraction.Attr/@minChoices minChoices.GraphicOrderInteraction.Attr/@minChoices minChoices.HotTextInteraction.Attr/@minChoices minChoices.HotspotInteraction.Attr/@minChoices minChoices.OrderInteraction.Attr/@minChoices minChoices.PositionObjectInteraction.Attr/@minChoices minChoices.SelectPointInteraction.Attr/@minChoices minPlays.MediaInteraction.Attr/@minPlays minStrings.ExtendedTextInteraction.Attr/@minStrings minTime.TimeLimits.Attr/@minTime n.Index.Attr/@n name.MathConstant.Attr/@name name.MathOperator.Attr/@name name.Param.Attr/@name name.StatsOperator.Attr/@name navigationMode.TestPart.Attr/@navigationMode normalMaximum.OutcomeDeclaration.Attr/@normalMaximum normalMinimum.OutcomeDeclaration.Attr/@normalMinimum objectLabel.GapImg.Attr/@objectLabel orientation.ChoiceInteraction.Attr/@orientation orientation.OrderInteraction.Attr/@orientation orientation.SliderInteraction.Attr/@orientation outcomeIdentifier.FeedbackBlock.Attr/@outcomeIdentifier outcomeIdentifier.FeedbackInline.Attr/@outcomeIdentifier outcomeIdentifier.ModalFeedback.Attr/@outcomeIdentifier outcomeIdentifier.OutcomeMinMax.Attr/@outcomeIdentifier outcomeIdentifier.TemplateBlockFeedbackBlock.Attr/@outcomeIdentifier outcomeIdentifier.TestFeedback.Attr/@outcomeIdentifier paramVariable.TemplateDeclaration.Attr/@paramVariable pattern.PatternMatch.Attr/@pattern patternMask.ExtendedTextInteraction.Attr/@patternMask patternMask.TextEntryInteraction.Attr/@patternMask placeholderText.ExtendedTextInteraction.Attr/@placeholderText placeholderText.TextEntryInteraction.Attr/@placeholderText powerForm.PrintedVariable.Attr/@powerForm required.AssessmentItemRef.Attr/@required required.AssessmentSection.Attr/@required required.Gap.Attr/@required required.InlineChoiceInteraction.Attr/@required responseIdentifier.AssociateInteraction.Attr/@responseIdentifier responseIdentifier.ChoiceInteraction.Attr/@responseIdentifier responseIdentifier.CustomInteraction.Attr/@responseIdentifier responseIdentifier.DrawingInteraction.Attr/@responseIdentifier responseIdentifier.EndAttemptInteraction.Attr/@responseIdentifier responseIdentifier.ExtendedTextInteraction.Attr/@responseIdentifier responseIdentifier.GapMatchInteraction.Attr/@responseIdentifier responseIdentifier.GraphicAssociateInteraction.Attr/@responseIdentifier responseIdentifier.GraphicGapMatchInteraction.Attr/@responseIdentifier responseIdentifier.GraphicOrderInteraction.Attr/@responseIdentifier responseIdentifier.HotTextInteraction.Attr/@responseIdentifier responseIdentifier.HotspotInteraction.Attr/@responseIdentifier responseIdentifier.InlineChoiceInteraction.Attr/@responseIdentifier responseIdentifier.MatchInteraction.Attr/@responseIdentifier responseIdentifier.MediaInteraction.Attr/@responseIdentifier responseIdentifier.OrderInteraction.Attr/@responseIdentifier responseIdentifier.PositionObjectInteraction.Attr/@responseIdentifier responseIdentifier.SelectPointInteraction.Attr/@responseIdentifier responseIdentifier.SliderInteraction.Attr/@responseIdentifier responseIdentifier.TextEntryInteraction.Attr/@responseIdentifier responseIdentifier.UploadInteraction.Attr/@responseIdentifier reverse.SliderInteraction.Attr/@reverse roundingMode.EqualRounded.Attr/@roundingMode roundingMode.RoundTo.Attr/@roundingMode rowspan.TDH.Attr/@rowspan scope.TDH.Attr/@scope sectionIdentifier.Number.Attr/@sectionIdentifier sectionIdentifier.OutcomeMinMax.Attr/@sectionIdentifier sectionIdentifier.TestVariables.Attr/@sectionIdentifier select.Selection.Attr/@select shape.AreaMapEntry.Attr/@shape shape.AssociableHotspot.Attr/@shape shape.HotspotChoice.Attr/@shape shape.Inside.Attr/@shape showFeedback.ItemSessionControl.Attr/@showFeedback showHide.AssociableHotspot.Attr/@showHide showHide.FeedbackBlock.Attr/@showHide showHide.FeedbackInline.Attr/@showHide showHide.Gap.Attr/@showHide showHide.GapImg.Attr/@showHide showHide.GapText.Attr/@showHide showHide.HotText.Attr/@showHide showHide.HotspotChoice.Attr/@showHide showHide.InlineChoice.Attr/@showHide showHide.ModalFeedback.Attr/@showHide showHide.RubricBlockTemplateBlock.Attr/@showHide showHide.RubricBlockTemplateInline.Attr/@showHide showHide.SimpleAssociableChoice.Attr/@showHide showHide.SimpleChoice.Attr/@showHide showHide.TemplateBlock.Attr/@showHide showHide.TemplateBlockFeedbackBlock.Attr/@showHide showHide.TemplateInline.Attr/@showHide showHide.TestFeedback.Attr/@showHide showSolution.ItemSessionControl.Attr/@showSolution shuffle.AssociateInteraction.Attr/@shuffle shuffle.ChoiceInteraction.Attr/@shuffle shuffle.GapMatchInteraction.Attr/@shuffle shuffle.InlineChoiceInteraction.Attr/@shuffle shuffle.MatchInteraction.Attr/@shuffle shuffle.OrderInteraction.Attr/@shuffle shuffle.Ordering.Attr/@shuffle sourceIdentifier.VariableMapping.Attr/@sourceIdentifier sourceValue.InterpolationTableEntry.Attr/@sourceValue sourceValue.MatchTableEntry.Attr/@sourceValue span.Col.Attr/@span span.ColGroup.Attr/@span src.Img.Attr/@src step.RandomInteger.Attr/@step step.SliderInteraction.Attr/@step stepLabel.SliderInteraction.Attr/@stepLabel stringIdentifier.ExtendedTextInteraction.Attr/@stringIdentifier stringIdentifier.TextEntryInteraction.Attr/@stringIdentifier submissionMode.TestPart.Attr/@submissionMode substring.StringMatch.Attr/@substring summary.Table.Attr/@summary target.BranchRule.Attr/@target targetIdentifier.VariableMapping.Attr/@targetIdentifier targetType.MatchTableEntry.Attr/@targetType targetValue.InterpolationTableEntry.Attr/@targetValue template.ResponseProcessing.Attr/@template templateIdentifier.AssociableHotspot.Attr/@templateIdentifier templateIdentifier.Gap.Attr/@templateIdentifier templateIdentifier.GapImg.Attr/@templateIdentifier templateIdentifier.GapText.Attr/@templateIdentifier templateIdentifier.HotText.Attr/@templateIdentifier templateIdentifier.HotspotChoice.Attr/@templateIdentifier templateIdentifier.InlineChoice.Attr/@templateIdentifier templateIdentifier.RubricBlockTemplateBlock.Attr/@templateIdentifier templateIdentifier.RubricBlockTemplateInline.Attr/@templateIdentifier templateIdentifier.SimpleAssociableChoice.Attr/@templateIdentifier templateIdentifier.SimpleChoice.Attr/@templateIdentifier templateIdentifier.TemplateBlock.Attr/@templateIdentifier templateIdentifier.TemplateDefault.Attr/@templateIdentifier templateIdentifier.TemplateInline.Attr/@templateIdentifier templateLocation.ResponseProcessing.Attr/@templateLocation timeDependent.AssessmentItem.Attr/@timeDependent title.AssessmentItem.Attr/@title title.AssessmentSection.Attr/@title title.AssessmentTest.Attr/@title title.EndAttemptInteraction.Attr/@title title.InfoControl.Attr/@title title.ModalFeedback.Attr/@title title.StyleSheet.Attr/@title title.TestFeedback.Attr/@title tolerance.Equal.Attr/@tolerance toleranceMode.Equal.Attr/@toleranceMode toolName.AssessmentItem.Attr/@toolName toolName.AssessmentTest.Attr/@toolName toolVersion.AssessmentItem.Attr/@toolVersion toolVersion.AssessmentTest.Attr/@toolVersion type.A.Attr/@type type.Object.Attr/@type type.Param.Attr/@type type.StyleSheet.Attr/@type type.UploadInteraction.Attr/@type upperBound.AreaMapping.Attr/@upperBound upperBound.Mapping.Attr/@upperBound upperBound.SliderInteraction.Attr/@upperBound use.RubricBlock.Attr/@use validateResponses.ItemSessionControl.Attr/@validateResponses valign.TDH.Attr/@valign value.Param.Attr/@value value.Weight.Attr/@value valuetype.Param.Attr/@valuetype variableIdentifier.TestVariables.Attr/@variableIdentifier view.OutcomeDeclaration.Attr/@view view.RubricBlock.Attr/@view visible.AssessmentSection.Attr/@visible weightIdentifier.OutcomeMinMax.Attr/@weightIdentifier weightIdentifier.TestVariables.Attr/@weightIdentifier weightIdentifier.Variable.Attr/@weightIdentifier width.Img.Attr/@width width.Object.Attr/@width withReplacement.Selection.Attr/@withReplacement

Resource hierarchy:

imsqti_v2p1.xsd
- xml.xsd
- XInclude.xsd
- mathml2.xsd
- apipv1p0_qtiextv2p1_v1p0.xsd

Main schema imsqti_v2p1.xsd

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Annotations

XSD Data File Information

Author: Colin Smythe Date: 31st July, 2012 Version: 1.0 Status: Final Release Description: This is the Platform Specific Model of the IMS QTI v2.1 Specification Information Model. It is this representation that is used to produce the XSD binding for IMS QTI v2.1. History: This version supercedes the full IMS QTI v1.2 and QTIv2.0 specifications. License: IPR, License and Distribution Notices This machine readable file is derived from IMS Global specification IMS Question and Test Interoperability (QTI) Version 2.1 found at http://www.imsglobal.org/qti and the original IMS Global schema binding or code base http://www.imsglobal.org/qti. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. IMS GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS Global procedures with respect to rights in IMS Global specifications can be found at the IMS Global Intellectual Property Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf. Copyright (c) IMS Global Learning Consortium 1999-2012. All Rights Reserved. License Notice for Users Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document. Distribution Notice for Developers Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than IMS, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof. Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the IMS GLC community on the IMS GLC website as described in the following two paragraphs:- * If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with IMS and receive an email from IMS granting the license. To register, follow the instructions on the IMS website: http://www.imsglobal.org/specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety; * If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow the instructions on the IMS GLC website: http://www.imsglobal.org/profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety. The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its successors or assigns. THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

Source UML File Information

The source file information must be supplied as an XMI file (without diagram layout information). The supported UML authoring tools are: (a) Poseidon - v6 (and later)

Source XSLT File Information

XSL Generator: UMLtoXSDTransformv1p0.xsl XSLT Processor: Xalan Release: 1.0 Date: 31st March, 2012 Autogen Engineer: Colin Smythe (IMS GLC, UK) Autogen Date: 2012-05-31

IMS GLC Auto-generation Binding Tool-kit (I-BAT)

This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. IMS GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site. Tool Copyright: 2005-2012 (c) IMS Global Learning Consortium Inc. All Rights Reserved.

Properties

attribute form default:	unqualified
element form default:	qualified
version:	IMS QTI 2.1

[ top ]

Element exitResponse

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

EmptyPrimitiveType.Type

Properties

content:

complex

Used by

Complex Types

ResponseElse.Type, ResponseIf.Type, ResponseProcessing.Type, ResponseProcessingFragment.Type

Source

<xs:element name="exitResponse" type="EmptyPrimitiveType.Type"/>

[ top ]

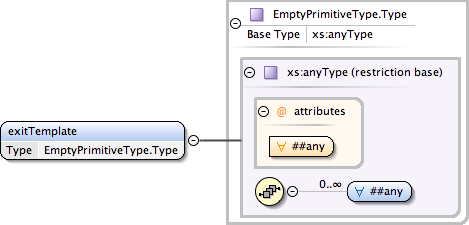

Element exitTemplate

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

EmptyPrimitiveType.Type

Properties

content:

complex

Used by

Complex Types

TemplateElse.Type, TemplateIf.Type, TemplateProcessing.Type

Source

<xs:element name="exitTemplate" type="EmptyPrimitiveType.Type"/>

[ top ]

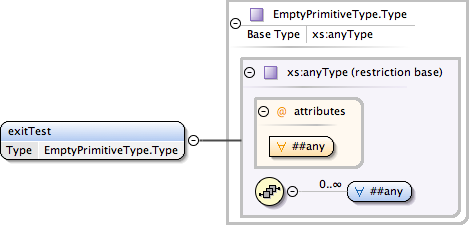

Element exitTest

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

EmptyPrimitiveType.Type

Properties

content:

complex

Used by

Complex Types

OutcomeElse.Type, OutcomeIf.Type, OutcomeProcessing.Type, OutcomeProcessingFragment.Type

Source

<xs:element name="exitTest" type="EmptyPrimitiveType.Type"/>

[ top ]

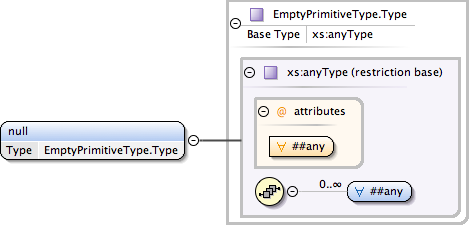

Element null

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

EmptyPrimitiveType.Type

Properties

content:

complex

Used by

Complex Types

AnyN.Type, BranchRule.Type, CustomOperator.Type, Equal.Type, EqualRounded.Type, FieldValue.Type, Index.Type, Inside.Type, Logic0toMany.Type, Logic1toMany.Type, LogicPair.Type, LogicSingle.Type, LookupOutcomeValue.Type, MathOperator.Type, NumericLogic1toMany.Type, OutcomeIf.Type, PatternMatch.Type, Repeat.Type, ResponseIf.Type, RoundTo.Type, SetValue.Type, StatsOperator.Type, StringMatch.Type, Substring.Type, TemplateConstraint.Type, TemplateDefault.Type, TemplateIf.Type

Source

<xs:element name="null" type="EmptyPrimitiveType.Type"/>

[ top ]

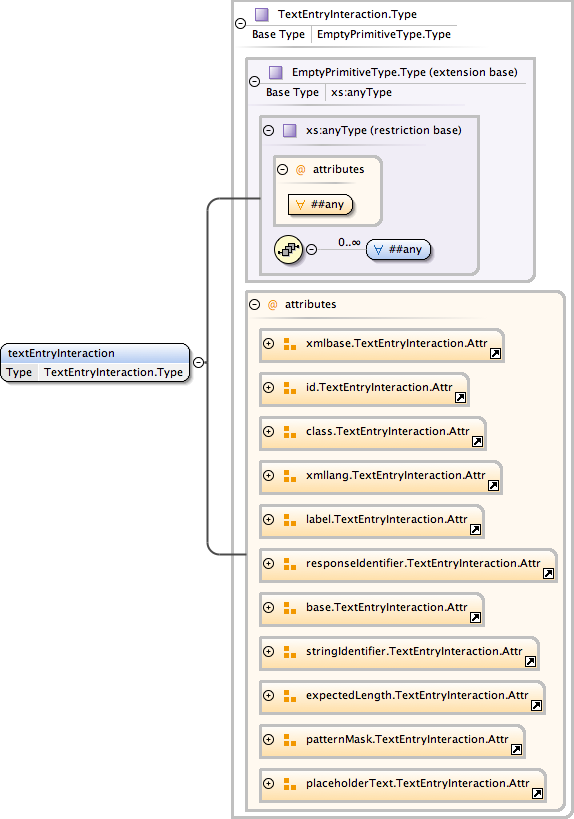

Element textEntryInteraction

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

TextEntryInteraction.Type

Type hierarchy

EmptyPrimitiveType.Type
- TextEntryInteraction.Type

Properties

content:

complex

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, HTMLText.Type, LI.Type, Q.Type, TDH.Type

Attributes

QName

Type

Fixed

Default

Use

Annotation

base

xs:int

optional

class

list of StringList.Type

optional

expectedLength

xs:int

optional

Identifier.Type

optional

label

String256.Type

optional

patternMask

xs:string

optional

placeholderText

xs:string

optional

responseIdentifier

Identifier.Type

required

stringIdentifier

Identifier.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="textEntryInteraction" type="TextEntryInteraction.Type"/>

[ top ]

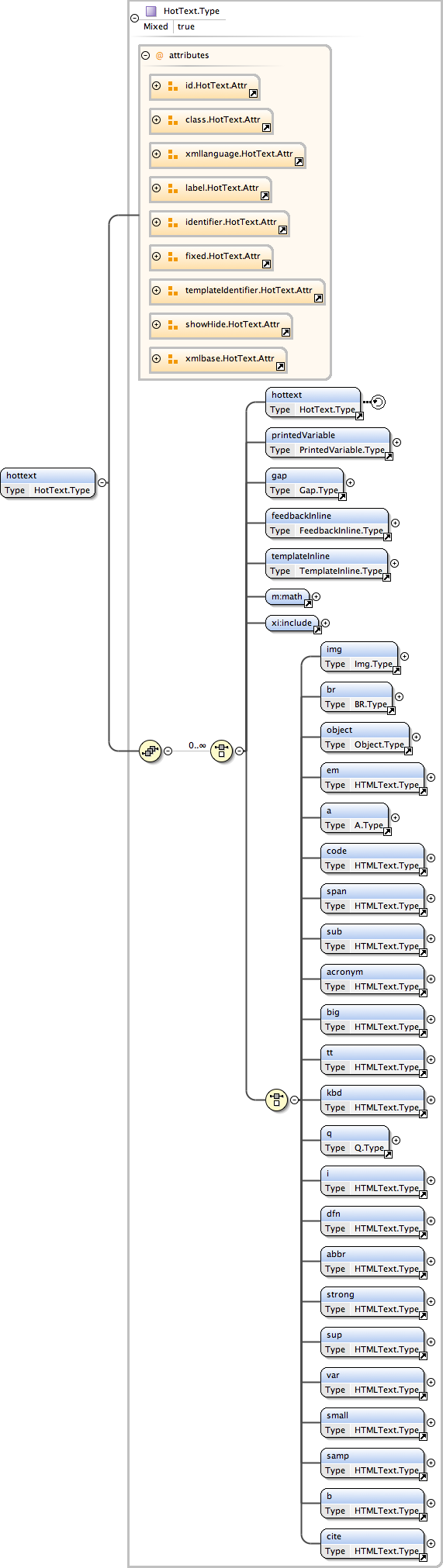

Element hottext

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HotText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, HTMLText.Type, HotText.Type, LI.Type, ModalFeedback.Type, Q.Type, TDH.Type, TemplateInline.Type, TestFeedback.Type

Model

(hottext | printedVariable | gap | feedbackInline | templateInline | math | xi:include | img | br | object | em | a | code | span | sub | acronym | big | tt | kbd | q | i | dfn | abbr | strong | sup | var | small | samp | b | cite)

Children

a, abbr, acronym, b, big, br, cite, code, dfn, em, feedbackInline, gap, hottext, i, img, kbd, math, object, printedVariable, q, samp, small, span, strong, sub, sup, templateInline, tt, var, xi:include

Instance

<hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </hottext>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

fixed

xs:boolean

false

optional

Identifier.Type

optional

identifier

Identifier.Type

required

label

String256.Type

optional

showHide

restriction of xs:string

show

optional

templateIdentifier

Identifier.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="hottext" type="HotText.Type"/>

[ top ]

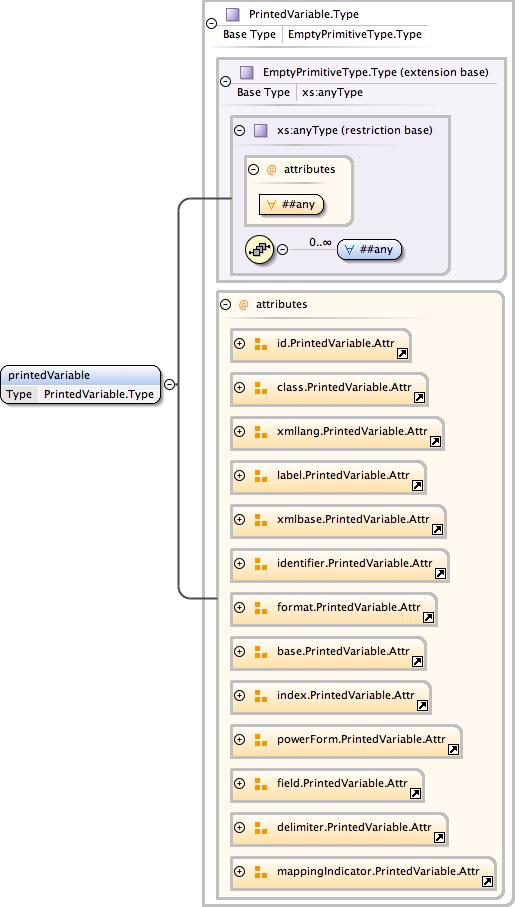

Element printedVariable

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

PrintedVariable.Type

Type hierarchy

EmptyPrimitiveType.Type
- PrintedVariable.Type

Properties

content:

complex

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, FeedbackBlock.Type, FeedbackInline.Type, GapText.Type, HTMLText.Type, HotText.Type, InfoControl.Type, InlineChoice.Type, LI.Type, ModalFeedback.Type, Q.Type, RubricBlock.Type, RubricBlockTemplateBlock.Type, RubricBlockTemplateInline.Type, SimpleAssociableChoice.Type, SimpleChoice.Type, TDH.Type, TemplateBlock.Type, TemplateBlockFeedbackBlock.Type, TemplateInline.Type, TestFeedback.Type

Attributes

QName

Type

Fixed

Default

Use

Annotation

base

union of(xs:integer, VariableString.Type)

optional

class

list of StringList.Type

optional

delimiter

String256.Type

;

optional

field

String256.Type

optional

format

String256.Type

optional

Identifier.Type

optional

identifier

Identifier.Type

required

index

union of(xs:integer, VariableString.Type)

optional

label

String256.Type

optional

mappingIndicator

String256.Type

optional

powerForm

xs:boolean

false

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="printedVariable" type="PrintedVariable.Type"/>

[ top ]

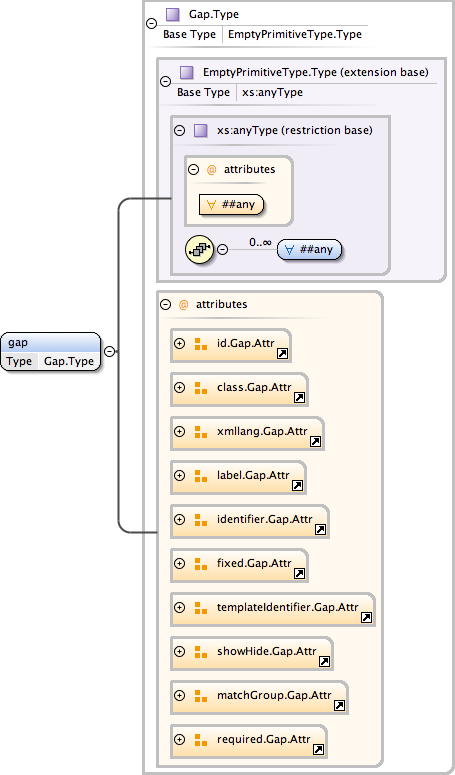

Element gap

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

Gap.Type

Type hierarchy

EmptyPrimitiveType.Type
- Gap.Type

Properties

content:

complex

Used by

Complex Types

A.Type, Caption.Type, DT.Type, HTMLText.Type, HotText.Type, Q.Type, TemplateInline.Type

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

fixed

xs:boolean

false

optional

Identifier.Type

optional

identifier

Identifier.Type

required

label

String256.Type

optional

matchGroup

list of IdentifierList.Type

optional

required

xs:boolean

false

optional

showHide

restriction of xs:string

show

optional

templateIdentifier

Identifier.Type

optional

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="gap" type="Gap.Type"/>

[ top ]

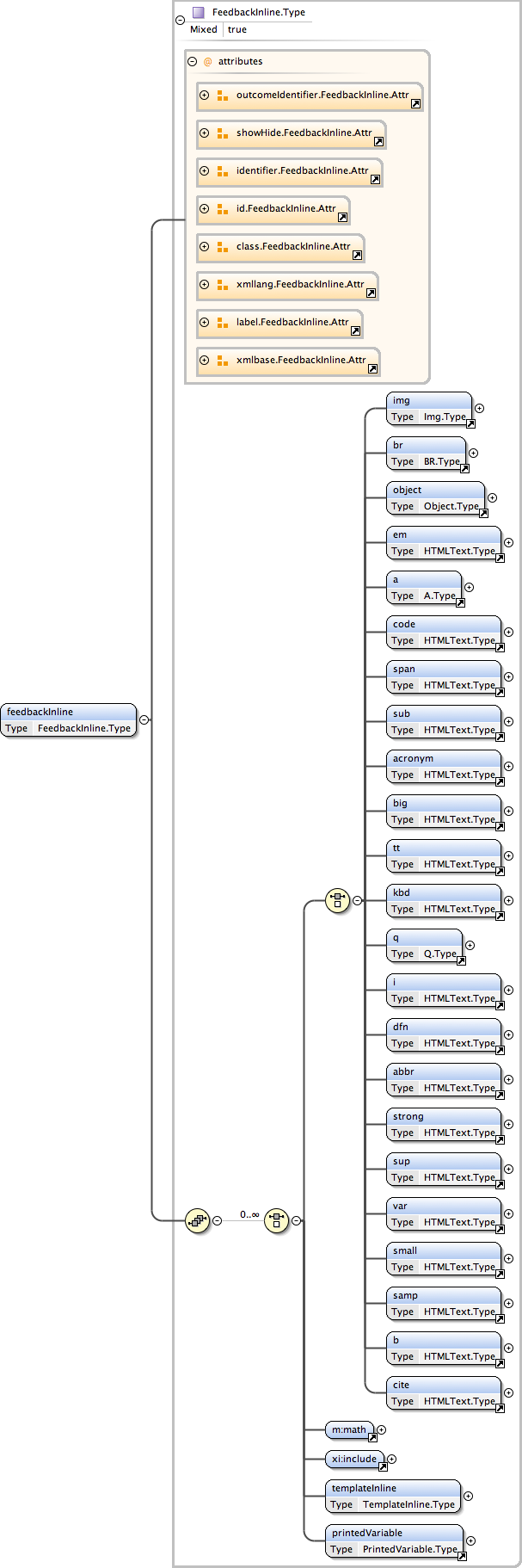

Element feedbackInline

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

FeedbackInline.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, HTMLText.Type, HotText.Type, InfoControl.Type, LI.Type, Q.Type, SimpleAssociableChoice.Type, SimpleChoice.Type, TDH.Type, TemplateInline.Type

Model

(img | br | object | em | a | code | span | sub | acronym | big | tt | kbd | q | i | dfn | abbr | strong | sup | var | small | samp | b | cite | math | xi:include | templateInline | printedVariable)

Children

a, abbr, acronym, b, big, br, cite, code, dfn, em, i, img, kbd, math, object, printedVariable, q, samp, small, span, strong, sub, sup, templateInline, tt, var, xi:include

Instance

<feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> </feedbackInline>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

identifier

Identifier.Type

required

label

String256.Type

optional

outcomeIdentifier

Identifier.Type

required

showHide

restriction of xs:string

show

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="feedbackInline" type="FeedbackInline.Type"/>

[ top ]

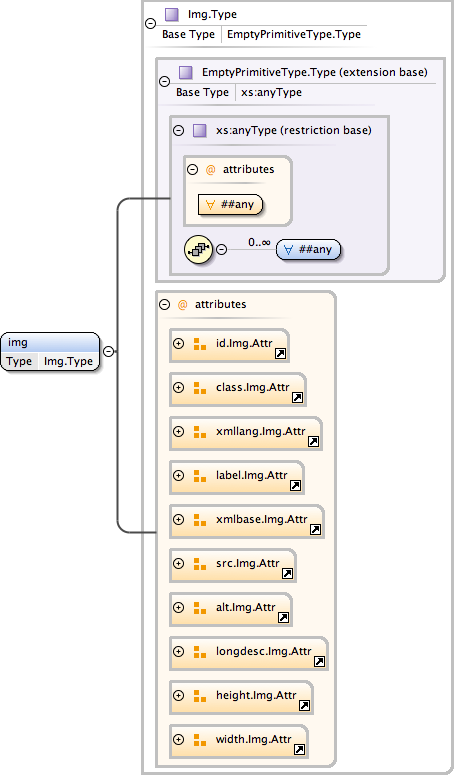

Element img

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

Img.Type

Type hierarchy

EmptyPrimitiveType.Type
- Img.Type

Properties

content:

complex

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, FeedbackBlock.Type, FeedbackInline.Type, HTMLText.Type, HotText.Type, InfoControl.Type, LI.Type, ModalFeedback.Type, Object.Type, Prompt.Type, Q.Type, RubricBlock.Type, RubricBlockTemplateBlock.Type, RubricBlockTemplateInline.Type, SimpleAssociableChoice.Type, SimpleChoice.Type, TDH.Type, TemplateBlock.Type, TemplateBlockFeedbackBlock.Type, TemplateInline.Type, TestFeedback.Type

Attributes

QName

Type

Fixed

Default

Use

Annotation

alt

xs:string

required

class

list of StringList.Type

optional

height

Length.Type

optional

Identifier.Type

optional

label

String256.Type

optional

longdesc

xs:anyURI

optional

src

xs:anyURI

required

width

Length.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="img" type="Img.Type"/>

[ top ]

Element br

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

BR.Type

Type hierarchy

EmptyPrimitiveType.Type
- BR.Type

Properties

content:

complex

Used by

Complex Types

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="br" type="BR.Type"/>

[ top ]

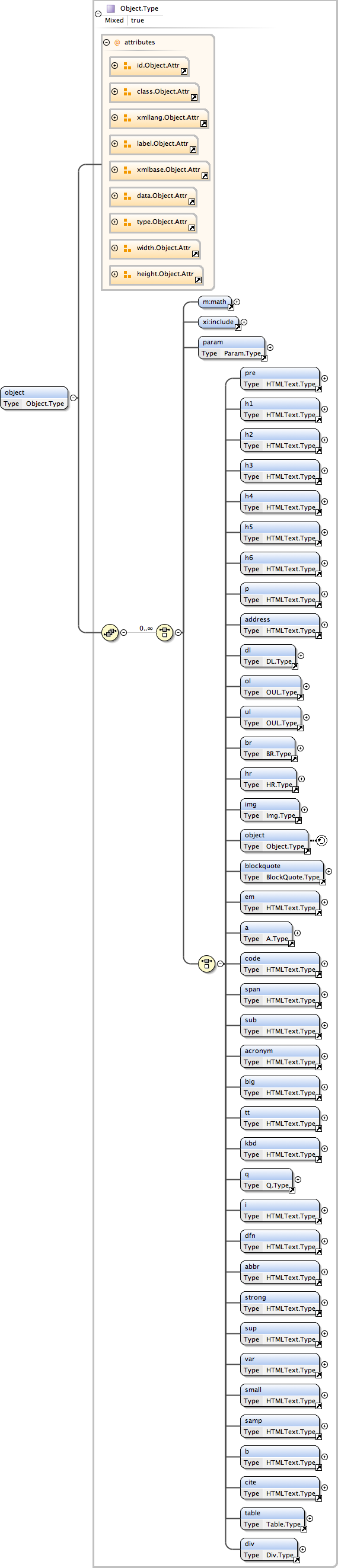

Element object

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

Object.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, DrawingInteraction.Type, FeedbackBlock.Type, FeedbackInline.Type, GapImg.Type, GraphicAssociateInteraction.Type, GraphicGapMatchInteraction.Type, GraphicOrderInteraction.Type, HTMLText.Type, HotText.Type, HotspotInteraction.Type, InfoControl.Type, LI.Type, MediaInteraction.Type, ModalFeedback.Type, Object.Type, PositionObjectInteraction.Type, PositionObjectStage.Type, Prompt.Type, Q.Type, RubricBlock.Type, RubricBlockTemplateBlock.Type, RubricBlockTemplateInline.Type, SelectPointInteraction.Type, SimpleAssociableChoice.Type, SimpleChoice.Type, TDH.Type, TemplateBlock.Type, TemplateBlockFeedbackBlock.Type, TemplateInline.Type, TestFeedback.Type

Model

(math | xi:include | param | pre | h1 | h2 | h3 | h4 | h5 | h6 | p | address | dl | ol | ul | br | hr | img | object | blockquote | em | a | code | span | sub | acronym | big | tt | kbd | q | i | dfn | abbr | strong | sup | var | small | samp | b | cite | table | div)

Children

a, abbr, acronym, address, b, big, blockquote, br, cite, code, dfn, div, dl, em, h1, h2, h3, h4, h5, h6, hr, i, img, kbd, math, object, ol, p, param, pre, q, samp, small, span, strong, sub, sup, table, tt, ul, var, xi:include

Instance

<object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <param name="" type="" value="" valuetype="">{1,1}</param> <pre xml:base="" class="" id="" label="" xml:lang="">{1,1}</pre> <h1 xml:base="" class="" id="" label="" xml:lang="">{1,1}</h1> <h2 xml:base="" class="" id="" label="" xml:lang="">{1,1}</h2> <h3 xml:base="" class="" id="" label="" xml:lang="">{1,1}</h3> <h4 xml:base="" class="" id="" label="" xml:lang="">{1,1}</h4> <h5 xml:base="" class="" id="" label="" xml:lang="">{1,1}</h5> <h6 xml:base="" class="" id="" label="" xml:lang="">{1,1}</h6> <p xml:base="" class="" id="" label="" xml:lang="">{1,1}</p> <address xml:base="" class="" id="" label="" xml:lang="">{1,1}</address> <dl xml:base="" class="" id="" label="" xml:lang="">{1,1}</dl> <ol xml:base="" class="" id="" label="" xml:lang="">{1,1}</ol> <ul xml:base="" class="" id="" label="" xml:lang="">{1,1}</ul> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <hr xml:base="" class="" id="" label="" xml:lang="">{1,1}</hr> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <blockquote xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</blockquote> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> <table xml:base="" class="" id="" label="" xml:lang="" summary="">{1,1}</table> <div xml:base="" class="" id="" label="" xml:lang="">{1,1}</div> </object>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

data

xs:string

required

height

Length.Type

optional

Identifier.Type

optional

label

String256.Type

optional

type

MimeType.Type

required

width

Length.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="object" type="Object.Type"/>

[ top ]

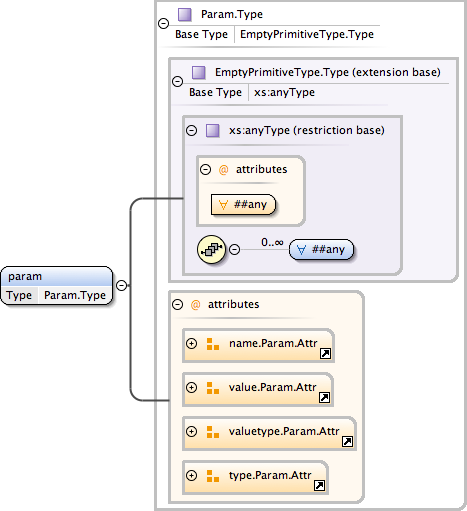

Element param

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

Param.Type

Type hierarchy

EmptyPrimitiveType.Type
- Param.Type

Properties

content:

complex

Used by

Complex Type

Object.Type

Attributes

QName	Type	Use
name	xs:string	required
type	MimeType.Type	optional
value	xs:string	required
valuetype	restriction of xs:string	required

Source

<xs:element name="param" type="Param.Type"/>

[ top ]

Element pre

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

BlockQuote.Type, DD.Type, Div.Type, FeedbackBlock.Type, GapMatchInteraction.Type, HotTextInteraction.Type, InfoControl.Type, ItemBody.Type, LI.Type, ModalFeedback.Type, Object.Type, Prompt.Type, RubricBlock.Type, RubricBlockTemplateBlock.Type, SimpleAssociableChoice.Type, SimpleChoice.Type, TDH.Type, TemplateBlock.Type, TemplateBlockFeedbackBlock.Type, TestFeedback.Type

Model

(textEntryInteraction | hottext | printedVariable | gap | feedbackInline | templateInline | inlineChoiceInteraction | endAttemptInteraction | customInteraction | math | xi:include | img | br | object | em | a | code | span | sub | acronym | big | tt | kbd | q | i | dfn | abbr | strong | sup | var | small | samp | b | cite)

Children

a, abbr, acronym, b, big, br, cite, code, customInteraction, dfn, em, endAttemptInteraction, feedbackInline, gap, hottext, i, img, inlineChoiceInteraction, kbd, math, object, printedVariable, q, samp, small, span, strong, sub, sup, templateInline, textEntryInteraction, tt, var, xi:include

Instance

<pre xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </pre>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="pre" type="HTMLText.Type"/>

[ top ]

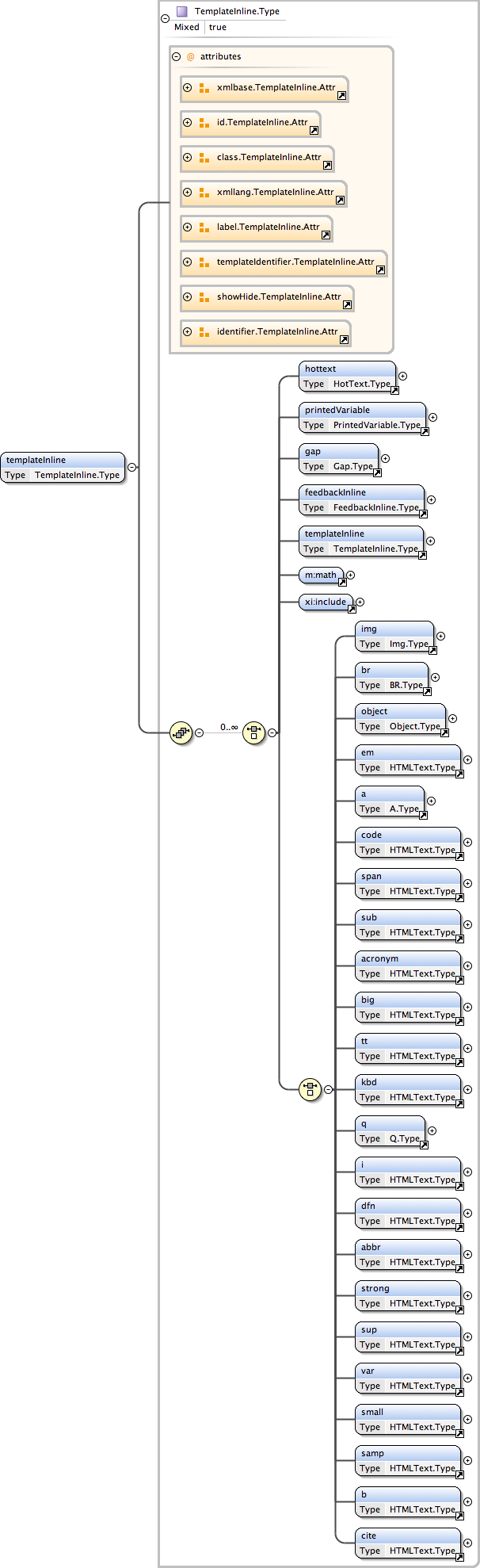

Element templateInline

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

TemplateInline.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </templateInline>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

identifier

Identifier.Type

required

label

String256.Type

optional

showHide

restriction of xs:string

show

optional

templateIdentifier

Identifier.Type

required

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="templateInline" type="TemplateInline.Type"/>

[ top ]

Element em

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<em xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </em>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="em" type="HTMLText.Type"/>

[ top ]

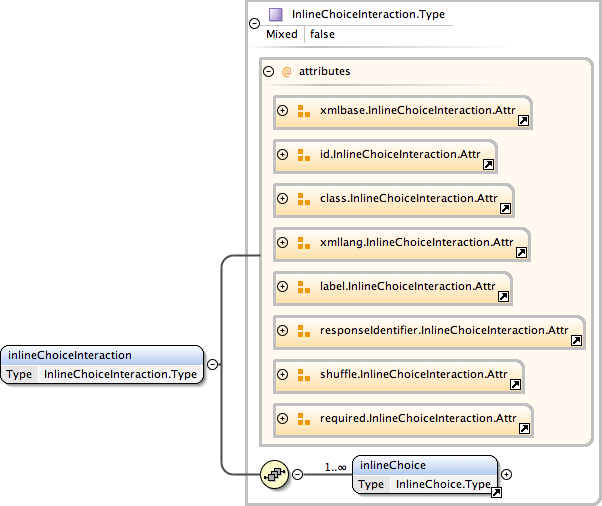

Element inlineChoiceInteraction

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

InlineChoiceInteraction.Type

Properties

content:	complex
mixed:	false

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, HTMLText.Type, LI.Type, Q.Type, TDH.Type

Model

inlineChoice+

Children

inlineChoice

Instance

<inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1"> <inlineChoice class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,unbounded}</inlineChoice> </inlineChoiceInteraction>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

required

xs:boolean

false

optional

responseIdentifier

Identifier.Type

required

shuffle

xs:boolean

false

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="inlineChoiceInteraction" type="InlineChoiceInteraction.Type"/>

[ top ]

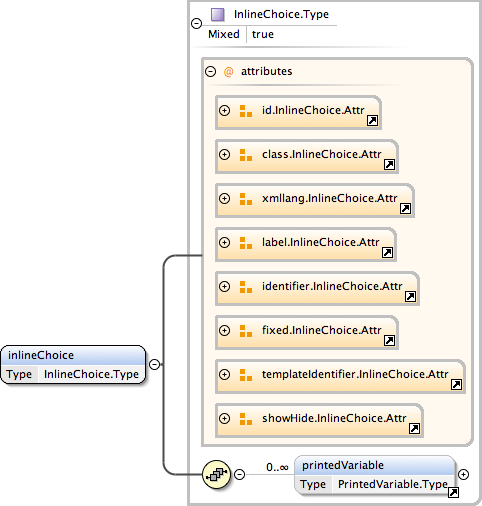

Element inlineChoice

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

InlineChoice.Type

Properties

content:	complex
mixed:	true

Used by

Complex Type

InlineChoiceInteraction.Type

Model

printedVariable*

Children

printedVariable

Instance

<inlineChoice class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1"> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{0,unbounded}</printedVariable> </inlineChoice>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

fixed

xs:boolean

false

optional

Identifier.Type

optional

identifier

Identifier.Type

required

label

String256.Type

optional

showHide

restriction of xs:string

show

optional

templateIdentifier

Identifier.Type

optional

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="inlineChoice" type="InlineChoice.Type"/>

[ top ]

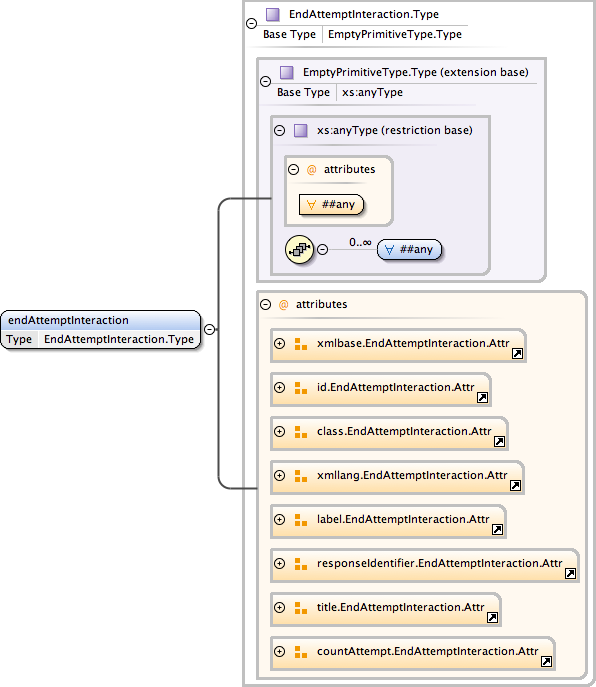

Element endAttemptInteraction

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

EndAttemptInteraction.Type

Type hierarchy

EmptyPrimitiveType.Type
- EndAttemptInteraction.Type

Properties

content:

complex

Used by

Complex Types

A.Type, Caption.Type, DD.Type, DT.Type, Div.Type, HTMLText.Type, LI.Type, Q.Type, TDH.Type

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

countAttempt

xs:boolean

optional

Identifier.Type

optional

label

String256.Type

optional

responseIdentifier

Identifier.Type

required

title

xs:string

required

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="endAttemptInteraction" type="EndAttemptInteraction.Type"/>

[ top ]

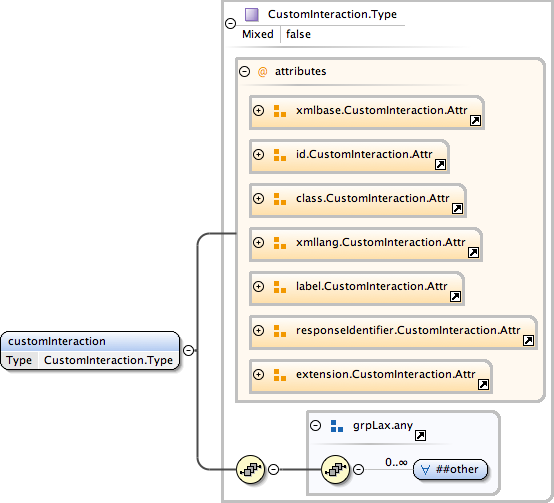

Element customInteraction

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

CustomInteraction.Type

Properties

content:	complex
mixed:	false

Used by

Complex Types

A.Type, BlockQuote.Type, Caption.Type, DD.Type, DT.Type, Div.Type, FeedbackBlock.Type, HTMLText.Type, ItemBody.Type, LI.Type, Q.Type, TDH.Type

Model

ANY element from ANY namespace OTHER than 'http://www.imsglobal.org/xsd/imsqti_v2p1'

Attributes

QName

Type

Fixed

Default

Use

Annotation

ANY attribute from ANY namespace OTHER than 'http://www.imsglobal.org/xsd/imsqti_v2p1'

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

responseIdentifier

Identifier.Type

required

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="customInteraction" type="CustomInteraction.Type"/>

[ top ]

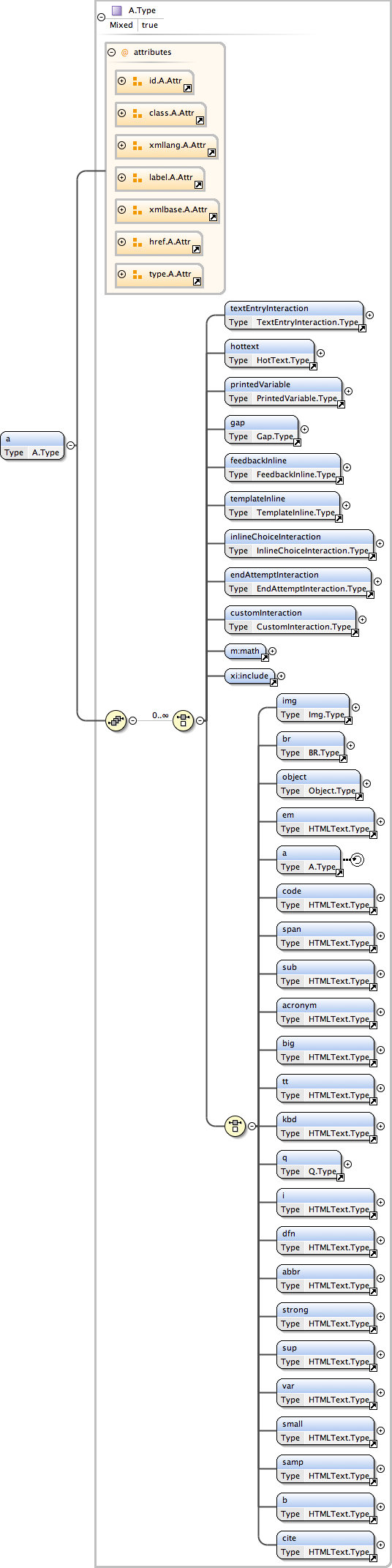

Element a

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

A.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<a xml:base="" class="" href="" id="" label="" xml:lang="" type="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </a>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

href

xs:anyURI

required

Identifier.Type

optional

label

String256.Type

optional

type

MimeType.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="a" type="A.Type"/>

[ top ]

Element code

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<code xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </code>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="code" type="HTMLText.Type"/>

[ top ]

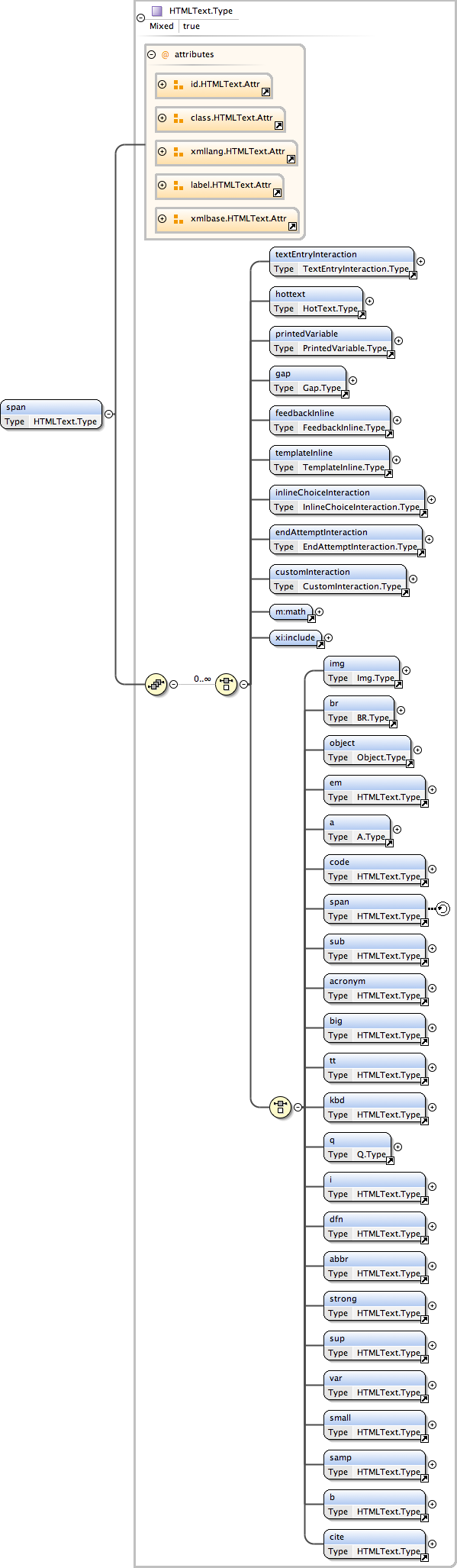

Element span

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<span xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </span>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="span" type="HTMLText.Type"/>

[ top ]

Element sub

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<sub xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </sub>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="sub" type="HTMLText.Type"/>

[ top ]

Element acronym

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<acronym xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </acronym>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="acronym" type="HTMLText.Type"/>

[ top ]

Element big

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<big xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </big>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="big" type="HTMLText.Type"/>

[ top ]

Element tt

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<tt xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </tt>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="tt" type="HTMLText.Type"/>

[ top ]

Element kbd

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<kbd xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </kbd>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="kbd" type="HTMLText.Type"/>

[ top ]

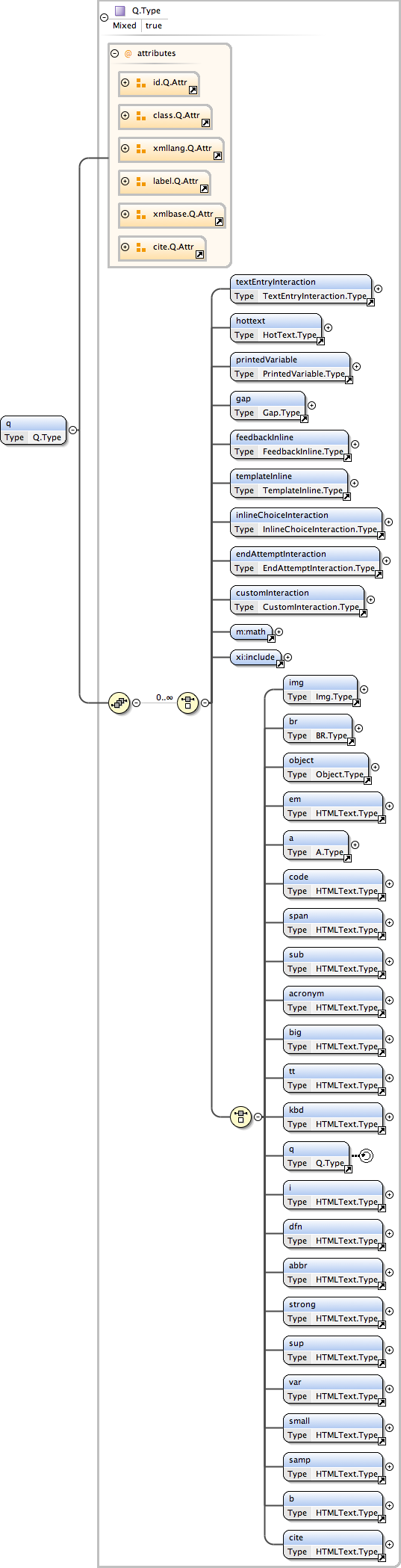

Element q

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

Q.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<q xml:base="" cite="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </q>

Attributes

QName

Type

Fixed

Default

Use

Annotation

cite

xs:anyURI

optional

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="q" type="Q.Type"/>

[ top ]

Element i

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<i xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </i>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="i" type="HTMLText.Type"/>

[ top ]

Element dfn

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<dfn xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </dfn>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="dfn" type="HTMLText.Type"/>

[ top ]

Element abbr

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<abbr xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </abbr>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="abbr" type="HTMLText.Type"/>

[ top ]

Element strong

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true

Used by

Complex Types

Model

Children

Instance

<strong xml:base="" class="" id="" label="" xml:lang="" xmlns="http://www.imsglobal.org/xsd/imsqti_v2p1" xmlns:m="http://www.w3.org/1998/Math/MathML" xmlns:xi="http://www.w3.org/2001/XInclude"> <textEntryInteraction xml:base="" base="10" class="" expectedLength="" id="" label="" xml:lang="" patternMask="" placeholderText="" responseIdentifier="" stringIdentifier="">{1,1}</textEntryInteraction> <hottext xml:base="" class="" fixed="false" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</hottext> <printedVariable xml:base="" base="10" class="" delimiter=";" field="" format="" id="" identifier="" index="" label="" xml:lang="" mappingIndicator="=" powerForm="false">{1,1}</printedVariable> <gap class="" fixed="false" id="" identifier="" label="" xml:lang="" matchGroup="" required="false" showHide="show" templateIdentifier="">{1,1}</gap> <feedbackInline xml:base="" class="" id="" identifier="" label="" xml:lang="" outcomeIdentifier="" showHide="show">{1,1}</feedbackInline> <templateInline xml:base="" class="" id="" identifier="" label="" xml:lang="" showHide="show" templateIdentifier="">{1,1}</templateInline> <inlineChoiceInteraction xml:base="" class="" id="" label="" xml:lang="" required="false" responseIdentifier="" shuffle="false">{1,1}</inlineChoiceInteraction> <endAttemptInteraction xml:base="" class="" countAttempt="" id="" label="" xml:lang="" responseIdentifier="" title="">{1,1}</endAttemptInteraction> <customInteraction xml:base="" class="" id="" label="" xml:lang="" responseIdentifier="">{1,1}</customInteraction> <m:math altimg="" alttext="" baseline="" class="" display="inline" height="" xlink:href="" id="" macros="" name="" overflow="scroll" style="" type="" width="" xref="">{1,1}</m:math> <xi:include accept="" accept-language="" encoding="" href="" parse="xml" xpointer="">{1,1}</xi:include> <img alt="" xml:base="" class="" height="" id="" label="" xml:lang="" longdesc="" src="" width="">{1,1}</img> <br xml:base="" class="" id="" label="" xml:lang="">{1,1}</br> <object xml:base="" class="" data="" height="" id="" label="" xml:lang="" type="" width="">{1,1}</object> <em xml:base="" class="" id="" label="" xml:lang="">{1,1}</em> <a xml:base="" class="" href="" id="" label="" xml:lang="" type="">{1,1}</a> <code xml:base="" class="" id="" label="" xml:lang="">{1,1}</code> <span xml:base="" class="" id="" label="" xml:lang="">{1,1}</span> <sub xml:base="" class="" id="" label="" xml:lang="">{1,1}</sub> <acronym xml:base="" class="" id="" label="" xml:lang="">{1,1}</acronym> <big xml:base="" class="" id="" label="" xml:lang="">{1,1}</big> <tt xml:base="" class="" id="" label="" xml:lang="">{1,1}</tt> <kbd xml:base="" class="" id="" label="" xml:lang="">{1,1}</kbd> <q xml:base="" cite="" class="" id="" label="" xml:lang="">{1,1}</q> <i xml:base="" class="" id="" label="" xml:lang="">{1,1}</i> <dfn xml:base="" class="" id="" label="" xml:lang="">{1,1}</dfn> <abbr xml:base="" class="" id="" label="" xml:lang="">{1,1}</abbr> <strong xml:base="" class="" id="" label="" xml:lang="">{1,1}</strong> <sup xml:base="" class="" id="" label="" xml:lang="">{1,1}</sup> <var xml:base="" class="" id="" label="" xml:lang="">{1,1}</var> <small xml:base="" class="" id="" label="" xml:lang="">{1,1}</small> <samp xml:base="" class="" id="" label="" xml:lang="">{1,1}</samp> <b xml:base="" class="" id="" label="" xml:lang="">{1,1}</b> <cite xml:base="" class="" id="" label="" xml:lang="">{1,1}</cite> </strong>

Attributes

QName

Type

Fixed

Default

Use

Annotation

class

list of StringList.Type

optional

Identifier.Type

optional

label

String256.Type

optional

xml:base

xs:anyURI

optional

<div> <h3>base (as an attribute name)</h3> <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p> <p>See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p> </div>

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

Source

<xs:element name="strong" type="HTMLText.Type"/>

[ top ]

Element sup

Namespace

http://www.imsglobal.org/xsd/imsqti_v2p1

Diagram

Type

HTMLText.Type

Properties

content:	complex
mixed:	true
