IMS GLC Group Management Service WSDL/XSD Binding

Version 2.0 Final Release Specification

Final1.0


Date Issued: 30 June 2011

Latest version: /lis/

IPR and Distribution Notices

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the specification set forth in this document, and to provide supporting documentation.

IMS takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS's procedures with respect to rights in IMS specifications can be found at the IMS Intellectual Property Rights web page: /imsipr_policyFinal.pdf.

Copyright © 2011 IMS Global Learning Consortium. All Rights Reserved.

If you wish to copy or distribute this document, you must complete a valid Registered User license registration with IMS and receive an email from IMS granting the license to distribute the specification. To register, follow the instructions on the IMS website: /specificationdownload.cfm

This document may be copied and furnished to others by Registered Users who have registered on the IMS website provided that the above copyright notice and this paragraph are included on all such copies. However, this document itself may not be modified in any way, such as by removing the copyright notice or references to IMS, except as needed for the purpose of developing IMS specifications, under the auspices of a chartered IMS project group.

Use of this specification to develop products or services is governed by the license with IMS found on the IMS website: /license.html

The limited permissions granted above are perpetual and will not be revoked by IMS or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTER'S OWN RISK, AND NEITHER THE CONSORTIUM, NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.


Table of Contents

  1. Introduction
    1. Scope and Context
    2. Structure of this Document
    3. Nomenclature
    4. References

  2. Platform Specific Model of the Binding
    1. Service Description
    2. Data for the Service Operations
    3. Group Data Model
    4. File-based Exchange Data Model

  3. Application of the Binding Guidelines
  4. WSDL File Documentation
    1. Overview
    2. Messages

  5. XSD File Documentation
    1. Service Data Model XSD Documentation
    2. File Data Model XSD Documentation

  6. Binding of the Vocabularies
  7. Appendix A - Listing of the WSDLs
  8. Appendix B - Listing of the XSDs
  9. Appendix C - Vocabulary VDEX Instance File Listings
  10. Appendix D - Example SOAP Messages
  11. About This Document
  12. Revision History

1. Introduction

This document is a part of the IMS GLC Group Management Service (GMS) v2.0 specification. The binding details how the Group Management Service Information Model is realised as a Web Service; in the form of a Web Services Description Language (WSDL) file. The GMS binding is contained in a set of WSDL, XSD and vocabulary files. The vocabulary files are instances of the IMS Vocabulary Definition Exchange specification [VDEX, 04a], [VDEX, 04b]. The IMS GLC Learning Information Services (LIS) Best Practice and Implementation Guide [LIS, 11b] provides non-normative guidance on how to use the Binding and Information Model. For a conceptual overview of the LIS Specification, please see the overall services description [LIS, 11a]. For a discussion of potential applications, see the Best Practice Guide.

1.1 Scope and Context

The IMS GLC GMS WSDL Binding v1.0 is used in conjunction with the following documents:

  1. IMS GLC Group Management Service Information Model v1.0 [GMS, 11] � the behaviour and data model definition of the Group Management Service;
  2. IMS GLC Learning Information Services Best Practice and Implementation Guide v1.0 [LIS, 11b] � key information on how to adopt and implement the specification.

As such the Group Management Service specification supersedes the original Enterprise Services specifications:

  1. IMS GLC Group Management Service Information Model Final Specification v1.0 [GMS, 04a];
  2. IMS GLC Group Management Service WSDL Binding Final Specification v1.0 [GMS, 04b].

This WSDL binding takes the Group Management Service Information Model and produces an encoding of that description in WSDL. This WSDL binding is generated as recommended by the IMS GLC General Web Services documents [GWS, 06a], [GWS, 06b]. The WSDL is created using the IMC GLC Binding Auto-generation Tool-kit (I-BAT) [I-BAT, 06].

1.2 Structure of this Document

The structure of this document is:

2. Platform Specific Model of the Binding The description platform specific models in the form of the IMS GLC UML-Profile service/data models representation of the IMS GLC GMS specification information model. This representation is used by the IMS GLC I-BAT tool to auto-generate the corresponding WSDL/XSDs;
3. Application of the Binding Guidelines Explanation of how the platform specific model is realised as the WSDL/XSD binding. This addresses how the information model is realised as a Web Service;
4. WSDL File Documentation The description of the Web Services used to realise the service model components of the binding. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 12.2 product;
5. XSD File Documentation The description of the elements used within the data model components of the binding. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 12.2 product;
6. Vocabulary Binding Using VDEX Instances Contains the description of how the set of external vocabulary files realised as VDEX files;
Appendix A - Listing of the WSDL Files This is the full listing of the GMS WSDL files;
Appendix B - Listing of the XSD Files This is the full listing of the GMS XSD files;
Appendix C - Vocabulary VDEX Instance File Listings This is the full listing of the set of external vocabulary VDEX instance files.
Appendix D - Examples SOAP Messages Examples of the SOAP messages that are exchanged to realise the service.

1.3 Nomenclature

GMS Group Management Service
HTTP HyperText Transfer Protocol
I-BAT IMS GLC Binding Auto-generation Tool-kit
IMS GLC IMS Global Learning Consortium
LIS Learning Information Services
MDA Model Driven Architecture
PIM Protocol Independent Model
PSM Platform Specific Model
UML Unified Modelling Language
VDEX Vocabulary Definition Exchange
W3C World Wide Web Consortium
WSDL Wed Services Description Language
XMI XML Meta-data Interchange
XML Extensible Mark-up Language
XSD XML Schema Definition
XSL Extensible Stylesheet Language
XSLT XSL Transformations

1.4 References

[GMS, 04a] IMS GLC Group Management Services Information Model Specification Final Release v1.0, C.Vento and C.Smythe, IMS Global Learning Consortium, June 2004.
[GMS, 04b] IMS GLC Group Management Services WSDL Binding Specification Final Release v1.0, C.Vento and C.Smythe, IMS Global Learning Consortium, June 2004.
[GMS, 11] IMS GLC Group Management Services v2.0 Information Model Specification Final Release v1.0, L.Feng, B.Lee and C.Smythe, IMS Global Learning Consortium, June 2011.
[GWS, 06a] IMS GLC General Web Services Base Profile Specification Final Release v1.0, C.Schroeder, J.Simon and C.Smythe, IMS Global Learning Consortium, January 2006.
[GWS, 06b] IMS GLC General Web Services WSDL Binding Guidelines Final Release v1.0, C.Schroeder, J.Simon and C.Smythe, IMS Global Learning Consortium, January 2006.
[I-BAT, 06] IMS Binding Auto-generation Toolkit Manual v1.0, C.Smythe, IMS Global Learning Consortium, July 2006.
[LIS, 11a] IMS GLC Learning Information Services v2.0 Specification Final Release v1.0, L.Feng, B.Lee and C.Smythe, IMS Global Learning Consortium, June 2011.
[LIS, 11b] IMS GLC Learning Information Services v2.0 Best Practice and Implementation Guide Final Release v1.0, L.Feng, B.Lee and C.Smythe, IMS Global Learning Consortium, June 2011.
[SDN11, 06] IMS GLC Specification Note 11: Vocabulary Definition, Registration & Maintenance Procedures, C.Smythe, IMS Global Learning Consortium, October 2006.
[VDEX, 04a] IMS Vocabulary Definition Exchange Information Model Specification Final Release v1.0, A.Cooper, IMS Global Learning Consortium, February 2004.
[VDEX, 04b] IMS Vocabulary Definition Exchange XML Binding Specification Final Release v1.0, A.Cooper, IMS Global Learning Consortium, February 2004.

2. Platform Specific Model of the Binding

2.1 Service Description

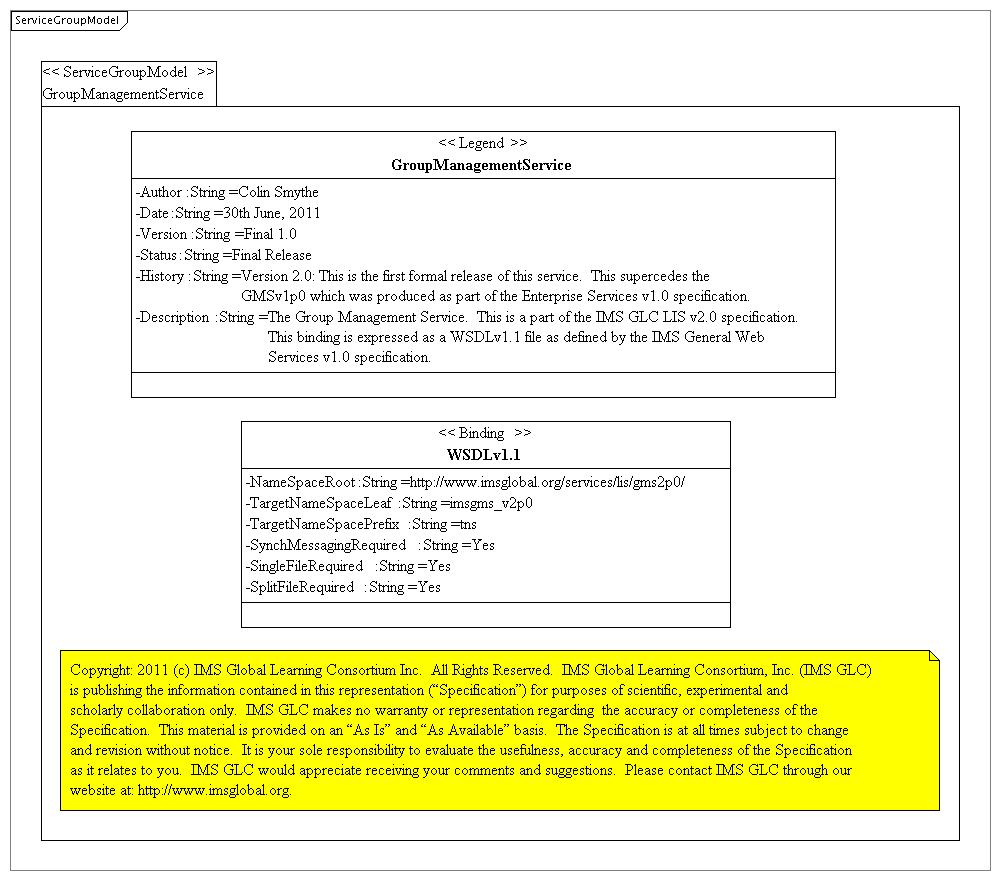

Figure 2.1 is the PSM of the service group model description for the GMS. This information is used to establish the mapping to the binding flavors of WSDL.

Figure 2.1 The PSM representation of the service group model description for the GMS.

Figure 2.2 is the PSM of the service model description for the GMS. The PSM is derived from the Platform Independent Model that was documented within the information model for the GMS specification [GMS, 11].

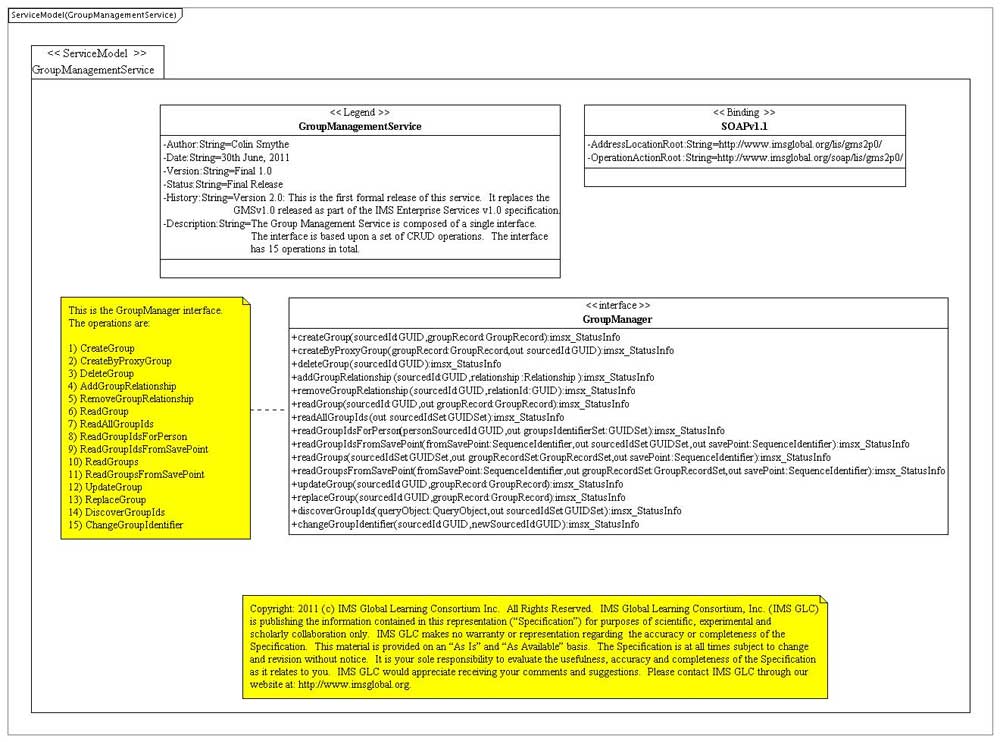

Figure 2.2 The PSM representation of the service model description for the GMS.

2.2 Data for the Service Operations

The data model for the service opertaions is shown in Figure 2.3 and 2.4. Figure 2.3 shows the data models for the set of parameters. Figure 2.4 is the data model for the Status Information and other WSDL-specific binding data structures.

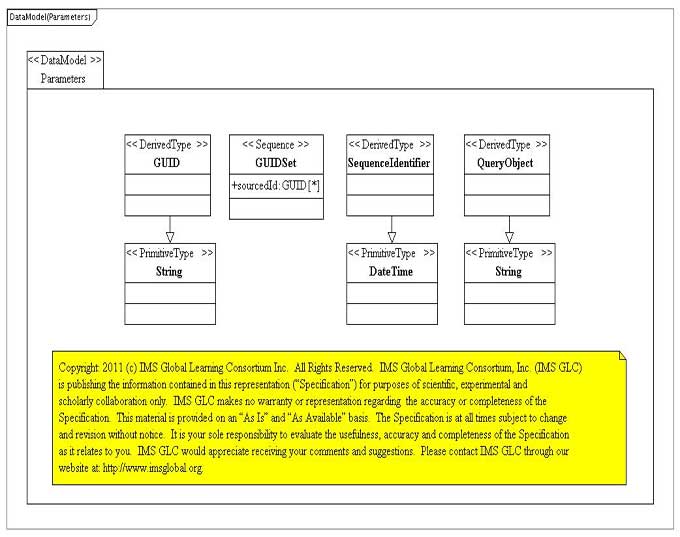

Figure 2.3 The PSM representation of the parameters data model description for the GMS.

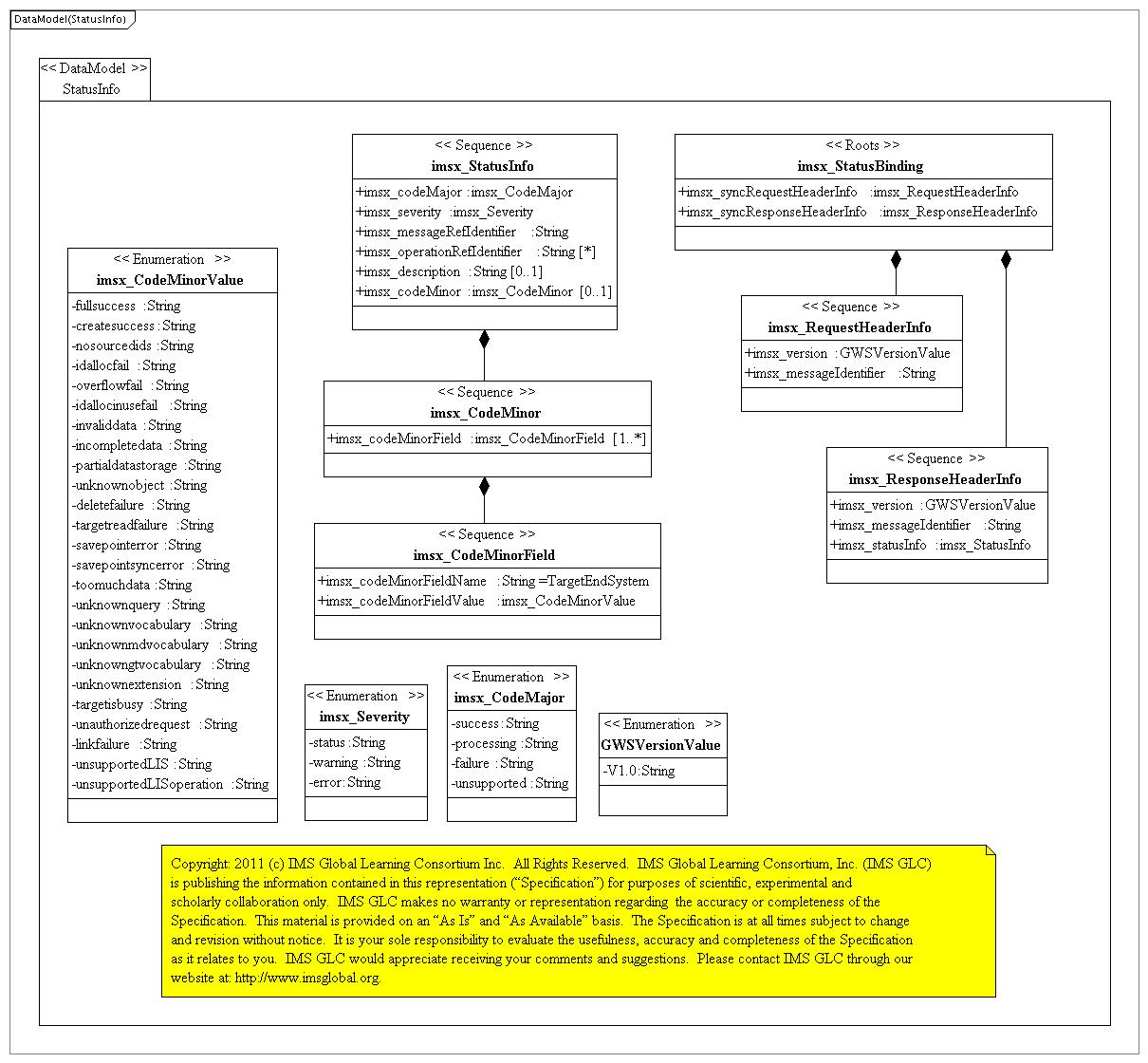

Figure 2.4 The PSM representation of the status information data model description for the GMS.

2.3 Group Data Model

The PSM for the Group data models are shown in Figures 2.5 and 2.6. Figure 2.5 is the Group data model and Figure 2.6 contains the set of common data model classes.

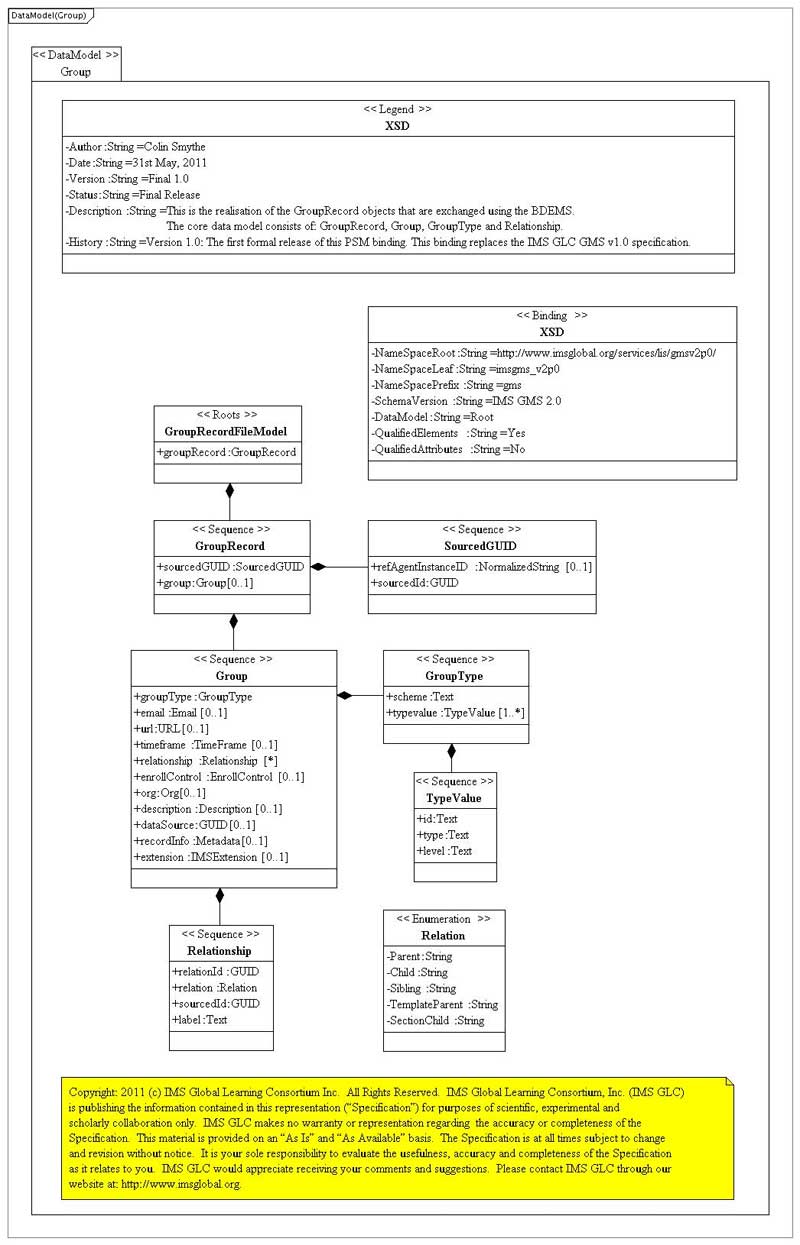

Figure 2.5 The PSM representation of the Group data model description for the GMS.

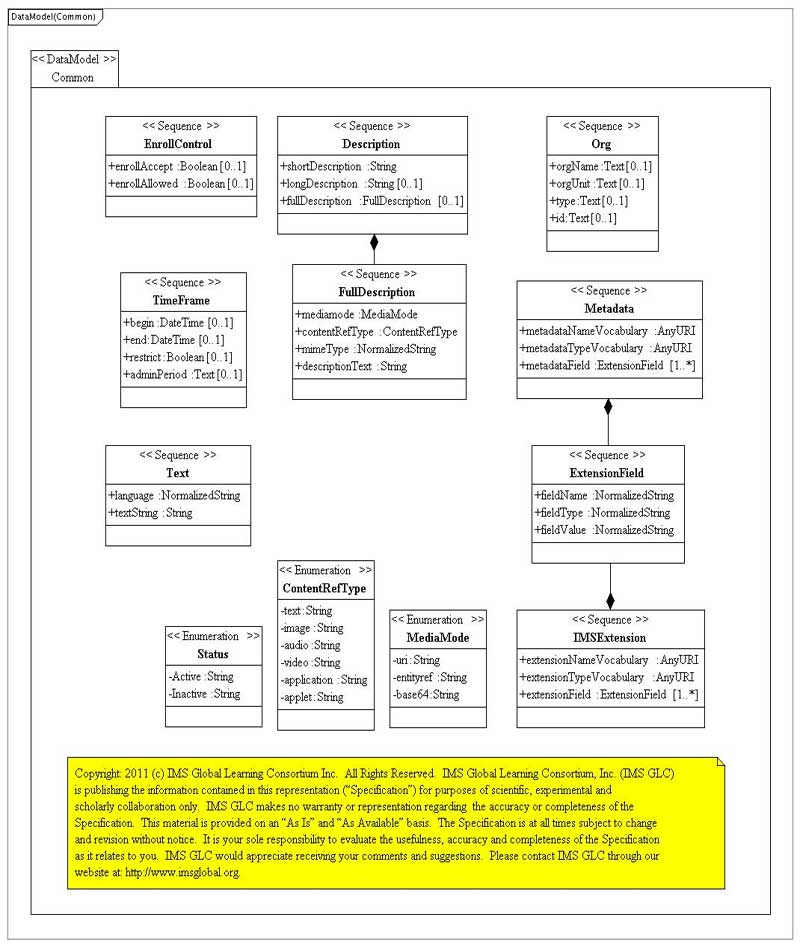

Figure 2.6 The PSM representation of the common data models description for the GMS.

2.4 File-based Data Exchange Data Model

The PSM for the file-based Group data models are shown in Figures 2.7 and 2.8. Figure 2.7 is the GroupRecord data model and Figure 2.8 contains the set of common data model classes.

Figure 2.7 The PSM representation of the GroupRecord data model description for file storage in the GMS.

Figure 2.8 The PSM representation of the common data model descriptions for file storage in the GMS.


3. Application of the Binding Guidelines

The WSDL/XSD bindings have been generated using the methodology documented in [GWS 06a] and [GWS, 06b]. Only the synchronous service binding has been created. The binding files are available in two forms:

  • A single combined WSDL/XSD�� GroupManagementServiceSyncSingle.wsdl;
  • Separated WSDL and XSD files � GroupManagementServiceSyncWSDL.wsdl and GroupManagementServiceSyncXSD.xsd respectively.

It is recommended that only the combined form is used (many WSDL-based code generation tools do not process the 'import' instructions).

The mapping between the PIM and PSM descriptions is detailed in Table 3.1.

Table 3.1 Mapping between the PIM, PSM and XSD descriptions for the data models.

PSM Reference PIM Reference XSD Reference
Name UML Type Figure Type Table Name Type

GroupRecordSet

Class 2.5
GroupRecordSet
GroupRecordSet.Type ComplexType
  • groupRecord
Attribute 2.5 GroupRecord groupRecord Element

GroupRecord

Class 2.5 5.3 GroupRecord.Type ComplexType
  • sourcedGUID
Attribute 2.5 SourcedGUID 5.4 sourcedGUID Element
  • group
Attribute 2.5 Group 5.10 group Element

SourcedGUID

Class 2.5 5.5 SourcedGUID.Type ComplexType
  • refAgentInstanceId
Attribute 2.5 NormalizedString 5.6 refAgentInstanceId Element
  • sourcedId
Attribute 2.5 SourcedId 5.7 sourcedId Element

Group

Class 2.5 5.10 Group.Type ComplexType
  • groupType
Attribute 2.5 GroupType 5.11 groupType Element
  • email
Attribute 2.5 Email 5.12 email Element
  • url
Attribute 2.5 URL 5.13 url Element
  • timeFrame
Attribute 2.5 TimeFrame 5.14 timeFrame Element
  • relationship
Attribute 2.5 Relationship 5.15 relationship Element
  • enrollControll
Attribute 2.5 EnrollControll 5.16 enrollControll Element
  • org
Attribute 2.5 Org 5.17 org Element
  • description
Attribute 2.5 Description 5.18 description Element
  • dataSource
Attribute 2.5 GUID 5.19 dataSource Element
  • recordInfo
Attribute 2.5 Metadata 5.20 recordInfo Element
  • extension
Attribute 2.5 IMSExtension 5.21 extension Element

GroupType

Class 2.5 5.22 GroupType.Type ComplexType
  • scheme
Attribute 2.5 Text 5.23 scheme Element
  • typeValue
Attribute 2.5 TypeValue 5.24 typeValue Element

TypeValue

Class 2.5 5.25 TypeValue.Type ComplexType
  • id
Attribute 2.5 LUID 5.26 id Element
  • type
Attribute 2.5 Text 5.27 type Element
  • level
Attribute 2.5 Text 5.28 level Element

Relationship

Class 2.5 5.29 Relationship.Type ComplexType
  • relationId
Attribute 2.5 GUID 5.30 relationId Element
  • relation
Attribute 2.5 Enumerated 5.31 relation Element
  • sourcedId
Attribute 2.5 GUID 5.32 sourcedId Element
  • label
Attribute 2.5 Text 5.33 label Element

EnrollControll

Class 2.6 5.34 EnrollControll.Type ComplexType
  • enrollAccept
Attribute 2.6 Boolean 5.35 enrollAccept Element
  • enrollAllowed
Attribute 2.6 Boolean 5.36 enrollAllowed Element

Org

Class 2.6 5.37 Org.Type ComplexType
  • orgName
Attribute 2.6 Text 5.38 orgName Element
  • orgUnit
Attribute 2.6 Text 5.39 orgUnit Element
  • type
Attribute 2.6 Text 5.40 type Element
  • id
Attribute 2.6 Text 5.41 id Element

TimeFrame

Class 2.6 5.51 TimeFrame.Type ComplexType
  • begin
Attribute 2.6 DateTime 5.52 begin Element
  • end
Attribute 2.6 DateTime 5.53 end Element
  • restrict
Attribute 2.6 Boolean 5.54 restrict Element
  • adminPeriod
Attribute 2.6 Text 5.55 adminPeriod Element

Description

Class 2.6 5.42 Description.Type ComplexType
  • shortDescription
Attribute 2.6 Text 5.43 shortDescription Element
  • longDescription
Attribute 2.6 Text 5.44 longDescription Element
  • fullDescription
Attribute 2.6 FullDescription 5.45 fullDescription Element

FullDescription

Class 2.6 5.46 FullDescription.Type ComplexType
  • mediamode
Attribute 2.6 Enumerated 5.47 mediamode Element
  • contentRefType
Attribute 2.6 Enumerated 5.48 contentRefType Element
  • mimeType
Attribute 2.6 NormailsedString 5.49 mimeType Element
  • descriptionText
Attribute 2.6 Text 5.50 description Element

Metadata

Class 2.6 5.59 Metadata.Type ComplexType
  • metadataNameVocabulary
Attribute 2.6 AnyURI 5.60 metadataNameVocabulary Element
  • metadataTypeVocabulary
Attribute 2.6 AnyURI 5.61 metadataTypeVocabulary Element
  • metadataField
Attribute 2.6 ExtensionField 5.62 metadataField Element

IMSExtension

Class 2.6 5.63 IMSExtension.Type ComplexType
  • extensionNameVocabulary
Attribute 2.6 AnyURI 5.64 extensionNameVocabulary Element
  • extensionTypeVocabulary
Attribute 2.6 AnyURI 5.65 extensionTypeVocabulary Element
  • extensionField
Attribute 2.6 ExtensionField 5.66 extensionField Element

ExtensionField

Class 2.6 5.67 ExtensionField.Type ComplexType
  • fieldName
Attribute 2.6 NormalisedString 5.68 fieldName Element
  • fieldType
Attribute 2.6 NormalisedString 5.69 fieldType Element
  • fieldValue
Attribute 2.6 NormalisedString 5.70 fieldValue Element

Text

Class 2.6 5.56 Text.Type ComplexType
  • language
Attribute 2.6 Enumerated 5.57 language Element
  • textString
Attribute 2.6 String 5.58 textString Element

imsx_StatusInfo

Class 2.4 n/a n/a imsx_StatusInfo.Type ComplexType
  • imsx_codeMajor
Attribute 2.4 n/a n/a imsx_codeMajor Element
  • imsx_severity
Attribute 2.4 n/a n/a imsx_severity Element
  • imsx_messageRefIdentifier
Attribute 2.4 n/a n/a imsx_messageRefIdentifier Element
  • imsx_operationRefIdentifier
Attribute 2.4 n/a n/a imsx_operationRefIdentifier Element
  • imsx_description
Attribute 2.4 n/a n/a imsx_description Element
  • imsx_codeMinor
Attribute 2.4 n/a n/a imsx_codeMinor Element

imsx_CodeMinor

Class 2.4 n/a n/a imsx_CodeMinor.Type ComplexType
  • imsx_codeMinorField
Attribute 2.4 n/a n/a imsx_codeMinorField Element

imsx_CodeMinorField

Class 2.4 n/a n/a imsx_CodeMinorField.Type ComplexType
  • imsx_codeMinorFieldName
Attribute 2.4 n/a n/a imsx_codeMinorFieldName Element
  • imsx_codeMinorFieldValue
Attribute 2.4 n/a n/a imsx_codeMinorFieldValue Element

imsx_StatusBinding

Class 2.4 n/a n/a imsx_StatusBinding.Type ComplexType
  • imsx_syncRequestHeaderInfo
Attribute 2.4 n/a n/a imsx_syncRequestHeaderInfo Element
  • imsx_syncResponseHeaderInfo
Attribute 2.4 n/a n/a imsx_syncResponseHeaderInfo Element

imsx_RequestHeaderInfo

Class 2.4 n/a n/a imsx_RequestHeaderInfo.Type ComplexType
  • imsx_version
Attribute 2.4 n/a n/a imsx_version Element
  • imsx_messageIdentifier
Attribute 2.4 n/a n/a imsx_messageIdentifier Element

imsx_ResponseHeaderInfo

Class 2.4 n/a n/a imsx_ResponseHeaderInfo.Type ComplexType
  • imsx_version
Attribute 2.4 n/a n/a imsx_version Element
  • imsx_messageIdentifier
Attribute 2.4 n/a n/a imsx_messageIdentifier Element
  • imsx_statusInfo
Attribute 2.4 n/a n/a imsx_statusInfo Element

Key:

  1. The 'PSM Reference' field refers to information in the PSM description (Section 2 in this document). The sub-fields are:
    1. Name � the name of the data structure in the PSM and PIM
    2. UML Type � the type of UML construct i.e. either Class or Attribute
    3. Figure � the reference Figure number in this document;
  2. The 'PIM Reference' field refers to infomation in the GMS Information Model [GMS, 10]. The sub-fields are:
    1. Type � the type of the data structure in the Information Model
    2. Table � the reference number of Tabular description in the corresponding Information Model document;
  3. The 'XSD Reference' field refers to infrmation in the XSD descriptions (Section 5 in this document). The sub-fields are:
    1. Name � the name of the field in the XSD(s)
    2. Type � the type of XSD construct i.e. either a ComplexType or Element.

4. WSDL File Documentation

WSDL file: "GroupManagementServiceSyncSingle.wsdl"

Target namespace: /services/lis/gms2p0/wsdl11/sync/imsgms_v2p0

4.1 Overview

Services
GroupManagementServiceSyncService
Bindings
GroupManagerSyncSoapBinding
Port types
GroupManagerSyncPortType
Messages
createGroupRequest, createGroupResponse, createByProxyGroupRequest, createByProxyGroupResponse, deleteGroupRequest, deleteGroupResponse, addGroupRelationshipRequest, addGroupRelationshipResponse, removeGroupRelationshipRequest, removeGroupRelationshipResponse, readGroupRequest, readGroupResponse, readAllGroupIdsRequest, readAllGroupIdsResponse, readGroupIdsForPersonRequest, readGroupIdsForPersonResponse, readGroupIdsFromSavePointRequest, readGroupIdsFromSavePointResponse, readGroupsRequest, readGroupsResponse, readGroupsFromSavePointRequest, readGroupsFromSavePointResponse, updateGroupRequest, updateGroupResponse, replaceGroupRequest, replaceGroupResponse, discoverGroupIdsRequest, discoverGroupIdsResponse, changeGroupIdentifierRequest, changeGroupIdentifierResponse,

WSDL Definition
Name Documentation
GroupManagementServiceSyncServices

WSDL File Information

Services: GroupManagementService (Synchronous Communications)

Author: Colin Smythe

Date: 31st May, 2011

Version: Final 1.0

Status: Final Release

Description: The Group Management Service.

History: Version 1.0: This is the first formal release of this service.

WSDL Binding: WSDL Binding is based upon the IMS General Web Services Base Profile v1.0 The IMS GWS Basic Profile is derived from the WS-I Basic Profile v1.1. This profile uses: WSDL 1.1, SOAP 1.1, HTTP 1.1 and XML 1.0. Extension profiles to the IMS GWS Base Profile are available but are not supported using this tool version.

License: IPR, License and Distribution Notices This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS GLC Group Management Service Version 2.0 found at /lis/gmsv2p0/imsgms_InfoFinalv1p0.html and the original IMS schema binding or code base /lis/gmsv2p0/imsgms_BindFinalv1p0.html. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. IMS GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS GLCs procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property Rights web page: /ipr/imsipr_policyFinal.pdf.

Copyright � IMS Global Learning Consortium 1999-2011. All Rights Reserved.

License Notice for Users

Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document.

Distribution Notice for Developers

Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than IMS, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof.

Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the IMS GLC community on the IMS GLC website as described in the following two paragraphs:-

  • If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with IMS and receive an email from IMS granting the license. To register, follow the instructions on the IMS website: /specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety;
  • If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow the instructions on the IMS GLC website: /profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety.

The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

UML Source File Information

Choreography: Sync

Transport: SOAPv1.1

Source UML File Information

The source file information must be supplied as an XMI file (without diagram layout information). The supported UML authoring tools are:

(a) Poseidon � v6 (and later)

Source XSLT File Information

XSL Generator: UMLtoWSDLTransformv0p9.xsl

XSLT Processor: Xalan

Release: 1.0 Beta 4

Date: 31st March, 2011

IMS GLC Auto-generation Binding Tool-kit (I-BAT)

This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. IMS GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site.

Tool Copyright: 2005-2011 (c) IMS Global Learning Consortium Inc. All Rights Reserved.


Services
Name Documentation
GroupManagementServiceSyncService

Service Information

Author: Colin Smythe

Date: 31st May, 2011

Version: Final 1.0

Status: Final Releas

Description: The Group Management Service is composed of a single interface.

History: Version 1.0: This is the first formal release of this service.



Service : GroupManagementServiceSyncService
Port Name Binding Address Extensibility Documentation
GroupManagerSyncSoapPort GroupManagerSyncSoapBinding <soap11:address location="/lis/gms2p0/GroupManagerSyncSoap/"/>
N/A


Binding : GroupManagerSyncSoapBinding
Port Type GroupManagerSyncPortType
Extensibility <soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>
Operations createGroup, createByProxyGroup, deleteGroup, addGroupRelationship, removeGroupRelationship, readGroup, readAllGroupIds, readGroupIdsForPerson, readGroupIdsFromSavePoint, readGroups, readGroupsFromSavePoint, updateGroup, replaceGroup, discoverGroupIds, changeGroupIdentifier,


Port Type : GroupManagerSyncPortType
Operation Name Input message Output message Documentation
createGroup createGroupRequest createGroupResponse

The 'createGroup' operation is responsible for creating a new Group object on the service provider. The service consumer supplies the 'sourcedId' to be used to identify the new Group.

createByProxyGroup createByProxyGroupRequest createByProxyGroupResponse

The 'createByProxyGroup' operation is responsible for creating a new Group object on the service provider. The service provider supplies the 'sourcedId' to be used to identify the new Group.

deleteGroup deleteGroupRequest deleteGroupResponse

The 'deleteGroup' operation deletes the identified Group object. This means the 'sourcedId' can then be reused for another object.

addGroupRelationship addGroupRelationshipRequest addGroupRelationshipResponse

The 'addGroupRelationship' operation provides a mechanism by which new relationships to other Group and, some, Course objects can be created.

removeGroupRelationship removeGroupRelationshipRequest removeGroupRelationshipResponse

The 'removeGroupRelationship' operation provides a mechanism by which established relationships to other Group and, some, Course objects can be deleted.

readGroup readGroupRequest readGroupResponse

The 'readGroup' operation requests the service provider to return all of the data stored for the identified Group object.

readAllGroupIds readAllGroupIdsRequest readAllGroupIdsResponse

The 'readAllGroupIds' operation requests the service provider to return the SourcedIds for all of the Group objects.

readGroupIdsForPerson readGroupIdsForPersonRequest readGroupIdsForPersonResponse

The 'readAllGroupIdsForPerson' operation requests the service provider to return the SourcedIds for all of the Group objects for which the supplied Person is a member.

readGroupIdsFromSavePoint readGroupIdsFromSavePointRequest readGroupIdsFromSavePointResponse

The 'readAllGroupIdsFromSavePoint' operation requests the service provider to return the SourcedIds for all of the Group objects from the defined reference 'savePoint'.

readGroups readGroupsRequest readGroupsResponse

The 'readGroups' operation requests the service provider to return all of the data stored for the identified set of Group objects.

readGroupsFromSavePoint readGroupsFromSavePointRequest readGroupsFromSavePointResponse

The 'readGroupsFromSavePoint' operation requests the service provider to return all of the data stored for the identified set of Group objects from the defined reference 'savePoint'.

updateGroup updateGroupRequest updateGroupResponse

The 'updateGroup' operation is responsible for changing the Group object on the service provider by making an additive write to the previously stored data.

replaceGroup replaceGroupRequest replaceGroupResponse

The 'replaceGroup' operation is responsible for changing the Group object on the service provider by making a destructive replacement of all the previously stored data. If the original object cannot be found, this operation acts as if it was a 'createGroup' operation call.

discoverGroupIds discoverGroupIdsRequest discoverGroupIdsResponse

The 'discoverGroupIds' operation requests the service provider to return the SourcedIds of all of the Group objects that sustain the query criteria. At present, there is no defined format for the query i.e. the query is passed as a string.

changeGroupIdentifier changeGroupIdentifierRequest changeGroupIdentifierResponse

The 'changeGroupIdentifier' operation enables the service consumer to change the 'SourcedId' assigned to a Group object on a service provider.


4.2 Messages

createGroupRequest

Part Name Element Type Documentation
Parameters tns:createGroupRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createGroupResponse

Part Name Element Type Documentation
Response tns:createGroupResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createByProxyGroupRequest

Part Name Element Type Documentation
Parameters tns:createByProxyGroupRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createByProxyGroupResponse

Part Name Element Type Documentation
Response tns:createByProxyGroupResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

deleteGroupRequest

Part Name Element Type Documentation
Parameters tns:deleteGroupRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

deleteGroupResponse

Part Name Element Type Documentation
Response tns:deleteGroupResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

addGroupRelationshipRequest

Part Name Element Type Documentation
Parameters tns:addGroupRelationshipRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

addGroupRelationshipResponse

Part Name Element Type Documentation
Response tns:addGroupRelationshipResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

removeGroupRelationshipRequest

Part Name Element Type Documentation
Parameters tns:removeGroupRelationshipRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

removeGroupRelationshipResponse

Part Name Element Type Documentation
Response tns:removeGroupRelationshipResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readGroupRequest

Part Name Element Type Documentation
Parameters tns:readGroupRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readGroupResponse

Part Name Element Type Documentation
Response tns:readGroupResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readAllGroupIdsRequest

Part Name Element Type Documentation
Parameters tns:readAllGroupIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readAllGroupIdsResponse

Part Name Element Type Documentation
Response tns:readAllGroupIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readGroupIdsForPersonRequest

Part Name Element Type Documentation
Parameters tns:readGroupIdsForPersonRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readGroupIdsForPersonResponse

Part Name Element Type Documentation
Response tns:readGroupIdsForPersonResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readGroupIdsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readGroupIdsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readGroupIdsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readGroupIdsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readGroupsRequest

Part Name Element Type Documentation
Parameters tns:readGroupsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readGroupsResponse

Part Name Element Type Documentation
Response tns:readGroupsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readGroupsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readGroupsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readGroupsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readGroupsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateGroupRequest

Part Name Element Type Documentation
Parameters tns:updateGroupRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateGroupResponse

Part Name Element Type Documentation
Response tns:updateGroupResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

replaceGroupRequest

Part Name Element Type Documentation
Parameters tns:replaceGroupRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

replaceGroupResponse

Part Name Element Type Documentation
Response tns:replaceGroupResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

discoverGroupIdsRequest

Part Name Element Type Documentation
Parameters tns:discoverGroupIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

discoverGroupIdsResponse

Part Name Element Type Documentation
Response tns:discoverGroupIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

changeGroupIdentifierRequest

Part Name Element Type Documentation
Parameters tns:changeGroupIdentifierRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

changeGroupIdentifierResponse

Part Name Element Type Documentation
Response tns:changeGroupIdentifierResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

5. XSD File Documentation

The XSD file documentation has been produced by the Oxygen XML Editing tool.

5.1 Service Data Model XSD Documentation

Click on the Section header to access this documentation for the data models in the service description.

5.2 File Data Model XSD Documentation

Click on the Section header to access this documentation for the data models for the exchange of Group objects in an external file.


6. Binding of the Vocabularies

The vocabularies in the GMS are:

  • Extension data-type vocabulary � the set of data-types that are permitted for extensions in the Group data model. The PSM for the extension data-type vocabulary is shown in Figure 6.1.

This vocabulary is the default set maintained under the IMS GLC Vocabulary Registry [SDN11, 06].� It is the responsibility of an implementation to ensure that it is using the correct and latest versions of the vocabulary files.� Changes to the default vocabularies are permitted; this results in the creation of a new vocabulary that should be registered with IMS GLC.� As part of a profiling process entirely new vocabularies may be defined to replace the default set.

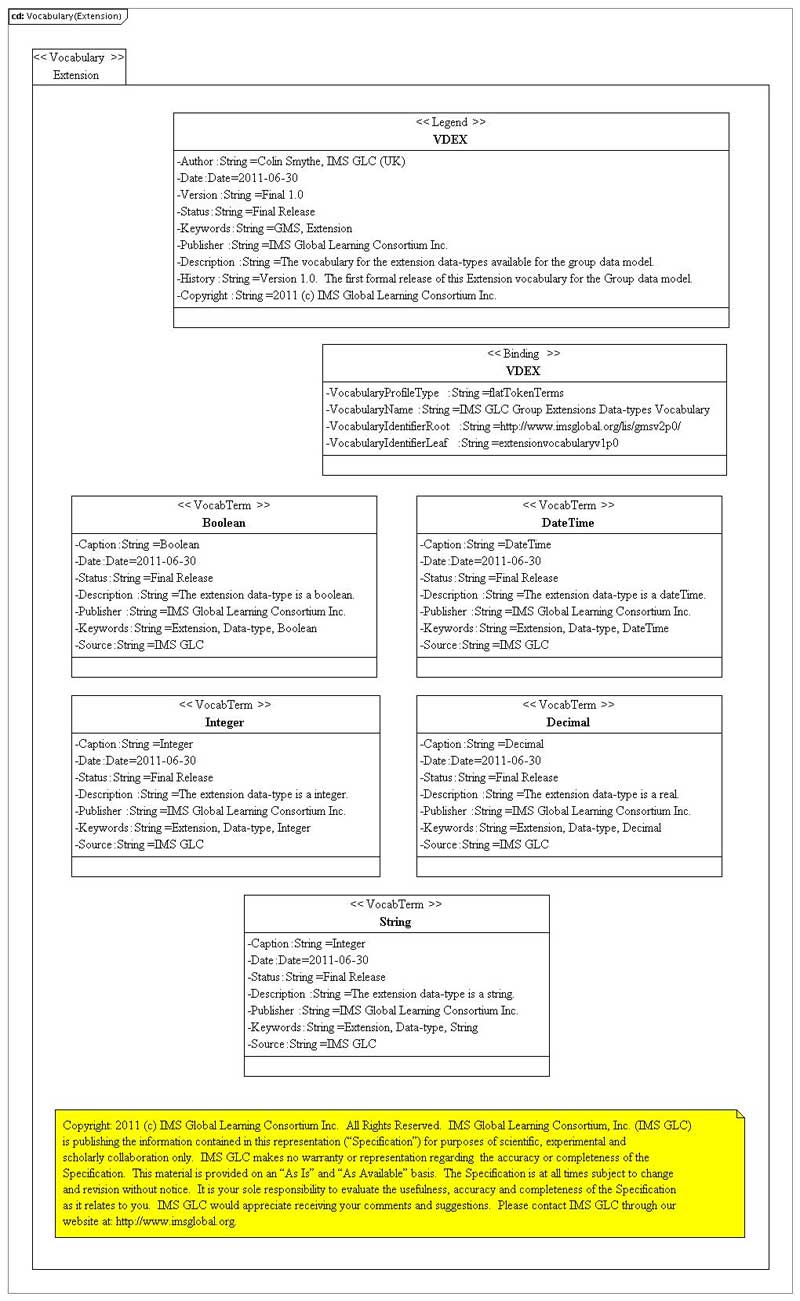

Figure 6.1 The PSM representation of the extension data-type vocabulary for the GMS.


Appendix A - Listing of the WSDLs

The WSDL bindings are for a Synchronous SOAP implementation only. The WSDL files, expressed using WSDLv1.1, are:

These files were generated by the I-BATv0.9.5 tool using the PSM representation described in Section 2.


Appendix B - Listing of the XSDs

The XSD files are:

This file was generated by the I-BATv0.9.5 tool using the PSM representation described in Section 2. Documentation of the XSDs is supplied in Section 5.


Appendix C - Vocabulary VDEX Instance File Listings

The GMS vocabularies are:

These vocabularies are expressed as an instance of the IMS GLC Vocabulary Data Exchange (VDEX) v1.0 specification. Documentation for the vocabularies is supplied in Section 6.


Appendix D - Example SOAP Messages

The set of examples for the SOAP messages are listed in Table D.1. The messaging pattern is a Request/Response exchange to support the Synchronous Service definition.

Table D.1 The set of SOAP message examples for each operation.

Operation Name Input (Request) SOAP Message Output (Response) SOAP Message
createGroup createGroupRequest createGroupResponse
createByProxyGroup createByProxyGroupRequest createByProxyGroupResponse
deleteGroup deleteGroupRequest deleteGroupResponse
addGroupRelationship addGroupRelationshipRequest addGroupRelationshipResponse
removeGroupRelationship removeGroupRelationshipRequest removeGroupRelationshipResponse
readGroup readGroupRequest readGroupResponse
readAllGroupIds readAllGroupIdsRequest readAllGroupIdsResponse
readGroupIdsForPerson readGroupIdsForPersonRequest readGroupIdsForPersonResponse
readGroupIdsFromSavePoint readGroupIdsFromSavePointRequest readGroupIdsFromSavePointResponse
readGroups readGroupsRequest readGroupsResponse
readGroupsFromSavePoint readGroupsFromSavePointRequest readGroupsFromSavePointResponse
updateGroup updateGroupRequest updateGroupResponse
replaceGroup replaceGroupRequest replaceGroupResponse
discoverGroupIds discoverGroupIdsRequest discoverGroupIdsResponse
changeGroupIdentifier changeGroupIdentifierRequest changeGroupIdentifierResponse

top | toc


About This Document

Title IMS GLC Group Management Service WSDL/XSD Binding
Editor Colin Smythe (IMS GLC)
Co-Chairs Linda Feng (Oracle), Bill Lee (Desire2learn)
Version 2.0
Version Date 30 June 2011
Release Final 1.0
Status Final Release
Summary This document contains the description of the IMS GLC Group Management Service v2.0 WSDL/XSD binding. This service is used to exchange information about Groups. The business transactions include the simple create, read, update and delete of the Group data model for a single instance. This document contains the definition of the corresponding Web Service based upon SOAP/HTTP messaging.
Revision Information This version supersedes the IMS GLC Group Management Service v1.0 specification.
Purpose This document is made available for adoption by the public community at large.
Document Location /lis/

List of Contributors

The following individuals contributed to the development of this document:

Name Organization
Kerry Blinco DEEWR (Australia)
Kirk Bunte SungardHE (USA)
Angus Chan Desire2learn (Canada)
Adam Cooper JISC (UK)
Michael Feldstein Cengage (USA)
Linda Feng Oracle (USA)
Jon Fontaine Blackboard (USA)
Chris Hatton Pearson (USA)
Karen Kuffner University of Michigan (USA)
Zack Leavitt eCollege (USA)
Bill Lee Desire2learn (Canada)
Richard Moon SungardHE (USA)
Mike Parkhill Desire2learn (Canada)
Colin Smythe IMS Global Learning Consortium, Inc.
Reihold Staudinger Blackboard (USA)
Nick Terrible University of Wisconsin (USA)
Jason Zhong SungardHE (USA)

Revision History

Version No. Release Date Comments
Final Release 1.0 30 June 2011 The first formal release of the Final Release version of this document.



IMS Global Learning Consortium, Inc. (“IMS GLC”) is publishing the information contained in this document (“Specification”) for purposes of scientific, experimental, and scholarly collaboration only.

IMS GLC makes no warranty or representation regarding the accuracy or completeness of the Specification.

This material is provided on an “As Is” and “As Available” basis.

The Specification is at all times subject to change and revision without notice.

It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.

IMS GLC would appreciate receiving your comments and suggestions.

Please contact IMS GLC through our website at .

Please refer to Document Name: IMS GLC GMS v2.0 WSDL/XSD Binding Final Release v1.0

Date: 30 June 2011.
