IPR and Distribution Notices

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the specification set forth in this document, and to provide supporting documentation.

IMS takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS's procedures with respect to rights in IMS specifications can be found at the IMS Intellectual Property Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf.

Use of this specification to develop products or services is governed by the license with IMS found on the IMS website: http://www.imsglobal.org/license.html.

Permission is granted to all parties to use excerpts from this document as needed in producing requests for proposals.

The limited permissions granted above are perpetual and will not be revoked by IMS or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTER'S OWN RISK, AND NEITHER THE CONSORTIUM, NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

© 2016 IMS Global Learning Consortium, Inc.
All Rights Reserved.
The IMS Logo and Learning Tools Interoperability (LTI) are trademarks of the IMS Global
Learning Consortium, Inc. in the United States and/or other countries.

1. AbstractResult

An abstract class representing common elements for the different classes related to the various Outcomes services.

2. LISResult

3. LineItem

A class representing a column in a gradebook capable of holding result values for different users for a single activity.

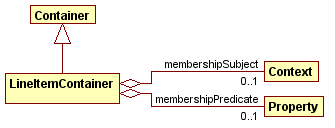

4. LineItemContainer

5. NumericLimits

6. Result

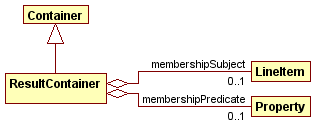

7. ResultContainer

8. ResultStatus

9. ScoreConstraints

The abstract base class for all the various kinds of constraints that might be imposed on the Results associated with a LineItem.

About this Document

List of Contributors

The following list of individuals contributed to the authoring of this document:

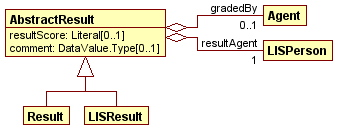

Properties of class AbstractResult
comment A comment about this Result suitable for display to the learner. Typically, this is a comment made by the instructor or grader.	DataValue.Type	0..1
gradedBy The agent who generated the result.	Agent	0..1
resultAgent The person whose score is recorded in this Result.	LISPerson	1
resultScore The final score that should be displayed in a gradebook for this Result object.	Literal	0..1

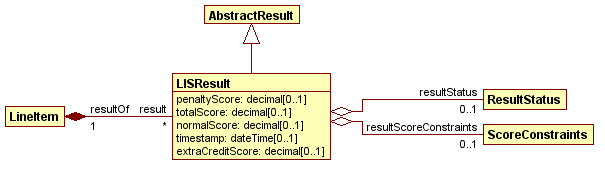

Properties of class LISResult
extraCreditScore The number of exta credit points earned by the learner.	decimal	0..1
normalScore The score earned by the learner before adding extra credit or subtracting penalties.	decimal	0..1
penaltyScore The number of points deducted from the normal score due to some penalty such as submitting an assignment after the due date.	decimal	0..1
resultOf The LineItem within which this Result is contained.	LineItem	1
resultScoreConstraints Constraints on the scores recorded in this Result.	ScoreConstraints	0..1
resultStatus The status of the result for this user and line item.	ResultStatus	0..1
timestamp The time at which the result was generated.	dateTime	0..1
totalScore The total score on the assignment given by totalScore = normalScore + extraCreditScore - penalty This value does not take into account the effects of curving.	decimal	0..1

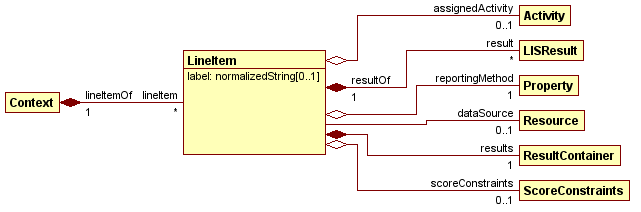

Properties of class LineItem
assignedActivity The Activity that learners engage with to produce the Results recorded in this LineItem.	Activity	0..1
dataSource The resource associated with this line item.	Resource	0..1
label A human-friendly label for this LineItem suitable for display. For example, this label might be used as the heading of a column in a gradebook.	normalizedString	0..1
lineItemOf The context to which this LineItem belongs.	Context	1
reportingMethod Identifies the property that is reported as the `resultScore` of the Results within this LineItem.	Property	1
result A Result associated with this LineItem.	LISResult	*
results The container holding the Results for this LineItem.	ResultContainer	1
scoreConstraints Constraints on the scores recorded in the Results associated with this LineItem.	ScoreConstraints	0..1

Properties of class NumericLimits
extraCreditMaximum The maximum number of extra credit points that a learner may earn.	float	0..1
normalMaximum The maximum number of points that a learner may earn without extra credit.	float	0..1
totalMaximum The maximum number of points that a learner may earn. This value is given by totalMaximum = normalMaximum + extraCreditMaximum	float	0..1

Simple Name	Description / URI
Completed	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Completed`
Final	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Final`
Initialized	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Initialized`
Started	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Started`

LIS Outcomes

Table of Contents
