1. AbstractResult

An abstract class representing common elements for the different classes related to the various Outcomes services.

2. ActivityProgress

3. LineItem

A class representing a column in a gradebook capable of holding result values for different users for a single activity.

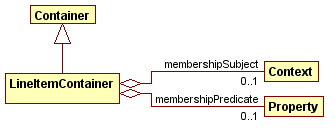

4. LineItemContainer

5. Result

6. Score

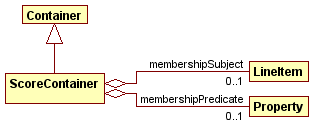

7. ScoreContainer

About this Document

List of Contributors

The following list of individuals contributed to the authoring of this document:

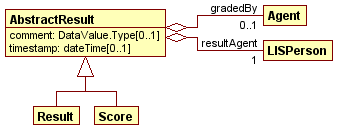

Properties of class AbstractResult
comment A comment about this Result suitable for display to the learner. Typically, this is a comment made by the instructor or grader.	DataValue.Type	0..1
gradedBy The agent who generated the result.	Agent	0..1
resultAgent The person whose score is recorded in this Result.	LISPerson	1
timestamp	dateTime	0..1

Simple Name	Description / URI
Completed	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Completed`
InProgress	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#InProgress`
Initialized	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Initialized`
Started	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Started`
Submitted	`http://purl.imsglobal.org/vocab/lis/v2/outcomes#Submitted`

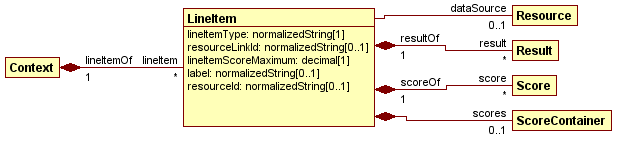

Properties of class LineItem
dataSource The resource associated with this line item.	Resource	0..1
label A human-friendly label for this LineItem suitable for display. For example, this label might be used as the heading of a column in a gradebook.	normalizedString	0..1
lineItemOf The context to which this LineItem belongs.	Context	1
lineItemScoreMaximum The maximum value which can be awarded for a score in the line item. The value must be positive.	decimal	1
lineItemType A string provided by the Tool Provider which allows it to know what type of value the line item is being used for. This is useful when a resource has more than one line item associated with it.	normalizedString	1
resourceId An ID for the resource with which the line item is associated as provided by the Tool Provider. Its value and uniqueness are left for the Tool Provider to determine.	normalizedString	0..1
resourceLinkId The Tool Consumer ID for resource link with which the line item is associated.	normalizedString	0..1
result AResult associated with this LineItem.	Result	*
score A Score associated with this LineItem.	Score	*
scores The container holding the Scores for this LineItem.	ScoreContainer	0..1

Properties of class Result
resultMaximum The maximum value out of which the resultScore has been awarded. The value must be positive. The default value is 1.	Literal	0..1
resultOf The LineItem within which this Result is contained.	LineItem	1
resultScore The final score that should be displayed in a gradebook for this Result object.	Literal	0..1

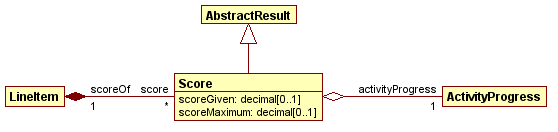

Properties of class Score
activityProgress The status of the activity associated with the result for this user.	ActivityProgress	1
scoreGiven The score awarded to the user. The scale used to interpret this value is given by the scoreMaximum value or, if not specified, the lineItemScoreMaximum value of the associated line item. In a GET request, this value must always be the one given by the Tool Provider even if it has been overridden within the Tool Consumer. If the scoreMaximum value has changed the scoreGiven should be re-scaled to reflect this such that the ratio of the two values is immutable.	decimal	0..1
scoreMaximum The maximum value out of which the scoreGiven has been awarded. The value must be positive. The default value is 1.	decimal	0..1
scoreOf The LineItem within which this Score is contained.	LineItem	1
