XSD Data File Information Author: Colin Smythe Date: 30th June, 2011 Version: 2.0 Status: Public Draft Description: The service realisation of the Outcomes Management Service. The data model consists of: LineItems, Results and ResultValues. History: Version 1.0: The first formal release of this PSM binding. License: IPR, License and Distribution Notices This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS [spec name] Version [x.x] found at http://www.imsglobal.org/[xxx] and the original IMS GLC schema binding or code base http://www.imsglobal.org/[binding document]. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. IMS GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS GLCs procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf. Copyright (c) IMS Global Learning Consortium 1999-2011. All Rights Reserved. License Notice for Users Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document. Distribution Notice for Developers Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than IMS, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof. Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the IMS GLC community on the IMS GLC website as described in the following two paragraphs:- * If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with IMS and receive an email from IMS granting the license. To register, follow the instructions on the IMS website: http://www.imsglobal.org/specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety; * If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow the instructions on the IMS GLC website: http://www.imsglobal.org/profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety. The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its successors or assigns. THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.UML Source Service File Information Choreography: Sync Status Object: StatusInfoSource UML File Information The source file information must be supplied as an XMI file (without diagram layout information). The supported UML authoring tools are: (a) Poseidon – v6 (and later)Source XSLT File Information XSL Generator: UMLtoWSDLTransformv0p9p5.xsl XSLT Processor: Xalan Release: 1.0 Beta 4 Date: 31st March, 2011IMS GLC Auto-generation Binding Tool-kit (I-BAT) This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. IMS GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site. Tool Copyright: 2005-2011 (c) IMS Global Learning Consortium Inc. All Rights Reserved.

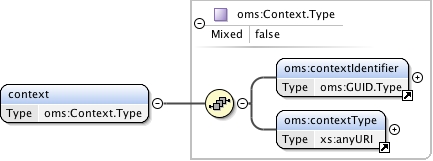

<xs:complexType name="Context.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Context complexType is the container for all of the information that establishes the context for a lineItem.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:contextIdentifier" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:contextType" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

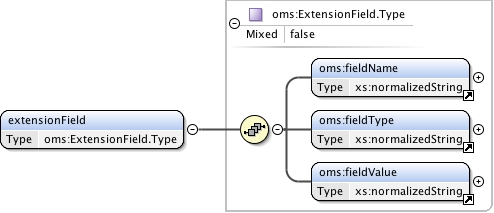

<xs:complexType name="ExtensionField.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ExtensionField complexType is the container for each of the extension entries. This is a name/type/value triple.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:fieldName" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:fieldType" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:fieldValue" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

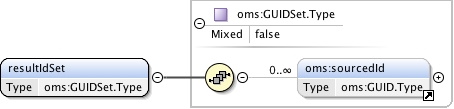

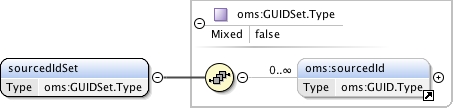

<xs:complexType name="GUIDSet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The GUIDSet complexType is the container for a set of SourcedIds.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:sourcedId" minOccurs="0" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

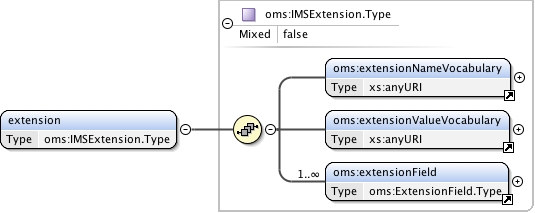

<xs:complexType name="IMSExtension.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The IMSExtension complexType is the container for the set of extension information.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:extensionNameVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:extensionValueVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:extensionField" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

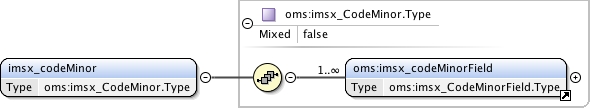

<xs:complexType name="imsx_CodeMinor.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The CodeMinor complexType is the container for the set of code minor status codes reported in the associated IMS SOAP message header.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:imsx_codeMinorField" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

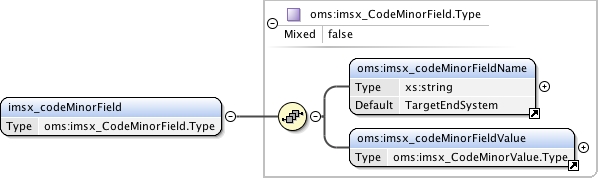

<xs:complexType name="imsx_CodeMinorField.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The CodeMinorField complexType is the container a single code minor status code.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:imsx_codeMinorFieldName" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_codeMinorFieldValue" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>
The RequestHeaderInfo complexType is the container for the information to be placed in the SOAP header for the request message transmitted for the associated operation call.

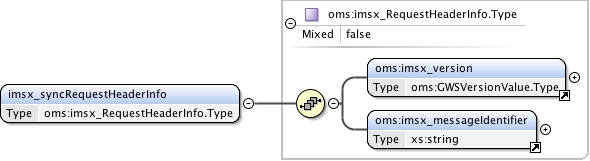

<xs:complexType name="imsx_RequestHeaderInfo.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The RequestHeaderInfo complexType is the container for the information to be placed in the SOAP header for the request message transmitted for the associated operation call.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:imsx_version" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_messageIdentifier" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>
The ResponseHeaderInfo complexType is the container for the information to be placed in the SOAP header for the response message transmitted for the associated operation call.

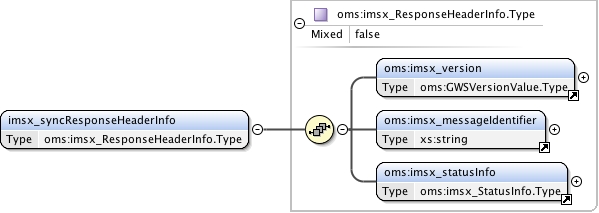

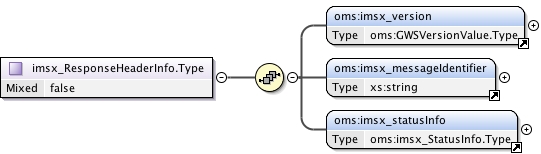

<xs:complexType name="imsx_ResponseHeaderInfo.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResponseHeaderInfo complexType is the container for the information to be placed in the SOAP header for the response message transmitted for the associated operation call.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:imsx_version" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_messageIdentifier" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_statusInfo" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

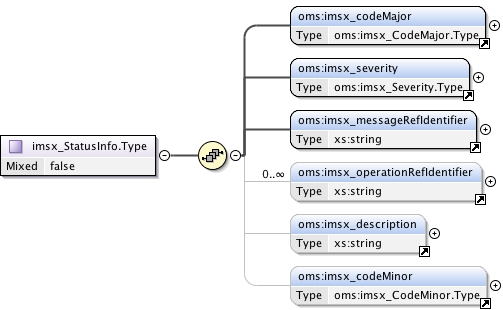

The StatusInfo complexType is the container for the status code and associated information returned within the SOAP message as defined by the IMS GWSv1.0 specification.

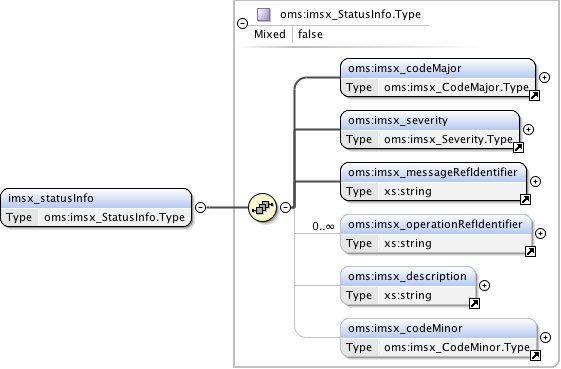

<xs:complexType name="imsx_StatusInfo.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The StatusInfo complexType is the container for the status code and associated information returned within the SOAP message as defined by the IMS GWSv1.0 specification.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:imsx_codeMajor" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_severity" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_messageRefIdentifier" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:imsx_operationRefIdentifier" minOccurs="0" maxOccurs="unbounded"/><xs:element ref="oms:imsx_description" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:imsx_codeMinor" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

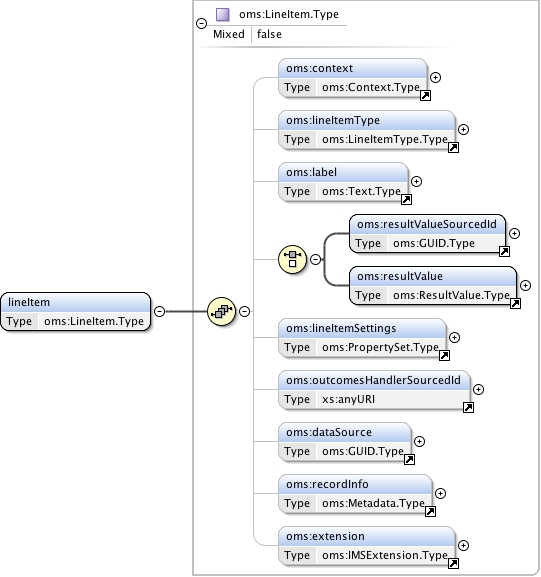

The LineItem complexType is the container for the LineItem data model. A LineItem consists of a column of results that are assigned to a Course component e.g. CourseTemplate, etc. Note that the 'lineItemSettings' attribute was added to support IMS LTI specification-specific operational needs.

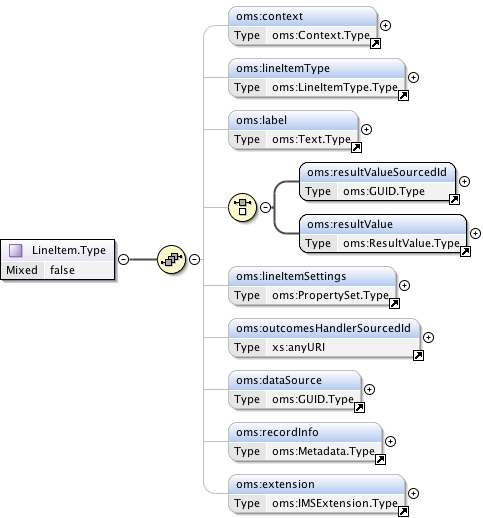

<xs:complexType name="LineItem.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The LineItem complexType is the container for the LineItem data model. A LineItem consists of a column of results that are assigned to a Course component e.g. CourseTemplate, etc. Note that the 'lineItemSettings' attribute was added to support IMS LTI specification-specific operational needs.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:context" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:lineItemType" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:label" minOccurs="0" maxOccurs="1"/><xs:choice minOccurs="0" maxOccurs="1"><xs:element ref="oms:resultValueSourcedId" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:resultValue" minOccurs="1" maxOccurs="1"/></xs:choice><xs:element ref="oms:lineItemSettings" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:outcomesHandlerSourcedId" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:dataSource" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:recordInfo" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:extension" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>
The LineItemType complexType is the container for the definition of the type of lineItem. The value-space for the 'lineItemTypeValue' attribute is defined in the associated VDEX vocabulary.
<xs:complexType name="LineItemType.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The LineItemType complexType is the container for the definition of the type of lineItem. The value-space for the 'lineItemTypeValue' attribute is defined in the associated VDEX vocabulary.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:lineItemTypeVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:lineItemTypeValue" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:resourceHandlerId" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:localeKey" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:defaultDisplayName" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>
The text complexType is the container for a language specific string. The language is denoted using the ISO 639 code set. See the corresponding VDEX file that contains the permitted value-space enumeration.

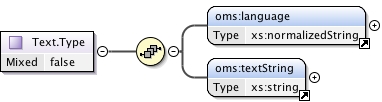

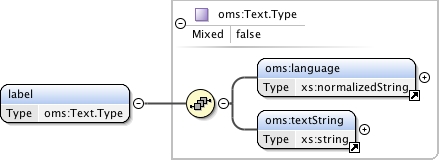

<xs:complexType name="Text.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The text complexType is the container for a language specific string. The language is denoted using the ISO 639 code set. See the corresponding VDEX file that contains the permitted value-space enumeration.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:language" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:textString" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

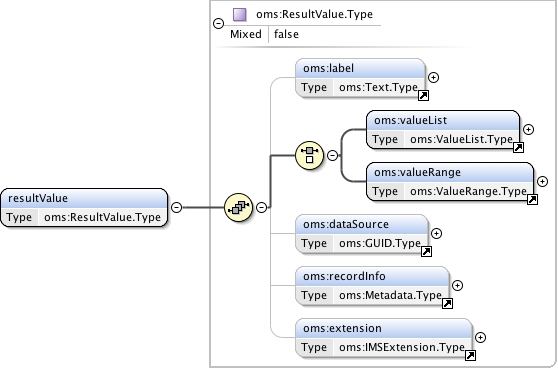

The ResultValueComplexType is the container for the information about the set of values that are permitted for a Result. This is either a set of values or a numeric range.
<xs:complexType name="ResultValue.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResultValueComplexType is the container for the information about the set of values that are permitted for a Result. This is either a set of values or a numeric range.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:label" minOccurs="0" maxOccurs="1"/><xs:choice minOccurs="1" maxOccurs="1"><xs:element ref="oms:valueList" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:valueRange" minOccurs="1" maxOccurs="1"/></xs:choice><xs:element ref="oms:dataSource" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:recordInfo" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:extension" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

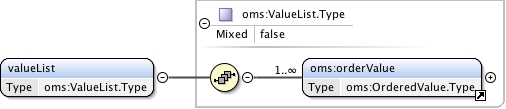

<xs:complexType name="ValueList.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ValueList complexType is the container for the set of values that can be allocated to a Result.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:orderValue" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

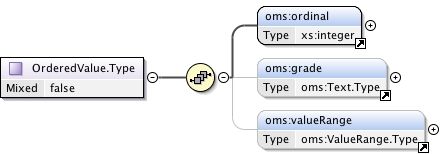

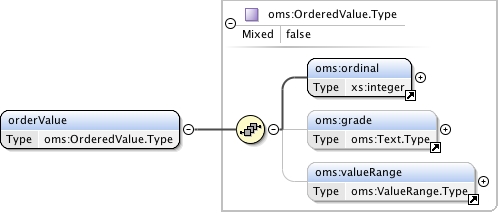

<xs:complexType name="OrderedValue.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The OrderedValue complexType is the container for each of the values in the set of permitted values.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:ordinal" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:grade" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:valueRange" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

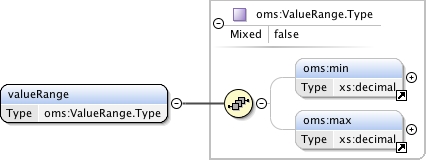

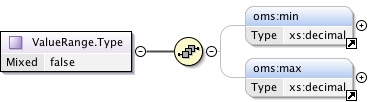

<xs:complexType name="ValueRange.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ValueRange complexType is the container for the minimum and maximum numeric value that a Result can have.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:min" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:max" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>
The Metadata complexType is the container for meta-data that is used to describe an object. At the curremt time this is just a set of name/type/value triples.

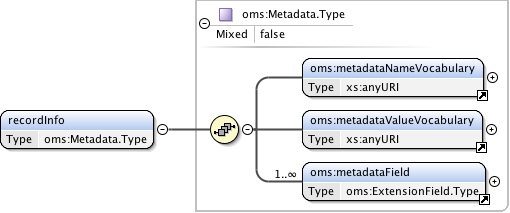

<xs:complexType name="Metadata.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Metadata complexType is the container for meta-data that is used to describe an object. At the curremt time this is just a set of name/type/value triples.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:metadataNameVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:metadataValueVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:metadataField" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>
<xs:complexType name="PropertySet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">To be defined with respect to the LTI Specification. In general, this class is removed for non-LTI releated specification profiles.</xs:documentation></xs:annotation><xs:sequence></xs:sequence></xs:complexType>

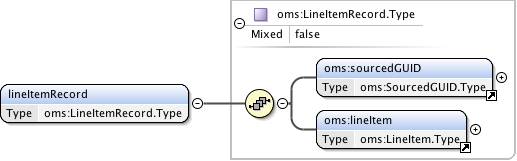

<xs:complexType name="LineItemRecord.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The LineItemRecord complexType defines the association between the globally unique identifier of a LineItem object and the LineItem object iself.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:sourcedGUID" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:lineItem" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

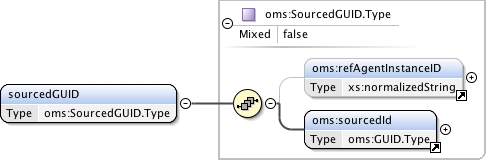

<xs:complexType name="SourcedGUID.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The SourcedGUID complexType is the container for the extended sourcedId. The refAgentInstamceID permits multiple endpoint differentiation.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:refAgentInstanceID" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:sourcedId" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

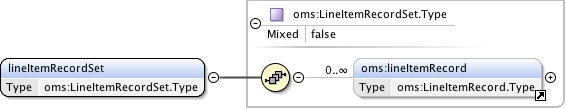

<xs:complexType name="LineItemRecordSet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The LineItemRecordSet complexType is the container for the collection of LineItemRecords.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:lineItemRecord" minOccurs="0" maxOccurs="unbounded"/></xs:sequence></xs:complexType>
The ReplaceStatusCode complexType is the container for the status code for the attempted replace operation on the result object identified by the enclosed sourcedId.

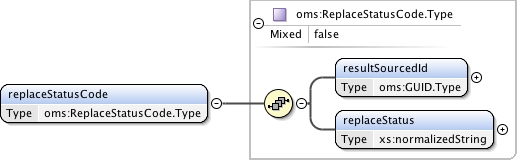

<xs:complexType name="ReplaceStatusCode.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ReplaceStatusCode complexType is the container for the status code for the attempted replace operation on the result object identified by the enclosed sourcedId.</xs:documentation></xs:annotation><xs:sequence><xs:element name="resultSourcedId" type="oms:GUID.Type" minOccurs="1" maxOccurs="1"/><xs:element name="replaceStatus" type="xs:normalizedString" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

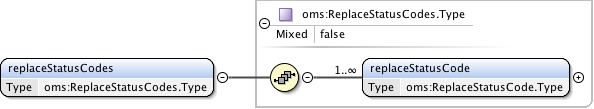

<xs:complexType name="ReplaceStatusCodes.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ReplaceStatusCodes complexType is the container for the set of status codes that are returned for the set attempted replace result operations.</xs:documentation></xs:annotation><xs:sequence><xs:element name="replaceStatusCode" type="oms:ReplaceStatusCode.Type" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

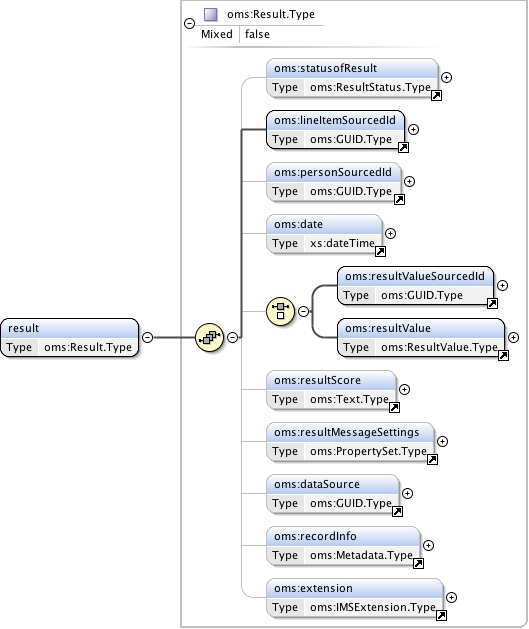

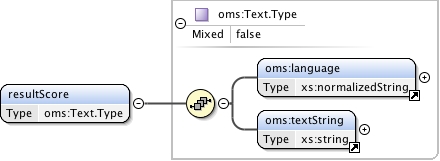

The Result complexType is the container for a Result. Each Result identifies the Person to whom the result is assigned and the set of attributes for the result value.
<xs:complexType name="Result.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Result complexType is the container for a Result. Each Result identifies the Person to whom the result is assigned and the set of attributes for the result value.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:statusofResult" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:lineItemSourcedId" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:personSourcedId" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:date" minOccurs="0" maxOccurs="1"/><xs:choice minOccurs="0" maxOccurs="1"><xs:element ref="oms:resultValueSourcedId" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:resultValue" minOccurs="1" maxOccurs="1"/></xs:choice><xs:element ref="oms:resultScore" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:resultMessageSettings" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:dataSource" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:recordInfo" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:extension" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

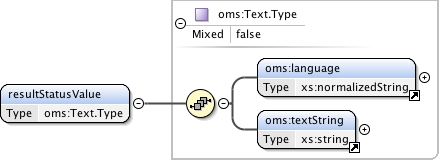

The ResultStatus complexType is the container for the information about the status of the result. The value-space for the 'resultStatusValue' attribute is defined in the associated default VDEX vocabulary.

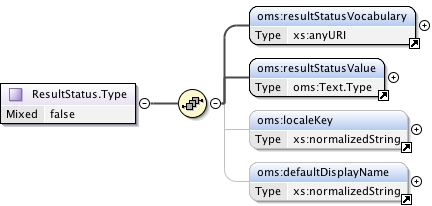

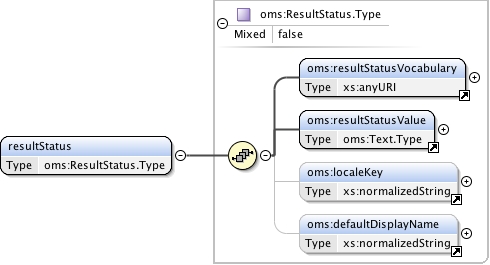

<xs:complexType name="ResultStatus.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResultStatus complexType is the container for the information about the status of the result. The value-space for the 'resultStatusValue' attribute is defined in the associated default VDEX vocabulary.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:resultStatusVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:resultStatusValue" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:localeKey" minOccurs="0" maxOccurs="1"/><xs:element ref="oms:defaultDisplayName" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

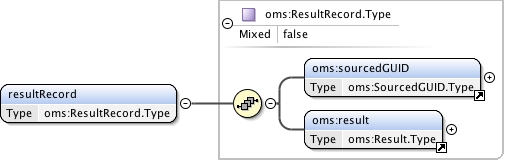

<xs:complexType name="ResultRecord.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResultRecord complexType is the container for the association of a Result object with its globally unique identifier i.e. its sourcedId</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:sourcedGUID" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:result" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

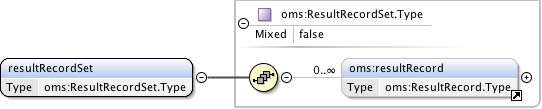

<xs:complexType name="ResultRecordSet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResultRecordSet complexType is the container for the collection of ResultRecords.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:resultRecord" minOccurs="0" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

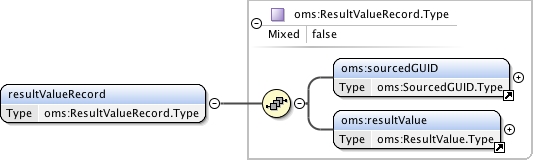

<xs:complexType name="ResultValueRecord.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResultValueRecord complexType is the container for the association of a ResultValue object with its globally unique identifier i.e. its sourcedId.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:sourcedGUID" minOccurs="1" maxOccurs="1"/><xs:element ref="oms:resultValue" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

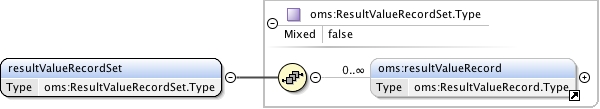

<xs:complexType name="ResultValueRecordSet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResultValueRecordSet complexType is the container for the collection of ResultValueRecords.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="oms:resultValueRecord" minOccurs="0" maxOccurs="unbounded"/></xs:sequence></xs:complexType>
