1EdTech Outcomes Management Service Information Model
Version 1.0
Public Draft
Version 2.0
Date Issued: 30 June 2011
Latest version: /lis/
IPR and Distribution Notices
Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the specification set forth in this document, and to provide supporting documentation.
1EdTech takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on 1EdTech’s procedures with respect to rights in 1EdTech specifications can be found at the 1EdTech Intellectual Property Rights web page: /imsipr_policyFinal.pdf.
Copyright © 2011 1EdTech Consortium. All Rights Reserved.
Use of this specification to develop products or services is governed by the license with 1EdTech found on the 1EdTech website: /license.html.
Permission is granted to all parties to use excerpts from this document as needed in producing requests for proposals.
The limited permissions granted above are perpetual and will not be revoked by 1EdTech or its successors or assigns.
THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTER'S OWN RISK, AND NEITHER THE CONSORTIUM, NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.
Table of Contents
1.1 Outcomes Management Service Overview
1.3 Structure of this Document
2 Outcomes Management Service Description
2.1 An Abstract Representation
2.2 Outcomes Management Service Architecture & Specification Model
2.3 Outcomes Composite Objects
2.4 Synchronous & Asynchronous Services
2.5 Handling the Service Status Codes
3.2 LineItemManager Interface Description
3.2.1 CreateLineItem() Operation
3.2.2 CreateByProxyLineItem() Operation
3.2.3 DeleteLineItem() Operation
3.2.4 ReadLineItem() Operation
3.2.5 ReadAllLineItemIds() Operation
3.2.6 ReadLineItemIdsForPerson() Operation
3.2.7 ReadLineItemIdsForCourseOffering() Operation
3.2.8 ReadLineItemIdsWithLineItemType() Operation
3.2.9 ReadLineItemIdsForCourseSection() Operation
3.2.10 ReadLineItemIdsForCourseSectionWithLineItemType() Operation
3.2.11 ReadLineItemIdsFromSavePoint() Operation
3.2.12 ReadLineItems() Operation
3.2.13 ReadLineItemsFromSavePoint() Operation
3.2.14 ReplaceLineItem() Operation
3.2.15 UpdateLineItem() Operation
3.2.16 DiscoverLineItemIds() Operation
3.2.17 ChangeLineItemIdentifier() Operation
3.3 ResultManager Interface Description
3.3.1 CreateResult() Operation
3.3.2 CreateByProxyResult() Operation
3.3.3 DeleteResult() Operation
3.3.5 ReadAllResultIds() Operation
3.3.6 ReadResultIdsForPerson() Operation
3.3.7 ReadResultIdsForLineItem() Operation
3.3.8 ReadResultIdsForCourseOffering() Operation
3.3.9 ReadResultIdsForCourseSection() Operation
3.3.10 ReadResultIdsForCourseSectionWthStatus() Operation
3.3.11 ReadResultIdsForLineItemWithLineItemType() Operation
3.3.12 ReadResultIdsFromSavePoint() Operation
3.3.13 ReadResults() Operation
3.3.14 ReadResultsFromSavePoint() Operation
3.3.15 ReplaceResult() Operation
3.3.16 ReplaceResultsForLineItem() Operation
3.3.17 UpdateResult() Operation
3.3.18 DiscoverResultIds() Operation
3.3.19 ChangeResultIdentifier() Operation
3.4 ResultValueManager Interface Description
3.4.1 CreateResultValue() Operation
3.4.2 CreateByProxyResultValue() Operation
3.4.3 DeleteResultValue() Operation
3.4.4 ReadResultValue() Operation
3.4.5 ReadAllResultValueIds() Operation
3.4.6 ReadResultValueIdForLineItem() Operation
3.4.7 ReadResultValueIdForResult() Operation
3.4.8 ReadResultValueIdsFromSavePoint() Operation
3.4.9 ReadResultValues() Operation
3.4.10 ReadResultValuesFromSavePoint() Operation
3.4.11 ReplaceResultValue() Operation
3.4.12 UpdateResultValue() Operation
3.4.13 DiscoverResultValueIds() Operation
3.4.14 ChangeResultValueIdentifier() Operation
4.3 LineItemRecord Class Description
4.4 LineItemRecordSet Class Description
4.5 LineItemType Class Description
4.6 QueryObject Class Description
4.7 ResultRecord Class Description
4.8 ResultRecordSet Class Description
4.9 ResultStatus Class Description
4.10 ResultValueRecord Class Description
4.11 ResultValueRecordSet Class Description
4.12 SequenceIdentifier Class Description
4.13 StatusInfo Class Description
4.14 ReplaceStatusCodes Class Description
4.14.1 ReplaceStatusCode Attribute Description
4.15 ReplaceStatusCode Class Description
4.15.1 ResultSourcedId Attribute Description
4.15.2 ReplaceStatus Attribute Description
5.2 The Structure of an Outcome
5.3 OutcomesDatabase Class Description
5.3.1 LineItemRecord Attribute Description
5.3.2 ResultRecord Attribute Description
5.3.3 ResultValueRecord Attribute Description
5.4 LineItemRecord Class Description
5.4.1 SourcedGUID Attribute Description
5.4.2 LineItem Attribute Description
5.5 ResultRecord Class Description
5.5.1 SourcedGUID Attribute Description
5.5.2 Result Attribute Description
5.6 ResultValueRecord Class Description
5.6.1 SourcedGUID Attribute Description
5.6.2 ResultValue Attribute Description
5.7 CourseTemplateRecord Class Description
5.8 CourseOfferingRecord Class Description
5.9 CourseSectionRecord Class Description
5.10 SectionAssociationRecord Class Description
5.11 GroupRecord Class Description
5.12 PersonRecord Class Description
5.13 OutcomesHandler Class Description
5.14 ResourceHandler Class Description
5.15 LineItem Class Description
5.15.1 ContextType Attribute Description
5.15.2 LineItemType Attribute Description
5.15.3 Label Attribute Description
5.15.4 ResultValueSourcedId Attribute Description
5.15.5 ResultValue Attribute Description
5.15.6 LineItemMessageSettings Attribute Description
5.15.7 OutcomesHandlerSourcedId Attribute Description
5.15.8 DataSource Attribute Description
5.15.9 RecordInfo Attribute Description
5.15.10 Extension Attribute Description
5.16 Context Class Description
5.16.1 ContextIdentifier Attribute Description
5.16.2 ContextType Attribute Description
5.17 LineItemType Class Description
5.17.1 LineItemTypeVocabulary Attribute Description
5.17.2 LineItemTypeValue Attribute Description
5.17.3 ResourceHandlerSourcedId Attribute Description
5.17.4 LocaleKey Attribute Description
5.17.5 DefaultDisplayName Attribute Description
5.18.1 StatusofResult Attribute Description
5.18.2 LineItemSourcedId Attribute Description
5.18.3 PersonSourcedId Attribute Description
5.18.4 Date Attribute Description
5.18.5 ResultValueSourcedId Attribute Description
5.18.6 ResultValue Attribute Description
5.18.7 ResultScore Attribute Description
5.18.8 ResultMessageSettings Attribute Description
5.18.9 DataSource Attribute Description
5.18.10 RecordInfo Attribute Description
5.18.11 Extension Attribute Description
5.19 ResultStatus Class Description
5.19.1 ResultStatusVocabulary Attribute Description
5.19.2 ResultStatusValue Attribute Description
5.19.3 LocaleKey Attribute Description
5.19.4 DefaultDisplayName Attribute Description
5.20 ResultValue Class Description
5.20.1 Label Attribute Description
5.20.2 ValueList Attribute Description
5.20.3 ValueRange Attribute Description
5.20.4 DataSource Attribute Description
5.20.5 RecordInfo Attribute Description
5.20.6 Extension Attribute Description
5.21 ValueList Class Description
5.21.1 OrderValue Attribute Description
5.22 OrderedValue Class Description
5.22.1 Ordinal Attribute Description
5.22.2 Grade Attribute Description
5.22.3 ValueRange Attribute Description
5.23 ValueRange Class Description
5.23.1 Min Attribute Description
5.23.2 Max Attribute Description
5.24 Common Classes Descriptions
5.24.1 Metadata Class Description
5.24.2 IMSExtension Class Description
5.24.3 ExtensionField Class Description
5.24.5 SourcedGUID Class Description
5.24.6 PropertySet Class Description
6 Extending and Profiling the Service
6.1.2 Proprietary Data Elements
Appendix A – Summary List of Service Status Codes
B1 Set of Defined Vocabularies
B1.1 StatusofResult Vocabulary
B2 Using Vocabularies for the Metadata Class
B3 Using Vocabularies for the IMSExtension Class
Appendix C – File-based Data Exchange
List of Figures

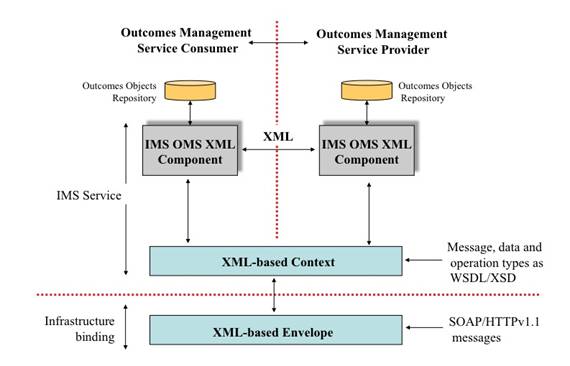

Figure 2.1 Outcomes management service architecture model.
Figure 2.2 Schematic representation of the outcomes data model.

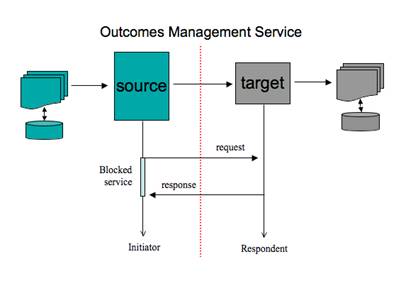

Figure 2.3 Synchronous service action flow.
Figure 2.4 Asynchronous service action flow.

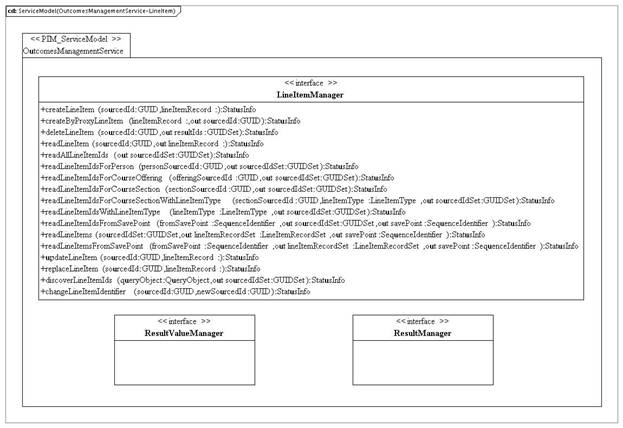

Figure 3.1 OutcomesManagementService LineItemManager interface definitions.

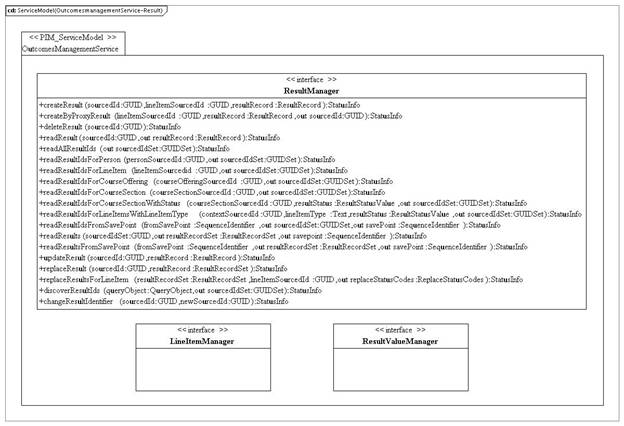

Figure 3.2 OutcomesManagementService ResultManager interface definitions.

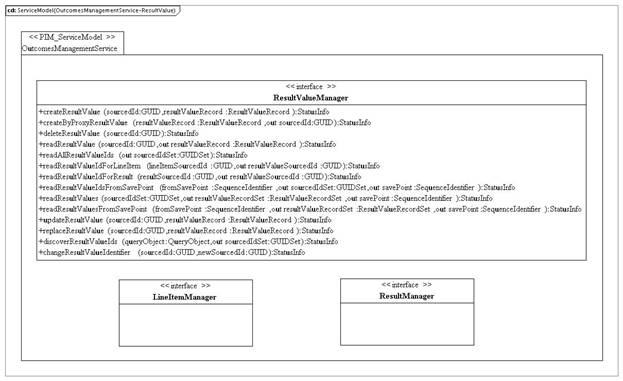

Figure 3.3 OutcomesManagementService ResultValueManager interface definitions.

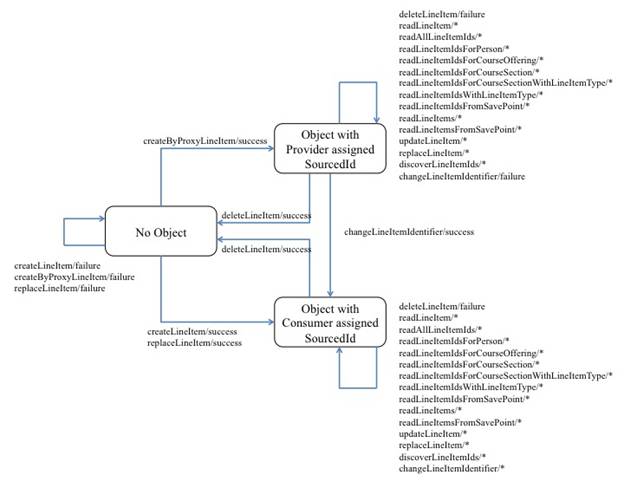

Figure 3.4 State machine for a ‘lineItem’ object.

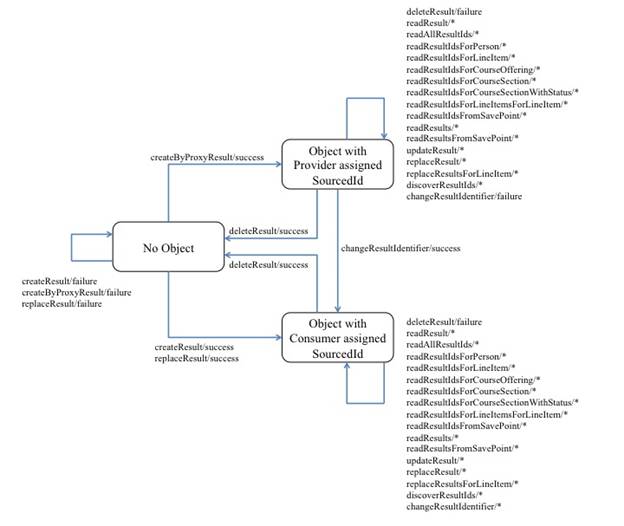

Figure 3.5 State machine for a ‘result’ object.

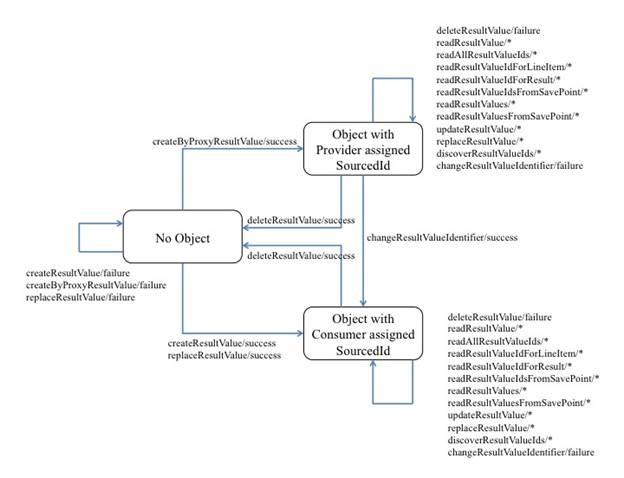

Figure 3.6 State machine for a ‘resultValue’ object.

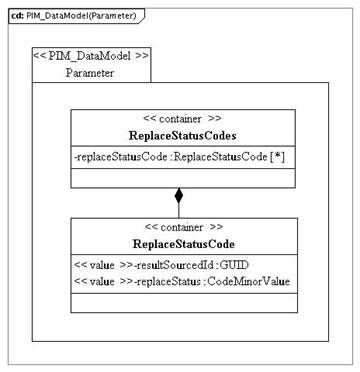

Figure 4.1 ReplaceStatusCodes class diagram.

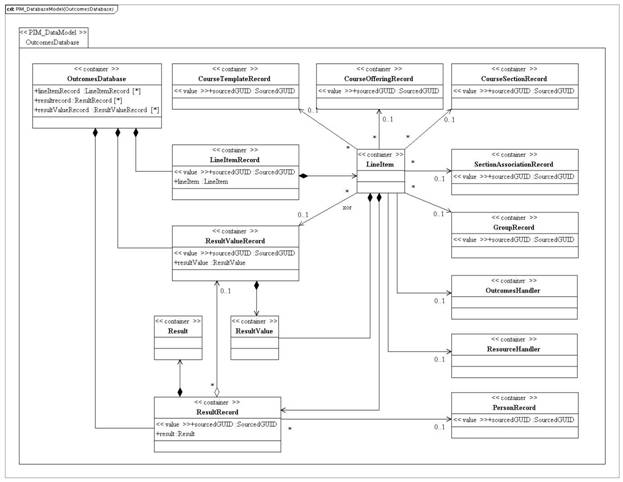

Figure 5.1 OutcomesDatabase class diagram.

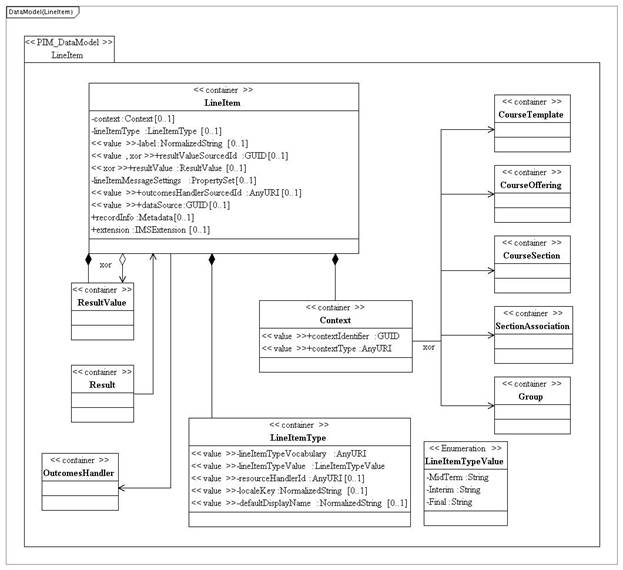

Figure 5.2 LineItem class diagram.

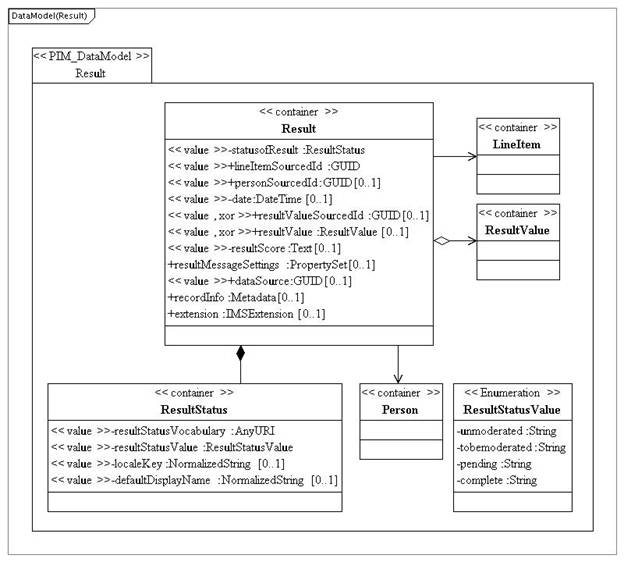

Figure 5.3 Result class diagram.

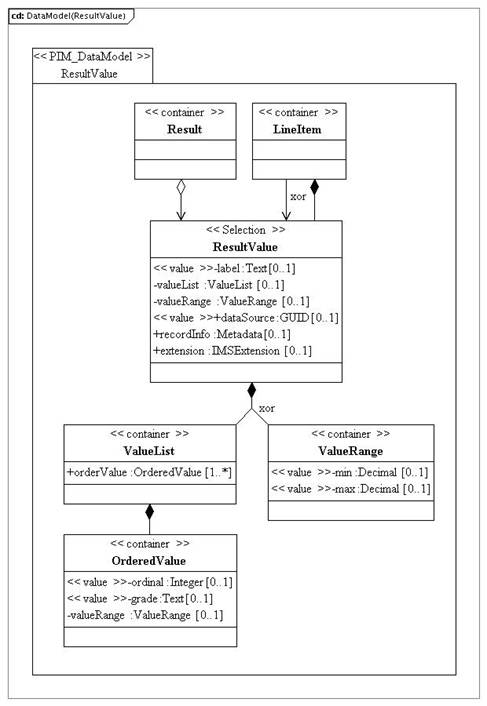

Figure 5.4 ResultValue class diagram.
Figure 5.5 Common class diagram.

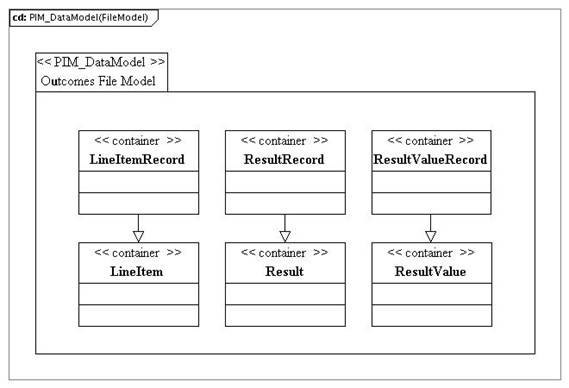

Figure C.1 Outcomes class diagram for file-based data exchange.
List of Tables
Table 3.1 Summary of operations for LineItemManager.
Table 3.2 Status codes for the ‘createLineItem’ operation.
Table 3.3 Status codes for the ‘createByProxyLineItem’ operation.
Table 3.4 Status codes for the ‘deleteLineItem’ operation.
Table 3.5 Status codes for the ‘readLineItem’ operation.
Table 3.6 Status codes for the ‘readAllLineItemIds’ operation.
Table 3.7 Status codes for the ‘readLineItemIdsForPerson’ operation.
Table 3.8 Status codes for the ‘readLineItemIdsForCourseOffering’ operation.
Table 3.9 Status codes for the ‘readLineItemIdsWithLineItemType’ operation.
Table 3.10 Status codes for the ‘readLineItemIdsForCourseSection’ operation.
Table 3.11 Status codes for the ‘readLineItemIdsForCourseSectionWithLineItemType’ operation.
Table 3.12 Status codes for the ‘readLineItemIdsFromSavePoint’ operation.
Table 3.13 Status codes for the ‘readLineItems’ operation.
Table 3.14 Status codes for the ‘readLineItemsFromSavePoint’ operation.
Table 3.15 Status codes for the ‘replaceLineItem’ operation.
Table 3.16 Status codes for the ‘updateLineItem’ operation.
Table 3.17 Status codes for the ‘discoverLineItemIds’ operation.
Table 3.18 Status codes for the ‘changeLineItemIdentifier’ operation.
Table 3.19 Summary of operations for ResultManager.
Table 3.20 Transitions associated with the ‘createResult’ operation.
Table 3.21 Status codes for the ‘createByProxyResult’ operation.
Table 3.22 Status codes for the ‘deleteResult’ operation.
Table 3.23 Status codes for the ‘readResult’ operation.
Table 3.24 Status codes for the ‘readAllResultIds’ operation.
Table 3.25 Status codes for the ‘readResultIdsForPerson’ operation.
Table 3.26 Status codes for the ‘readResultIdsForLineItem’ operation.
Table 3.27 Status codes for the ‘readResultIdsForCourseOffering’ operation.
Table 3.28 Status codes for the ‘readResultIdsForCourseSection’ operation.
Table 3.29 Status codes for the ‘readResultIdsForCourseSectionWithStatus’ operation.
Table 3.30 Status codes for the ‘readResultIdsForLineItemWithLineItemType’ operation.
Table 3.31 Status codes for the ‘readResultIdsFromSavePoint’ operation.
Table 3.32 Status codes for the ‘readResults’ operation.
Table 3.33 Status codes for the ‘readResultsFromSavePoint’ operation.
Table 3.34 Status codes for the ‘replaceResult’ operation.
Table 3.35 Status codes for the ‘replaceResultsForLineItem’ operation.
Table 3.36 Status codes for the ‘updateResult’ operation.
Table 3.37 Status codes for the ‘discoverResultIds’ operation.
Table 3.38 Status codes for the ‘changeResultIdentifier’ operation.
Table 3.39 Summary of operations for ResultValueManager.
Table 3.40 Status codes for the ‘createResultValue’ operation.
Table 3.41 ‘createByProxyResultValue’ operation.
Table 3.42 Status codes for the ‘deleteResultValue’ operation.
Table 3.43 Status codes for the ‘readResultValue’ operation.
Table 3.44 Status codes for the ‘readAllResultValueIds’ operation.
Table 3.45 Status codes for the ‘readResultValueIdForLineItem’ operation.
Table 3.46 Status codes for the ‘readResultValueIdForResult’ operation.
Table 3.47 Status codes for the ‘readResultValueIdsFromSavePoint’ operation.
Table 3.48 Status codes for the ‘readResultValues’ operation.
Table 3.49 Status codes for the ‘readResultsFromSavePoint’ operation.
Table 3.50 Status codes for the ‘replaceResultValue’ operation.
Table 3.51 Status codes for the ‘updateResultValue’ operation.
Table 3.52 Status codes for the ‘discoverResultValueIds’ operation.
Table 3.53 Status codes for the ‘changeResultValueIdentifier’ operation.
Table 4.1 Description of the ReplaceStatusCodes class.
Table 4.2 Description of the ‘replaceStatusCode’ attribute for the ReplaceStatusCodes class.
Table 4.3 Description of the ReplaceStatusCode class.
Table 4.4 Description of the ‘resultSourcedId’ attribute for the ReplaceStatusCode class.
Table 4.5 Description of the ‘replaceStatus’ attribute for the ReplaceStatusCode class.
Table 5.2 Description of the OutcomesDatabase class.
Table 5.3 Description of the ‘lineItemRecord’ attribute for the OutcomesDatabase class.
Table 5.4 Description of the ‘ResultRecord’ attribute for the OutcomesDatabase class.
Table 5.5 Description of the ‘ResultValueRecord’ attribute for the OutcomesDatabase class.
Table 5.6 Description of the LineItemRecord class.
Table 5.7 Description of the ‘sourcedGUID’ attribute for the LineItemRecord class.
Table 5.8 Description of the ‘lineItem’ attribute for the OutcomesDatabase class.
Table 5.9 Description of the ResultRecord class.
Table 5.10 Description of the ‘sourcedGUID’ attribute for the ResultRecord class.
Table 5.11 Description of the ‘result’ attribute for the ResultRecord class.
Table 5.12 Description of the ResultValueRecord class.
Table 5.13 Description of the ‘sourcedGUID’ attribute for the ResultValueRecord class.
Table 5.14 Description of the ‘ResultValue’ attribute for the ResultValueRecord class.
Table 5.15 Description of the CourseTemplateRecord class.
Table 5.16 Description of the CourseOfferingRecord class.
Table 5.17 Description of the CourseSectionRecord class.
Table 5.18 Description of the SectionAssociationRecord class.
Table 5.19 Description of the GroupRecord class.
Table 5.20 Description of the PersonRecord class.
Table 5.21 Description of the OutcomesHandler class.
Table 5.22 Description of the ResourceHandler class.
Table 5.23 Description of the LineItem class.
Table 5.24 Description of the ‘contextType’ attribute for the LineItem class.
Table 5.25 Description of the ‘lineItemType’ attribute for the LineItem class.
Table 5.26 Description of the ‘label’ attribute for the LineItem class.
Table 5.27 Description of the ‘resultValueSourcedId’ attribute for the LineItem class.
Table 5.28 Description of the ‘resultValue’ attribute for the LineItem class.
Table 5.29 Description of the ‘lineItemMessageSettings’ attribute for the LineItem class.
Table 5.30 Description of the ‘outcomesHandlerSourcedId’ attribute for the LineItem class.
Table 5.31 Description of the ‘dataSource’ attribute for the LineItem class.
Table 5.32 Description of the ‘recordInfo’ attribute for the LineItem class.
Table 5.33 Description of the ‘extension’ attribute for the LineItem class.
Table 5.34 Description of the Context class.
Table 5.35 Description of the ‘contextIdentifier’ attribute for the Context class.
Table 5.36 Description of the ‘contextType’ attribute for the Context class.
Table 5.37 Description of the LineItemType class.
Table 5.38 Description of the ‘lineItemTypeVocabulary’ attribute for the LineItemType class.
Table 5.39 Description of the ‘lineItemTypeValue’ attribute for the LineItemType class.
Table 5.40 Description of the ‘resourceHandlerSourcedId’ attribute for the LineItemType class.
Table 5.41 Description of the ‘localeKey’ attribute for the LineItemType class.
Table 5.42 Description of the ‘defaultDisplayName’ attribute for the LineItemType class.
Table 5.43 Description of the Result class.
Table 5.44 Description of the ‘statusofResult’ attribute for the Result class.
Table 5.45 Description of the ‘lineItemSourcedId’ attribute for the Result class.
Table 5.46 Description of the ‘personSourcedId’ attribute for the Result class.
Table 5.47 Description of the ‘date’ attribute for the Result class.
Table 5.48 Description of the ‘ResultValueSourcedId’ attribute for the Result class.
Table 5.49 Description of the ‘resultValue’ attribute for the Result class.
Table 5.50 Description of the ‘resultScore’ attribute for the Result class.
Table 5.51 Description of the ‘resultMessageSettings’ attribute for the Result class.
Table 5.52 Description of the ‘dataSource’ attribute for the Result class.
Table 5.53 Description of the ‘recordInfo’ attribute for the Result class.
Table 5.54 Description of the ‘extension’ attribute for the Result class.
Table 5.55 Description of the ‘resultStatusVocabulary’ attribute for the ResultStatus class.
Table 5.56 Description of the ‘resultStatusValue’ attribute for the ResultStatus class.
Table 5.57 Description of the ‘localeKey’ attribute for the ResultStatus class.
Table 5.58 Description of the ‘defaultDisplayName’ attribute for the ResultStatus class.
Table 5.59 Description of the ResultValue class.
Table 5.60 Description of the ‘label’ attribute for the ResultValue class.
Table 5.61 Description of the ‘valueList’ attribute for the ResultValue class.
Table 5.62 Description of the ‘valueRange’ attribute for the ResultValue class.
Table 5.63 Description of the ‘dataSource’ attribute for the ResultValue class.
Table 5.64 Description of the ‘recordInfo’ attribute for the ResultValue class.
Table 5.65 Description of the ‘extension’ attribute for the ResultValue class.
Table 5.66 Description of the ValueList class.
Table 5.67 Description of the ‘orderValue’ attribute for the ValueList class.
Table 5.68 Description of the OrderedValue class.
Table 5.69 Description of the ‘ordinal’ attribute for the OrderedValue class.
Table 5.70 Description of the ‘grade’ attribute for the OrderedValue class.
Table 5.71 Description of the ‘valueRange’ attribute for the OrderedValue class.
Table 5.72 Description of the ValueRange class.
Table 5.73 Description of the ‘min’ attribute for the ValueRange class.
Table 5.74 Description of the ‘max’ attribute for the ValueRange class.
Table 5.75 Description of the Metadata class.
Table 5.76 Description of the ‘metadataNameVocabulary’ attribute for the Metadata class.
Table 5.77 Description of the ‘metadataTypeVocabulary’ attribute for the Metadata class.
Table 5.78 Description of the ‘metadataField’ attribute for the Metadata class.
Table 5.79 Description of the IMSExtension class.
Table 5.80 Description of the ‘extensionNameVocabulary’ attribute for the IMSExtension class.
Table 5.81 Description of the ‘extensionTypeVocabulary’ attribute for the IMSExtension class.
Table 5.82 Description of the ‘extensionField’ attribute for the IMSExtension class.
Table 5.83 Description of the ExtensionField class.
Table 5.84 Description of the ‘fieldName’ attribute for the ExtensionField class.
Table 5.85 Description of the ‘fieldType’ attribute for the ExtensionField class.
Table 5.86 Description of the ‘fieldValue’ attribute for the ExtensionField class.
Table 5.87 Description of the ‘Text’ class.
Table 5.88 Description of the ‘language’ attribute for the Text class.
Table 5.89 Description of the ‘textString’ attribute for the Text class.
Table 5.90 Description of the SourcedGUID class.
Table 5.91 Description of the ‘refAgentInstanceID’ attribute for the SourcedGUID class.
Table 5.92 Description of the ‘sourcedId’ attribute for the SourcedGUID class.
Table 5.93 Description of the PropertySet class.
Table A1.1 Status codes for the service operations.
Table A1.2 Common status codes for the service operations.
Table B1.1 The lineItemType external vocabulary.
Table B1.2 The result status external vocabulary.
Table B1.3 The replaceStatus external vocabulary.
Table B1.4 The fieldType external vocabulary.
1 Introduction
1.1 Outcomes Management Service Overview
The Outcomes Management Service (OMS) specification is the definition of how systems manage the exchange of information that describes Outcomes. The Outcomes Management Service specification is constructed following the recommendations documented in the 1EdTech GLC Abstract Framework (IAF) [IAF, 03a], [IAF, 03b], [IAF, 03c]. This means that this specification is based upon the concepts of:
· Interoperability – Outcomes Management Service focuses on the exchange of Outcomes information between systems. There are no definitions in the specification on how the data is managed within the systems;
· Service-oriented – Outcomes Management Service defines the exchange of information in terms of the services being supplied by the collaboration of the systems;
· Component-based – for example, the Outcomes Management Service is combined with the Group Management Service, Person Management Service, Course Management Service, Membership Management Service and Bulk Data Exchange Management Service to provide the Learning Information Services [LIS, 11a], [LIS, 11b];
· Layering – the Outcomes Management Service is a part of the Application Services layer but it interacts with the services available in the Common Services layer e.g., authentication;
· Behaviors and Data Models – the Outcomes Management Service are defined in terms of their Behaviors and data models. The Behaviors cause changes in the state of the data model and the state of the data model will only be altered as a result of a clearly defined Behavior;
· Multiple Bindings – the Outcomes Management Service information model is to be defined using the Unified Modelling Language (UML). This enables reliable mapping of the information model into a range of different bindings. The binding of immediate importance is the Web Services Description Language (WSDL);
· Adoption – whenever appropriate, the Outcomes Management Services specification makes use of other 1EdTech GLC and non-1EdTech GLC standards and specifications.
The logical structure of the Outcomes is composed of LineItems, Results and ResultValues. A LineItem is a collection of Results for a particular CourseOffering, CourseSection, etc. and each Result and/or LineItem may have an associated set of values, ResultValue, which are used to constrain the Result. The standard create, read, update, replace, delete and simple discovery operations are available for managing LineItems, Results and ResultValues. Other operations are defined to support specific business requirements. Full operation of all of the Behaviors in this service will require access to the data models of the corresponding 1EdTech GLC Course Management Service (CMS) [CMS, 11] and the 1EdTech GLC Membership Management Service (MMS) [MMS, 11] specifications.
1.2 Scope and Context
This document is the 1EdTech GLC Outcomes Management Services Information Model v1.0 and as such it is used as the basis for the development of the following documents:
a) 1EdTech GLC Outcomes Management Service WSDL Binding v1.0 [OMS, 11] – the description of the WSDL binding of the Information Model.
The core uses-cases for the Outcomes Management Service are described as a subset of the Learning Information Services Specification [LIS, 11b].
This information model defines the Outcomes Management Service Abstract Application Programming Interface (a-API). The Learning Information Services specification, of which the Outcomes Management Service is a component, is a series of Behavioral models that define how the data models are to be manipulated. These Behavioral models are described using the Unified Modelling Language (UML) [SDN07, 07].
1.3 Structure of this Document
The structure of this document is:
2. Outcomes Management Service Description |
The description of the overall structure and operation of the Outcomes Management Service. This includes the description of the architectural model and the domain object model; |
3. Behavioral Model |
The definition of the operations of Outcomes Management Service application service. This focuses on the description of the Behaviors supported by the service; |
4. Interface Data Model |
The definition of the data models exchanged between the Outcomes Management Service End Systems. These are the parameters exchanged across the interoperability interface; |
5. End System Data Model |
The definition of the data models for the Outcomes Management Service End Systems. This addresses the persistence of the data with respect to interoperability; |
6. Extending and Profiling the Service |
Identification of the ways in which the Outcomes Management Service can be extended both in terms of the addition of new constituent services and proprietary extensions to a service; |
Appendix A Summary List of Service Status Codes |
A summary list of the status codes by for the operations of the Outcomes Management Service; |
Appendix B Vocabularies |
A summary of the set of vocabularies that are used within the specification; |
Appendix C File-based Data Exchange |
The out-of-band file exchange used in response to receiving a URL for an external data file that contains the request data. |
1.4 Version Compatibility
The Outcomes Management Service was not developed in the 1EdTech GLC Enterprise Services v1.0 specification [ES, 04]. Instead, a simplified form of functionality was supported using the 1EdTech GLC Membership Management Services (MMS) v1.0 [MMS, 04]. In general, there is NO backwards compatibility between the usage of the OMSv1.0 and the ways in which MMSv1.0 has been implemented to support outcomes management. Vendors may define compatibility bridges for their own implementations but these are outside the scope of this specification.
1.5 Nomenclature
a-API Abstract Application Programming Interface
API Application Programming Interface
CMS Course Management Service
IAF 1EdTech GLC Abstract Framework
LIS Learning Information Services
LTU Learning Tools Interoperability
MMS Membership Management Service
OMS Outcomes Management Service
PIM Platform Independent Model
PSM Platform Specific Model
RFC Request For Comment
SDN Specification Development Note
UML Unified Modelling Language
WSDL Web Services Description Language
1.6 References
[APG, 05a] 1EdTech GLC Application Profile Guidelines Overview: Part 1 – Management Overview v1.0, 1EdTech Consortium, K.Riley, October 2005. /ap/index.html.
[APG, 05b] 1EdTech GLC Application Profile Guidelines White Paper: Part 2 Technical Manual, S.Wilson and K.Riley, Version 1.0, 1EdTech Consortium, October 2005. /ap/index.html.
[BDEMS, 11] 1EdTech GLC Bulk Data Exchange Management Service v1.0 Information Model v1.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[CMS, 11] 1EdTech GLC Course Management Service v1.0 Information Model v2.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[ES, 04] 1EdTech GLC Enterprise Services Overview v1.0 Final Release, C.Vento and C.Smythe, 1EdTech Consortium, June 2006.
[GMS, 11] 1EdTech GLC Group Management Service v1.0 Information Model v2.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[GWS, 05] 1EdTech GLC General Web Services WSDL Binding Guidelines v1.0 Final Specification, C.Schroeder, J.Simon and C.Smythe, 1EdTech Consortium, December 2005.
[IAF, 03a] 1EdTech Abstract Framework: Applications, Services & Components v1.0, Ed. C.Smythe, 1EdTech Consortium, July 2003.
[IAF, 03b] 1EdTech Abstract Framework: Glossary v1.0, Ed. C.Smythe, 1EdTech Consortium, July 2003.
[IAF, 03c] 1EdTech Abstract Framework: White Paper v1.0, Ed. C.Smythe, 1EdTech Consortium, July 2003.
[LIS, 11a] 1EdTech GLC Learning Information Services v2.0 Overview v1.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[LIS, 11b] 1EdTech GLC Learning Information Services v2.0 Specification v1.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[LIS, 11c] 1EdTech GLC Learning Information Services v2.0 Best Practices & Implementation Guide v1.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[MMS, 04] 1EdTech GLC Membership Management Services Information Model v1.0 Final Release, C.Vento and C.Smythe, 1EdTech Consortium, June 2004.
[MMS, 11] 1EdTech GLC Membership Management Service v2.0 Information Model v1.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[OMS, 11] 1EdTech GLC Outcomes Management Service v1.0 WSDL Binding v1.0 Final Release, L.Feng, W.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[SDN07, 06] 1EdTech GLC Specification Note: UML Profile for Platform Independent Model Descriptions of Specifications for Data Models v1.0, C.Smythe, 1EdTech Consortium, October 2006.
[SDN11, 06] 1EdTech GLC Specification Note 11: Vocabulary Definition, Registration & Maintenance Procedures, C.Smythe, 1EdTech Consortium, October 2006.
[VDEX, 04] 1EdTech/GLC Vocabulary Definition Exchange Best Practice and Implementation Guide, Version 1.0 Final Specification, A. Cooper, 1EdTech Consortium, 2005. Online version: /vdex/vdexv1p0/imsvdex_bestv1p0.html
2 Outcomes Management Service Description
2.1 An Abstract Representation
It is important to remember that this document contains the description of the underlying information model in terms of the abstract API. The manner in which this abstract representation is visualized is not intended to dictate the implementation form of an Outcomes Management Service. The breakdown of the service into its interface classes is a convenient way to document the set of Behaviors. The internal organization of an implementation of the full abstract API is beyond the scope of this specification. The only constraint is that the external Behavior of the abstract API complies with this specification. This means that a .NET, J2EE, etc. physical implementation of this abstract API does not have to represent the functionality using the same breakdown of operations/methods. This physical implementation is not subject to the conformance specification.
It is important to note that the UML representation of the interfaces is used to help develop and document the Outcomes Management Service Information Model. It is not a requirement for an implementation to implement this interface as defined i.e., to use the same parameters, etc. Conformance against this specification will be confirmed by inspecting the appropriate binding of the information model and ensuring that the relevant information is present and that different sequences of activity result in the predicted and mandated Behavior. It is essential that the Behaviors described by each of the operations are fully supported and it is also essential that the Behaviors described by different sequences be also maintained.
2.2 Outcomes Management Service Architecture & Specification Model
The basic architectural model for the Outcomes Management Service specification is shown in Figure 2.1. In this architecture the scope of the 1EdTech GLC Outcomes Management Service specification is shown as the dotted line. The scope of the interoperability is the data and Behavioral models of the objects being exchanged.
Figure 2.1 Outcomes management service architecture model.
It is important to remember that the structure of the exchanged information has NO bearing on how the same information is contained within the ‘source’ and ‘target’ Learning Information Services systems (the Outcomes object repositories in the two end-systems). It is simply a representation of the data used to facilitate exchange between the end-systems. The only constraint on the end-system repositories is that they provide data persistence consistent with the required behavior.
2.3 Outcomes Composite Objects
It is important to note that this is an interoperability specification and as such it makes no statements about how information is stored within the exchanging end systems. The objects in the end-systems must be persistent otherwise sequences of operation on the same object will not be possible. Reference to these objects in the interface is through a ‘sourcedId’ however this identifier does not have to be the key stored within the end-systems. If different keys are used in the end-systems then it is the responsibility of the end-systems to maintain the mapping between that key and the ‘sourcedId’ i.e., the interface must never be exposed to the keys of the end-systems.
There is no such thing as an Outcomes object. Instead, Outcomes are reflected in three types of object each of which has its own ‘sourcedId’ which are linked to create the Outcomes data model as shown in Figure 2.2.
Figure 2.2 Schematic representation of the outcomes data model.
The three classes of object are:
· LineItem – the set of results for a particular CourseTemplate, CourseOffering, CourseSection and Group (each result is a Result object);
· Result – the container for a result for a particular Person (each result can be related to a ResultValue object);
· ResultValue – the permitted range of values for a Result and/or a LineItem.
As shown in Figure 2.2 the LineItem is the key object that is used to establish the relationship between course components and the results for each person. A LineItem has three fields:
· The identifier (that is the sourcedId) of the associated course components (denoted as Cp in Figure 2.2). More than one LineItem can point to the same course component;
· The type of LineItem (this is an open vocabulary as in Figure 2.2 this includes ‘Interim’, ‘Final’, etc.);
· The ResultValue that defines the nature of all of the results associated with the LineItem (each Result must be associated with one, and only one, LineItem).
Each Result is associated with a LineItem and a Person i.e., the Person who has received the result for that particular course component. A Person may have several results, for the same or different course components, and so more than one result may be associated with a Person. The unit of marking for the Result is defined by the ResultValue associated with the Result. In general, many Results will be associated with each type of ResultValue. A ResultValue can also be assigned to a LineItem thereby defining all Results to be of the same ResultValue.
A system that wishes to support all of the behaviors of the OMS must also contain the Course data model as defined in the 1EdTech GLC Course Management Services Information Model v1.0 specification [CMS, 11] and may have to support the Group data model in the 1EdTech GLC Group Management Services Information Model v2.0 specification [GMS, 11].
2.4 Synchronous & Asynchronous Services
Within the context of the Outcomes Management Service the definition of synchronous and asynchronous services is:
· Synchronous – the source service is blocked until the final response from the target service is received. A schematic representation of the information flow for a synchronous service is shown in Figure 2.3;
· Asynchronous – the source service is not blocked and so more than one request can be outstanding at any moment in time. A schematic representation of the information flow for an asynchronous service is shown in Figure 2.4.
Figure 2.3 Synchronous service action flow.
It is stressed that the abstract-API does not differentiate between synchronous and asynchronous services[1]. The support for these two approaches is differentiated at the binding level only.
Figure 2.4 Asynchronous service action flow.
The key difference is that for an asynchronous service more than one request can be issued at any one time (it should be noted that an asynchronous service can be supported using synchronous messaging). In both cases the service assumes a perfect messaging system i.e., request, response and acknowledgement messages have a guaranteed delivery grade of service.
2.5 Handling the Service Status Codes
Each operation in a service is mapped to an appropriate message exchange pattern. Any response/acknowledgement message will contain status information. This status information provides contextual information about the completed success or otherwise of the operation. There are two types of status information that are available to the end-systems:
· Business transaction – these are the status reports that reflect the business logic of the transactions being exchanged by the end-systems. This status information will be contained within the message header under a specially defined data structure. The status information contained herein is also used to contain any error codes i.e., error reporting is handled as a subset of status information reporting;
· Messaging fault– these are fault codes that are reported by the messaging infrastructure and which are carried in the messages.
It is important to note that messaging errors may indicate that the original request never reached the service provider end-system. In this case the service consumer implementation that handles the status information is responsible for mapping the message infrastructure failure codes to the equivalent business transaction status code. The message infrastructure failure codes have no meaning with respect to an 1EdTech GLC specification. The 1EdTech GLC specifications do not describe how the status information is to be handled within an end-system i.e., this will depend on how the abstract API is physically realized within an implementation. Therefore, it is important that an implementation can:
· Combine the transaction status information and any message fault error codes in a single integrated status reporting mechanism. Any other system failure information that is made available by an implementation should also use the same mechanism;
· Examine the status information reported after the completion of the appropriate phase of an operation and especially once the operation has been completed. This may require an explicit status information call or it may be reported as part of the API call;
· Differentiate the status information reports for each transaction within an operation. Remember that some specifications provide operations that can contain more than one transaction request and that a different status report may be given for each of those transactions.
Exception handling is the system’s response to known or unknown error conditions. Exception handling is outside the scope of an 1EdTech GLC specification. However, an error condition should not cause the end-systems to fail in an uncontrolled manner. The requirement for every operation to return status information is to enable an implementation to terminate in a controlled fashion.
3 Behavioral Model
3.1 Service Definition
The OutcomesManagementService is used to model the service responsible for manipulating information about outcomes. The OutcomesManagementService interfaces are shown in Figures 3.1, 3.2 and 3.3. The OutcomesManagementService is split into three interfaces: LineItemManager that supports the manipulation of LineItem objects; ResultManager that supports the manipulation of Result objects; ResultValueManager that supports the manipulation of ResultValue objects.
3.2 LineItemManager Interface Description
The LineItemManager interface class describes the operations that are permitted on LineItem objects (as shown in Figure 3.1). The set of operations are summarized in Table 3.1.
Figure 3.1 OutcomesManagementService LineItemManager interface definitions.
Table 3.1 Summary of operations for LineItemManager.
Operation |
Description |
createLineItem |
To request the creation of a populated LineItem object on the target system where the source is responsible for the allocation of the unique SourcedId. |
createByProxyLineItem |
To request the creation of a populated LineItem object on the target system where the target is responsible for the allocation of the unique SourcedId. |
deleteLineItem |
To request the deletion of a LineItem object. The LineItem object is deleted with all of its associated relationships. |
readLineItem |
To read the full contents of the identified LineItem object. The target must return all of the data it has for the identified LineItem object. |
readAllLineItemIds |
To obtain all the SourcedIds assigned to LineItem objects. |
readLineItemIdsWithLineItemType |
To obtain the set of SourcedIds for the LineItem objects which have a particular state. |
readLineItemIdsForPerson |
To obtain the set of SourcedIds for the LineItem objects which are associated with a particular Person object. |
readLineItemIdsForCourseOffering |
To obtain the set of SourcedIds for the LineItem objects which are associated with a particular CourseOffering object. |
readLineItemIdsForCourseSection |
To obtain the set of SourcedIds for the LineItem objects which are associated with a particular CourseSection object. |
readLineItemIdsForCourseSectionWithLineItemRType |
To obtain the set of SourcedIds for the LineItem objects with the required state, which are associated with a particular CourseSection object. |
readLineItemIdsFromSavePoint |
To obtain the set of SourcedIds for LineItem objects which have been altered since the requested reference point. The reference point is set as ‘zero’ at creation and incremented after every write operation. |
readLineItems |
To obtain the LineItem objects for a defined set of SourcedIds. This results in a single transaction that may require the exchange of a large volume of data in the response message. |
readLineItemsFromSavePoint |
To obtain the set of LineItem objects which have been altered since the requested reference point. The reference point is set as ‘zero’ at creation and incremented after every write operation. This results in a single transaction that may require the exchange of a large volume of data in the response message. |
updateLineItem |
To write new content into the identified LineItem object. The target must write the new data into the LineItem object. This is an additive operation. |
replaceLineItem |
To replace the content of the identified LineItem object. The target must write the new data into the LineItem object. This is a destructive write-over of all of the original information. In the case of the object not existing, this operation acts as an implied ‘createLineItem’. |
discoverLineItemIds |
To obtain the set of SourcedIds for LineItem objects whose properties agree with those defined in the query/filter. |
changeLineItemIdentifier |
To change the SourcedId for a LineItem object. |
Note: In most cases the above operations act on a single instance of a Group object i.e., ‘createLineItem’, ‘createByProxyLineItem’, ‘deleteLineItem’, ‘readLineItem’, ‘replaceLineItem’ and ‘updateLineItem’.
3.2.1 CreateLineItem() Operation
Name: |
createLineItem |
Return Function Parameter: |
StatusInfo – the status of the creation request. The permitted status codes are defined in Tables 3.2 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the sourcedId allocated by the source system. This is the identifier that must also be assigned within the target system. lineItemRecord:LineItemRecord – the LineItem data that is to be stored in the new object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘createLineItem’ request the target is instructed to create the populated LineItem object and to allocate that structure the SourcedId passed by the source. If the supplied SourcedId has already been allocated to another object then the request is rejected and the appropriate failure code is returned. The reference point identifier is set to ‘zero’ for the object in both the source and target. |
Notes: |
This request contains the initial content for the LineItem object. More content can be added/replaced using the ‘updateLineItem’ and/or ‘replaceLineItem’ requests. |
Table 3.2 Status codes for the ‘createLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The creation request has been fully and successfully implemented by the target system and the object has been created with the supplied SourcedId. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocinusefail’ |
The target could not allocate the unique SourcedId to the object as the identifier is already in use. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=overflowfail’ |
The target could not create the LineItem record due to lack of target allocation memory. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
An invalid LineItemType value has been supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=contextunknown’ |
An unknown context is supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=gradingnotpermitted’ |
The service consumer is not authorized for grade upload for this CourseSection object. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary extensions that are used in the object’s data model. |
3.2.2 CreateByProxyLineItem() Operation
Name: |
createByProxyLineItem |
Return Function Parameter: |
StatusInfo – the status of the creation request. The permitted status codes are defined in Tables 3.3 and A.2. |
Supplied (in) Parameters: |
lineItemRecord:LineItemRecord – the LineItem data that is to be stored in the new object. |
Returned (out) Parameters: |
sourcedId:GUID – the identifier allocated by the target to the newly created LineItem object. |
Behavior: |
When the source issues the ‘createByProxyLineItem’ request the target is instructed to create the populated CourseLineItem object and to allocate that record a unique SourcedId. The reference point identifier is set to ‘zero’ for the LineItem object in both the source and target. |
Notes: |
This request contains the initial content for the LineItem object. More content can be added/replaced using the ‘updateLineItem’ and/or ‘replaceLineItem’ requests. |
Table 3.3 Status codes for the ‘createByProxyLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The creation request has been fully and successfully implemented by the target system and the object has been created with the SourcedId generated by the target. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocfail’ |
The target could not allocate a unique SourcedId to the object because there are no more spare identifiers available. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=overflowfail’ |
The target could not create the object due to lack of target allocation memory. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
An invalid LineItemType value has been supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=contextunknown’ |
An unknown context is supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=gradingnotpermitted’ |
The service consumer is not authorized for grade upload for this CourseSection object. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary extensions that are used in the object’s data model. |
3.2.3 DeleteLineItem() Operation
Name: |
deleteLineItem |
Return Function Parameter: |
StatusInfo – the status of the deletion request. The permitted status codes are defined in Tables 3.4 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier to be used by the target to identify the LineItem object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘deleteLineItem’ request the target is instructed to delete the identified LineItem object and to remove any associations. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. The LineItem is deleted and all of the associated Result objects. |
Notes: |
Deletion of the LineItem object does not necessarily result in the destruction of the data within the server. The true state of the data in the target is unknown. |
Table 3.4 Status codes for the ‘deleteLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The deletion request has been fully and successfully implemented by the target system and the objects have been deleted. The corresponding child objects have been deleted. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be deleted. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor= deletefailure’ |
The target system has not been able to delete the identified object because there are Result objects associated with the LineItem. |
3.2.4 ReadLineItem() Operation
Name: |
readLineItem |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.5 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the LineItem object to be read. |
Returned (out) Parameters: |
lineItemRecord:LineItemRecord – the LineItem data that is read from the object. |
Behavior: |
When the source issues the ‘readLineItem’ request the target is charged with retrieving the identified object from its database and returning this data to the source. The target is responsible for ensuring that the object contains valid data. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The returned LineItem object can only be trusted if the corresponding status code is ‘success’. |
Table 3.5 Status codes for the ‘readLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the source system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has only returned a subset of the data expected by the source e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The source system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary extensions that are used in the object’s data model. |
3.2.5 ReadAllLineItemIds() Operation
Name: |
readAllLineItemIds |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.6 and A.2. |
Supplied (in) Parameters: |
None. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of sourcedIds for all of the LineItem objects in the target’s Outcomes database. |
Behavior: |
When the source issues the ‘readAllLineItemIds’ request the target is charged with returning the SourcedIds of all of the LineItems in its line item database. |
Notes: |
If no SourcedIds have been allocated then the returned data set is empty and the success status code returned. |
Table 3.6 Status codes for the ‘readAllLineItemIds’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.2.6 ReadLineItemIdsForPerson() Operation
Name: |
readLineItemIdsForPerson |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.7 and A.2. |
Supplied (in) Parameters: |
personSourcedId:GUID – the identifier of the Person object whose LineItem sourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the LineItem objects for the Person in the target’s Outcomes database. |
Behavior: |
The target system must return all of the LineItem SourcedIds for the identified Person object. If the Person object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. The association between a Person and the LineItems is defined through a Membership of a Course object e.g., a CourseOffering. The LineItems are then searched for those that have the association with the corresponding Course object. |
Notes: |
The returned object can only be trusted if the corresponding status code is ‘success’. This Behavior requires that the system support the Membership and Course data models [MMS, 11], [CMS, 11]. |
Table 3.7 Status codes for the ‘readLineItemIdsForPerson’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The Person object identifier is unknown in the target system and so the relationships could not be identified. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the object databases and so cannot locate the identifiers. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.2.7 ReadLineItemIdsForCourseOffering() Operation
Name: |
readLineItemIdsForCourseOffering |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.8 and A.2. |
Supplied (in) Parameters: |
offeringSourcedId:GUID – the identifier of the CourseOffering object whose LineItem sourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of sourcedIds for all of the LineItem objects for the CourseOffering in the target’s Course database. |
Behavior: |
The target system must return all of the LineItem SourcedIds for the identified CourseOffering object. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.8 Status codes for the ‘readLineItemIdsForCourseOffering’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the LineItem identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The CourseOffering object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the LineItem database and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.2.8 ReadLineItemIdsWithLineItemType() Operation
Name: |
readLineItemIdsWithStatus |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.9 and A.2. |
Supplied (in) Parameters: |
lineItemType:LineItemType – the LineItem objects with a particular column type whose SourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the LineItem objects of the appropriate status value in the target’s Outcomes database. |
Behavior: |
The target system must return all of the LineItem SourcedIds that have the supplied status value. If an invalid status value is supplied then the request is rejected and the appropriate failure code is returned. |
Notes: |
The returned object can only be trusted if the corresponding status code is ‘success’. |
Table 3.9 Status codes for the ‘readLineItemIdsWithLineItemType’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the LineItem identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
An invalid LineItemType value has been supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the LineItem database and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.2.9 ReadLineItemIdsForCourseSection() Operation
Name: |
readLineItemIdsForCourseSection |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.10 and A.2. |
Supplied (in) Parameters: |
sectionSourcedId:GUID – the identifier of the CourseSection object whose LineItem sourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the LineItem objects for the CourseSection in the target’s Course database. |
Behavior: |
The target system must return all of the LineItem SourcedIds for the identified CourseSection object. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.10 Status codes for the ‘readLineItemIdsForCourseSection’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the LineItem identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The CourseSection object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the LineItem object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the source system. |
3.2.10 ReadLineItemIdsForCourseSectionWithLineItemType() Operation
Name: |
readLineItemIdsForCourseSectionWithLineItemType |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.11 and A.2. |
Supplied (in) Parameters: |
sectionSourcedId:GUID – the identifier of the CourseSection object whose LineItem sourcedIds are required. lineItemType:LineItemType – the LineItem objects with a particular column type whose SourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the LineItem objects of the required lineItemType for the CourseSection in the target’s Course database. |
Behavior: |
The target system must return all of the LineItem SourcedIds for the identified CourseSection object. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.11 Status codes for the ‘readLineItemIdsForCourseSectionWithLineItemType’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the LineItem identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The CourseSection object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
An invalid LineItemType value has been supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the LineItem object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the source system. |
3.2.11 ReadLineItemIdsFromSavePoint() Operation
Name: |
readLineItemIdsFromSavePoint |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the read request. The permitted status codes are given in Tables 3.12 and A.2. |
Supplied (in) Parameters: |
fromSavePoint:SequenceIdentifier – the reference point from which all of the changed identifier actions are to be read. This is the value in the source system. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the LineItem objects stored on the target. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readLineItemIdsFromSavePoint’ the target returns the set of SourcedIds that have been altered from the defined reference point, supplied by the source, to the latest reference point identified in the target. If the reference counter in the source is greater than that in the target then an error code is returned and the target value for the reference point is returned. |
Notes: |
If no SourcedIds have been allocated then the returned data set is empty and the success status code returned. |
Table 3.12 Status codes for the ‘readLineItemIdsFromSavePoint’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified LineItem identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no LineItem identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=savepointerror’ |
An error has occurred in the processing of the save-point identifier information making it impossible to read the correct objects from the database. |
‘CodeMajor=Failure’ ‘Severity=Status’ |
The value of the save point reference from the source was later than that of the target system. No identifiers have been returned. The target system savepoint value has been updated to that supplied by the source system. |
3.2.12 ReadLineItems() Operation
Name: |
readLineItems |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.13 and A.2. |
Supplied (in) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the LineItem objects to be read. |
Returned (out) Parameters: |
lineItemRecordSet:LineItemRecordSet – the set of lineItem records. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readLineItems’ request the target is charged with retrieving the identified set of objects from its database. The associated read savePoint reference is updated and returned. If an object identified by the supplied set of SourcedIds cannot be located then the request is rejected and a partial success code is returned for the operation. The target is responsible for ensuring that the records contain valid data. The target should attempt to successfully complete as much of the request as possible. |
Notes: |
A lineItem object is only present in the data structure if it has been located in the target system. The enclosed data may result in a long response message. |
Table 3.13 Status codes for the ‘readLineItems’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The source system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatareturn’ |
The target has only returned a subset of the data object e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored LineItem object and so cannot return the data. |
3.2.13 ReadLineItemsFromSavePoint() Operation
Name: |
readLineItemsFromSavePoint |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the read request. The permitted status codes are given in Tables 3.14 and B.2. |
Supplied (in) Parameters: |
fromSavePoint:SequenceIdentifier – the reference point from which all of the changed identifier actions are to be read. This is the value in the source system. |
Returned (out) Parameters: |
lineItemRecordSet:LineItemRecordSet – the set of group records. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readLineItemsFromSavePoint’ request the target is charged with reading the objects that have been altered from the defined reference point. If the reference counter in the source is greater than that in the target then an error code is returned and the target value for the reference point is returned. |
Notes: |
If no objects have been allocated then the return message will be empty. The enclosed data may result in a long response message. |
Table 3.14 Status codes for the ‘readLineItemsFromSavePoint’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified LineItem object has been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=savepointerror’ |
An error has occurred in the processing of the save-point identifier information making it impossible to read the correct objects from the database. |
‘CodeMajor=Failure’ ‘Severity=Status’ |
The value of the save point reference from the source was later than that of the target system. No identifiers have been returned. The target system savepoint value has been updated to that supplied by the source system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatareturn’ |
The target has only returned a subset of the data object e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored LineItem object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
3.2.14 ReplaceLineItem() Operation
Name: |
replaceLineItem |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the replace request. The permitted status codes are given in Tables 3.15 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the LineItem object to be replaced. lineItemRecord:LineItemRecord – the LineItem data that is to be stored in the object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘replaceLineItem’ request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is a destructive write-over operation of the entire LineItem object. This is equivalent to a ‘createLineItem’ but for an object that already exists. If the object identified by the supplied SourcedId cannot be located then the request is interpreted as a ‘createLineItem’ invocation. The reference counter for the object is incremented by one in the target system. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.15 Status codes for the ‘replaceLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The replace request has been fully and successfully implemented by the target system and the identified object has been changed on the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=createsuccess’ |
The LineItem object identifier is unknown in the target system and so a new object has been successfully created instead. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
An invalid LineItemType value has been supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=contextunknown’ |
An unknown context is supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=gradingnotpermitted’ |
The service consumer is not authorized for grade upload for this CourseSection object. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary extensions that are used in the object’s data model. |
3.2.15 UpdateLineItem() Operation
Name: |
updateLineItem |
Return Function Parameter: |
StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.16 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the LineItem object to be updated. lineItemRecord:LineItemRecord – the LineItem data that is to be stored in the object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘updateLineItem’ request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the object is left in its original state. This is an additive write operation of all the data fields supplied in the update request and fields not supplied remain unchanged. If a field is constrained with a multiplicity of one then the ‘updateLineItem’ request acts as a replaceLineItem’ request for that field. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. The reference counter for the object is incremented by one in the target system. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.16 Status codes for the ‘updateLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The update request has been fully and successfully implemented by the target system and the identified object has been changed on the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be updated. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
An invalid LineItemType value has been supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=contextunknown’ |
An unknown context is supplied. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=gradingnotpermitted’ |
The service consumer is not authorized for grade upload for this CourseSection object. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary extensions that are used in the object’s data model. |
3.2.16 DiscoverLineItemIds() Operation
Name: |
discoverLineItemIds |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.17 and A.2. |
Supplied (in) Parameters: |
queryObject:QueryObject – this is the query/filter instruction that is to be applied by the target to discover the corresponding LineItem objects. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the LineItem objects whose content conform to the query conditions. |
Behavior: |
When the source issues the ‘discoverLineItemIds’ the target applies the query instructions to the set of LineItem objects and returns the set of SourcedIds that uphold the query. If no LineItem objects have the required properties the returned data set is empty and the success status code returned. If the target does not understand or cannot apply the requested query then an error status is returned. |
Notes: |
The internal structure of this QueryObject is undefined (it is should be treated as a String). Later versions of this specification will look at the established best practices for clarification on the use of this operation. |
Table 3.17 Status codes for the ‘discoverLineItemIds’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The discover request has been fully and successfully implemented by the target system and the identifiers of the objects that uphold the search criteria are returned. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The discover request has been fully and successfully implemented by the target system and no LineItem object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownquery’ |
The query/filter instruction is unknown in the target system and so the query/filter could not be executed. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.2.17 ChangeLineItemIdentifier() Operation
Name: |
changeLineItemIdentifier |
Return Function Parameter: |
StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.18 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the LineItem object to be changed. newSourcedId:GUID – the new identifier to be allocated to the ‘lineItem’ object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘changeLineItemIdentifier’ request the target is charged with replacing the original SourcedId with the new supplied SourcedId. All Membership entries must be similarly changed. All further references to the object must use the new ‘sourcedId’ otherwise an ‘unknown’ object failure status code is returned. If the object identified by the supplied ‘SourcedId’ cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The reference pointer value remains unchanged. |
Table 3.18 Status codes for the ‘changeLineItemIdentifier’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The change identifier request has been fully and successfully implemented by the target system and the LineItem object SourcedId has been changed on the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocinusefail’ |
The target could not allocate the new unique SourcedId to the LineItem object as the identifier is already in use. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The current LineItem SourcedId identifier is unknown in the target system and so the object identifier could not be changed. |
3.3 ResultManager Interface Description
The ResultManager interface class describes the operations that are permitted on Result objects (as shown Figure 3.2). The set of operations are summarized in Table 3.19.
Figure 3.2 OutcomesManagementService ResultManager interface definitions.
Table 3.19 Summary of operations for ResultManager.
Operation |
Description |
createResult |
To request the creation of a populated Result object on the target system where the source allocates the unique SourcedId. The Result object is tied to a LineItem object. |
createByProxyResult |
To request the creation of a populated Result object on the target system where the target allocates the unique SourcedId. The Result object is tied to a LineItem object. |
deleteResult |
To request the deletion of a Result object. The Result object is deleted but the associated ResultValue and LineItems remain. |
readResult |
To read the full contents of the identified Result object. The target must return all of the data it has for the identified Result object. |
readAllResultIds |
To obtain the set of SourcedIds assigned to Result objects. |
readResultIdsForPerson |
To obtain the set of SourcedIds for the Result objects which are associated with a particular Person object. |
readResultIdsForLineItem |
To obtain the set of SourcedIds for the Result objects which are associated with a particular LineItem object. |
readResultIdsForCourseOffering |
To obtain the set of SourcedIds for the Result objects which are associated with a particular CourseOffering object. |
readResultIdsForCourseSection |
To obtain the set of SourcedIds for the Result objects which are associated with a particular CourseSection object. |
readResultIdsForCourseSectionWithStatus |
To obtain the set of SourcedIds for the Result objects that are associated with a particular CourseSection object and have results of a particular status. |
readResultIdsForLineItemWithLineItemType |
To obtain the SourcedIds for the Result objects that are associated with a LineItem that has a particular LineItemType state. |
readResultIdsFromSavePoint |
To obtain the set of identifiers for Result objects which have been altered since the requested reference point. The reference point is set as ‘zero’ at creation and incremented after every write operation. |
readResults |
To obtain the Result objects for a defined set of identifiers. This results in a single transaction that may require the exchange of a large volume of data. |
readResultsFromSavePoint |
To obtain the set of Result objects which have been altered since the requested reference point. The reference point is set as ‘zero’ at creation and incremented after every write operation. This results in a single transaction that may require the exchange of a large volume of data in the response message. |
updateResult |
To add content to the identified Result object. The target must write the new data into the Result object. This is an additive operation. |
replaceResult |
To replace the content of the identified Result object. The target must write the new data into the Result object. This is a destructive write-over of all of the original information. In the case of the object not existing, this operation acts as an implied ‘createResult’. |
replaceResultsForLineItem |
To replace the Result records for all of the PersonSourcedIds for a specific LIneItem object. In the case of the object not existing, this operation acts as an implied ‘createResult’. |
discoverResultIds |
To obtain the set of SourcedIds for Result objects whose properties agree with those defined in the query/filter. |
changeResultIdentifier |
To change the SourcedId of a Result object. |
Note: In most cases the above operations act on a single instance of a Group object i.e., ‘createResult’, ‘createByProxyResult’, ‘deleteResult’, ‘readResult’, ‘replaceResult’ and ‘updateResult’.
3.3.1 CreateResult() Operation
Name: |
createResult |
Return Function Parameter: |
StatusInfo – the status of the creation request. The permitted status codes are defined in Tables 3.20 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the sourcedId allocated by the source system. This is the identifier that must also be assigned within the target system. lineItemSourcedId:GUID – the sourcedId of the LineItem object to which the Result object is assigned. resultRecord:ResultRecord – the Result data that is to be stored in the new object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘createResult’ request the target is instructed to create the populated Result object and to allocate that structure the SourcedId passed by the source. If the supplied SourcedId has already been allocated to another object then the request is rejected and the appropriate failure code is returned. The reference point identifier is set to ‘zero’ for the Result object in both the source and target. The Result object is assigned to the identified LineItem object. If an invalid sourcedId is given for the LineItem object then an error code is returned and the Result object is not created. |
Notes: |
This request contains the initial content for the Result object. More content can be added/replaced using the ‘updateResult’ and/or ‘replaceResult’ requests. |
Table 3.20 Transitions associated with the ‘createResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The creation request has been fully and successfully implemented by the target system and the object has been created with the supplied SourcedId. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocinusefail’ |
The target could not allocate the unique SourcedId to the object as the identifier is already in use. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The LineItem object identifier is unknown in the target system and so the Result object could not be created. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=overflowfail’ |
The target could not create the Result record due to lack of target allocation memory. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary extensions that are used in the object’s data model. |
3.3.2 CreateByProxyResult() Operation
Name: |
createByProxyResult |
Return Function Parameter: |
StatusInfo – the status of the creation request. The permitted status codes are defined in Tables 3.21 and A.2. |
Supplied (in) Parameters: |
lineItemSourcedId:GUID – the sourcedId of the LineItem object to which the Result object is assigned. resultrecord:ResultRecord – the Result data that is to be stored in the new object. |
Returned (out) Parameters: |
sourcedId:GUID – the identifier allocated by the target to the newly created Result object. |
Behavior: |
When the source issues the ‘createByProxyResult’ request the target is instructed to create the populated Result object and to allocate that record a unique SourcedId. The reference point identifier is set to ‘zero’ for the Result object in both the source and target. The Result object is assigned to the identified LineItem object. If an invalid sourcedId is given for the LineItem object then an error code is returned and the Result object is not created. |
Notes: |
This request contains the initial content for the Result object. More content can be added/replaced using the ‘updateResult’ and/or ‘replaceResult’ requests. |
Table 3.21 Status codes for the ‘createByProxyResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The creation request has been fully and successfully implemented by the target system and the object has been created with the SourcedId supplied by the target. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocfail’ |
The target could not allocate a unique SourcedId to the object because there are no more spare identifiers available. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The LineItem object identifier is unknown in the target system and so the Result object could not be created. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=overflowfail’ |
The target could not create the object due to lack of target allocation memory. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary extensions that are used in the object’s data model. |
3.3.3 DeleteResult() Operation
Name: |
deleteResult |
Return Function Parameter: |
StatusInfo – the status of the deletion request. The permitted status codes are defined in Tables 3.22 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier to be used by the target to identify the Result object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘deleteResult’ request the target is instructed to delete the identified Result object and to remove any associations. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
Deletion of the Result object does not necessarily result in the destruction of the data within the server. The true state of the data in the target is unknown. |
Table 3.22 Status codes for the ‘deleteResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The deletion request has been fully and successfully implemented by the target system and the object has been deleted. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be deleted. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor= deletefailure’ |
The target system has not been able to delete the identified object. |
3.3.4 ReadResult() Operation
Name: |
readResult |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.23 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the Result object to be read. |
Returned (out) Parameters: |
resultRecord:ResultRecord– the Result data that is read from the object. |
Behavior: |
When the source issues the ‘readResult’ request the target is charged with retrieving the identified record from its database and returning this data to the source. The target is responsible for ensuring that the object contains valid data. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The returned Result object can only be trusted if the corresponding status code is ‘success’. |
Table 3.23 Status codes for the ‘readResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the source system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has only returned a subset of the data expected by the source e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The source system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary extensions that are used in the object’s data model. |
3.3.5 ReadAllResultIds() Operation
Name: |
readAllResultIds |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.24 and A.2. |
Supplied (in) Parameters: |
None. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects in the target’s Result database. |
Behavior: |
When the source issues the ‘readAllResultIds’ request the target is charged with returning the SourcedIds of all of the Result identifiers in its Result database. |
Notes: |
The returned set of SourcedIds may or may not have completed results. If no SourcedIds have been allocated then the returned data set is empty and the success status code returned. Note that, in general, the set of Result objects will not be assigned to the same LineItem. |
Table 3.24 Status codes for the ‘readAllResultIds’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.3.6 ReadResultIdsForPerson() Operation
Name: |
readResultIdsForPerson |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.25 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the Person object whose Result sourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects for the Person in the target’s Result database. |
Behavior: |
The target system must return all of the Result SourcedIds for the identified Person object. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.25 Status codes for the ‘readResultIdsForPerson’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The Person object identifier is unknown in the target system and so the associated Result could not be identified. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the Outcomes database and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.3.7 ReadResultIdsForLineItem() Operation
Name: |
readResultIdsForLineItem |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.26 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the LineItem object whose Result sourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects for the LineItem in the target’s Outcomes database. |
Behavior: |
The target system must return all of the Result SourcedIds for the identified LineItem object. The Result identifiers are read directly from the LineItem data model. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The returned object can only be trusted if the corresponding status code is ‘success’. |
Table 3.26 Status codes for the ‘readResultIdsForLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The LineItem object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the LineItem object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.3.8 ReadResultIdsForCourseOffering() Operation
Name: |
readResultIdsForCourseOffering |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.27 and A.2. |
Supplied (in) Parameters: |
offeringSourcedId:GUID – the identifier of the CourseOffering object whose Result SourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects for the CourseOffering in the target’s Course database. |
Behavior: |
The target system must return all of the Result SourcedIds for the identified CourseOffering object. This information is located by finding the LineItems that are associated with the identified CourseOffering. The corresponding Result identifiers listed in the LineItems are then returned. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.27 Status codes for the ‘readResultIdsForCourseOffering’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The CourseOffering object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the object databases and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.3.9 ReadResultIdsForCourseSection() Operation
Name: |
readResultIdsForCourseSection |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.28 and A.2. |
Supplied (in) Parameters: |
sectionSourcedId:GUID – the identifier of the CourseSection object whose Result SourcedIds are required. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects for the CourseSection in the target’s Course database. |
Behavior: |
The target system must return all of the Result SourcedIds for the identified CourseSection object. This information is located by finding the LineItems that are associated with the identified CourseSection. The corresponding Result identifiers listed in the LineItems are then returned. If the CourseSection object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.28 Status codes for the ‘readResultIdsForCourseSection’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The CourseSection object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the object databases and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.3.10 ReadResultIdsForCourseSectionWthStatus() Operation
Name: |
readResultIdsForCourseSectionWithStatus |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.29 and A.2. |
Supplied (in) Parameters: |
sectionSourcedId:GUID – the identifier of the CourseSection object whose Result SourcedIds are required. resultStatus:ResultStatus – the status of the Result of the SourcedIds required. This will be from an agreed vocabulary |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects for the CourseSection with the required status in the target’s CourseSection database. |
Behavior: |
The target system must return all of the Result SourcedIds, of the appropriate status, for the identified CourseSection object. This information is located by finding the LineItems that are associated with the identified CourseSection. The corresponding Result identifiers listed in the LineItems with the corresponding status are then returned. If the CourseSection object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.29 Status codes for the ‘readResultIdsForCourseSectionWithStatus’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The CourseSection object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the object database and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
The defined status for the Result objects is unknown in the target system. |
3.3.11 ReadResultIdsForLineItemWithLineItemType() Operation
Name: |
readResultIdsForLineItemWithLineItemType |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.30 and A.2. |
Supplied (in) Parameters: |
contextSourcedId:GUID – the identifier of the LineItem object whose Result SourcedIds are required. lineItemType:LineItemType – the type of the LineItems required for inspection. This will be from an agreed vocabulary. resultStatus:ResultStatus – the status of the Result of the SourcedIds required. This will be from an agreed vocabulary. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the Result objects for the LineItem with the required LineItemType in the target’s Outcomes database. |
Behavior: |
The target system must return all of the Result SourcedIds for the identified LineItem object with the relevant LineItemType. This information is located by finding the LineItems that are associated with the identified. The corresponding Result identifiers listed in the LineItems with the corresponding LineItemType are then returned. If the LineItem object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.30 Status codes for the ‘readResultIdsForLineItemWithLineItemType’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The LineItem object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the object database and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invalidlineitemtype’ |
The defined LineItemType for the LineItem object is unknown in the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
The defined ResultStatus for the LineItem object is unknown in the target system. |
3.3.12 ReadResultIdsFromSavePoint() Operation
Name: |
readResultIdsFromSavePoint |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the read request. The permitted status codes are given in Tables 3.31 and A.2. |
Supplied (in) Parameters: |
fromSavePoint:SequenceIdentifier – the reference point from which all of the changed identifier actions are to be read. This is the value in the source system. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the Result objects stored on the target. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readResultIdsFromSavePoint’ the target returns the set of SourcedIds that have been altered from the defined reference point, supplied by the source, to the latest reference point identified in the target. If the reference counter in the source is greater than that in the target then an empty set is returned for the SourcedIds and the target value for the reference point is returned. |
Notes: |
If no SourcedIds have been allocated then the returned data set is empty and the success status code returned. |
Table 3.31 Status codes for the ‘readResultIdsFromSavePoint’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified Result object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no Result object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=savepointerror’ |
An error has occurred in the processing of the save-point identifier information making it impossible to read the correct objects from the database. |
‘CodeMajor=Failure’ ‘Severity=Status’ |
The value of the save point reference from the source was later than that of the target system. No identifiers have been returned. The target system savepoint value has been updated to that supplied by the source system. |
3.3.13 ReadResults() Operation
Name: |
readResults |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.32 and A.2. |
Supplied (in) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the Result objects to be read. |
Returned (out) Parameters: |
resultRecordSet:ResultRecordSet – the set of result records. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readResults’ request the target is charged with retrieving the identified set of objects from its database. The associated read savePoint reference is updated and returned. If the object identified by the supplied SourcedId cannot be located then the request is rejected and a partial success code is returned for the operation. The target is responsible for ensuring that the records contain valid data. The target should attempt to successfully complete as much of the request as possible. |
Notes: |
A result object is only present in the data structure if it has been located in the target system. The enclosed data may result in a long response message. |
Table 3.32 Status codes for the ‘readResults’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The source system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatareturn’ |
The target has only returned a subset of the data object e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored Result object and so cannot return the data. |
3.3.14 ReadResultsFromSavePoint() Operation
Name: |
readLineItemsFromSavePoint |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the read request. The permitted status codes are given in Tables 3.33 and A.2. |
Supplied (in) Parameters: |
fromSavePoint:SequenceIdentifier – the reference point from which all of the changed identifier actions are to be read. This is the value in the source system. |
Returned (out) Parameters: |
resultRecordSet:ResultRecordSet – the set of result records. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readResultsFromSavePoint’ request the target is charged with reading the objects that have been altered from the defined reference point. If the reference counter in the source is greater than that in the target then an error code is returned and the target value for the reference point is returned. |
Notes: |
If no objects have been allocated then the return message will be empty. The enclosed data may result in a long response message. |
Table 3.33 Status codes for the ‘readResultsFromSavePoint’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified Result object has been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=partialreadfail’ |
Some of the Result object identifiers are unknown in the target system and so those objects could not be read. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatareturn’ |
The target has only returned a subset of the data object e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=savepointerror’ |
An error has occurred in the processing of the save-point identifier information making it impossible to read the correct objects from the database. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored Result object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
3.3.15 ReplaceResult() Operation
Name: |
replaceResult |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the replace request. The permitted status codes are given in Tables 3.34 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the Result object to be replaced. resultRecord:ResultRecord – the Result data that is to be stored in the object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘replaceResult’ request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is a destructive write-over operation of the entire Result object. This is equivalent to a ‘createResult’ but for an object that already exists. If the object identified by the supplied SourcedId cannot be located then the request is interpreted as a ‘createResult’ invocation. The reference counter for the object is incremented by one in the target system. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.34 Status codes for the ‘replaceResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The replace request has been fully and successfully implemented by the target system and the identified object has been changed on the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=createsuccess’ |
The Result object identifier is unknown in the target system and so a new object has been successfully created instead. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary data model extensions used in the object. |
3.3.16 ReplaceResultsForLineItem() Operation
Name: |
replaceResultsForLineItem |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the replace request. The permitted status codes are given in Tables 3.35 and A.2. |
Supplied (in) Parameters: |
resultRecordSet:ResltRecordSet – the set of result records that are to replace the current Result objects; lineItemSourcedId:GUID – the identifier of the LineItem object for which the results are to be replaced. replaceStatusCodes:ReplaceStatusCodes – the list of status codes returned for the each of the replacement requests in the transaction. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘replaceResultsForLineItem’ request the target is charged with writing the supplied information into the identified result records for the identified LineItem object. Each Result object replace is treated as an independent request and the corresponding status code is returned in the response message body (see Table B1.3 for the permitted values). This is a destructive write-over operation of the entire Result object. This is equivalent to a ‘createResult’ but for an object that already exists. If an identified Result object cannot be located then the request is interpreted as a ‘createResult’ invocation. The reference counter for each object is incremented by one in the target system. An overall status code is returned for the request as a whole. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.35 Status codes for the ‘replaceResultsForLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The replace request has been fully and successfully implemented by the target system and the identified objects have been changed on the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The identified LineItem object is unknown i.e., the supplied sourcedId is not assigned to a Lineitem object. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Some of the request has failed due to one or more data validation failures. See the specific request codes (given in the replaceStatusCode parameter) for further information for the cause(s) of the failure. |
3.3.17 UpdateResult() Operation
Name: |
updateResult |
Return Function Parameter: |
StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.36 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the Result object to be updated. resultRecord:ResultRecord – the Result data that is to be stored in the object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘updateResult’ request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is an additive write operation of all the data fields supplied in the update request and fields not supplied remain unchanged. If a field is constrained with a multiplicity of one then the ‘updateResult’ request acts as a replaceResult’ request for that field. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. The reference counter for the object is incremented by one in the target system. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.36 Status codes for the ‘updateResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The update request has been fully and successfully implemented by the target system and the identified object has been changed on the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be updated. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The target cannot process the proprietary data model extensions used in the object. |
3.3.18 DiscoverResultIds() Operation
Name: |
discoverResultIds |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the discover request. The permitted status codes are given in Tables 3.37 and A.2. |
Supplied (in) Parameters: |
queryObject:QueryObject – this is the query/filter instruction that is to be applied by the target to discover the corresponding Result objects. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the Result objects whose content conform to the query conditions. |
Behavior: |
When the source issues the ‘discoverResultIds’ the target applies the query instructions to the set of Result objects and returns the set of SourcedIds that uphold the query/filter. If no Result objects have the required properties the returned data set is empty and the success status code returned. If the target does not understand or cannot apply the requested query/filter then an error status is returned. |
Notes: |
The internal structure of this QueryObject is undefined (it is should be treated as a String). Later versions of this specification will look at the established best practices for clarification on the use of this operation. |
Table 3.37 Status codes for the ‘discoverResultIds’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The discover request has been fully and successfully implemented by the target system and the object identifiers for the Results that uphold the search criteria. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The discover request has been fully and successfully implemented by the target system and no LineItem object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownquery’ |
The query/filter instruction is unknown in the target system and so the query/filter could not be executed. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.3.19 ChangeResultIdentifier() Operation
Name: |
changeResultIdentifier |
Return Function Parameter: |
StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.38 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the Result object to be changed. newSourcedId:GUID – the new identifier to be allocated to the Result object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘changeResultIdentifier’ request the target is charged with replacing the original SourcedId with the new supplied SourcedId. All further references to the object must use the new SourcedId otherwise an ‘unknown’ object failure status code is returned. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The reference pointer value remains unchanged. |
Table 3.38 Status codes for the ‘changeResultIdentifier’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The change identifier request has been fully and successfully implemented by the target system and the Result object SourcedId has been changed on the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocinusefail’ |
The target could not allocate the new unique ‘identifier’ to the Result object as the identifier is already in use. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The current Result SourcedId identifier is unknown in the target system and so the object identifier could not be changed. |
3.4 ResultValueManager Interface Description
The ResultValueManager interface class describes the operations that are permitted on ResultValue objects (as shown Figure 3.3). The set of operations are summarized in Table 3.39.
Figure 3.3 OutcomesManagementService ResultValueManager interface definitions.
Table 3.39 Summary of operations for ResultValueManager.
Operation |
Description |
createResultValue |
To request the creation of a populated ResultValue object on the target system where the source is responsible for the allocation of the unique SourcedId. |
createByProxyResultValue |
To request the creation of a populated ResultValue object on the target system where the target is responsible for the allocation of the unique SourcedId. |
deleteResultValue |
To request the deletion of a ResultValue object. The ResultValue object is deleted along with all of its associated relationships. |
readResultValue |
To read the full contents of the identified ResultValue object. The target must return all of the data it has for the identified ResultValue object. |
readAllResultValueIds |
To obtain the set of SourcedIds which have been assigned to ResultValue objects. |
readResultValueIdForLineItem |
To obtain the SourcedId for the ResultValue object which has been associated with a particular LineItem object. |
readResultValueIdForResult |
To obtain the SourcedId for the ResultValue object which is associated with a particular Result object. |
readResultValueIdsFromSavePoint |
To obtain the set of identifiers for ResultValue objects which have been altered since the requested reference point. The reference point is set as ‘zero’ at creation and incremented after every write operation. |
readResultValues |
To obtain the ResultValue objects for a defined set of identifiers. This results in a single transaction that may require the exchange of a large volume of data in the response message. |
readResultValuesFromSavePoint |
To obtain the set of ResultValue objects which have been altered since the requested reference point. The reference point is set as ‘zero’ at creation and incremented after every write operation. This results in a single transaction that may require the exchange of a large volume of data in the response message. |
updateResultValue |
To write new content into the identified ResultValue object. The target must write the new data into the ResultValue object. This is an additive operation. |
replaceResultValue |
To replace the content of the identified ResultValue object. The target must write the new data into the ResultValue object. This is a destructive write-over of all of the original information. In the case of the object not existing, this operation acts as an implied ‘createResultValue’. |
discoverResultValueIds |
To obtain the set of SourcedIds for ResultValue objects whose properties agree with those defined in the query/filter. |
changeResultValueIdentifier |
To change the SourcedId for a ResultValue object. |
Note: In most cases the above operations act on a single instance of a Group object i.e., ‘createResultValue’, ‘createByProxyResultValue’, ‘deleteResultValue’, ‘readResultValue’, ‘replaceResultValue’ and ‘updateResultValue’.
3.4.1 CreateResultValue() Operation
Name: |
createResultValue |
Return Function Parameter: |
StatusInfo – the status of the creation request. The permitted status codes are defined in Table 3.40 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the sourcedId allocated by the source system. This is the identifier that must also be assigned within the target system. resultValueRecord:ResultValueRecord – the ResultValue data that is to be stored in the new object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘createResultValue’ request the target is instructed to create the populated ResultValue object and to allocate that structure the SourcedId passed by the source. If the supplied SourcedId has already been allocated to another object then the request is rejected and the appropriate failure code is returned. The reference point identifier is set to ‘zero’ for the ResultValue object in both the source and target. |
Notes: |
This request contains the initial content for the ResultValue object. More content can be added/replaced using the ‘updateResultValue’ and/or ‘replaceResultValue’ requests. |
Table 3.40 Status codes for the ‘createResultValue’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The creation request has been fully and successfully implemented by the target system and the object has been created with the supplied SourcedId. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocinusefail’ |
The target could not allocate the unique SourcedId to the object as the identifier is already in use. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=overflowfail’ |
The target could not create the ResultValue object due to lack of target allocation memory. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary data model extensions used in the object. |
3.4.2 CreateByProxyResultValue() Operation
Name: |
createByProxyResultValue |
Return Function Parameter: |
StatusInfo – the status of the creation request. The permitted status codes are defined in Tables 3.41 and A.2. |
Supplied (in) Parameters: |
resultValueRecord:ResultValueRecord – the ResultValue data that is to be stored in the new object. |
Returned (out) Parameters: |
sourcedId:GUID – the identifier allocated by the target to the newly created ResultValue object. |
Behavior: |
When the source issues the ‘createByProxyResultValue’ request the target is instructed to create the populated ResultValue object and to allocate that record a unique SourcedId. The reference point identifier is set to zero for the ResultValue object in both the source and target. |
Notes: |
This request contains the initial content for the ResultValue object. More content can be added/replaced using the ‘updateResultValue’ and/or ‘replaceResultValue’ requests. |
Table 3.41 ‘createByProxyResultValue’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The creation request has been fully and successfully implemented by the target system and the object has been created with the SourcedId supplied by the target. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocfail’ |
The target could not allocate a unique SourcedId to the object because there are no more spare identifiers available. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=overflowfail’ |
The target could not create the object due to lack of target allocation memory. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the supplied data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary data model extensions used in the object. |
3.4.3 DeleteResultValue() Operation
Name: |
deleteResultValue |
Return Function Parameter: |
StatusInfo – the status of the deletion request. The permitted status codes are defined in Tables 3.42 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier to be used by the target to identify the ResultValue object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘deleteResultValue’ request the target is instructed to delete the identified ResultValue object and to remove any associations. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
Deletion of the ResultValue record does not necessarily result in the destruction of the data within the server. The true state of the data in the target is unknown. |
Table 3.42 Status codes for the ‘deleteResultValue’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The deletion request has been fully and successfully implemented by the target system and the object has been deleted. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be deleted. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor= deletefailure’ |
The target system has not been able to delete the identified object. |
3.4.4 ReadResultValue() Operation
Name: |
readResultValue |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.43 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the ResultValue object to be read. |
Returned (out) Parameters: |
resultValueRecord:ResultValueRecord – the ResultValue data that is read from the object. |
Behavior: |
When the source issues the ‘readResultValue’ request the target is charged with retrieving the identified record from its database and returning this data to the source. The target is responsible for ensuring that the object contains valid data. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The returned ResultValue object can only be trusted if the corresponding status code is ‘success’. |
Table 3.43 Status codes for the ‘readResultValue’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified object has been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the source system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has only returned a subset of the data expected by the source e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The source system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary data model extensions used in the object. |
3.4.5 ReadAllResultValueIds() Operation
Name: |
readAllResultValueIds |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.44 and A.2. |
Supplied (in) Parameters: |
None. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of SourcedIds for all of the ResultValue objects in the target’s ResultValue database. |
Behavior: |
When the source issues the ‘readAllResultValueIds’ request the target is charged with returning the SourcedIds of all of the ResultValue in the Outcomes database. |
Notes: |
If no SourcedIds have been allocated then the returned data set is empty and the success status code returned. |
Table 3.44 Status codes for the ‘readAllResultValueIds’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no ResultValue object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.4.6 ReadResultValueIdForLineItem() Operation
Name: |
readResultValueIdForLineItem |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.45 and A.2. |
Supplied (in) Parameters: |
lineItemSourcedId:GUID – the identifier of the LineItem object whose ResultValue SourcedIds are required. |
Returned (out) Parameters: |
resultValueSourcedId:GUID – the SourcedId for all of the ResultValue object for the LineItem in the target’s Outcomes database. |
Behavior: |
The target system must return the ResultValue SourcedId for the identified LineItem object. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.45 Status codes for the ‘readResultValueIdForLineItem’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no ResultValue object identifier was found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The LineItem object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the LineItem object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.4.7 ReadResultValueIdForResult() Operation
Name: |
readResultValueIdForResult |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.46 and A.2. |
Supplied (in) Parameters: |
resultSourcedId:GUID – the identifier of the Result object whose ResultValue sourcedIds are required. |
Returned (out) Parameters: |
resultValueSourcedId:GUID – the SourcedId for the ResultValue object for the Result in the target’s Outcomes database. |
Behavior: |
The target system must return the ResultValue SourcedId for the identified Result object. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
None. |
Table 3.46 Status codes for the ‘readResultValueIdForResult’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no ResultValue object identifier was found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The Result object identifier is unknown in the target system and so the object could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the Result object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.4.8 ReadResultValueIdsFromSavePoint() Operation
Name: |
readResultValueIdsFromSavePoint |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the read request. The permitted status codes are given in Tables 3.47 and A.2. |
Supplied (in) Parameters: |
fromSavePoint:SequenceIdentifier – the reference point from which all of the changed identifier actions are to be read. This is the value in the source system. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the ResultValue objects stored on the target. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readResultValueIdsFromSavePoint’ the target returns the set of SourcedIds that have been altered from the defined reference point, supplied by the source, to the latest reference point identified in the target. If the reference counter in the source is greater than that in the target then an error code and the target value for the reference point are returned. |
Notes: |
If no SourcedIds have been allocated then the returned data set is empty and the success status code returned. |
Table 3.47 Status codes for the ‘readResultValueIdsFromSavePoint’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified ResultValue object identifiers have been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no ResultValue object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The requested data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=savepointerror’ |
An error has occurred in the processing of the save-point identifier information making it impossible to read the correct objects from the database. |
‘CodeMajor=Failure’ ‘Severity=Status’ |
The value of the save point reference from the source was later than that of the target system. No identifiers have been returned. The target system savepoint value has been updated to that supplied by the source system. |
3.4.9 ReadResultValues() Operation
Name: |
readResultValues |
Return Function Parameter: |
StatusInfo – the status of the read request. The permitted status codes are defined in Tables 3.48 and A.2. |
Supplied (in) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the ResultValue objects to be read. |
Returned (out) Parameters: |
resultValueRecordSet:ResultValueRecordSet – the set of resultValue records. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readResultValues’ request the target is charged with retrieving the identified set of objects from its database and placing this information in a persistent data file. The associated read savePoint reference is updated and returned. If the object identified by the supplied SourcedId cannot be located then the request is rejected and a partial success code is returned for the operation. The target is responsible for ensuring that the records contain valid data. The target should attempt to successfully complete as much of the request as possible. |
Notes: |
A resultValue object is only present in the data structure if it has been located in the target system. The enclosed data may result in a long response message. |
Table 3.48 Status codes for the ‘readResultValues’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the object identifiers have been read from the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The source system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatareturn’ |
The target has only returned a subset of the data object e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored LineItem object and so cannot return the data. |
3.4.10 ReadResultValuesFromSavePoint() Operation
Name: |
readLineItemsFromSavePoint |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.49 and A.2. |
Supplied (in) Parameters: |
fromSavePoint:SequenceIdentifier – the reference point from which all of the changed identifier actions are to be read. This is the value in the source system. |
Returned (out) Parameters: |
resultValueRecordSet:ResultValueRecordSet – the set of resultValue records. savePoint:SequenceIdentifier – the value of the reference point counter in the target system. |
Behavior: |
When the source issues the ‘readResultValuesFromSavePoint’ request the target is charged with reading the objects that have been altered from the defined reference point. If the reference counter in the source is greater than that in the target then an error code and the target value for the reference point are returned. |
Notes: |
If no objects have been allocated then the return message will be empty. The enclosed data may result in a long response message. |
Table 3.49 Status codes for the ‘readResultsFromSavePoint’ operation.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The read request has been fully and successfully implemented by the target system and the identified ResultValue object has been read from the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=partialreadfail’ |
Some of the ResultValue object identifiers are unknown in the target system and so those objects could not be read. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=savepointerror’ |
An error has occurred in the processing of the save-point identifier information making it impossible to read the correct objects from the database. |
‘CodeMajor=Failure’ ‘Severity=Status’ |
The value of the save point reference from the source was later than that of the target system. No identifiers have been returned. The target system savepoint value has been updated to that supplied by the source system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatareturn’ |
The target has only returned a subset of the data object e.g., only the mandatory parts. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=targetreadfailure’ |
The target system has detected an error in the stored Result object and so cannot return the data. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
3.4.11 ReplaceResultValue() Operation
Name: |
replaceResultValue |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the replace request. The permitted status codes are given in Tables 3.50 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the ResultValue object to be replaced. resultValueRecord:ResultValueRecord – the ResultValue data that is to be stored in the object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘replaceResultValue’ request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is a destructive write-over operation of the entire ‘result’ object. This is equivalent to a ‘createResultValue’ but for an object that already exists. If the object identified by the supplied SourcedId cannot be located then the request is interpreted as a ‘createResultValue’ invocation. The reference counter for the object is incremented by one in the target system. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.50 Status codes for the ‘replaceResultValue’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The replace request has been fully and successfully implemented by the target system and the identified object has been changed on the target system. |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=createsuccess’ |
The ResultValue object identifier is unknown in the target system and so a new object has been successfully created instead. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary data model extensions used in the object. |
3.4.12 UpdateResultValue() Operation
Name: |
updateResultValue |
Return Function Parameter: |
StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.51 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the ResultValue object to be updated. resultValueRecord:ResultValueRecord – the ResultValue data that is to be stored in the object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘updateResultValue’ request the target is charged with writing the supplied information into the identified object. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is an additive write operation of all the data fields supplied in the update request and fields not supplied remain unchanged. If a field is constrained with a multiplicity of one then the ‘updateResultValue’ request acts as a replaceResultValue’ request for that field. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. The reference counter for the object is incremented by one in the target system. |
Notes: |
The source is responsible for determining the reason of the failure. |
Table 3.51 Status codes for the ‘updateResultValue’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The update request has been fully and successfully implemented by the target system and the identified object has been changed on the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The object identifier is unknown in the target system and so the object could not be updated. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=incompletedata’ |
Some mandatory part of the data has been detected as missing by the target system. |
‘CodeMajor=Success’ ‘Severity=Warning’ ‘CodeMinor=partialdatastorage’ |
The target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored). |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownvocabulary’ |
The target system could not identify the defined vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownmdvocabulary’ |
The target system could not identify the defined metadata vocabulary term. This may be due to an incorrect term or a missing vocabulary file. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownextension’ |
The source cannot process the proprietary data model extensions used in the object. |
3.4.13 DiscoverResultValueIds() Operation
Name: |
discoverResultValueIds |
Return Function Parameter: |
statusInfo:StatusInfo – the status of the discover request. The permitted status codes are given in Tables 3.52 and A.2. |
Supplied (in) Parameters: |
queryObject:QueryObject – this is the query/filter instruction that is to be applied by the target to discover the corresponding ResultValue objects. |
Returned (out) Parameters: |
sourcedIdSet:GUIDSet – the set of identifiers of the ResultValue objects whose content conform to the query conditions. |
Behavior: |
When the source issues the ‘discoverResultValueIds’ the target applies the query/filter instructions to the set of ResultValue objects and returns the set of SourcedIds that uphold the query/filter. If no ResultValue objects have the required properties the returned data set is empty and the success status code returned. If the target does not understand or cannot apply the requested query/filter then an error status is returned. |
Notes: |
The internal structure of this QueryObject is undefined (it is should be treated as a String). Later versions of this specification will look at the established best practices for clarification on the use of this operation. |
Table 3.52 Status codes for the ‘discoverResultValueIds’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The discover request has been fully and successfully implemented by the target system and the identifiers of the objects that uphold the search criteria have been returned. |
‘CodeMajor=Success’ ‘Severity=Status’ |
The read request has been fully and successfully implemented by the target system and no ResultValue object identifiers were found. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownquery’ |
The query/filter instruction is unknown in the target system and so the query could not be executed. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=toomuchdata’ |
The data cannot be returned because it would exceed some physical system constraint e.g., permitted size of SOAP message. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=invaliddata’ |
Part or all of the returned data was detected as invalid by the source system. |
3.4.14 ChangeResultValueIdentifier() Operation
Name: |
changeResultValueIdentifier |
Return Function Parameter: |
StatusInfo – the status of the update request. The permitted status codes are given in Tables 3.53 and A.2. |
Supplied (in) Parameters: |
sourcedId:GUID – the identifier of the ResultValue object to be changed. newSourcedId:GUID – the new identifier to be allocated to the ResultValue object. |
Returned (out) Parameters: |
None. |
Behavior: |
When the source issues the ‘changeResultValueIdentifier’ request the target is charged with replacing the original SourcedId with the new supplied SourcedId. If the object identified by the supplied SourcedId cannot be located then the request is rejected and the appropriate failure code is returned. |
Notes: |
The reference pointer value remains unchanged. |
Table 3.53 Status codes for the ‘changeResultValueIdentifier’ operation.
Status Code |
Explanation of the Cause of the Code |
‘CodeMajor=Success’ ‘Severity=Status’ ‘CodeMinor=fullsuccess’ |
The change identifier request has been fully and successfully implemented by the target system and the ResultValue object SourcedId has been changed on the target system. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=idallocinusefail’ |
The target could not allocate the new unique ‘identifier’ to the ResultValue object as the identifier is already in use. |
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unknownobject’ |
The current ResultValue SourcedId identifier is unknown in the target system and so the object identifier could not be changed. |
3.5 State Machines
The permitted state activity on a LineItem, Result and ResultValue object are shown in Figures 3.4, 3.5 and 3.6 respectively. Each state diagram has three states (the arcs are annotated with the operations that are associated with the change of state):
· ‘No Object’ state – no object exists with a particular sourcedId;
· ‘Object with Provider assigned sourcedId’ – an object exists with the sourcedId allocated by the Provider system;
· ‘Object with Consumer assigned sourcedId’ – an object exists with the sourcedId allocated by the Consumer system.
The state machine for a LineItem object is shown in Figure 3.4.
Figure 3.4 State machine for a ‘lineItem’ object.
The start state is ‘No Object’ i.e., the LineItem object has not yet been created. Only the ‘createLineItem()’, ‘replaceeLineItem()’ and ‘createByProxyLineItem()’ operations are possible. Once the LineItem object has been created then it persists until a successful ‘deleteLineItem()’ operation is completed. The ‘createLineItem()’ and replaceLineItem()’ operations take the system into the ‘Object with Consumer assigned sourcedId’ state whereas the ‘createByProxyLineItem()’ takes the system into the ‘Object with Provider assigned sourcedId’ state.
The system can be moved from the ‘Object with Provider assigned sourcedId’ state into the ‘Object with Consumer assigned sourcedId’ state by the successful completion of the ‘changeLineItemIdentifier()’ operation.
Once the system is in the ‘Object with Consumer assigned sourcedId’ or the ‘Object with Provider assigned sourcedId’ states then the ‘readLineItem()’, ‘readAllLineItemIds()’, ‘readLineItemIdsForPerson()’, ‘readLineItemIdsForCourseOffering()’, ‘readLineItemIdsForCourseSection()’, ‘readLineItemIdsForCourseSectionWithLineItemType()’, ‘readLineItemIdsWithLineItemType()’, ‘readLineItemIdsFromSavePoint()’, ‘readLineItems()’, ‘readLineItemsFromSavePoint()’, ‘updateLineItem()’, ‘replaceLineItem()’ and ‘discoverLineItemIds()’ operations are now possible.
This is the state machine for each LineItem object in the Service Consumer and the Service Provider. The binding of the Information Model must guarantee that these two state machines remain synchronized for each LineItem object.
The state machine for a Result object is shown in Figure 3.5.
Figure 3.5 State machine for a ‘result’ object.
The start state is ‘No Object’ i.e., the Result object has not yet been created. Only the ‘createResult()’, ‘replaceResult()’ and ‘createByProxyResult()’ operations are possible. Once the Result object has been created then it persists until a successful ‘deleteResult()’ operation is completed. The ‘createResult()’ and ‘replaceResult()’ operations take the system into the ‘Object with Consumer assigned sourcedId’ state whereas the ‘createByProxyResult()’ takes the system into the ‘Object with Provider assigned sourcedId’ state.
The system can be moved from the ‘Object with Provider assigned sourcedId’ state into the ‘Object with Consumer assigned sourcedId’ state by the successful completion of the ‘changeResultIdentifier()’ operation.
Once the system is in the ‘Object with Consumer assigned sourcedId’ or the ‘Object with Provider assigned sourcedId’ states then the ‘readResult()’, ‘readAllResultIds()’, ‘readResultIdsForPerson()’, ‘readResultIdsForLineItem()’, ‘readResultIdsForCourseOffering()’, ‘readResultIdsForCourseSection()’, ‘readResultIdsForCourseSectonWithStatus()’, ‘readResultIdsForLineItemWithLineItemType()’, ‘readResultIdsFromSavePoint()’, ‘readResults()’, ‘readResultsFromSavePoint()’, ‘updateResult()’, ‘replaceResult()’, ‘replaceResultsForLineItem()’ and ‘discoverResultIds()’ operations are now possible.
This is the state machine for each Result object in the Service Consumer and the Service Provider. The binding of the Information Model must guarantee that these two state machines remain synchronized for each result object.
The state machine for a ResultValue object is shown in Figure 3.6.
Figure 3.6 State machine for a ‘resultValue’ object.
The start state is ‘No Object’ i.e., the ResultValue object has not yet been created. Only the ‘createResultValue()’, ‘replaceResultValue()’ and ‘createByProxyResultValue()’ operations are possible. Once the ResultValue object has been created then it persists until a successful ‘deleteResultValue()’ operation is completed. The ‘createResultValue()’ and replaceResultValue()’ operations take the system into the ‘Object with Consumer assigned sourcedId’ state whereas the ‘createByProxyResultValue()’ takes the system into the ‘Object with Provider assigned sourcedId’ state.
The system can be moved from the ‘Object with Provider assigned sourcedId’ state into the ‘Object with Consumer assigned sourcedId’ state by the successful completion of the ‘changeResultValueIdentifier()’ operation.
Once the system is in the ‘Object with Consumer assigned sourcedId’ or the ‘Object with Provider assigned sourcedId’ states then the ‘readResultValue()’, ‘readAllResultValueIds()’, ‘readResultValueIdForLineItem()’, ‘readResultIdForResult()’, ‘readResultValueIdsFromSavePoint()’, ‘readResultValues()’, ‘readResultValuesFromSavePoint()’, ‘updateResultValue()’, ‘replaceResultValue()’ and ‘discoverResultValueIds()’ operations are now possible.
This is the state machine for each ResultValue object in the Service Consumer and the Service Provider. The binding of the Information Model must guarantee that these two state machines remain synchronized for each ResultValue object.
4 Interface Data Model
The set of operations described within the behavior model (Section 3) are based upon class descriptions specific to the parameters of the operations. It is these classes that are now described.
4.1 GUID Class Description
This is the data type for the globally unique sourcedIds. These GUIDs must be unique across the set of communicating end-systems within the Learning Information Services system. The internal format of the GUID is outside the scope of this specification but they must all be valid strings. Any implementation of the GUID class must be able to support GUIDs of at least 1024 octets in length i.e., the shortest permitted maximum length.
4.2 GUIDSet Class Description
This is the data-type for a set of GUIDs (zero or more). Any implementation of the GUIDSet must be able to contain at least 250,000 GUIDs i.e., the smallest permitted maximum number.
4.3 LineItemRecord Class Description
This is the data-type for Line Items. The data model for a Line Item is described in Section 5. A key difference for an object passed in the interface, as opposed to the requirement for an end-system, is that the content is dependent on the type of operation. A LineItemRecord object must consist of the SourcedId of the LineItem object and the LineItem object itself.
4.4 LineItemRecordSet Class Description
This is the data-type for a set of LineItemRecords (zero or more). Any implementation of the LineItemRecordSet must be able to contain at least 100,000 LineItemRecords i.e., the smallest permitted maximum number.
4.5 LineItemType Class Description
This is the data-type for the enumerated list of states used to define the status of a LineItem. The list of permitted values is: { MidTerm, Interim, Final } (this must be implemented as an extensible vocabulary).
4.6 QueryObject Class Description
This is the data-type for the query instruction. This is a String with the smallest permitted maximum length of 4096 octets. The internal structure of this string is undefined. Later versions of this specification will look at the established best practices for clarification on the use of this string.
4.7 ResultRecord Class Description
This is the data-type for Results. The data model for a Result is described in Section 5. A key difference for an object passed in the interface, as opposed to the requirement for an end-system, is that the content is dependent on the type of operation. A ResultRecord object must consist of the SourcedId of the Result object and the Result object itself.
4.8 ResultRecordSet Class Description
This is the data-type for a set of ResultRecords (zero or more). Any implementation of the ResultRecordSet must be able to contain at least 250,000 ResultRecords i.e., the smallest permitted maximum number.
4.9 ResultStatus Class Description
This is the data-type for the enumerated list of states used to define the status of a Result. The list of permitted values is: { Unmoderated, Tobemoderated, Pending, Completed } (this must be implemented as an extensible vocabulary).
4.10 ResultValueRecord Class Description
This is the data-type for Result Values. The data model for a Result Value is described in Section 5. A key difference for an object passed in the interface, as opposed to the requirement for an end-system, is that the content is dependent on the type of operation. A ResultValueRecord object must consist of the SourcedId of the ResultValue object and the ResultValue object itself.
4.11 ResultValueRecordSet Class Description
This is the data-type for a set of ResultValueRecords (zero or more). Any implementation of the ResultValueRecordSet must be able to contain at least 1000 ResultValueRecords i.e., the smallest permitted maximum number.
4.12 SequenceIdentifier Class Description
This is the data-type for the sequence identifier used to denote identify the synchronization reference point between the two communicating systems. The sequence is denoted by the date-time string YYYY-MM-DDTHH:MM:SS.NNN where ‘YYYY’ denotes the year, the first ‘MM’ string the month (01-12), ‘DD’ the day (01-31), ‘HH’ the hour (00-23), the second ‘MM’ string the minute (00-59), ‘SS’ the second (00-59) and ‘NN’ the millisecond value (000-999).
At initialization the value is set to ‘2000-01-01T00:00:00.000’. The value is changed to the current time for every operation that results in a change of the value of the data stored in the associated object.
All values are to be rounded down at the level of greatest resolution.
4.13 StatusInfo Class Description
This is the data-type for the status information returned by the target to the source. The structure of this class is described in the 1EdTech GLC General Web Services specification v1.0 (Appendix A) [GWS, 05].
4.14 ReplaceStatusCodes Class Description
The PIM for the ReplaceStatusCodes class is shown in Figure 4.1.
Figure 4.1 ReplaceStatusCodes class diagram.
Table 4.1 Description of the ReplaceStatusCodes class.
Descriptor |
Definition |
---|---|
Class name |
ReplaceStatusCodes |
Class type |
container |
Multiplicity |
1 |
Parents |
Service Parameter |
Children |
[ replaceStatusCode ], unordered |
Description |
The list of status codes returned for the ‘replaceResultsFor LineItem’ operation. |
4.14.1 ReplaceStatusCode Attribute Description
Table 4.2 Description of the ‘replaceStatusCode’ attribute for the ReplaceStatusCodes class.
Descriptor |
Definition |
---|---|
Attribute name |
replaceStatusCode |
Data type |
replaceStatusCode |
Value space |
container |
Multiplicity |
0..* |
Description |
This is the container for the returned status code for each attempted result replacement. |
4.15 ReplaceStatusCode Class Description
The PIM for the ReplaceStatusCode class is shown in Figure 4.1.
Table 4.3 Description of the ReplaceStatusCode class.
Descriptor |
Definition |
---|---|
Class name |
ReplaceStatusCode |
Class type |
container |
Multiplicity |
0..* |
Parents |
ReplaceStatusCodes |
Children |
[ resultSourcedId, replaceStatus ] |
Description |
The status code for a specific result replacement attempt. |
4.15.1 ResultSourcedId Attribute Description
Table 4.4 Description of the ‘resultSourcedId’ attribute for the ReplaceStatusCode class.
Descriptor |
Definition |
---|---|
Attribute name |
resultSourcedId |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The ‘sourcedId’ of the Result object whose content is being replaced. |
4.15.2 ReplaceStatus Attribute Description
Table 4.5 Description of the ‘replaceStatus’ attribute for the ReplaceStatusCode class.
Descriptor |
Definition |
---|---|
Attribute name |
replaceStatus |
Data type |
Enumerated vocabulary. |
Value space |
This defines the status code for the attempted replace action. The value space for this vocabulary is approved by 1EdTech GLC and made available to the public as defined in [SDN11, 06]. The syntax and semantics of the approved list of terms shall be supported by all software components implementing this Information Model. The value space for the vocabulary may be extended. Such extending expressions may be created and used only when no approved 1EdTech GLC value satisfies the expressive need of an implementing community to define the shape of a collection. |
Multiplicity |
1 |
Description |
The reported status of the result replacement request for the Result object identified by the associated ‘sourcedId’. |
5 End System Data Model
The end system data model defines the persistence model that must be maintained by an end system to ensure the correct system behavior.
An informative overview of the entire Persistence Data Model is provided as a Platform Independent Model (PIM) expressed in UML constructs. All UML diagrams expressed as “Platform Independent Model” are non-normative. Normative tables defining the classes in this Information Model follow the informative UML diagrams. A full definition of the UML Profile and the terms used in the normative tabular descriptions in this document to describe the PIM can be found in [SDN07, 06].
In the tables in this section the character sequence “n/a” is used to mark a field “not applicable.” Any field so marked is not relevant to the class being defined. Features so marked shall be ignored when binding a class defined by this Information Model.
5.1 Key terms and concepts
Classes in this information model are classified into four abstract class types. These abstractions are bound to specific data structures for machine processing in the 1EdTech GLC Outcomes Management Services WSDL Binding [OMS, 11]. The abstract class types are:
· container: A container class may be a parent of one or more child classes;
· value: A value class shall not be a parent. That is, it shall not be a composite of characteristic, container, value, or unspecified class types. A value class shall always be a child of a container class and shall have semantic value within the scope of its parent class’s semantic value;
· unspecified: An unspecified class may be a parent. An unspecified class serves as an extension point for this Information Model.
Table 5.1 lists the class descriptors used to describe the abstract classes and definitions of the descriptors.
Table 5.1 Class descriptors
Descriptor |
Definition |
---|---|
Class name |
The name given to the class being described. |
Class type |
The abstract class type of this class. |
Data type |
For value and characteristic classes, the allowed structure for valid values for the class. Valid data types are: DateTime: The DateTime represents a combined date and time in the format of ISO 8601 i.e., ‘YYYY-MM-DDTHH:MM:SS±TZ’. The time is denoted in Coordinated Universal Time. Decimal: A real number. GUID: An identifier that is globally unique within the Learning Information Services System. This will be based upon the Normalized String data-type that has a constrained value-space. Integer: An integer. NormalizedString: A sequence of printable characters that does not contain carriage returns or tabs. String: A sequence of printable characters. Text: A language annotated string (this is in fact a separate class but it is treated as data-type for convenience). The string is accompanied by an attribute that denotes the language for the string. AnyURI: Any syntactically valid instance of a URI as defined in RFC3986. Note: Many of the foundational Specifications, Standards, and Recommendations referred to by this Information Model use RFC2396 and RFC2732 as the definitions of URI. These are made obsolete by RFC3986, but many of the foundational documents have not been updated to reference RFC3986. URL: A normalized string that is used to contain a Universal Resource Location. unspecified: The data type is not known or is not important. |
Value space |
The range of valid values for this class. If the value space is unspecified, it is not known or is not important. |
Multiplicity |
A property of a class indicating the number of times it may be used or appear in a given parent context. The values of this property are expressed as a range or shorthand for a range using this notation:
Multiplicities may also appear in short-hand notation in the UML models. The short-hand equivalents shall be (exclusive of bracketed comments):
Where multiplicity is greater than one, the importance of the ordering of siblings is also indicated by appending either “,”ordered or “,” unordered. ordered specifies a sequence of siblings as listed, unordered specifies a collection or bag of siblings for which the order is not important. |
Parents |
Lists classes that may be parents of this class. |
Children |
Lists the possible child classes of this class in the form “[” child *“,” child “]”. One or more child classes may be expressed within square brackets. Each child class in the list shall be separated by a comma. Where more than one child is listed, the importance of the ordering of siblings is also indicated by appending either “,”ordered or “,” unordered. ordered specifies a sequence of siblings as listed, unordered specifies a collection or bag of siblings for which the order is not important |
Description |
Contains descriptions relating to the class and its values space. |
In general, this specification does not define the ways in which an end system must be realized. However, the required interoperability behavior requires that an end system have certain characteristics. The static properties of these characteristics are defined in this Section, including:
· When an attribute has a multiplicity of ‘1..1’ then an end system must be capable of supporting one instance;
· When an attribute has a multiplicity of ‘1..*’ then an end system must be capable of supporting at least one instance. The specification will also define the smallest permitted maximum number of instances that must also be supported by the end system;
· When an attribute has a multiplicity of ‘0..1’ then an end system should support a single instance;
· When an attribute has a multiplicity of ‘0..*’ then the specification will define the smallest permitted maximum number of instances that must also be supported by the end system.
When the object is passed as part of a service call then attributes that have a ‘1..1’ or ‘1..*’ multiplicity may not be exchanged. This is because the specification of an end system defines capability; an operational system may or may not exchange the associated information.
5.2 The Structure of an Outcome
The conceptual data model for the structure of an outcome is shown in Figure 5.1. There are three facets of the Outcome structure:
· The components of the core data model of the course denoted in Figure 5.1 by the LineItem, Result and ResultValue classes;
· The reference structures that are used to identify specific instances of each part of the Outcomes are denoted in Figure 5.1 by the classes LineItemRecord, ResultRecord and ResultValueRecord.
Figure 5.1 OutcomesDatabase class diagram.
5.3 OutcomesDatabase Class Description
Table 5.2 Description of the OutcomesDatabase class.
Descriptor |
Definition |
---|---|
Class name |
OutcomesDatabase |
Class type |
container |
Multiplicity |
1 |
Parents |
N/A (Root) |
Children |
[ lineItemRecord, resultRecord, resultValueRecord ], unordered |
Description |
This is the database within the end-system that contains all of the Outcomes objects data. The database consists of the set of LineItem, Result and ResultValue objects, the set of GUIDs and the relationship mapping between the two. The manner in which this information is physically stored is outside of the scope of this specification. |
5.3.1 LineItemRecord Attribute Description
Table 5.3 Description of the ‘lineItemRecord’ attribute for the OutcomesDatabase class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItemRecord |
Data type |
LineItemRecord |
Value space |
container |
Multiplicity |
0..unbounded, unordered |
Description |
The set of uniquely identified LineItem instances. An instance of the OutcomesDatabase must support at least 1000 lineItemRecord instances. |
5.3.2 ResultRecord Attribute Description
Table 5.4 Description of the ‘ResultRecord’ attribute for the OutcomesDatabase class.
Descriptor |
Definition |
---|---|
Attribute name |
resultRecord |
Data type |
ResultRecord |
Value space |
container |
Multiplicity |
0..unbounded, unordered |
Description |
The set of uniquely identified Result instances. An instance of the OutcomesDatabase must support at least 100,000 resultRecord instances. |
5.3.3 ResultValueRecord Attribute Description
Table 5.5 Description of the ‘ResultValueRecord’ attribute for the OutcomesDatabase class.
Descriptor |
Definition |
---|---|
Attribute name |
ResultValueRecord |
Data type |
ResultValueRecord |
Value space |
container |
Multiplicity |
0..unbounded, unordered |
Description |
The set of uniquely identified ResultValue instances. An instance of the OutcomesDatabase must support at least 100 resultValueRecord instances. |
5.4 LineItemRecord Class Description
Table 5.6 Description of the LineItemRecord class.
Descriptor |
Definition |
---|---|
Class name |
LineItemRecord |
Class type |
container |
Multiplicity |
0..unbounded, unordered |
Parents |
OutcomesDatabase |
Children |
[ sourcedGUID, lineItem ], ordered |
Description |
The LineItemRecord represents the association the unique identifier (sourcedGUID) for the LineItem object with the LineItem object itself. The identifier object is not a part of the LineItem object but both are managed within the Outcomes Database. There is an isomorphic association between each pair of identifier and LineItem objects. |
5.4.1 SourcedGUID Attribute Description
Table 5.7 Description of the ‘sourcedGUID’ attribute for the LineItemRecord class.
Descriptor |
Definition |
---|---|
Attribute name |
sourcedGUID |
Data type |
SourcedGUID |
Value space |
container |
Multiplicity |
1 |
Description |
This is the globally unique identifier that has been assigned to the associated LineItem object. Each line item object must have only one SourcedGUID but this may be changed, any number of times, during the object’s lifetime. |
5.4.2 LineItem Attribute Description
Table 5.8 Description of the ‘lineItem’ attribute for the OutcomesDatabase class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItem |
Data type |
LineItem |
Value space |
container |
Multiplicity |
1 |
Description |
This is the LineItem component of the Outcome. A LineItem is a set of results that may be related to a CourseTemplate (Template), CourseOffering (Offering), CourseSection (Section), SectionAssociation (Association) or, in special cases, a Group. |
5.5 ResultRecord Class Description
Table 5.9 Description of the ResultRecord class.
Descriptor |
Definition |
---|---|
Class name |
ResultRecord |
Class type |
container |
Multiplicity |
0..unbounded, unordered |
Parents |
OutcomesDatabase |
Children |
[ sourcedGUID, result ], ordered |
Description |
The ResultRecord represents the association the unique identifier (sourcedGUID) for the Result object with the Result object itself. The identifier object is not a part of the Result object but both are managed within the Outcomes Database. There is an isomorphic association between each pair of identifier and Result objects. |
5.5.1 SourcedGUID Attribute Description
Table 5.10 Description of the ‘sourcedGUID’ attribute for the ResultRecord class.
Descriptor |
Definition |
---|---|
Attribute name |
sourcedGUID |
Data type |
SourcedGUID |
Value space |
container |
Multiplicity |
1 |
Description |
This is the globally unique identifier that has been assigned to the associated Result object. Each result object must have only one SourcedGUID but this may be changed, any number of times, during the object’s lifetime. |
5.5.2 Result Attribute Description
Table 5.11 Description of the ‘result’ attribute for the ResultRecord class.
Descriptor |
Definition |
---|---|
Attribute name |
result |
Data type |
Result |
Value space |
container |
Multiplicity |
1 |
Description |
This is the Result component of the Outcome. A Result is a recorded grade or mark. |
5.6 ResultValueRecord Class Description
Table 5.12 Description of the ResultValueRecord class.
Descriptor |
Definition |
---|---|
Class name |
ResultValueRecord |
Class type |
container |
Multiplicity |
0..unbounded, unordered |
Parents |
OutcomesDatabase |
Children |
[ sourcedGUID, resultValue ], ordered |
Description |
The ResultValueRecord represents the association the unique identifier (sourcedGUID) for the ResultValue object with the result object itself. The identifier object is not a part of the ResultValue object but both are managed within the Outcomes Database. There is an isomorphic association between each pair of identifier and ResultValue objects. |
5.6.1 SourcedGUID Attribute Description
Table 5.13 Description of the ‘sourcedGUID’ attribute for the ResultValueRecord class.
Descriptor |
Definition |
---|---|
Attribute name |
sourcedGUID |
Data type |
SourcedGUID |
Value space |
container |
Multiplicity |
1 |
Description |
This is the globally unique identifier that has been assigned to the associated ResultValue object. Each ResultValue object must have only one SourcedId but this may be changed, any number of times, during the object’s lifetime. |
5.6.2 ResultValue Attribute Description
Table 5.14 Description of the ‘ResultValue’ attribute for the ResultValueRecord class.
Descriptor |
Definition |
---|---|
Attribute name |
ResultValue |
Data type |
ResultValue |
Value space |
container |
Multiplicity |
1 |
Description |
This is the ResultValue component of the Outcome. A ResultValue is a set of grades or marks that can be assigned as the value for a Result object. |
5.7 CourseTemplateRecord Class Description
Table 5.15 Description of the CourseTemplateRecord class.
Descriptor |
Definition |
---|---|
Class name |
CourseTemplateRecord |
Class type |
container |
Multiplicity |
0..1 |
Parents |
CourseDatabase |
Description |
One of the components of a Course (see the 1EdTech GLC Course Management Service Information Model v1.0 specification). A LineItem may be related to a CourseTemplate. |
5.8 CourseOfferingRecord Class Description
Table 5.16 Description of the CourseOfferingRecord class.
Descriptor |
Definition |
---|---|
Class name |
CourseOfferingRecord |
Class type |
container |
Multiplicity |
0..1 |
Parents |
CourseDatabase |
Description |
One of the components of a Course (see the 1EdTech GLC Course Management Service Information Model v1.0 specification). A LineItem may be related to a CourseOffering. |
5.9 CourseSectionRecord Class Description
Table 5.17 Description of the CourseSectionRecord class.
Descriptor |
Definition |
---|---|
Class name |
CourseSectionRecord |
Class type |
container |
Multiplicity |
0..1 |
Parents |
CourseDatabase |
Description |
One of the components of a Course (see the 1EdTech GLC Course Management Service Information Model v1.0 specification). A LineItem may be related to a CourseSection. |
5.10 SectionAssociationRecord Class Description
Table 5.18 Description of the SectionAssociationRecord class.
Descriptor |
Definition |
---|---|
Class name |
SectionAssociationRecord |
Class type |
container |
Multiplicity |
0..1 |
Parents |
CourseDatabase |
Description |
One of the components of a Course (see the 1EdTech GLC Course Management Service Information Model v1.0 specification). A LineItem may be related to a SectionAssociation. |
5.11 GroupRecord Class Description
Table 5.19 Description of the GroupRecord class.
Descriptor |
Definition |
---|---|
Class name |
GroupRecord |
Class type |
container |
Multiplicity |
0..1 |
Parents |
GroupDatabase |
Description |
A Group object (see the 1EdTech GLC Group Management Service Information Model v2.0 specification). A LineItem may be related to a Group when the Group has been used to extend the course structure. |
5.12 PersonRecord Class Description
Table 5.20 Description of the PersonRecord class.
Descriptor |
Definition |
---|---|
Class name |
PersonRecord |
Class type |
container |
Multiplicity |
0..1 |
Parents |
PersonDatabase |
Description |
A Person object (see the 1EdTech GLC Person Management Service Information Model v2.0 specification). Each Result is associated with a Person object. |
5.13 OutcomesHandler Class Description
Table 5.21 Description of the OutcomesHandler class.
Descriptor |
Definition |
---|---|
Class name |
OutcomesHandler |
Class type |
container |
Multiplicity |
0..1 |
Parents |
1EdTech GLC Learning Tools Interoperability v1.0 specification |
Description |
An OutcomesHandler object (see the 1EdTech GLC Learning Tools Interoperability v1.0 specification). A LineItem may be associated with an LTI OutcomesHandler object. |
5.14 ResourceHandler Class Description
Table 5.22 Description of the ResourceHandler class.
Descriptor |
Definition |
---|---|
Class name |
ResourceHandler |
Class type |
container |
Multiplicity |
0..1 |
Parents |
1EdTech GLC Learning Tools Interoperability v1.0 specification |
Description |
An OutcomesHandler object (see the 1EdTech GLC Learning Tools Interoperability v1.0 specification). A LineItem may be associated with an LTI ResourceHandler object. |
5.15 LineItem Class Description
The PIM for the LineItem is shown in Figure 5.2.
Figure 5.2 LineItem class diagram.
Table 5.23 Description of the LineItem class.
Descriptor |
Definition |
---|---|
Class name |
LineItem |
Class type |
container |
Multiplicity |
1 |
Parents |
LineItemRecord |
Children |
[ context, lineItemType, label, resultValueSourcedId, resultValue, lineItemMessageSettings, outcomesHandlerSourcedId, dataSource, recordInfo, extension ], ordered |
Description |
A LineItem is a list of Result objects that are, in general, associated with some course activity. |
5.15.1 ContextType Attribute Description
Table 5.24 Description of the ‘contextType’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
context |
Data type |
Context |
Value space |
container |
Multiplicity |
0..1 |
Description |
This is the container for information that establishes the context for the lineItem. |
5.15.2 LineItemType Attribute Description
Table 5.25 Description of the ‘lineItemType’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItemType |
Data type |
LineItemType |
Value space |
container |
Multiplicity |
0..1 |
Description |
The container for the definition of the type of lineItem. |
5.15.3 Label Attribute Description
Table 5.26 Description of the ‘label’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
label |
Data type |
A Normalized String: [1-31 characters]. |
Multiplicity |
0..1 |
Description |
This corresponds to the text that typically appears in the column heading for the lineItem. |
5.15.4 ResultValueSourcedId Attribute Description
Table 5.27 Description of the ‘resultValueSourcedId’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
resultValueSourcedId |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
This is the sourcedId of the ResultValue that are used to define the context for the values contained in the Result objects for the LineItem. A lineItem will have either a sourcedId pointer to the resultValue or the embedded resultValue object itself. |
5.15.5 ResultValue Attribute Description
Table 5.28 Description of the ‘resultValue’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
resultValue |
Data type |
ResultValue |
Value space |
container |
Multiplicity |
0..1 |
Description |
This is the embedded ResultValue structure for the lineItem. A lineItem will have either a sourcedId pointer to the resultValue or the embedded resultValue object itself. |
5.15.6 LineItemMessageSettings Attribute Description
Table 5.29 Description of the ‘lineItemMessageSettings’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItemMessageSettings |
Data type |
PropertySet |
Value space |
container |
Multiplicity |
0..1 |
Description |
The container for a collection of name/value pairs that must be embedded in each message sent to the Outcomes Handler. |
5.15.7 OutcomesHandlerSourcedId Attribute Description
Table 5.30 Description of the ‘outcomesHandlerSourcedId’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
outcomesHandlerSourcedId |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
Points to a processing handler for the lineItem. |
5.15.8 DataSource Attribute Description
Table 5.31 Description of the ‘dataSource’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
dataSource |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
An identifier of the original source system of the LineItem object. |
5.15.9 RecordInfo Attribute Description
Table 5.32 Description of the ‘recordInfo’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
recordInfo |
Data type |
Metadata |
Value space |
container |
Multiplicity |
0..1 |
Description |
The container for metadata about the LineItem object. No particular form of metadata is mandated. |
5.15.10 Extension Attribute Description
Table 5.33 Description of the ‘extension’ attribute for the LineItem class.
Descriptor |
Definition |
---|---|
Attribute name |
extension |
Data type |
IMSExtension |
Value space |
container |
Multiplicity |
0..1 |
Description |
The extension mechanism for the LineItem data model. |
5.16 Context Class Description
The PIM for the LinetemType class is shown in Figure 5.2.
Table 5.34 Description of the Context class.
Descriptor |
Definition |
---|---|
Class name |
Context |
Class type |
container |
Multiplicity |
0..1 |
Parents |
LineItem |
Children |
[contextIdentifier, contextType ], ordered |
Description |
The container for all of the information that establishes the context for the lineItem. |
5.16.1 ContextIdentifier Attribute Description
Table 5.35 Description of the ‘contextIdentifier’ attribute for the Context class.
Descriptor |
Definition |
---|---|
Attribute name |
contextIdentifier |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
This is the sourcedId of the course component to which the LineItem is associated. This is a sourcedId for either a CourseTemplate or CourseOffering or CourseSection or SectionAssociation or, in special cases, a Group. |
5.16.2 ContextType Attribute Description
Table 5.36 Description of the ‘contextType’ attribute for the Context class.
Descriptor |
Definition |
---|---|
Attribute name |
contextType |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
This is a URN that describes the context for the associated LineItem. The use of this attribute is defined by the associated profile. For example, see the 1EdTech GLC LTI v1.0 specification for the use of this attribute in the context of supporting learning tool interactions. |
5.17 LineItemType Class Description
The PIM for the LinetemType class is shown in Figure 5.2.
Table 5.37 Description of the LineItemType class.
Descriptor |
Definition |
---|---|
Class name |
LineItemType |
Class type |
container |
Multiplicity |
0..1 |
Parents |
ContextType |
Children |
[ lineItemTypeVocabulary, lineItemTypeValue, localeKey, resourceHandlerId, defaultDisplayName ], ordered |
Description |
The container for definition of the type of lineItem. |
5.17.1 LineItemTypeVocabulary Attribute Description
Table 5.38 Description of the ‘lineItemTypeVocabulary’ attribute for the LineItemType class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItemTypeVocabulary |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The URI for the vocabulary that is used to define the set of permitted lineItemType values. If this is a reference to a VDEX file it is the ‘vocabIdentifier’ of the vocabulary. |
5.17.2 LineItemTypeValue Attribute Description
Table 5.39 Description of the ‘lineItemTypeValue’ attribute for the LineItemType class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItemTypeValue |
Data type |
LineItemTypeValue |
Value space |
Vocabulary-based. The core vocabulary is given in Appendix B. |
Multiplicity |
1 |
Description |
This defines the type/status of the LineItem. The value space for this vocabulary is approved by 1EdTech GLC and made available to the public as defined in [SDN11, 06]. The syntax and semantics of the approved list of terms shall be supported by all software components implementing this Information Model. The value space for the vocabulary may be extended. Such extending expressions may be created and used only when no approved 1EdTech GLC value satisfies the expressive need of an implementing community to define the shape of a collection. |
5.17.3 ResourceHandlerSourcedId Attribute Description
Table 5.40 Description of the ‘resourceHandlerSourcedId’ attribute for the LineItemType class.
Descriptor |
Definition |
---|---|
Attribute name |
resourceHandlerSourcedId |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
A LineItemType may optionally be associated with a resource handler that is declared in the Tool Profile. The resourceHandlerURN is the fully qualified URN for the associated resource handler. A Tool Consumer may use the associated resource handler to obtain an icon to render in the gradebook for the line items of the given type, or to classify line items based on the resource type. |
5.17.4 LocaleKey Attribute Description
Table 5.41 Description of the ‘localeKey’ attribute for the LineItemType class.
Descriptor |
Definition |
---|---|
Attribute name |
localeKey |
Data type |
Normalized String |
Value space |
A Normalized String: [1-4095 characters]. |
Multiplicity |
0..1 |
Description |
A key used to look up the language-specific display name for the LineItemType from a resource bundle. |
5.17.5 DefaultDisplayName Attribute Description
Table 5.42 Description of the ‘defaultDisplayName’ attribute for the LineItemType class.
Descriptor |
Definition |
---|---|
Attribute name |
defaultDisplayName |
Data type |
Normalized String |
Value space |
A Normalized String: [1-4095 characters]. |
Multiplicity |
0..1 |
Description |
A default value for the display name of the LineItemType. This value will be used if the "localization" capability is not supported, or if a locale-specific display name cannot be found based on the localeKey. |
5.18 Result Class Description
The PIM for the Result is shown in Figure 5.3.
Figure 5.3 Result class diagram.
Table 5.43 Description of the Result class.
Descriptor |
Definition |
---|---|
Class name |
Result |
Class type |
container |
Multiplicity |
1 |
Parents |
ResultRecord |
Children |
[ statusofResult, lineItemSourcedId, personSourcedId, date, resultValueSourcedId, resultValue, resultScore, resultMesageSettings, dataSource, recordInfo, extension ], ordered |
Description |
This is the container for the results. Result objects do not have to be associated with a LineItem. |
5.18.1 StatusofResult Attribute Description
Table 5.44 Description of the ‘statusofResult’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
statusofResult |
Data type |
ResultStatus |
Value space |
container |
Multiplicity |
1 |
Description |
The container for the definition of the status of the result. |
5.18.2 LineItemSourcedId Attribute Description
Table 5.45 Description of the ‘lineItemSourcedId’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
lineItemSourcedId |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
This is the sourcedId of the LineItem to which the Result object is assigned. |
5.18.3 PersonSourcedId Attribute Description
Table 5.46 Description of the ‘personSourcedId’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
personSourcedId |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
This is the sourcedId of the Person for whom the Result object is assigned. |
5.18.4 Date Attribute Description
Table 5.47 Description of the ‘date’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
date |
Data type |
DateTime |
Value space |
ISO 8601 i.e., ‘YYYY-MM-DDTHH:MM:SS±TZ’ |
Multiplicity |
0..1 |
Description |
This is the dateTime at which the current status of the Result was recorded. |
5.18.5 ResultValueSourcedId Attribute Description
Table 5.48 Description of the ‘ResultValueSourcedId’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
ResultValueSourcedId |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
The sourcedId of the ResultValue object that sets the context for the values in the Result object. A result will have either a sourcedId pointer to the resultValue or the embedded resultValue object itself. |
5.18.6 ResultValue Attribute Description
Table 5.49 Description of the ‘resultValue’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
resultValue |
Data type |
ResultValue |
Value space |
container |
Multiplicity |
0..1 |
Description |
This is the embedded ResultValue structure for the lineItem. A result will have either a sourcedId pointer to the resultValue or the embedded resultValue object itself. |
5.18.7 ResultScore Attribute Description
Table 5.50 Description of the ‘resultScore’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
resultScore |
Data type |
Text |
Value space |
A language dependent String [1-127 characters]. The default language is ‘en-US’. |
Multiplicity |
0..1 |
Description |
Value of the result assigned to the member for participation in the collection. Ideally this would be one of the values from the results values list e.g., A+, 85%, Completed, etc. |
5.18.8 ResultMessageSettings Attribute Description
Table 5.51 Description of the ‘resultMessageSettings’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
resultMessageSettings |
Data type |
PropertySet |
Value space |
container |
Multiplicity |
0..1 |
Description |
The container for information about tool that work with the Result information. |
5.18.9 DataSource Attribute Description
Table 5.52 Description of the ‘dataSource’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
dataSource |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
An identifier of the original source system of the Result object. |
5.18.10 RecordInfo Attribute Description
Table 5.53 Description of the ‘recordInfo’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
recordInfo |
Data type |
Metadata |
Value space |
container |
Multiplicity |
0..1 |
Description |
The container for metadata about the Result object. No particular form of metadata is mandated. |
5.18.11 Extension Attribute Description
Table 5.54 Description of the ‘extension’ attribute for the Result class.
Descriptor |
Definition |
---|---|
Attribute name |
extension |
Data type |
IMSExtension |
Value space |
container |
Multiplicity |
0..1 |
Description |
The extension mechanism for the Result data model. |
5.19 ResultStatus Class Description
The PIM for the ResultStatus class is shown in Figure 5.3.
5.19.1 ResultStatusVocabulary Attribute Description
Table 5.55 Description of the ‘resultStatusVocabulary’ attribute for the ResultStatus class.
Descriptor |
Definition |
---|---|
Attribute name |
resultStatusVocabulary |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The URI for the vocabulary that is used to define the set of permitted values for the result status. If this is a reference to a VDEX file it is the ‘vocabIdentifier’ of the vocabulary. |
5.19.2 ResultStatusValue Attribute Description
Table 5.56 Description of the ‘resultStatusValue’ attribute for the ResultStatus class.
Descriptor |
Definition |
---|---|
Attribute name |
resultStatusValue |
Data type |
ResultStatusValue |
Value space |
Vocabulary-based. This core vocabulary is given in Appendix B. |
Multiplicity |
1 |
Description |
This is used to define the status of the value of the Result. The lifecycle by which the status is changed for a Result is outside the scope of this specification. The value space for this vocabulary is approved by 1EdTech GLC and made available to the public as defined in [SDN11, 06]. The syntax and semantics of the approved list of terms shall be supported by all software components implementing this Information Model. The value space for the vocabulary may be extended. Such extending expressions may be created and used only when no approved 1EdTech GLC value satisfies the expressive need of an implementing community to define the shape of a collection. |
5.19.3 LocaleKey Attribute Description
Table 5.57 Description of the ‘localeKey’ attribute for the ResultStatus class.
Descriptor |
Definition |
---|---|
Attribute name |
localeKey |
Data type |
Normalized String |
Value space |
A Normalized String: [1-4095 characters]. |
Multiplicity |
0..1 |
Description |
A key used to look up the language-specific display name for the Result from a resource bundle. |
5.19.4 DefaultDisplayName Attribute Description
Table 5.58 Description of the ‘defaultDisplayName’ attribute for the ResultStatus class.
Descriptor |
Definition |
---|---|
Attribute name |
defaultDisplayName |
Data type |
Normalized String |
Value space |
A Normalized String: [1-4095 characters]. |
Multiplicity |
0..1 |
Description |
A default value for the display name of the Result. This value will be used if the "localization" capability is not supported, or if a locale-specific display name cannot be found based on the localeKey. |
5.20 ResultValue Class Description
The PIM for the ResultValue is shown in Figure 5.4.
Figure 5.4 ResultValue class diagram.
Table 5.59 Description of the ResultValue class.
Descriptor |
Definition |
---|---|
Class name |
ResultValue |
Class type |
container |
Multiplicity |
1 |
Parents |
ResultValueRecord |
Children |
[ label, valueList, valueRange, dataSource, metadata, extension ], ordered |
Description |
The container for the information that defines the nature of the value contained in a Result value. For example this could define a list of grades, the minimum and maximum score, etc. |
5.20.1 Label Attribute Description
Table 5.60 Description of the ‘label’ attribute for the ResultValue class.
Descriptor |
Definition |
---|---|
Attribute name |
label |
Data type |
Text |
Value space |
A language dependent String [1-63 characters]. The default language is ‘en-US’. |
Multiplicity |
0..1 |
Description |
Short descriptive name for interim result grading mode. Examples are: ‘Letter Grade’, ‘Pass/Fail’, etc. |
5.20.2 ValueList Attribute Description
Table 5.61 Description of the ‘valueList’ attribute for the ResultValue class.
Descriptor |
Definition |
---|---|
Attribute name |
valueList |
Data type |
ValueList |
Value space |
container |
Multiplicity |
0..1 (conditional) |
Description |
The ordered list of permitted values for the Result e.g .’A’, ‘B’, ‘C’, ‘D’ and ‘E’ and ‘Fail’. |
5.20.3 ValueRange Attribute Description
Table 5.62 Description of the ‘valueRange’ attribute for the ResultValue class.
Descriptor |
Definition |
---|---|
Attribute name |
valueRange |
Data type |
ValueRange |
Value space |
container |
Multiplicity |
0..1 (conditional) |
Description |
The definition of the minimum and maximum values for the Result value. |
5.20.4 DataSource Attribute Description
Table 5.63 Description of the ‘dataSource’ attribute for the ResultValue class.
Descriptor |
Definition |
---|---|
Attribute name |
dataSource |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
0..1 |
Description |
An identifier of the original source system of the ResultValue object. |
5.20.5 RecordInfo Attribute Description
Table 5.64 Description of the ‘recordInfo’ attribute for the ResultValue class.
Descriptor |
Definition |
---|---|
Attribute name |
recordInfo |
Data type |
Metadata |
Value space |
container |
Multiplicity |
0..1 |
Description |
The container for metadata about the ResultValue object. No particular form of metadata is mandated. |
5.20.6 Extension Attribute Description
Table 5.65 Description of the ‘extension’ attribute for the ResultValue class.
Descriptor |
Definition |
---|---|
Attribute name |
extension |
Data type |
IMSExtension |
Value space |
container |
Multiplicity |
0..1 |
Description |
The extension mechanism for the ResultValue data model. |
5.21 ValueList Class Description
The PIM for the ValueList class is shown in Figure 5.4.
Table 5.66 Description of the ValueList class.
Descriptor |
Definition |
---|---|
Class name |
ValueList |
Class type |
container |
Multiplicity |
0..1 |
Parents |
ResultValue |
Children |
[ valueRange, orderedValue ], ordered |
Description |
The list of ordered values that can be assigned to a Result object. |
5.21.1 OrderValue Attribute Description
Table 5.67 Description of the ‘orderValue’ attribute for the ValueList class.
Descriptor |
Definition |
---|---|
Attribute name |
orderValue |
Data type |
OrderedValue |
Value space |
container |
Multiplicity |
1..unbounded, unordered |
Description |
The container for the list of ordered values that can be assigned to a Result object. An instance of the OrderValue class must support a least 5 instances of the orderValue attribute. |
5.22 OrderedValue Class Description
The PIM for the OrderedValue class is shown in Figure 5.4.
Table 5.68 Description of the OrderedValue class.
Descriptor |
Definition |
---|---|
Class name |
OrderedValue |
Class type |
container |
Multiplicity |
1..unbounded, unordered |
Parents |
ValueList |
Children |
[ ordinal, grade ] |
Description |
A specific value in the list of permitted values. |
5.22.1 Ordinal Attribute Description
Table 5.69 Description of the ‘ordinal’ attribute for the OrderedValue class.
Descriptor |
Definition |
---|---|
Attribute name |
ordinal |
Data type |
Integer |
Value space |
An integer in the range of: ±216-1. |
Multiplicity |
0..1 |
Description |
A specific number that can be assigned to the Result object. |
5.22.2 Grade Attribute Description
Table 5.70 Description of the ‘grade’ attribute for the OrderedValue class.
Descriptor |
Definition |
---|---|
Attribute name |
grade |
Data type |
Text |
Value space |
A language dependent String [1-15 characters]. The default language is ‘en-US’. |
Multiplicity |
0..1 |
Description |
A specific string that can be assigned to the Result object. |
5.22.3 ValueRange Attribute Description
Table 5.71 Description of the ‘valueRange’ attribute for the OrderedValue class.
Descriptor |
Definition |
---|---|
Attribute name |
valueRange |
Data type |
ValueRange |
Value space |
container |
Multiplicity |
0..1 (conditional) |
Description |
The definition of the equivalent range of values for the associated grade. |
5.23 ValueRange Class Description
The PIM for the ValueRange class is shown in Figure 5.4.
Table 5.72 Description of the ValueRange class.
Descriptor |
Definition |
---|---|
Class name |
ValueRange |
Class type |
container |
Multiplicity |
0..1 |
Parents |
ResultValue, ValueList |
Children |
[ min, max ] |
Description |
Container for the minimum and maximum value permitted for the Result object. |
5.23.1 Min Attribute Description
Table 5.73 Description of the ‘min’ attribute for the ValueRange class.
Descriptor |
Definition |
---|---|
Attribute name |
Min |
Data type |
Decimal |
Value space |
Real number in the range: ±32676.00. |
Multiplicity |
0..1 |
Description |
The minimum value, inclusive, that can be assigned to the Result object. This value must be less that the maximum. |
5.23.2 Max Attribute Description
Table 5.74 Description of the ‘max’ attribute for the ValueRange class.
Descriptor |
Definition |
---|---|
Attribute name |
Max |
Data type |
Decimal |
Value space |
Real number in the range: ±32676.00. |
Multiplicity |
0..1 |
Description |
The minimum value, inclusive, that can be assigned to the Result object. This value must be greater than the minimum. |
5.24 Common Classes Descriptions
The PIM for the common classes is shown in Figure 5.5.
Figure 5.5 Common class diagram.
5.24.1 Metadata Class Description
The PIM for the Metadata class is shown in Figure 5.5.
Table 5.75 Description of the Metadata class.
Descriptor |
Definition |
---|---|
Class name |
Metadata |
Class type |
container |
Children |
[ metadataNameVocabulary, metadataTypeVocabulary, metadataField ], ordered |
Description |
This is the container for meta-data about the corresponding object. The meta-data entries are supplied using a name/type/value triple based upon external vocabularies. |
Table 5.76 Description of the ‘metadataNameVocabulary’ attribute for the Metadata class.
Descriptor |
Definition |
---|---|
Attribute name |
metadataNameVocabulary |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The URI for the vocabulary that is used to define the set of permitted fieldName values. If this is a reference to a VDEX file it is the ‘vocabIdentifier’ of the vocabulary. |
Table 5.77 Description of the ‘metadataTypeVocabulary’ attribute for the Metadata class.
Descriptor |
Definition |
---|---|
Attribute name |
metadataTypeVocabulary |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The URI for the vocabulary that is used to define the set of permitted fieldType values. If this is a reference to a VDEX file it is the ‘vocabIdentifier’ of the vocabulary. |
Table 5.78 Description of the ‘metadataField’ attribute for the Metadata class.
Descriptor |
Definition |
---|---|
Attribute name |
metadataField |
Data type |
ExtensionField |
Value space |
container |
Multiplicity |
1..unbounded, unordered |
Description |
The container for the triples that are used to define each extension data element. |
5.24.2 IMSExtension Class Description
The PIM for the IMSExtension class is shown in Figure 5.5.
Table 5.79 Description of the IMSExtension class.
Descriptor |
Definition |
---|---|
Class name |
IMSExtension |
Class type |
container |
Children |
[ extensionNameVocabulary, extensionTypeVocabulary, extensionField ], ordered |
Description |
The container for the extension of the Group data model. |
Table 5.80 Description of the ‘extensionNameVocabulary’ attribute for the IMSExtension class.
Descriptor |
Definition |
---|---|
Attribute name |
extensionNameVocabulary |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The URI for the vocabulary that is used to define the set of permitted fieldName values. If this is a reference to a VDEX file it is the ‘vocabIdentifier’ of the vocabulary. |
Table 5.81 Description of the ‘extensionTypeVocabulary’ attribute for the IMSExtension class.
Descriptor |
Definition |
---|---|
Attribute name |
extensionTypeVocabulary |
Data type |
AnyURI |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The URI for the vocabulary that is used to define the set of permitted fieldType values. If this is a reference to a VDEX file it is the ‘vocabIdentifier’ of the vocabulary. |
Table 5.82 Description of the ‘extensionField’ attribute for the IMSExtension class.
Descriptor |
Definition |
---|---|
Attribute name |
extensionField |
Data type |
ExtensionField |
Value space |
container |
Multiplicity |
1..unbounded, unordered |
Description |
The container for the triples that are used to define each extension data element. |
5.24.3 ExtensionField Class Description
The PIM for the ExtensionField class is shown in Figure 5.5.
Table 5.83 Description of the ExtensionField class.
Descriptor |
Definition |
---|---|
Class name |
ExtensionField |
Class type |
container |
Children |
None. |
Description |
The container for each triple that describes an extension field. Each triple consists of field name, field type and field value. |
Table 5.84 Description of the ‘fieldName’ attribute for the ExtensionField class.
Descriptor |
Definition |
---|---|
Attribute name |
fieldName |
Data type |
NormalizedString |
Value space |
A language dependent Normalized String [1-127 characters]. Default language is ‘en-US’. |
Multiplicity |
1 |
Description |
The container for the name of the extension field. This is used to identify the full triple. |
Table 5.85 Description of the ‘fieldType’ attribute for the ExtensionField class.
Descriptor |
Definition |
---|---|
Attribute name |
fieldType |
Data type |
Enumerated vocabulary. |
Value space |
Vocabulary-based. The core vocabulary is given in Appendix B. |
Multiplicity |
1 |
Description |
This defines the data-type for the extension triple. The value space for this vocabulary is approved by 1EdTech GLC and made available to the public as defined in [SDN11, 06]. The syntax and semantics of the approved list of terms shall be supported by all software components implementing this Information Model. The value space for the vocabulary may be extended. Such extending expressions may be created and used only when no approved 1EdTech GLC value satisfies the expressive need of an implementing community to define the shape of a collection. |
Table 5.86 Description of the ‘fieldValue’ attribute for the ExtensionField class.
Descriptor |
Definition |
---|---|
Attribute name |
fieldValue |
Data type |
NormalizedString |
Value space |
A language dependent Normalized String [1-127 characters]. Default language is ‘en-US’. |
Multiplicity |
1 |
Description |
The container for the data value itself. This is stored as a string but should be interpreted as per the data-type defined in the ‘fieldType’ part of the triple. |
5.24.4 Text Class Description
Table 5.87 Description of the ‘Text’ class.
Descriptor |
Definition |
---|---|
Class name |
Text |
Class type |
container |
Children |
n/a |
Description |
Text to be stored. This is a language/string tuple. |
Table 5.88 Description of the ‘language’ attribute for the Text class.
Descriptor |
Definition |
---|---|
Attribute name |
language |
Data type |
Enumerated. |
Value space |
RFC4646 language codes. The default value is: ‘en-US’. See Appendix B for more details on this vocabulary. |
Multiplicity |
1 |
Description |
The language for the associated text string. |
Table 5.89 Description of the ‘textString’ attribute for the Text class.
Descriptor |
Definition |
---|---|
Attribute name |
textString |
Data type |
String |
Value space |
String [1-4095 characters]. |
Multiplicity |
1 |
Description |
The container for the string. |
5.24.5 SourcedGUID Class Description
Table 5.90 Description of the SourcedGUID class.
Descriptor |
Definition |
---|---|
Class name |
SourcedGUID |
Class type |
container |
Children |
[ refAgentInstanceID, sourcedId ], ordered |
Description |
This is a structured GUID that consists of an instance identifier and a sourcedId. |
Table 5.91 Description of the ‘refAgentInstanceID’ attribute for the SourcedGUID class.
Descriptor |
Definition |
---|---|
Attribute name |
refAgentInstanceID |
Data type |
NormalizedString |
Value space |
Normalized string [1..31 characters]. |
Multiplicity |
0..1 |
Description |
This is an instance identifier used to differentiate, if necessary, between multiple end system reference agents. |
Table 5.92 Description of the ‘sourcedId’ attribute for the SourcedGUID class.
Descriptor |
Definition |
---|---|
Attribute name |
sourcedId |
Data type |
GUID |
Value space |
See Table 5.1. |
Multiplicity |
1 |
Description |
The sourcedId for the object. This should be a GUID. |
5.24.6 PropertySet Class Description
Table 5.93 Description of the PropertySet class.
Descriptor |
Definition |
---|---|
Class name |
PropertySet |
Class type |
container |
Children |
See the 1EdTech GLC LTI v1.0 Specification. |
Description |
See the 1EdTech GLC LTI v1.0 Specification. |
6 Extending and Profiling the Service
6.1 Proprietary Extensions
Proprietary extensions of the service are based upon two approaches:
a) The extension of the data models being manipulated by the current set of operations;
b) The inclusion of new operations to support new proprietary functionality.
It is NOT permitted to change the Behavior of the current set of operations. Such changes MUST be supported by the creation of new operations.
6.1.1 Proprietary Operations
The definition of new operations should follow the same format as adopted herein. The new operations should be defined using a new interface type. Every operation must result in the return of a status code that describes the final state of the request on the target end system.
An example of creating such an extension is given in the accompanying Best Practices document [LIS, 11c].
6.1.2 Proprietary Data Elements
Extensions to the data model are only permitted where the IMSExtension class is available. Within the Outcomes data model only the ‘LineItem’, ‘Result’ and ‘ResultValue’ classes can be extended. The extension takes the form of a Name/Type/Value triple. Many extension fields can be added but hierarchical structures must be emulated using the appropriate delimited notation in the ‘Name’ field. This triple consists of:
· Name – the name assigned to the extension field (this is a string that can support any naming convention);
· Type – the data-type that is to be used for the value (this is used for interpreting the associated value);
· Value – the data value for the extension (the value is supplied as a string).
6.2 Profiling the Service
This Service can be profiled. In general, Profiling is used to:
a) Refine which Interfaces are used and which operations are supported for each Interface;
b) Refine the data models (see the 1EdTech GLC Application Profiling guidelines for more details on how data models can be profiled [APG, 05a][APG, 05b]).
Valid Profiles must be restrictive i.e., optional features can be removed or constraints increased but new features must not be added. A Profile of this service is made by annotating the UML supplied with the documentation for the specification.
Appendix A – Summary List of Service Status Codes
The summary list of status codes that can be returned by the different operations through the StatusInfo object is given in Table. A1.1. The key to the entries is: ‘Y’ denotes the code may be returned by that operation. A blank entry means that the code cannot be returned by that operation.
Table A1.1 Status codes for the service operations.
CodeMinor Status Code
|
create1 |
createByProxy2 |
delete3 |
read4 |
update5 |
replace6 |
discover8 |
changeIdentifier7 |
---|---|---|---|---|---|---|---|---|
‘fullsuccess’ |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
‘createsuccess’ |
|
|
|
|
|
Y |
|
|
‘nosourcedids’ |
|
|
|
Y |
|
|
|
|
‘idallocfail’ |
|
Y |
|
|
|
|
|
|
‘overflowfail’ |
Y |
Y |
|
|
|
|
|
|
‘idallocinusefail’ |
Y |
|
|
|
|
|
|
Y |
‘invaliddata’ |
Y |
Y |
|
|
Y |
Y |
Y |
|
‘contextunknown’ |
Y |
Y |
|
|
Y |
Y |
|
|
‘toomuchdata’ |
|
|
|
Y |
|
|
|
|
‘invalidlineitemtype’ |
Y |
Y |
|
Y |
Y |
Y |
|
|
‘gradingnotpermitted’ |
Y |
Y |
|
|
Y |
Y |
|
|
‘incompletedata’ |
Y |
Y |
|
Y |
Y |
Y |
|
|
‘partialdatastorage’ |
Y |
Y |
|
|
Y |
Y |
|
|
‘unknownobject’ |
|
|
Y |
Y |
Y |
Y |
|
Y |
‘unknownquery’ |
|
|
|
|
|
|
Y |
|
‘deletefailure’ |
|
|
Y |
|
|
|
|
|
‘unknownvocabulary’ |
Y |
Y |
|
Y |
Y |
Y |
|
|
‘unknownmdvocabulary’ |
Y |
Y |
|
|
Y |
Y |
|
|
‘targetreadfailure’ |
|
|
|
Y |
|
|
|
|
‘savepointerror’ |
|
|
|
Y |
|
|
|
|
‘savepointsyncerror’ |
|
|
|
Y |
|
|
|
|
‘unknownextension’ |
Y |
Y |
|
Y |
Y |
Y |
|
|
‘targetisbusy’ |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
‘linkfailure’ |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
‘unauthorizedrequest’ |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
‘unsupportedLIS’ |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
‘unsupportedLISoperation’ |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Notes:
[1] Used by operations: ‘createLineItem’, ‘createResult’ and ‘createResultValue’;
[2] Used by operations: ‘createByProxyLineItem’, ‘createByProxyResult’ and ‘createByProxyResultValue’;
[3] Used by operations: ‘deleteLineItem’, ‘deleteResult’ and ‘deleteResultValue’;
[4] Used by operations: ‘readLineItem’, ‘readResult’, ‘readResultValue’, ‘readAllLineItemIds’, ‘readLineItemIdsForPerson’, ‘readLineItemIdsForCourseOffering’, ‘readLineItemIdsForCourseSection’, ‘readLineItemIdsWithStatus’, ‘readAllResultIds’, ‘readResultIdsForPerson’, ‘readResultIdsForLineItem’, ‘readResultIdsForCourseOffering’, ‘readResultIdsForCourseSection’, ‘readLineItems’, ‘readResults’, ‘readResultValues’, ‘readResultIdsForCourseSectionWithStatus’, ‘readAllResultValueIds’, ‘readResultValueIdForLineItem’, ‘readResultValueIdForResult’, ‘readLineItemIdsFromSavePoint’, ‘readResultIdsFromSavePoint’, ‘readResultValueIdsFromSavePoint’, ‘readLineItemsFromSavePoint’, ‘readResultsFromSavePoint’ and ‘readResultValuesFromSavePoint’;
[5] Used by operations: ‘updateLineItem’, ‘updateResult’ and ‘updateResultValue’;
[6] Used by operations: ‘replaceLineItem’, ‘replaceResult’ and ‘replaceResultValue’;
[7] Used by operations: ‘changeLineItemIdentifier’, ‘changeResultIdentifier’ and ‘changeResultValueIdentifier’;
[8] Used by operations: ‘discoverLineItem’, ‘discoverResult’ and ‘discoverResultValue’.
There is a set of status codes that must be supported by each of the Outcomes Management Service operations. These codes are described in Table A1.2.
Table A1.2 Common status codes for the service operations.
Status Code |
Explanation of the Cause of the Code |
---|---|
‘CodeMajor=Failure’ ‘Severity=Status’ ‘CodeMinor=unauthorizedrequest’ |
The source system is not authorized to make this request of the target. The reason for the refusal can be one of several causes. |
‘CodeMajor=Failure’ ‘Severity=Status’ |
The target end-system received the request but is busy and cannot process the request. The request should be resubmitted. |
‘CodeMajor=Failure’ ‘Severity=Error’ ‘CodeMinor=linkfailure’ |
There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered. |
‘CodeMajor=unsupportedLIS’ ‘Severity=Status’ ‘CodeMinor=*’ |
This service in LIS is not supported by the target system. Every system that implements any part of the LIS specification must return this status code for a service component in LIS that is not supported. |
‘CodeMajor=unsupportedLISoperation’ ‘Severity=Status’ ‘CodeMinor=*’ |
This operation is not supported by the target system. Every system that implements any part of the LIS specification must return this status code for an operation that is not supported in a supported service. |
Appendix B – Vocabularies
B1 Set of Defined Vocabularies
The vocabularies listed in Tables B1.1, B1.2 and B1.3 are the default set maintained under the 1EdTech GLC Vocabulary Registry [SDN11, 06]. It is the responsibility of an implementation to ensure that it is using the correct and latest versions of the vocabulary files. Changes to the default vocabularies are permitted; this results in the creation of a new vocabulary that should be registered with 1EdTech GLC. As part of a profiling process entirely new vocabularies may be defined to replace the default set.
The set of external vocabularies that are used in this information model are listed in Table B1.1, B1.2 and B1.3.
B1.1 LineItemType Vocabulary
The vocabulary for the ‘lineItemType’ is listed in Table B1.1.
Table B1.1 The lineItemType external vocabulary.
Vocabulary |
Description |
LineItem Class |
Data types that are permitted for the type/status of lineItem fields. An implementation must support the ‘Final’ and ‘Interim’ values. The core vocabulary is: · MidTerm · Interim · Final |
Rule B.1-01: Midterm – to denote that the lineItem consists of a set of Midterm results for the course component;
Rule B.1-02: Interim – to denote that the lineItem consists of a set of Interim results for the course component;
Rule B.1-03: Final – to denote that the lineItem consists of a set of Final results for the course component.
B1.1 StatusofResult Vocabulary
The vocabulary for the ‘statusofResult’ is listed in Table B1.2.
Table B1.2 The result status external vocabulary.
Vocabulary |
Description |
Result Class |
Data types that are permitted for the status of the value of the Result. The core vocabulary is: · Unmoderated · Tobemoderated · Pending · Completed |
Rule B.2-01: Unmoderated – to denote that the result is unmoderated;
Rule B.2-03: Tobemoderated – to denote that the result is to be moderated;
Rule B.2-03: Pending – to denote that the result is of an interim nature;
Rule B.2-04: Completed – to denote that the result is Final.
B1.3 ReplaceStatus Vocabulary
The vocabulary for the ‘replaceStatus’ is listed in Table B1.3.
Table B1.3 The replaceStatus external vocabulary.
Vocabulary |
Description |
ReplaceStatusCode Class |
The status codes that may be returned to indicate the state of the attempted Result object replacement. Enumerated as: · Fullsuccess · Createsuccess · Unknownlineitem · Unknownperson · Contextunknown · Gradingnotpermitted · Invalidresult · Resultalreadyposted · Incompletedata · Partialdatastorage · Unknownvocabulary · Unknownmdvocabulary · Unknownextension |
Rule B.3-01: Fullsuccess – the result replacement was successful;
Rule B.3-02: Createsuccess – a new result object was successfully created;
Rule B.3-03: Unknownlineitem – the LineItem object is unknown;
Rule B.3-04: Unknownperson – the associated Person object is unknown;
Rule B.3-05: Contextunknown – the associated context identification is unknown;
Rule B.3-06: Gradingnotpermitted – the associated Course object is not gradable;
Rule B.3-07: Invalidresult – grade is not valid for this enrollment;
Rule B.3-08: Resultalreadyposted – the received grade has already been posted to student enrollment
Rule B.3-09: Incompletedata – some mandatory part of the data has been detected as missing by the target system;
Rule B.3-10: Partialdatastorage – the target has stored a subset of the sent data record i.e., some of the optional data has not been stored (all mandatory data has been supplied and stored);
Rule B.3-11: Unknownvocabulary – one or more vocabulary values is unknown;
Rule B.3-12: Unknownmdvocabulary – one or more metadata vocabulary values is unknown;
Rule B.3-13: Unknownextension – the target cannot process the proprietary data model extensions used in the object.
B1.4 FieldType Vocabulary
The vocabulary for type of field in ‘fieldType’ is listed in Table B1.4.
Table B1.4 The fieldType external vocabulary.
Vocabulary |
Description |
ExtensionField Class |
Data types that are permitted for the extension fields. These data-types reflect the permitted types for XML. Enumerated as: · Boolean · DateTime · Integer · Decimal · String |
Rule B.4-01: Boolean – the data-type is equivalent to the definition of a ‘Boolean’ in XML;
Rule B.4-02: DateTime – the data-type is equivalent to the definition of a ‘DateTime’ in XML;
Rule B.4-03: Integer – the data-type is equivalent to the definition of an ‘Integer’ in XML;
Rule B.4-04: Decimal – the data-type is equivalent to the definition of a ‘Decimal’ in XML;
Rule B.4-05: String – the data-type is equivalent to the definition of a ‘String’ in XML.
B1.5 Language Vocabulary
The language code/country code combination used to identify the language for a piece of text is an enumerated external 1EdTech GLC vocabulary that captures the full set of entries from RFC4646.
B2 Using Vocabularies for the Metadata Class
The Metadata class consists of attributes:
· metadataNameVocabulary – identifies the vocabulary that contains the reference set of fieldName values for the meta-data[2];
· metadataTypeVocabulary – identifies the vocabulary that contains the reference set of fieldType values for the meta-data. The value for this attribute is the same as the ‘vocabIdentifier’ of the VDEX instance for this vocabulary;
· metadataField – contains the set of triples (fieldName/fieldType/fieldValue) for each meta-data entry.
The value in the ‘fieldName’ must be from the vocabulary (identified using the metadataNameVocabulary attribute). The value in the ‘fieldType’ must be from the external vocabulary containing the permitted set of external field types (as listed in the metadataTypeVocabulary attribute). The value in the ‘fieldValue’ is the metadata value itself. Nested values are possible using a dot notation in the ‘fieldName’ e.g., for LOM this could be ‘general.keyword.string’, etc.
B3 Using Vocabularies for the IMSExtension Class
The IMSExtension class consists of attributes:
· extensionNameVocabulary[3] – identifies the vocabulary that contains the reference set of fieldName values for the extension;
· extensionTypeVocabulary – identifies the vocabulary that contains the reference set of fieldType values for the extension. The value for this attribute is the same as the ‘vocabIdentifier’ of the VDEX instance for this vocabulary;
· extensionField – contains the set of triples (fieldName/fieldType/fieldValue) for each extension.
The value in the ‘fieldName’ must be from the vocabulary (identified using the extensionNameVocabulary attribute). The value in the ‘fieldType’ must be from the external vocabulary containing the permitted set of external field types (as listed in the extensionTypeVocabulary attribute). The value in the ‘fieldValue’ is the extension value itself. Nested values are possible using a dot notation in the ‘fieldName’ cf. for meta-data.
Appendix C – File-based Data Exchange
The 1EdTech GLC Bulk Data Exchange Management Service [BDEMS, 11] is used to exchange bulk Outcomes and related information. The Outcomes information is exchanged by placing multiple LineItemRecord, ResultRecord and ResultValueRecord structures within a bulk data container. Figure C1.1 shows the key class structure and the associated definitions are provided in Section 5 of this document.
Figure C.1 Outcomes class diagram for file-based data exchange.
Note that separate binding instance validation files will be used for containing the description of LineItemRecords, ResultRecords and ResultValueRecords within a file. This ensures that only the required data structures are contained in the corresponding binding validation files.
About This Document
Title: 1EdTech GLC Outcomes Management Service Information Model
Editor: Colin Smythe (1EdTech GLC)
Co-chairs: Linda Feng (Oracle) and Bill Lee (Desire2Learn)
Version: 1.0
Version Date: 30 June 2011
Release: Public Draft v2.0
Status: Public Draft
Summary: This document contains the 1EdTech GLC Outcomes Management Service v1.0 Information Model. This service is used to exchange information about Outcomes. The Outcomes data model is based upon results that can be grouped together to reflect an assessment activity for a Course. The Outcomes data model is based upon LineItems, Results and ResultValues. The business transactions include the simple create, read, update, delete and simple searching of the Outcomes data model. This document contains the definition of the abstract application-programming interface for the Outcomes Management Service.
This is a new service that is based upon the interim and final results parts of the data model in the 1EdTech GLC Membership Management Service v1.0 specification.
Revision Information: Original release.
Purpose: This document is made available for review by the public community at large.
Document Location: /lis/
List of Contributors
The following individuals contributed to the development of this document:
Kerry Blinco DEEWR (Australia)
Kirk Bunte SungardHE (USA)
Angus Chan Desire2Learn (Canada)
Adam Cooper JISC/JISC-CETIS (UK)
Michael Feldstein Oracle (USA)
Linda Feng Oracle (USA)
Chris Hatton Pearson (USA)
Jon Fontaine Blackboard (USA)
Karen Kuffner University of Michigan (USA)
Zack Leavitt Pearson (USA)
Bill Lee Desire2Learn (Canada)
Richard Moon SungardHE (USA)
Mike Parkhill Desire2Learn (Canada)
Colin Smythe 1EdTech GLC (UK)
Reinhold Staudinger Blackboard (USA)
Nick Terrible University of Wisconsin (USA)
Jason Zhong SungardHE (USA)
Revision History
Version No. |
Release Date |
Comments |
Final Release v1.0 |
30 June 2011 |
The first formal release of the Final Release version of this document. |
|
|
|
|
|
|
Index
A
Abstract Framework.. 12, 13, 14
API.......................... 13, 15, 18, 19
Attributes
Common
dataSource 10, 117, 119, 126, 129, 133, 134
extensionField 11, 141, 142, 154
metadataField 11, 140, 141, 153
recordInfo 10, 117, 120, 126, 129, 134
sourcedId 11, 16, 17, 23, 25, 27, 28, 39, 41, 44, 48, 50, 52, 53, 55, 56, 66, 68, 69, 72, 75, 77, 79, 80, 88, 90, 93, 94, 95, 96, 97, 101, 102, 118, 121, 126, 127, 128, 145
Course
association 30, 109, 110, 112
section............................ 103
ExtensionField
fieldName 11, 140, 141, 143, 153, 154
fieldType 11, 140, 142, 143, 153, 154
fieldValue 11, 143, 153, 154
LangString
language 11, 103, 128, 133, 136, 143, 144, 153
text................. 118, 144, 153
lineItem 7, 9, 36, 37, 44, 94, 109, 110, 117, 118, 119, 120, 122, 128, 151
lineItemRecord 9, 23, 25, 28, 39, 41, 107
RecordMetaData
comments.................. 1, 104
Relationship
label........ 10, 117, 118, 133
Result 7, 9, 11, 12, 15, 16, 17, 27, 36, 37, 52, 63, 64, 68, 79, 85, 86, 88, 95, 96, 101, 102, 110, 111, 112, 126, 127, 128, 130, 133, 147, 151, 152
mode............................... 133
result 7, 9, 11, 12, 15, 16, 17, 27, 36, 37, 52, 63, 64, 68, 79, 85, 86, 88, 95, 96, 101, 102, 110, 111, 112, 126, 127, 128, 130, 133, 147, 151, 152
resultRecord 48, 53, 66, 69, 107, 108
resultValue 7, 10, 85, 86, 96, 112, 117, 118, 126, 127, 128
resultValueRecord 75, 77, 80, 88, 90, 107, 108
StatusInfo
description 12, 13, 15, 155
Values
list 13, 68, 98, 100, 102, 104, 117, 123, 128, 130, 133, 135, 136, 143, 148
max.................. 11, 137, 138
min........................... 11, 137
B
Binding technologies
SOAP 29, 30, 31, 32, 33, 34, 35, 36, 37, 43, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 71, 81, 84, 85, 86, 92
WSDL..................... 12, 14, 103
Bulk Data Exchange Management Service 12, 14, 155
C
Classes
Common
DataSource 5, 119, 129, 134
ExtensionField 6, 11, 141, 142, 143, 153
IMSExtension 6, 11, 120, 129, 135, 141, 142, 147, 154
Metadata 6, 11, 120, 129, 134, 140, 141, 153
StatusInfo 4, 23, 25, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 39, 41, 43, 44, 48, 50, 52, 53, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 66, 68, 69, 71, 72, 75, 77, 79, 80, 81, 82, 83, 84, 85, 86, 88, 90, 92, 93, 99, 148
Text 6, 11, 103, 128, 133, 136, 144
Course
Association.................... 110
CourseOffering 12, 16, 21, 30, 31, 46, 57, 110, 113, 121
CourseSection 12, 16, 21, 24, 25, 33, 34, 39, 41, 46, 58, 59, 110, 114, 121
CourseTemplate 16, 110, 113, 121
Offering.......................... 110
Section 98, 99, 104, 110, 155
SectionAssociation 110, 114, 121
Template........................ 110
GroupDatabase................. 114
GroupRecord............. 4, 9, 114
LineItem 3, 4, 7, 10, 12, 16, 17, 20, 21, 22, 23, 25, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 39, 41, 43, 44, 46, 48, 50, 54, 56, 60, 61, 68, 71, 74, 82, 85, 94, 95, 98, 106, 107, 109, 110, 113, 114, 115, 116, 117, 118, 119, 120, 121, 123, 126, 147, 151, 152
LineItemRecord 3, 4, 9, 23, 25, 28, 39, 41, 98, 106, 107, 109, 117, 155
Outcomes
ResultRecord 3, 4, 9, 48, 50, 53, 66, 69, 98, 106, 108, 110, 111, 126, 155
ResultValue 4, 5, 7, 9, 10, 11, 12, 16, 17, 20, 46, 73, 74, 75, 77, 79, 80, 81, 82, 83, 84, 85, 86, 88, 90, 92, 93, 94, 96, 97, 99, 106, 107, 108, 112, 113, 118, 127, 128, 132, 133, 134, 135, 137, 147
ResultValueRecord 4, 9, 75, 77, 80, 88, 90, 99, 106, 108, 112, 113, 133, 155
OutcomesDatabase 4, 7, 9, 106, 107, 108, 109, 110, 112
PersonDatabase............ 115
PersonRecord....... 4, 9, 115
Result 4, 5, 7, 10, 12, 16, 17, 20, 27, 45, 46, 47, 48, 50, 52, 53, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 66, 68, 69, 71, 72, 74, 83, 86, 94, 95, 96, 98, 99, 101, 102, 106, 107, 108, 110, 111, 113, 115, 117, 118, 125, 126, 127, 128, 129, 130, 131, 133, 134, 135, 136, 137, 138, 147, 151, 152
Common Services.................... 12
Conformance........................... 15
Course 12, 13, 14, 17, 30, 31, 33, 34, 57, 58, 113, 114, 152, 156
Course Management Service 12, 13, 14, 17, 30, 113, 114
Course Structures
Association......................... 110
CourseOffering 12, 16, 21, 30, 31, 46, 57, 110, 113, 121
CourseSection 12, 16, 21, 24, 25, 33, 34, 39, 41, 46, 58, 59, 110, 114, 121
CourseTemplate 16, 110, 113, 121
Offering............................... 110
Section. 98, 99, 104, 110, 155
SectionAssociation 110, 114, 121
Template............................. 110
G
Group Management Service 12, 14, 17, 114
I
Interface Class
LineItemManager 2, 7, 8, 20, 21
ResultManager 2, 7, 8, 20, 45, 46
ResultValueManager 3, 7, 9, 20, 73, 74
L
Learning Information Services 12, 13, 14, 15, 98, 103
LIS
Bulk Data Exchange Management Service 12, 14, 155
Course Management Service 12, 13, 14, 17, 30, 113, 114
Group Management Service 12, 14, 17, 114
Membership Management Service 12, 13, 14, 30, 156
Outcomes Management Service 1, 2, 12, 13, 14, 15, 17, 103, 150, 156
Person Management Service 12, 115
M
Membership Management Service 12, 13, 14, 156
Metadata 6, 11, 120, 129, 134, 140, 141, 153
O
Operations
Outcomes
changeLineItemIdentifier 8, 22, 44, 95, 149
changeResultIdentifier 8, 47, 72, 96, 149
changeResultValueIdentifier 9, 74, 93, 96, 149
createByProxyLineItem 8, 21, 22, 25, 94, 149
createByProxyResult 8, 46, 47, 50, 95, 149
createByProxyResultValue 9, 74, 77, 96, 149
createLineItem 8, 21, 22, 23, 39, 94, 149
createResult 8, 46, 47, 48, 66, 68, 95, 149
createResultValue 9, 74, 75, 88, 96, 149
deleteLineItem 8, 21, 22, 27, 94, 149
deleteResult 8, 46, 47, 52, 95, 149
deleteResultValue 9, 74, 79, 96, 149
discoverLineItemIds 8, 22, 43, 95
discoverResultIds 8, 47, 71, 96
discoverResultValue 9, 74, 92, 97
readAllLineItemIds 8, 21, 29, 95, 149
readAllResultIds 8, 46, 54, 96, 149
readAllResultValueIds 9, 74, 81, 97, 149
readLineItem 8, 21, 22, 28, 95, 149
readLineItemIdsForCourseOffering 8, 21, 31, 95, 149
readLineItemIdsForCourseSection 8, 21, 33, 95, 149
readLineItemIdsForPerson..... 8, 21, 30, 95, 149
readLineItemIdsFromSavePoint 8, 21, 35, 95, 149
readLineItems 8, 21, 36, 95, 149
readLineItemsFromSavePoint 8, 21, 37, 64, 86, 95, 149
readResult 8, 46, 47, 53, 96, 149
readResultIdsForCourseOffering 8, 46, 57, 96, 149
readResultIdsForCourseSection 8, 46, 58, 96, 149
readResultIdsForCourseSectionWithStatus 8, 46, 59, 149
readResultIdsForLineItem 8, 46, 56, 96, 149
readResultIdsForPerson 8, 46, 55, 96, 149
readResultIdsFromSavePoint 8, 46, 62, 96, 149
readResults 8, 46, 63, 96, 149
readResultsFromSavePoint 8, 9, 46, 64, 86, 96, 149
readResultValue 9, 74, 80, 97, 149
readResultValueIdsFromSavePoint 9, 74, 84, 97, 149
readResultValues 9, 74, 85, 97, 149
readResultValuesFromSavePoint 74, 86, 97, 149
replaceLineItem 8, 21, 22, 23, 25, 39, 41, 94, 95, 149
replaceResult 8, 46, 47, 48, 50, 66, 69, 95, 96, 149
replaceResultValue 9, 74, 75, 77, 88, 90, 96, 97, 149
updateLineItem 8, 21, 22, 23, 25, 41, 95, 149
updateResult 8, 46, 47, 48, 50, 69, 96, 149
updateResultValue 9, 74, 75, 77, 90, 97, 149
Outcomes Management Service 1, 2, 12, 13, 14, 15, 17, 103, 150, 156
P
Person Management Service 12, 115
Profiling........................ 6, 13, 147
S
SectionAssociation 110, 114, 121
Services
Bulk Data Exchange Management 12, 14, 155
Course Management Service 12, 13, 14, 17, 113, 114
Group Management 12, 14, 17, 114
Membership Management 12, 13, 14, 156
Outcomes Management Service 1, 2, 12, 13, 14, 15, 17, 103, 150, 156
Person Management.. 12, 115
SOAP 29, 30, 31, 32, 33, 34, 35, 36, 37, 43, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 71, 81, 84, 85, 86, 92
Status Codes 2, 6, 13, 18, 23, 25, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 39, 41, 43, 44, 48, 50, 52, 53, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 66, 68, 69, 71, 72, 75, 77, 79, 80, 81, 82, 83, 84, 85, 86, 88, 90, 92, 93, 148, 150
createsuccess.. 39, 66, 88, 148
deletefailure.... 27, 52, 79, 148
fullsuccess 23, 25, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 39, 41, 43, 44, 48, 50, 52, 53, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 66, 68, 69, 71, 72, 75, 77, 79, 80, 81, 82, 83, 84, 85, 86, 88, 90, 92, 93, 148
idallocfail........ 25, 50, 77, 148
idallocinusefail 23, 44, 48, 72, 75, 93, 148
incompletedata 23, 25, 28, 33, 34, 37, 39, 41, 48, 50, 53, 64, 66, 69, 75, 77, 80, 87, 88, 90, 148
invaliddata 23, 25, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 39, 41, 43, 48, 50, 53, 54, 55, 56, 57, 58, 59, 61, 62, 63, 64, 66, 68, 69, 71, 75, 77, 80, 81, 82, 83, 84, 85, 86, 88, 90, 92, 148
linkfailure................... 148, 150
overflowfail 23, 25, 48, 50, 75, 77, 148
partialdatastorage 23, 25, 28, 40, 42, 49, 50, 53, 66, 69, 75, 77, 80, 88, 90, 148
savepointerror 35, 37, 62, 64, 84, 86, 148
savepointsyncerror 35, 37, 62, 84, 86, 148
targetisbusy............... 148, 150
targetreadfailure 28, 30, 31, 32, 33, 34, 36, 37, 53, 55, 56, 57, 58, 59, 60, 63, 64, 80, 82, 83, 85, 86, 148
toomuchdata 29, 30, 31, 32, 33, 34, 35, 36, 37, 43, 54, 55, 56, 57, 58, 59, 60, 62, 63, 64, 71, 81, 84, 85, 86, 92, 148
unauthorizedrequest 149, 150
unknownextension 24, 26, 28, 40, 42, 49, 51, 53, 67, 70, 76, 77, 80, 89, 91, 148
unknownmdvocabulary 24, 26, 28, 36, 40, 42, 49, 51, 53, 63, 66, 69, 75, 77, 80, 85, 88, 90, 148
unknownobject 27, 28, 30, 31, 33, 34, 41, 44, 48, 50, 52, 53, 55, 56, 57, 58, 59, 60, 68, 69, 72, 79, 80, 82, 83, 90, 93, 148
unknownquery 43, 71, 92, 148
unknownvocabulary 24, 26, 40, 42, 49, 51, 66, 69, 75, 77, 88, 91, 148
unsupportedLIS........ 149, 150
unsupportedLISoperation 149, 150
V
Vocabularies 6, 13, 151, 153, 154
