1. Introduction
This document is a part of the 1EdTech Content Packaging v1.2 specification. The binding details how the Content Packaging Information Model should be represented using XML schema. The Content Packaging binding is contained in two XML schemas and two vocabulary files. The vocabulary files are instances of the 1EdTech Vocabulary Definition Exchange specification [VDEX, 04a], [VDEX, 04b]. The Content Packaging Best Practice and Implementation Guide provides non-normative guidance on how to use the Binding and Information Model. For a conceptual overview of the Content Packaging Specification, please see the Information Model [CP, 07a]. For a discussion of potential applications, see the Best Practice Guide [CP, 07b]. Conformance to the Content Packaging Specification is addressed within the Information Model [CP, 07a].
1.1 Scope and Context
This document is the 1EdTech Content Packaging Binding v1.2 specification. As such it will be used as the basis for the production of the following v1.2 documents:
- 1EdTech Content Packaging XML XSD;
- 1EdTech Content Packaging Best Practice Guide [CP, 07a].
This Binding document describes how to express the Content Packaging Information Model in XML.
1.2 Structure of this Document
The structure of this document is:
| 2. Platform Specific Model (XML) of the Binding | The description platform specific models in the form of the 1EdTech UML-profile data model representation of the 1EdTech Content Packaging specification information model. This representation is used by the 1EdTech I-BAT tool to auto-generate the corresponding XSDs. The PSMs for the core Content Package XSD and the new Content Package Utilities XSD are described; |
| 3. XML Schema Documentation | The description of the elements and attribute used within the XML binding itself. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 7.2 product; |
| 4. Vocabulary Binding Using 1EdTech VDEX Instances | Contains the description of how the 'structure' and 'resourceType' contents are stored in external vocabulary files based upon the 1EdTech VDEX specification; |
| Appendix A - Listing of the Content Packaging XSD | This is the full listing of the Content Packaging XSDs; |
| Appendix B - Vocabulary VDEX Instance File Listings | This is the full listing of the 'structure' and 'resourceType' vocabulary VDEX instance files. |
1.3 Nomenclature
| I-BAT | 1EdTech Binding Auto-generation Tool-kit |
| MDA | Model Driven Architecture |
| PIM | Protocol Independent Model |
| PSM | Platform Specific Model |
| UML | Unified Modelling Language |
| VDEX | Vocabulary Definition Exchange |
| W3C | World Wide Web Consortium |
| XMI | XML Meta-data Interchange |
| XML | Extensible Mark-up Language |
| XSD | XML Schema Definition |
| XSL | Extensible Stylesheet Language |
| XSLT | XSL Transformations |
1.4 References
| [CP, 07a] | 1EdTech Content Packaging Information Model Specification Public Draft v2.0, W.Kraan, J.Poston-Day and B.Neilsen, 1EdTech Consortium, March 2007. |
| [CP, 07b] | 1EdTech Content Packaging Best Practice and Implementation Guide Public Draft v2.0, W.Kraan, J.Poston-Day and B.Neilsen, 1EdTech Consortium, March 2007. |
| [I-BAT, 06] | 1EdTech Binding Auto-generation Toolkit Manual v1.0, C.Smythe, 1EdTech Consortium, July 2006. |
| [Schematron, 06] | Document Schema Definition Languages (DSDL) - Part 3: Rule-based Validation - Schematron, ISO/IEC, ISO/IEC FDIS 19757-2, 2004. |
| [VDEX, 04a] | 1EdTech Vocabulary Definition Exchange Information Model Specification Final Release v1.0, A.Cooper, 1EdTech Consortium, February 2004. |
| [VDEX, 04b] | 1EdTech Vocabulary Definition Exchange XML Binding Specification Final Release v1.0, A.Cooper, 1EdTech Consortium, February 2004. |
2. Platform Specific Model (XML) of the Binding
2.1 Platform Specific Model Conventions
The 1EdTech UML-Profile stereotypes are used to determine the mapping of the UML characteristics to XML. The stereotypes are mapped as (the full set of rules are available in [I-BAT, 06]):
- Attributes – all of the enclosed data definitions are to be mapped to XML attributes for the element named by the class. For example, in Figure 2.1, the complexType Manifest has a set of attributes (identifier, version, xmlbase and extension);
- Binding – this is used to contain meta-data that is specific to the XSD binding of the data model;
- DataModel – this is used to denote that all of the enclosed classes are to be mapped to XML structures;
- Legend – this is used to contain meta-data about the data model e.g. author, version, status. This material is mapped to a comment structure in the XSD;
- Roots – to denote the root of the XSD and to force the declaration of the root element;
- Sequence – all of these UML classes are mapped to XML 'complexTypes'. The order of the contained elements is significant i.e. the sequence is as defined in the UML class;
- Selection – all of these UML classes are mapped to XML 'complexTypes'. This creates a choice between the attributes;
- Import – used to import definitions that are contained in other data models.
2.2 1EdTech UML-Profiled Data Model of the Core Content Package
Figure 2.1 is the Platform Specific Model (PSM) of the core Content Packaging specification. The PSM is derived from the Platform Independent Model that was produced within the information model for the Content Packaging specification [CP, 07a].
Figure 2.1 PSM for the core content packaging binding.
2.3 1EdTech UML-Profiled Data Model of the Content Package Extension

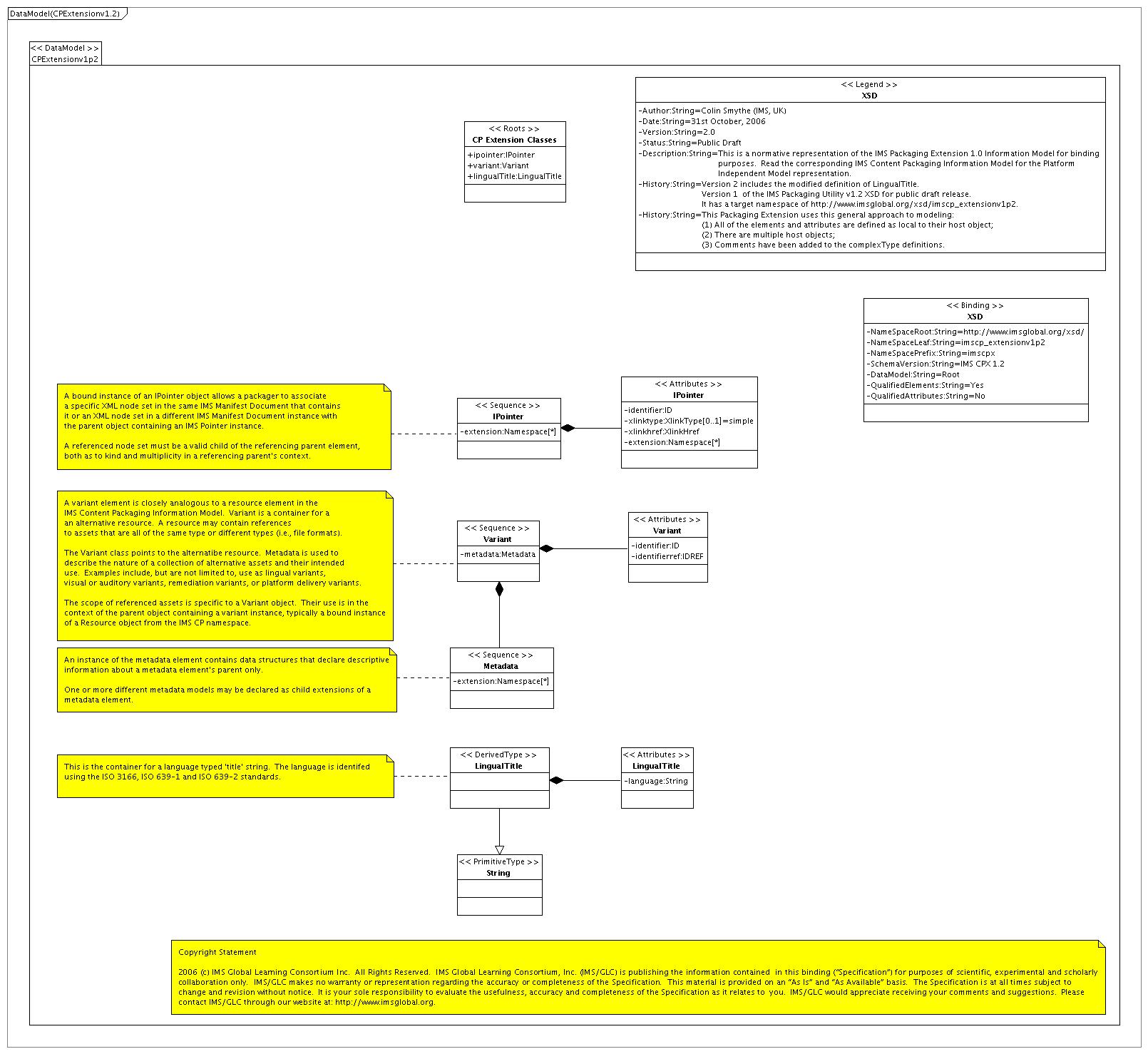

Figure 2.2 is the Platform Specific Model (PSM) of the new functional extensions to the Content Packaging specification. These extensions realise the new functionality (variant resources, multiligual titles and pointer links to files) added to the Content Package v1.1.4 specification to create v1.2. The PSM is derived from the Platform Independent Model that was produced within the Information Model for the Content Packaging specification [CP, 07a].
Figure 2.2 PSM for the content packaging extension binding.
2.4 Generation of the XSD from the PSM
The process for creating a XSD binding is:
- The Information Model must be defined using the 1EdTech Data Model UML Profile [I-BAT, 06]. This profile describes how UML must be used to create a description of the specification that can be used by the 1EdTech auto-generation tools;
- The UML description must be made available as an XMI file i.e. this is an XML instance that conforms to the XMI specification. At the present time only XMI files that have been created by the Poseidon tool, v2.5 or later, are valid. The Poseidon tool creates a '.zuml' file that must be unzipped and the XMI file within used as input to the I-BAT;
- The XMI file is now used as input to the I-BAT. The XSL file 'UMLtoXSDTransform.xsl' is applied to the XMI file, using an appropriate XSLT tool (Oxygen is the tool recommended by 1EdTech) to generate the WSDL files. The generation process also creates a validation report text file that can be used to identify any problems that the I-BAT found while creating the binding files.
The following points should be noted when using the I-BAT:
- The I-BAT will attempt to generate the binding files irrespective of any problems described in the validation report;
- The I-BAT cannot be used to correct problems with the UML description. Any problems in the Information Model must be corrected using the appropriate UML authoring tool. The binding creation process must then be repeated using the new XMI file;
- Any hand edits of the XSD files will be lost when new binding files are created.
The mapping rules for the features in UML PSM to the XSD representation are:
- Every class in the UML with stereotypes 'Attributes' or 'Sequence' or 'Selection' are mapped to a ComplexType in the XSD;
- The name of a ComplexType in an XSD is the same as the equivalent UML class with the appended string '.Type';
- The name of a global attribute group is the name of the UML Attribute stereotype class with the string '.Attr' appended;
- The name of an attribute in the XSD is taken from the name of the attribute in the UML 'Attributes' stereotype class;
- The name of an element in the XSD is taken from the name of the attribute in the UML 'Sequence' stereotype class;
- The '+' symbol for an attribute in the UML 'Sequence' classes are mapped to global element XSD definitions;
- The '-' symbol for an attribute in the UML 'Sequence' classes are mapped to local element XSD definitions;
- The '+' symbol for an attribute in the UML 'Attributes' classes are mapped to global attribute group XSD definitions;
- The '-' symbol for an attribute in the UML 'Attributes' classes are mapped to local attribute group XSD definitions;
- The attribute multiplicities in the UML 'Sequence' classes are mapped to the equivalent XSD element multiplicities;
- The attribute multiplicities in the UML 'Attributes' classes are mapped to the equivalent XSD attribute multiplicities;
- The 'extension' UML attributes in 'Attributes' steroetype are mapped to the XML attribute 'anyattribute';
- The 'xmlbase' UML attributes are mapped the XML attribute 'xml:base';
- The 'extension' UML attributes in 'Sequence' stereotype are mapped to the XML namespaced extension;
- The 'XLinkHref' UML attributes in 'Attributes' stereotype are mapped to the XML attribute 'xlink:ref' in the XLink namespace;
- The 'XLinkType' UML attributes in 'Attributes' stereotype are mapped to the XML attribute 'xlink:type' in the XLink namespace;
- The UML attributes of type 'String', 'ID', 'IDREF' are mapped to the equivalent XSD primitive types.
For this specification the following files are supplied as part of the binding documentation:
- imscp_psm_v1p2.zuml – the Poseidon (version 3.2) tool file of the PSM representation for the core Content Package binding;
- imscp_psm_v1p2.xmi – the XMI file of the PSM for the core Content Package binding. This file has been processed by the I-BAT tool;
- imscp_v1p2.xsd – the core Content Package binding XSD that is generated from the XMI file using the I-BAT.
- imscp_extension_psm_v1p2.zuml – the Poseidon (version 3.2) tool file of the PSM representation for the Content Package extension binding;
- imscp_extension_psm_v1p2.xmi – the XMI file of the PSM for the Content Package Extension binding. This file has been processed by the I-BAT tool;
- imscp_extensionv1p2.xsd – the Content Package Extension binding XSD that is generated from the XMI file using the I-BAT.
3. XML Schema Documentation
3.1 Core Content Packaging Binding Description
The listing of the core Content Packaging XSD file is given in Appendix A1.
3.1.1 Table of Contents
- Schema Document Properties
- Global Declarations
- Global Definitions
- Complex Type: Dependency.Type
- Complex Type: File.Type
- Complex Type: Item.Type
- Complex Type: Manifest.Type
- Complex Type: ManifestMetadata.Type
- Complex Type: Metadata.Type
- Complex Type: Organization.Type
- Complex Type: Organizations.Type
- Complex Type: Resource.Type
- Complex Type: Resources.Type
- Model Group: grpStrict.any
3.1.2 Schema Document Properties
| Target Namespace | http://www.imsglobal.org/xsd/imscp_v1p1 |
|---|---|
| Version | 1EdTech CP 1.2 |
| Element and Attribute Namespaces |
|
| Schema Composition |
|
| Documentation | XSD Data File Information
Author: Colin Smythe Date: 31st October, 2006 Version: 2.0 Status: CM/DN Release Description: This is a normative representation of the 1EdTech CP 1.2 Information Model for binding purposes. Read the corresponding 1EdTech CP Information Model for the Platform Independent Model representation. History: This is version 1 of the 1EdTech CP v1.2 XSD. It directly supercedes 1EdTech CP v1.1.4 XSD. Note that the target namespace has NOT been changed. Apart from the functional additions, the main structural changes are: (1) All of the elements and attributes are defined as local to their host object; (2) Comments have been added to the complexType definitions. Copyright: 2006 (c) 1EdTech Consortium Inc. All Rights Reserved. 1EdTech Consortium, Inc. (1EdTech GLC) is publishing the information contained in this binding ("Specification") for purposes of scientific experimental and scholarly collaboration only. 1EdTech GLC makes no warranty or representation regarding the accuracy or completeness of the Specification. This material is provided on an "As Is" and "As Available basis". The Specification is at all times subject to change and revision without notice. It is your sole responsibility to evaluate the usefulness, accuracy and completeness of the Specification as it relates to you. 1EdTech GLC would appreciate receiving your comments and suggestions. Please contact 1EdTech GLC through our website at: http://www.imsglobal.org. Source XSLT File Information XSL Generator: UMLtoXSDTransformv0p7.xsl XSLT Processor: Xalan Release: 1.0 Beta 1 Date: 30th November, 2005 Auto-generation Tool This WSDL/XSD was auto-generated using the 1EdTech WSDL/XSD auto-generation tool. While every attempt has been made to ensure that this tool auto-generates the XSDs correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. 1EdTech makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the 1EdTech document: "1EdTech General Web Services: WSDL/XSD Binding Auto-generation" available at the 1EdTech web-site. Tool Copyright: 2005 (c) 1EdTech Consortium Inc. All Rights Reserved. |
Declared Namespaces
| Prefix | Namespace |
|---|---|
| Default namespace | http://www.imsglobal.org/xsd/imscp_v1p1 |
| xml | http://www.w3.org/XML/1998/namespace |
| xs | http://www.w3.org/2001/XMLSchema |
| xsi | http://www.w3.org/2001/XMLSchema-instance |
3.1.3 Global Declarations

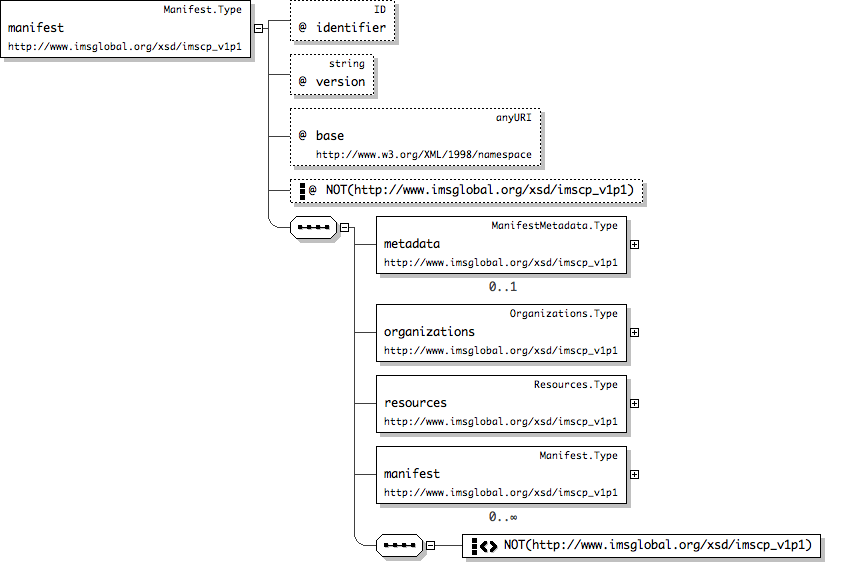

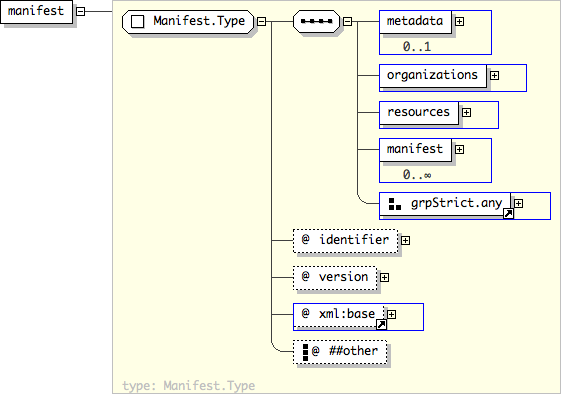

Element: manifest
| Name | manifest |
|---|---|
| Type | Manifest.Type |
| Nillable | no |
| Abstract | no |
identifier=" xs:ID [1]"
version=" xs:string [0..1]"
xml:base="[0..1]"
3.1.4 Global Definitions

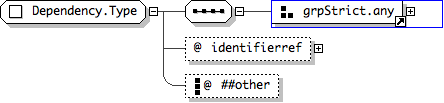

Complex Type: Dependency.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Dependency.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Resource.Type |
| Abstract | no |
| Documentation | A dependency element provides a way to associate another collection of asset references within the scope of the dependency element's parent resource element. This element allows the parsimonious declaration of asset references. Shared asset references can be declared once and associated many times through a Dependency element. <p> Represents a binding of the kinds of child objects defined for ims-cp-imDependency: Dependency.[ Extension ].</p> |
identifierref=" xs:string [1]"

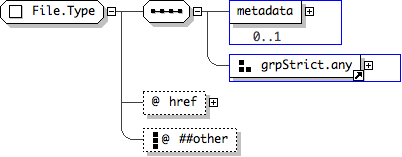

Complex Type: File.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | File.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Resource.Type |
| Abstract | no |
| Documentation | A file element declares a reference to a single asset. The reference may be relative to the Package containing the file element or absolute (external to the Package). A file element may contain child extensions declaring alternative references to the same asset as that referenced by the file element's href attribute. <p> Represents a binding of the kinds of child objects defined for ims-cp-imFile: File.[ Metadata, Extension ].</p> |
href=" xs:anyURI [1]"

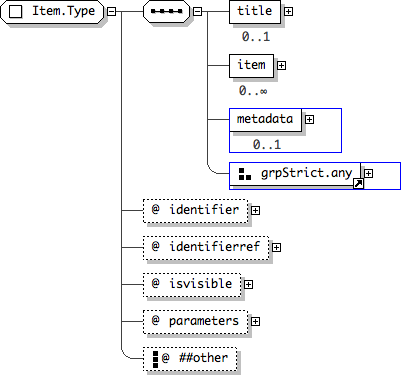

Complex Type: Item.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Item.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Organization.Type , Complex Type Item.Type |
| Abstract | no |
| Documentation | An item element represents a structural node in a particular organization. An item element may be a parent or sibling of other Item elements, each one representing a unique structural node. An organization has no meaning unless it has at least one Item element. <p> Represents a binding of the kinds of child objects of ims-cp-imItem: Item.[ Title, Item, Metadata, Extension ].</p> |
identifier=" xs:ID [1]"
identifierref=" xs:string [0..1]"
isvisible=" xs:boolean [0..1]"
parameters=" xs:string [0..1]"

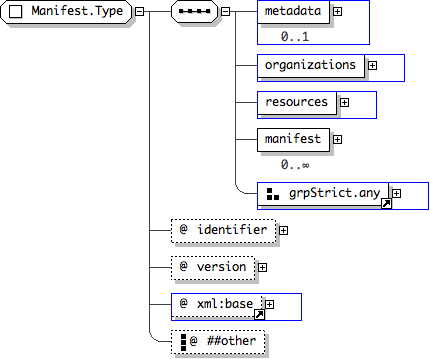

Complex Type: Manifest.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Manifest.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Manifest.Type , Element manifest |
| Abstract | no |
| Documentation | A manifest element is a container for data structures whose contents describe a semantically complete instance of the 1EdTech Content Packaging Information Model. A manifest element may contain and reference child manifest elements in the same 1EdTech Manifest document. The root manifest element defines an entire 1EdTech Package. A child manifest element defines a semantically complete subset of that Package. <p> Represents a binding of the kinds of objects defined as children of ims-cp-imManifest : Manifest.[ ManifestMetadata, Organizations, Resources, Manifest, Extension ].</p> |
identifier=" xs:ID [1]"
version=" xs:string [0..1]"
xml:base="[0..1]"

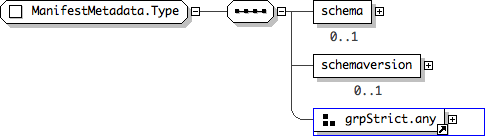

Complex Type: ManifestMetadata.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | ManifestMetadata.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Manifest.Type |
| Abstract | no |
| Documentation | This metadata element contains data structures that declare descriptive information about an entire Package. One or more different metadata models may be declared as child extensions of a metadata element. The schema and schemaversion children define the kind or collection of metadata models being used. <p> Represents a binding of the kinds of child objects defined for ims-cp-imManifestMetadata: ManifestMetadata.[ Schema, SchemaVersion, MetadataModel ]..</p> |

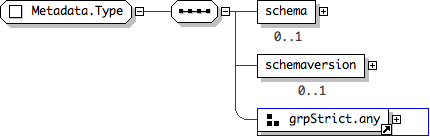

Complex Type: Metadata.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Metadata.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Organization.Type , Complex Type Resource.Type , Complex Type Item.Type , Complex Type File.Type |
| Abstract | no |
| Documentation | An instance of the metadata element contains data structures that declare descriptive information about a metadata element's parent only. One or more different metadata models may be declared as child extensions of a metadata element. <p> Represents a binding of the kinds of child objects defined for ims-cp-imMetadata: Metadata.[ Extension ].</p> |

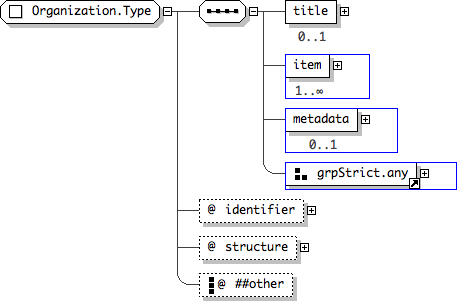

Complex Type: Organization.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Organization.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Organizations.Type |
| Abstract | no |
| Documentation | An organization element is a container for all data structures relating to a particular way or view that information encapsulated by a grandparent manifest object is structured. Multiple organization elements within the same parent organizations element are equivalent in purpose: Each shows a different way for structuring the same information declared within a grandparent manifest object. <p> Represents a binding of the kinds of child objects defined for ims-cp-Organization: Organization[ Title, Item, Metadata, Extension ].</p> |
identifier=" xs:ID [1]"
structure=" xs:string [0..1]"

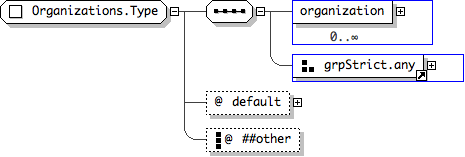

Complex Type: Organizations.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Organizations.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Manifest.Type |
| Abstract | no |
| Documentation | The organizations element is a container for all data structures that describe the way or ways that information encapsulated by its parent manifest element is structured. <p> Represents of binding of the child objects of ims-cp-imOrganizations: Organizations.[ Organization, Extension ].</p> |
default=" xs:IDREF [0..1]"
Complex Type: Resource.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Resource.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Resources.Type |
| Abstract | no |
| Documentation | A resource element is a container for a particular asset or collection of assets. A resource may contain references to assets that are all of the same type or different types (i.e., file formats). The scope or boundary of an 1EdTech Package is defined by the asset references collected into all resources containers associated with the root manifest element, whether as a child, direcdt descendant, or externally linked descendant. <p> Represents a binding of the kinds of child objects defined for ims-cp-imResource: Resource.[ Metadata, File, Dependency, Extension ].</p> |
identifier=" xs:ID [1]"
type=" xs:string [1]"
xml:base="[0..1]"
href=" xs:anyURI [0..1]"

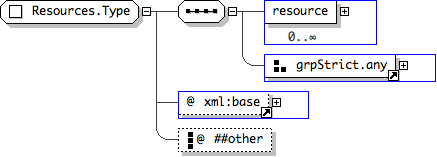

Complex Type: Resources.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Resources.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Manifest.Type |
| Abstract | no |
| Documentation | The Resources element is a container for data structures containing references to one or more assets. Asset references may be grouped within a containing resources element in whatever manner seems best. The scope of referenced assets is specific to a resources element's parent manifest element only. <p> Represents a binding of the kinds of child objects defined for ims-cp-imResources: Resources.[ Resource, Extension ].</p> |
xml:base="[0..1]"
Model Group: grpStrict.any
| Name | grpStrict.any |
|---|---|
| Used by (from the same schema document) | Complex Type Manifest.Type , Complex Type Metadata.Type , Complex Type Organizations.Type , Complex Type Resources.Type , Complex Type Organization.Type , Complex Type Resource.Type , Complex Type Item.Type , Complex Type File.Type , Complex Type Dependency.Type , Complex Type ManifestMetadata.Type |
| Documentation | Any namespaced element from any namespace may be included within an "any" element. The namespace for the imported element must be defined in the instance, and the schema must be imported. The extension has a definition of "strict" i.e. they must have their own namespace. |
3.2 Content Packaging Extension Binding Description
The listing of the Content Packaging Extension XSD file is given in Appendix A2.
3.2.1 Table of Contents
3.2.2 Schema Document Properties
| Target Namespace | http://www.imsglobal.org/xsd/imscp_extensionv1p2 |
|---|---|
| Version | 1EdTech CPX 1.2 |
| Element and Attribute Namespaces |
|
| Schema Composition |
|
| Documentation | XSD Data File Information
Author: Colin Smythe (1EdTech, UK) Date: 31st October, 2006 Version: 2.0 Status: CN/DN Release Description: This is a normative representation of the 1EdTech Packaging Extension 1.0 Information Model for binding purposes. Read the corresponding 1EdTech Content Packaging Information Model for the Platform Independent Model representation. History: Version 2 includes the modified definition of LingualTitle. Version 1 of the 1EdTech Packaging Utility v1.2 XSD for public draft release. It has a target namespace of http://www.imsglobal.org/xsd/imscp_extensionv1p2. This Utility uses this general approach to modeling: (1) All of the elements and attributes are defined as local to their host object; (2) There are multiple host objects; (3) Comments have been added to the complexType definitions. Copyright: 2006 (c) 1EdTech Consortium Inc. All Rights Reserved. 1EdTech Consortium, Inc. (1EdTech GLC) is publishing the information contained in this binding ("Specification") for purposes of scientific experimental and scholarly collaboration only. 1EdTech GLC makes no warranty or representation regarding the accuracy or completeness of the Specification. This material is provided on an "As Is" and "As Available basis". The Specification is at all times subject to change and revision without notice. It is your sole responsibility to evaluate the usefulness, accuracy and completeness of the Specification as it relates to you. 1EdTech GLC would appreciate receiving your comments and suggestions. Please contact 1EdTech GLC through our website at: http://www.imsglobal.org. Source XSLT File Information XSL Generator: UMLtoXSDTransformv0p7.xsl XSLT Processor: Xalan Release: 1.0 Beta 1 Date: 30th November, 2005 Auto-generation Tool This WSDL/XSD was auto-generated using the 1EdTech WSDL/XSD auto-generation tool. While every attempt has been made to ensure that this tool auto-generates the XSDs correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. 1EdTech makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the 1EdTech document: "1EdTech General Web Services: WSDL/XSD Binding Auto-generation" available at the 1EdTech web-site. Tool Copyright: 2006 (c) 1EdTech Consortium Inc. All Rights Reserved. |
Declared Namespaces
| Prefix | Namespace |
|---|---|
| Default namespace | http://www.imsglobal.org/xsd/imscp_extensionv1p2 |
| xml | http://www.w3.org/XML/1998/namespace |
| xs | http://www.w3.org/2001/XMLSchema |
| xsi | http://www.w3.org/2001/XMLSchema-instance |
| xlink | http://www.w3.org/1999/xlink |
3.2.3 Global Declarations

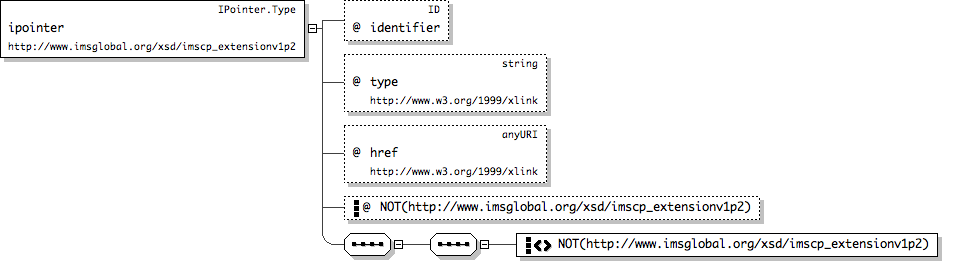

Element: ipointer
| Name | ipointer |
|---|---|
| Type | IPointer.Type |
| Nillable | no |
| Abstract | no |

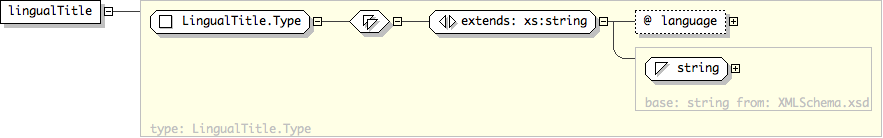

Element: lingualTitle
| Name | lingualTitle |
|---|---|
| Type | LingualTitle.Type |
| Nillable | no |
| Abstract | no |

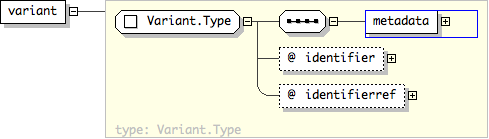

Element: variant
| Name | variant |
|---|---|
| Type | Variant.Type |
| Nillable | no |
| Abstract | no |
identifier=" xs:ID [1]"
identifierref=" xs:IDREF [1]">
3.2.4 Global Definitions

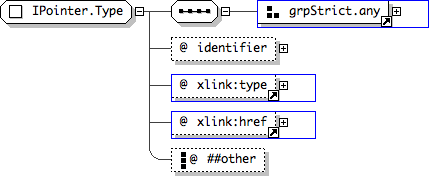

Complex Type: IPointer.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | IPointer.Type |
|---|---|
| Used by (from the same schema document) | Element ipointer |
| Abstract | no |
| Documentation | A bound instance of an IPointer object allows a packager to associate a specific XML node set in the same 1EdTech Manifest Document that contains it or an XML node set in a different 1EdTech Manifest Document instance with the parent object containing an 1EdTech Pointer instance. A referenced node set must be a valid child of the referencing parent element, both as to kind and multiplicity in a referencing parent's context. <p> Represents a binding of the kinds of objects defined as children of ims-cp-imManifest : Manifest.[ ManifestMetadata, Organizations, Resources, Manifest, Extension ].</p> |

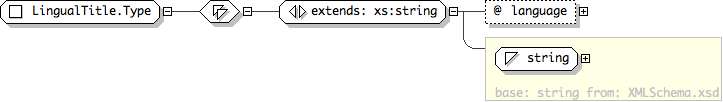

Complex Type: LingualTitle.Type
| Super-types: | xs:string < LingualTitle.Type (by extension) |
|---|---|
| Sub-types: | None |
| Name | LingualTitle.Type |
|---|---|
| Used by (from the same schema document) | Element lingualTitle |
| Abstract | no |
Complex Type: Metadata.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Metadata.Type |
|---|---|
| Used by (from the same schema document) | Complex Type Variant.Type |
| Abstract | no |
| Documentation | An instance of the metadata element contains data structures that declare descriptive information about a metadata element's parent only. One or more different metadata models may be declared as child extensions of a metadata element. <p> Represents a binding of the kinds of child objects defined for ims-cp-imMetadata: Metadata.[ Extension ].</p> |

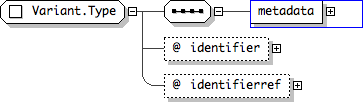

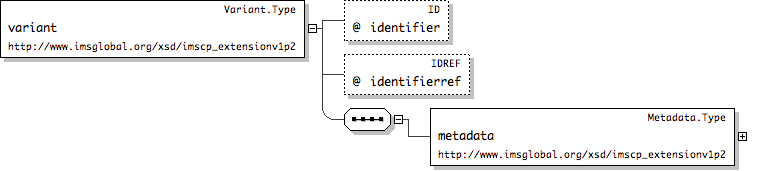

Complex Type: Variant.Type
| Super-types: | None |
|---|---|
| Sub-types: | None |
| Name | Variant.Type |
|---|---|
| Used by (from the same schema document) | Element variant |
| Abstract | no |
| Documentation | A variant element is closely analogous to a resource element in the 1EdTech Content Packaging Information Model. Variant is a container for a an alternative resource. A resource may contain references to assets that are all of the same type or different types (i.e., file formats). The Variant class points to the alternatibe resource. Metadata is used to describe the nature of a collection of alternative assets and their intended use. Examples include, but are not limited to, use as lingual variants, visual or auditory variants, remediation variants, or platform delivery variants. The scope of referenced assets is specific to a Variant object. Their use is in the context of the parent object containing a variant instance, typically a bound instance of a Resource object from the 1EdTech CP namespace. <p> Represents a binding of the kinds of child objects defined for ims-cp-imResource: Resource.[ Metadata, File, Dependency, Extension ].</p> |
identifier=" xs:ID [1]"
identifierref=" xs:IDREF [1]">
Model Group: grpStrict.any
| Name | grpStrict.any |
|---|---|
| Used by (from the same schema document) | Complex Type IPointer.Type , Complex Type Metadata.Type |
| Documentation | Any namespaced element from any namespace may be included within an "any" element. The namespace for the imported element must be defined in the instance, and the schema must be imported. The extension has a definition of "strict" i.e. they must have their own namespace. |
4. Using Schematron
The two XSDs (core and extension) are not linked i.e. one does not import the other. This is because linking creates an ambiguous binding due to support for extensibility. This lack of formal linkage of one XSD with another means that the constraints in the Content Packaging Information Model of where the extension functions can be located is not enforced in the binding. The only constraint is that the new extension functions can ONLY be inserted at an extensibility point within the Content Packaging binding.
To help implementors enforce information model constraints that the XSDs cannot enforce, a Schematron [Schematron, 06] schema has been made available as part of the specification's documentation set. The Schematron schema only encodes the constraints on where in a manifest document elements from the extended CP namespace can occur. It will also provide some feedback about violations of those constraints to schematron compliant applications. It should be noted that 1EdTech CP compliant systems are not required to support Schematron; the Schematron schema is supplied as an extra implementation aid. It also worth noting that Schematron is trivially implementable on top of an existing XSLT parser. Finally, because there is no canonical method of associating Schematron schemas with XML instances, the task of applying the schema to an instance is left to implementors.
5. Binding of the Vocabularies
The Content Packaging vocabularies are enumerated in external files. These files are XML instances of the 1EdTech Vocabulary Definition Exchange (VDEX) specification [VDEX, 04b]. Each value for the vocabulary is defined in its own VDEX 'term'.
5.1 VDEX for the Structure Attribute
The 'structure' attribute is used to describe the particular way that Item instances relate to each other within an Organization instance. The set of 1EdTech defined values for the 'structure' attribute are:
- 'hierarchical' - a rooted hierarchical structure (this is the default value).
The listing of the VDEX file containing the 'structure' values is given in Appendix B1.
5.2 VDEX for the ResourceType Attribute
The 'resourcetype' attribute is used to indicate the nature of the associated resource (note that the resource can in fact be more than one physical file). The set of 1EdTech defined values for the 'resourcetype' attribute are:
- 'webcontent' - standard HTML page content;
- 'other' - identifier for resources that do not match and of the other vocabulary entries;
- 'imsldcontent' - 1EdTech Learning Design resource (deprecated in favor of imsld_xmlv1p0);
- 'imsacc_xmlv1p0' - 1EdTech Accessibility v1.0 XML instance resource;
- 'imsrcd_xmlv1p0' - 1EdTech Reusable Competency Definition v1.0 XML instance resource (obsoleted by imsrdceo_xmlv1p0);
- 'imsrdceo_xmlv1p0' - 1EdTech Reusable Definition of Competency and Education Objective v1.0 XML instance resource;
- 'imscp_xmlv1p0' - 1EdTech Content Packaging v1.0 XML instance resource;
- 'imscp_xmlv1p1' - 1EdTech Content Packaging v1.1 XML instance resource;
- 'imscp_xmlv1p1p1' - 1EdTech Content Packaging v1.1.1 XML instance resource;
- 'imscp_xmlv1p1p2' - 1EdTech Content Packaging v1.1.2 XML instance resource;
- 'imscp_xmlv1p1p3' - 1EdTech Content Packaging v1.1.3 XML instance resource;
- 'imscp_xmlv1p1p4' - 1EdTech Content Packaging v1.1.4 XML instance resource;
- 'imscp_xmlv1p2' - 1EdTech Content Packaging v1.2 XML instance resource;
- 'imsent_xmlv1p0' - 1EdTech Enterprise v1.0 XML instance resource;
- 'imsent_xmlv1p1' - 1EdTech Enterprise v1.1 XML instance resource;
- 'imsld_xmlv1p0' - 1EdTech Learning Design v1.0 XML instance resource;
- 'imslip_xmlv1p0' - 1EdTech Learner Information Package v1.0 XML instance resource;
- 'imslip_xmlv1p0p1' - 1EdTech Learner Information Package v1.0.1 XML instance resource;
- 'imsmd_xmlv1p1' - 1EdTech Metadata v1.1 XML instance resource;
- 'imsmd_xmlv1p2' - 1EdTech Metadata v1.2 XML instance resource;
- 'imsmd_rdfv1p2' - 1EdTech Metadata v1.2 RDF instance resource;
- 'imsqti_xmlv1p0' - 1EdTech QTI v1.0 XML instance resource;
- 'imsqti_xmlv1p1' - 1EdTech QTI v1.1 XML instance resource;
- 'imsqti_xmlv1p2' - 1EdTech QTI v1.2 XML instance resource;
- 'imsqti_xmlv2p0' - 1EdTech QTI v2.0 XML instance resource;
- 'imsqti_xmlv2p1' - 1EdTech QTI v2.1 XML instance resource;
- 'imsvdex_xmlv1p0' - 1EdTech VDEX v1.0 XML instance resource;
- 'imsvdex_xmlv1p0/content/' - 1EdTech VDEX v1.0 XML content instance resource;
- 'imsvdex_xmlv1p0/data/' - 1EdTech VDEX v1.0 XML data instance resource;
- 'imsrli_xmlv1p0' - 1EdTech Resource Listing v1.0 XML instance resource;
- 'process-manifest' - signifies that an 1EdTech Package Reader should treat the URI reference declared in its sibling Resource{ Href } as a related 1EdTech Manifest document to be processed separately from the 1EdTech Manifest document containing the reference. The reference must not be treated in any other manner;
- 'control-files+xml' - signifies that each value of a Resource.File{ Href } resolves to a file found in the Package that conforms to an XML binding expressed in XSD or as a DTD;
- 'ims-cp-manifest+xml' - signifies that each value of a Resource.File{ Href } resolves to a file found in the Package that conforms to an XML binding of the 1EdTech Content Packaging Information Model. No version information is expressed, so a Resource object may contain 1EdTech Manifest instances bound by different versions of a Content Packaging XML Schema.
The listing of the VDEX file containing the 'resourcetype' values is given in Appendix B2.
Appendix A - Listing of the XSDs
Appendix A1 - Listing of the Content Package v1.1 XSD
The following code is the listing of the core Content packaging XSD. This XSD was auto-generated using the 1EdTech I-BAT Tool. This listing is contained in the file: imscp_v1p2.xsd. The default namespace is 'http://www.imsglobal.org/xsd/imscp_v1p1' and the default schema location is 'http://www.imsglobal.org/xsd/imscp_v1p2.xsd'.
Appendix A2 - Listing of the Content Package Extensions v1.2 XSD
The following code is the listing of the Content Packaging Extension XSD. This XSD was auto-generated using the 1EdTech I-BAT Tool. This listing is contained in the file: imscp_extensionv1p2.xsd. The default namespace is 'http://www.imsglobal.org/xsd/imscp_extensionv1p2' and the default schema location is 'http://www.imsglobal.org/xsd/imscp_extensionsv1p2.xsd'.
Appendix B - Vocabulary VDEX Instance File Listings
Appendix B1 - Listing of the Structure Vocabulary
This document contains the default vocabulary for the 'structure' attribute in the 1EdTech Content Packaging specification: imscp_structurevocabv1p0.xml. The default VDEX location is 'http://www.imsglobal.org/vdex/imscp_structurevocabv1p0.xml'.
Appendix B2 - Listing of the ResourceType Vocabulary
This document contains the default vocabulary for the 'resourceType' attribute in the 1EdTech Content Packaging specification: imscp_restypevocabv1p0.xml.The default VDEX location is 'http://www.imsglobal.org/vdex/imscp_restypevocabv1p0.xml'.
About This Document
| Title | 1EdTech Content Packaging XML Binding |
| Editors | Colin Smythe (1EdTech), Boyd Neilsen (Independent) |
| Team Co-Leads | Jan Poston Day (Blackboard), Wilbert Kraan (JISC/CETIS), Nigel Ward (DEST) |
| Version | v1.2 (Public Draft v2.0) |
| Version Date | 01 March 2007 |
| Status | Public Draft v2.0 |
| Summary | This document describes the XML Binding of the Content Packaging specification. |
| Purpose | This document is circulated for public comment. Organizations are encouraged to implement this version of the specification and to provide feedback on their experience. |
| Document Location | http://www.imsglobal.org/content/packaging/index.html |
List of Contributors
The following individuals contributed to the development of this document:
| Name | Organization |
|---|---|
| Martin Bayly | WebCT (USA) |
| Kerry Blinco | DEST (Australia) |
| Jennifer Brooks | ADL (USA) |
| Adam Cooper | Tribal Technology (UK) |
| Daniel Burgos | OUNL (Netherlands) |
| Philip Dodds | ADL (USA) |
| Steve Hirst | Pearson Ed Measurement (USA) |
| Wilbert Kraan | JISC/CETIS (UK) |
| Sheila MacNeill | JISC/CETIS (UK) |
| Boyd Nielsen | Independent (USA) |
| Jan Poston Day | Blackboard Inc. (USA) |
| Allyn Radford | HarvestRoad (Australia) |
| Colin Smythe | 1EdTech Consortium, Inc. |
| Schawn Thropp | ADL (USA) |
| Nigel Ward | DEST (Australia) |
Revision History
| Version No. | Release Date | Comments |
|---|---|---|
| Public Draft 1.0 | 20 November 2005 | Public Draft version of the Content Packaging XML Binding. |
| Internal Draft 2.0 | 1 March 2007 | This new version contains the following changes from v1.0:
|
Index
C
Content Package Core XSD 1
E
Extension XSD 1
P
Platform Specific Model 1
1
Extension 1 PSM, see Platform Specific Model
R
ResourceType attribute VDEX 1
S
Schematron 1
Structure attribute VDEX 1
V
VDEX, see Vocabulary Definition Exchange
Vocabulary Definition Exchange instances 1
X
XML Schema Definition 1
1
Extension XSD 1
XSD, see XML Schema Definition
1EdTech Consortium, Inc. (“1EdTech GLC”) is publishing the information contained in this document (“Specification”) for purposes of scientific, experimental, and scholarly collaboration only.
1EdTech GLC makes no warranty or representation regarding the accuracy or completeness of the Specification.
This material is provided on an “As Is” and “As Available” basis.
The Specification is at all times subject to change and revision without notice.
It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.
1EdTech GLC would appreciate receiving your comments and suggestions.
Please contact 1EdTech GLC through our website at http://www.imsglobal.org
Please refer to Document Name: 1EdTech Content Packaging v1.2 XML Binding Public Draft v2.0
Date: 1 March 2007
