1EdTech GLC Course Management Service WSDL/XSD Binding

Version 1.0 Final Release Specification

Final 1.0

Date Issued: 30 June 2011

Latest version: /lis/

IPR and Distribution Notices

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the specification set forth in this document, and to provide supporting documentation.

1EdTech takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on 1EdTech's procedures with respect to rights in 1EdTech specifications can be found at the 1EdTech Intellectual Property Rights web page: /imsipr_policyFinal.pdf.

Copyright © 2011 1EdTech Consortium. All Rights Reserved.

If you wish to copy or distribute this document, you must complete a valid Registered User license registration with 1EdTech and receive an email from 1EdTech granting the license to distribute the specification. To register, follow the instructions on the 1EdTech website: /specificationdownload.cfm

This document may be copied and furnished to others by Registered Users who have registered on the 1EdTech website provided that the above copyright notice and this paragraph are included on all such copies. However, this document itself may not be modified in any way, such as by removing the copyright notice or references to 1EdTech, except as needed for the purpose of developing 1EdTech specifications, under the auspices of a chartered 1EdTech project group.

Use of this specification to develop products or services is governed by the license with 1EdTech found on the 1EdTech website: /license.html

The limited permissions granted above are perpetual and will not be revoked by 1EdTech or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTER'S OWN RISK, AND NEITHER THE CONSORTIUM, NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

Table of Contents

  1. Introduction
    1. Scope and Context
    2. Structure of this Document
    3. Nomenclature
    4. References

  2. Platform Specific Model of the Binding
    1. Service Description
    2. Data for the Servce Operations
    3. Course Data Model
    4. File Data Model

  3. Application of the Binding Guidelines
  4. WSDL File Documentation
    1. Overview
    2. Messages

  5. XSD File Documentation
    1. Service Data Model
    2. File Data Model

  6. Binding of the Vocabularies
  7. Appendix A - Listing of the WSDLs
  8. Appendix B - Listing of the XSDs
  9. Appendix C - Vocabulary VDEX Instance File Listings
  10. Appendix D - Example SOAP Messages
  11. About This Document
  12. Revision History

1. Introduction

This document is a part of the 1EdTech GLC Course Management Service (CMS) v1.0 specification. The binding details how the Course Management Service Information Model is realised as a Web Service; in the form of a Web Services Description Language (WSDL) file. The CMS binding is contained in a set of WSDL, XSD and vocabulary files. The vocabulary files are instances of the 1EdTech Vocabulary Definition Exchange specification [VDEX, 04a], [VDEX, 04b]. The 1EdTech GLC Learning Information Services (LIS) Best Practice and Implementation Guide [LIS, 11b] provides non-normative guidance on how to use the Binding and Information Model. For a conceptual overview of the LIS Specification, please see the overall services description [LIS, 11a]. For a discussion of potential applications, see the Best Practice Guide.

1.1 Scope and Context

The 1EdTech GLC CMS WSDL Binding v1.0 is used in conjunction with the following documents:

  1. 1EdTech GLC Course Management Service Information Model v1.0 [CMS, 11] – the behaviour and data model definition of the Course Management Service;
  2. 1EdTech GLC Learning Information Services Best Practice and Implementation Guide v1.0 [LIS, 11b] – key information on how to adopt and implement the specification.

This WSDL binding takes the Course Management Service Information Model and produces an encoding of that description in WSDL. This WSDL binding is generated as recommended by the 1EdTech GLC General Web Services documents [GWS, 06a], [GWS, 06b]. The WSDL is created using the 1EdTech GLC Binding Auto-generation Tool-kit (I-BAT) [I-BAT, 06].

1.2 Structure of this Document

The structure of this document is:

2. Platform Specific Model of the Binding The description platform specific models in the form of the 1EdTech GLC UML-Profile service/data models representation of the 1EdTech GLC CMS specification information model. This representation is used by the 1EdTech GLC I-BAT tool to auto-generate the corresponding WSDL/XSDs;
3. Application of the Binding Guidelines Explanation of how the platform specific model is realised as the WSDL/XSD binding. This addresses how the information model is realised as a Web Service;
4. WSDL File Documentation The description of the Web Services used to realise the service model components of the binding. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 12.2 product;
5. XSD File Documentation The description of the elements used within the data model components of the binding. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 12.2 product;
6. Vocabulary Binding Using VDEX Instances Contains the description of how the set of external vocabulary files realised as VDEX files;
Appendix A - Listing of the WSDL Files This is the full listing of the CMS WSDL files;
Appendix B - Listing of the XSD Files This is the full listing of the CMS XSD files;
Appendix C - Vocabulary VDEX Instance File Listings This is the full listing of the set of external vocabulary VDEX instance files;
Appendix D - Examples SOAP Messages Examples of the SOAP messages that are exchanged to realise the service.

1.3 Nomenclature

BDEMS Bulk Data Exchnage Management Service
CMS Course Management Service
HTTP HyperText Transfer Protocol
I-BAT 1EdTech GLC Binding Auto-generation Tool-kit
1EdTech GLC 1EdTech Consortium
LIS Learning Information Services
MDA Model Driven Architecture
PIM Protocol Independent Model
PSM Platform Specific Model
UML Unified Modelling Language
VDEX Vocabulary Definition Exchange
W3C World Wide Web Consortium
WSDL Web Services Description Language
XMI XML Meta-data Interchange
XML Extensible Mark-up Language
XSD XML Schema Definition
XSL Extensible Stylesheet Language
XSLT XSL Transformations

1.4 References

[CMS, 11] 1EdTech GLC Course Management Services v1.0 Information Model Specification Public Final Release v1.0, L.Feng, B.Lee and C.Smythe, 1EdTech Consortium, June 2011.
[GWS, 06a] 1EdTech GLC General Web Services Base Profile Specification Final Release v1.0, C.Schroeder, J.Simon and C.Smythe, 1EdTech Consortium, January 2006.
[GWS, 06b] 1EdTech GLC General Web Services WSDL Binding Guidelines Final Release v1.0, C.Schroeder, J.Simon and C.Smythe, 1EdTech Consortium, January 2006.
[I-BAT, 06] 1EdTech Binding Auto-generation Toolkit Manual v1.0, C.Smythe, 1EdTech Consortium, July 2006.
[LIS, 11a] 1EdTech GLC Learning Information Services v2.0 Specification Final Release v1.0, L.Feng, B.Lee and C.Smythe, 1EdTech Consortium, June 2011.
[LIS, 11b] 1EdTech GLC Learning Information Services v2.0 Best Practice and Implementation Guide Final Release v1.0, L.Feng, B.Lee and C.Smythe, 1EdTech Consortium, June 2011.
[SDN11, 06] 1EdTech GLC Specification Note 11: Vocabulary Definition, Registration & Maintenance Procedures, C.Smythe, 1EdTech Consortium, October 2006.
[VDEX, 04a] 1EdTech Vocabulary Definition Exchange Information Model Specification Final Release v1.0, A.Cooper, 1EdTech Consortium, February 2004.
[VDEX, 04b] 1EdTech Vocabulary Definition Exchange XML Binding Specification Final Release v1.0, A.Cooper, 1EdTech Consortium, February 2004.

2. Platform Specific Model of the Binding

2.1 Service Description

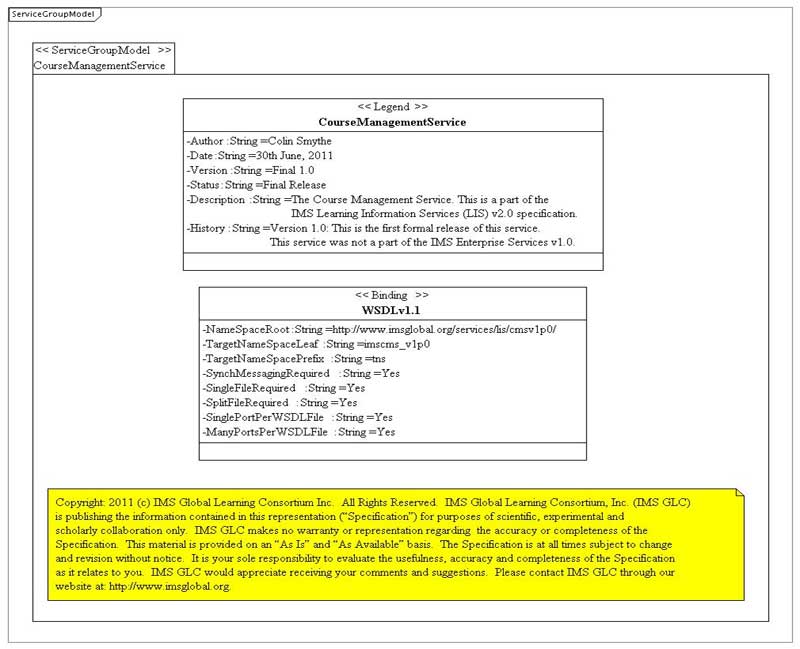

Figure 2.1 is the PSM of the service group model description for the CMS. This information is used to establish the mapping to the binding flavors of WSDL.

Figure 2.1 The PSM representation of the service group model description for the CMS.

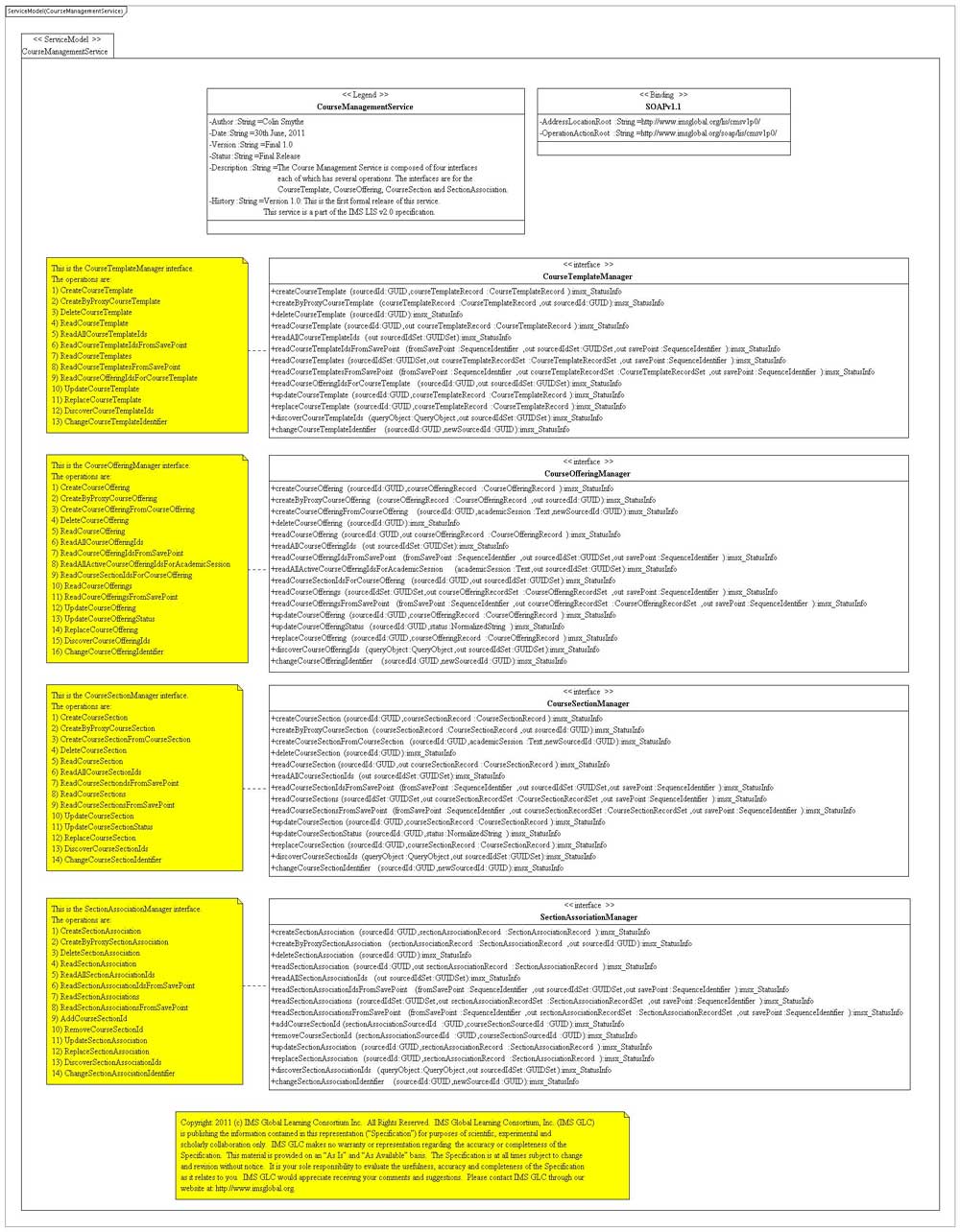

Figure 2.2 is the PSM of the service model description for the CMS. The PSM is derived from the Platform Independent Model that was documented within the information model for the CMS specification [CMS, 10].

Figure 2.2 The PSM representation of the service model description for the CMS.

2.2 Data for the Service Operations

The data model for the service opertaions is shown in Figure 2.3 and 2.4. Figure 2.3 shows the data models for the set of parameters. Figure 2.4 is the data model for the Status Information and other WSDL-specific binding data structures.

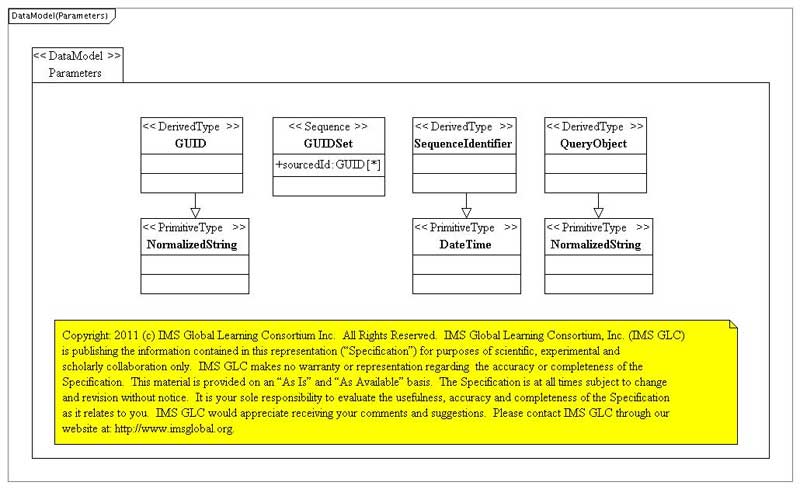

Figure 2.3 The PSM representation of the parameters data model description for the CMS.

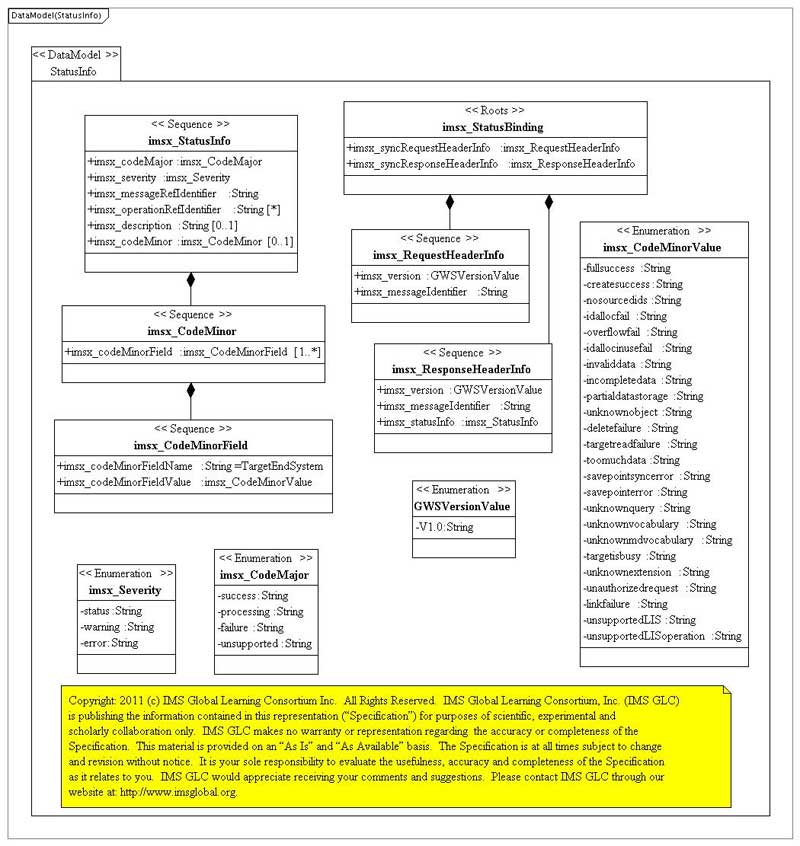

Figure 2.4 The PSM representation of the status information data model description for the CMS.

2.3 Course Data Models

The PSM for the Course data models are shown in Figures 2.5, 2.6, 2.7, 2.8 and 2.9. Figure 2.5 is the CourseTemplate data model, Figure 2.6 is the CourseOffering data model, Figure 2.7 is the CourseSection data model, Figure 2.8 is the SectionAssociation data model and Figure 2.9 contains the set of common data model classes.

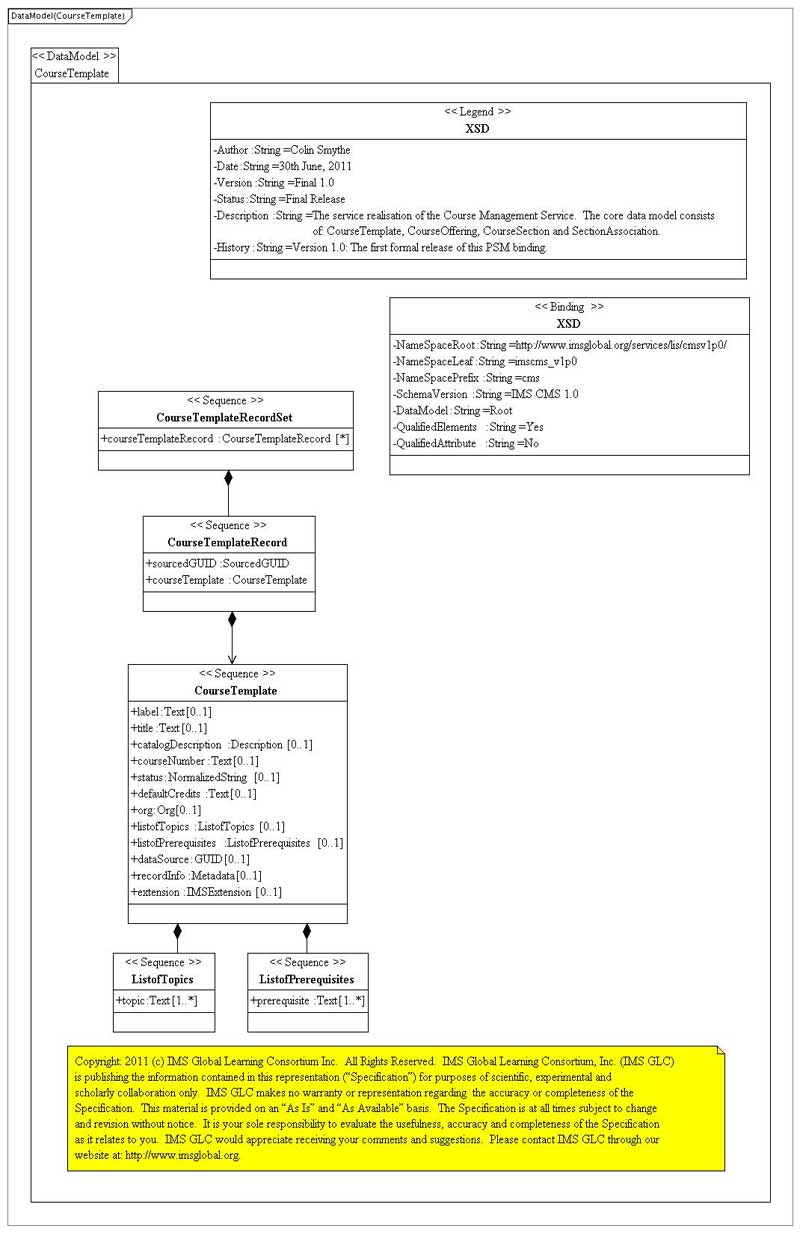

Figure 2.5 The PSM representation of the CourseTemplate data model description for the CMS.

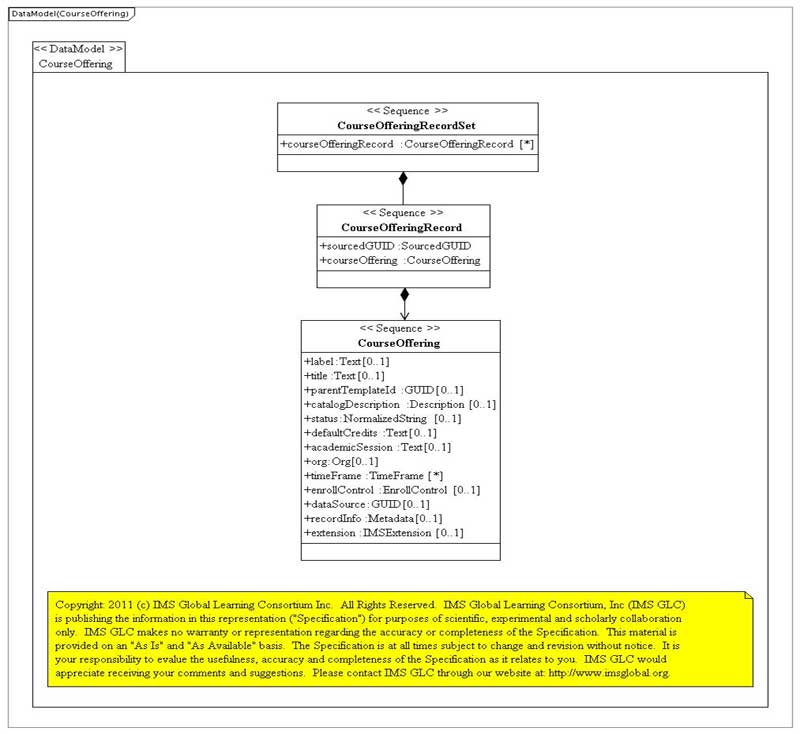

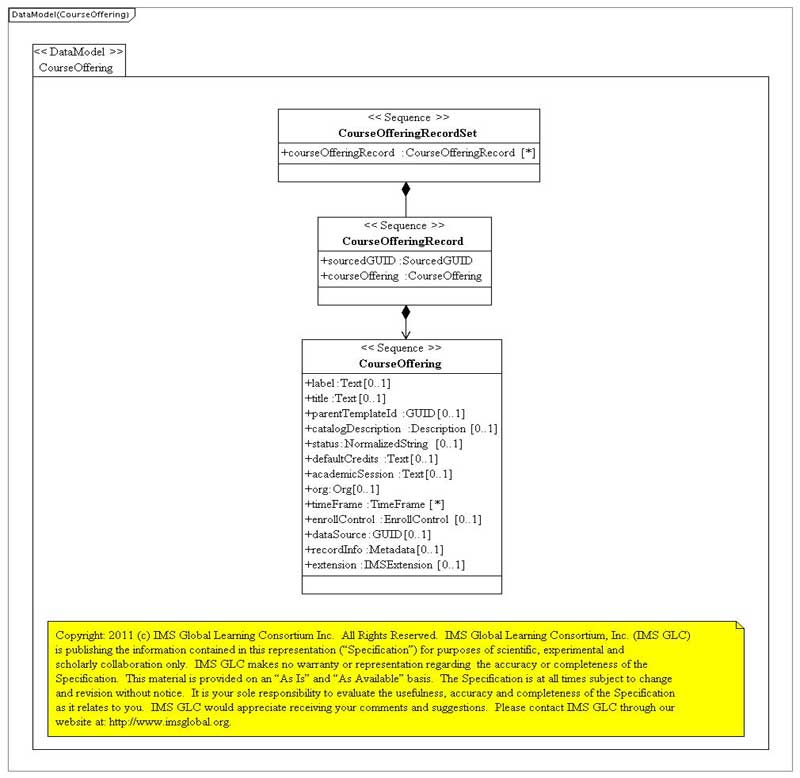

Figure 2.6 The PSM representation of the CourseOffering data model description for the CMS.

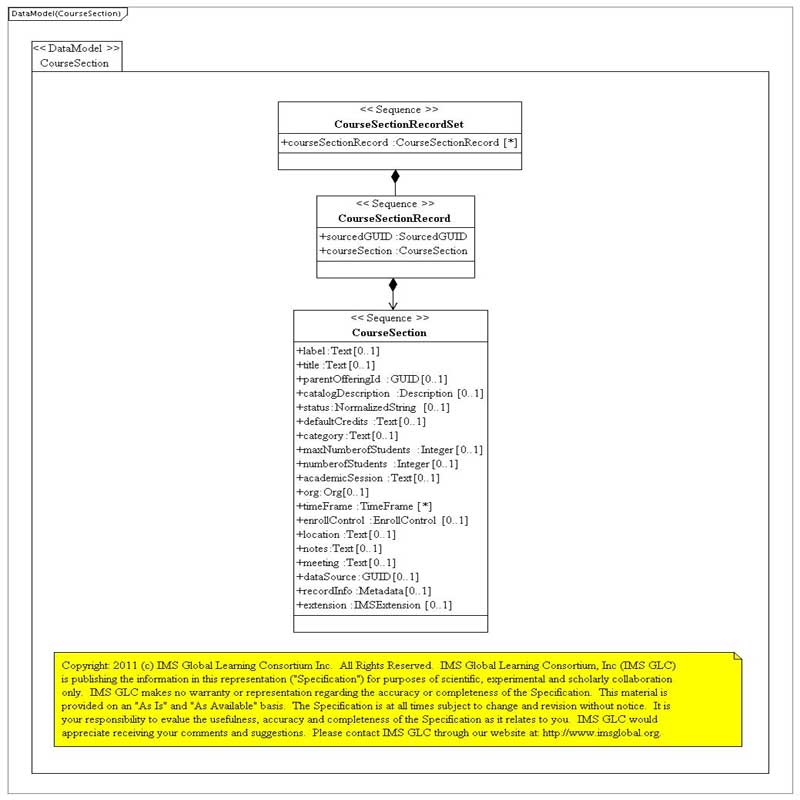

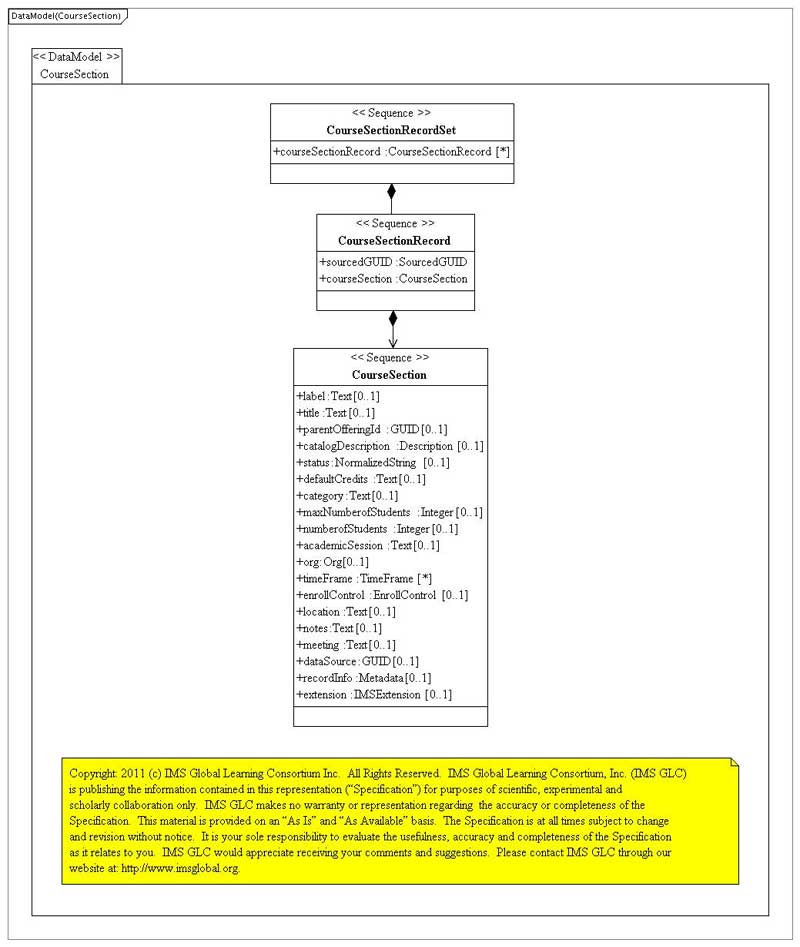

Figure 2.7 The PSM representation of the CourseSection data model description for the CMS.

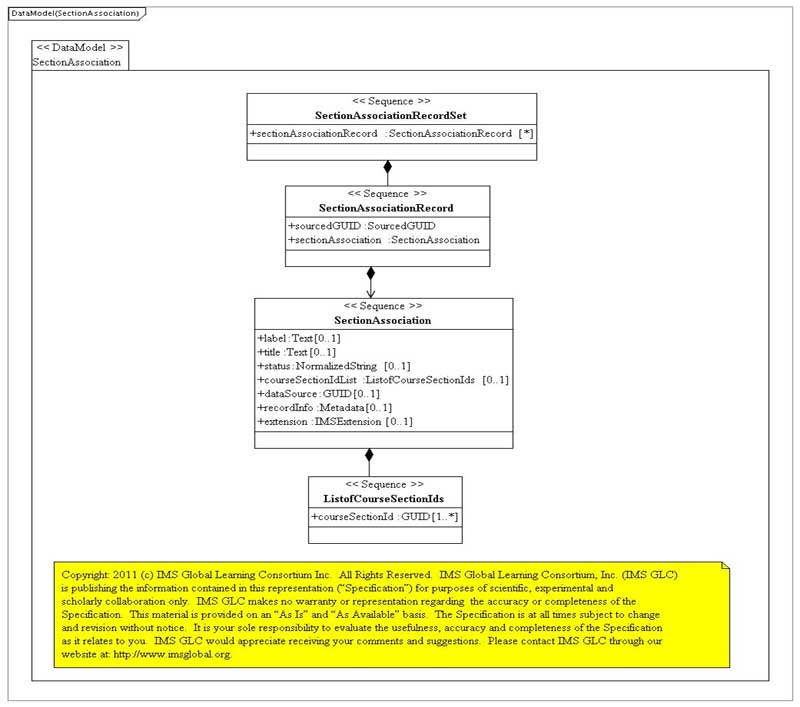

Figure 2.8 The PSM representation of the SectionAssociation data model description for the CMS.

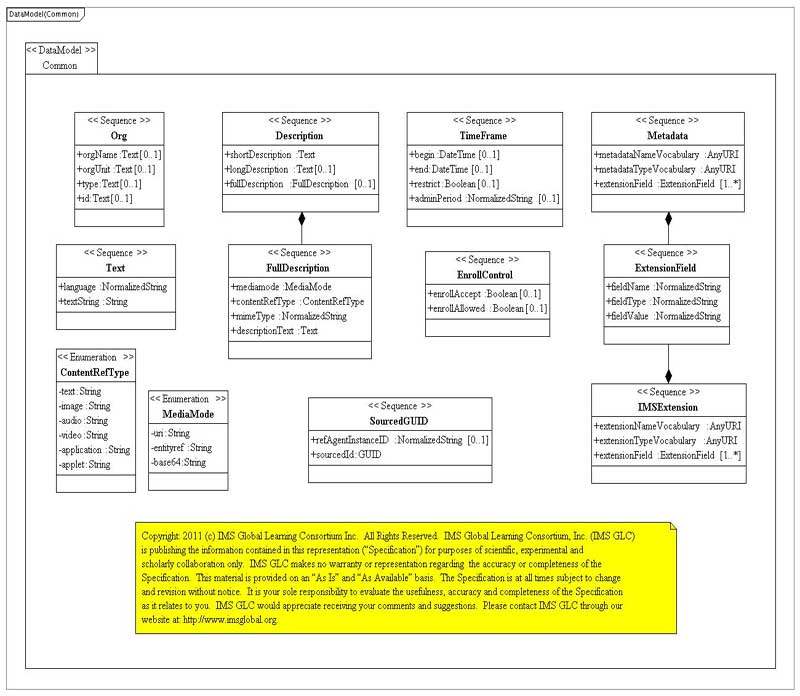

Figure 2.9 The PSM representation of the common data models description for the CMS.

2.4 File-based Data Exchange Data Model

The PSM for the file-based Course data models are shown in Figures 2.10, 2.11, 2.12, 2.13 and 2.14. Figure 2.10 is the CourseTemplateRecord data model, Figure 2.11 is the CourseOfferingRecord data model, Figure 2.12 is the CourseSectionRecord data model, Figure 2.13 is the SectionAssociationRecord data model and Figure 2.14 contains the set of common data model classes.

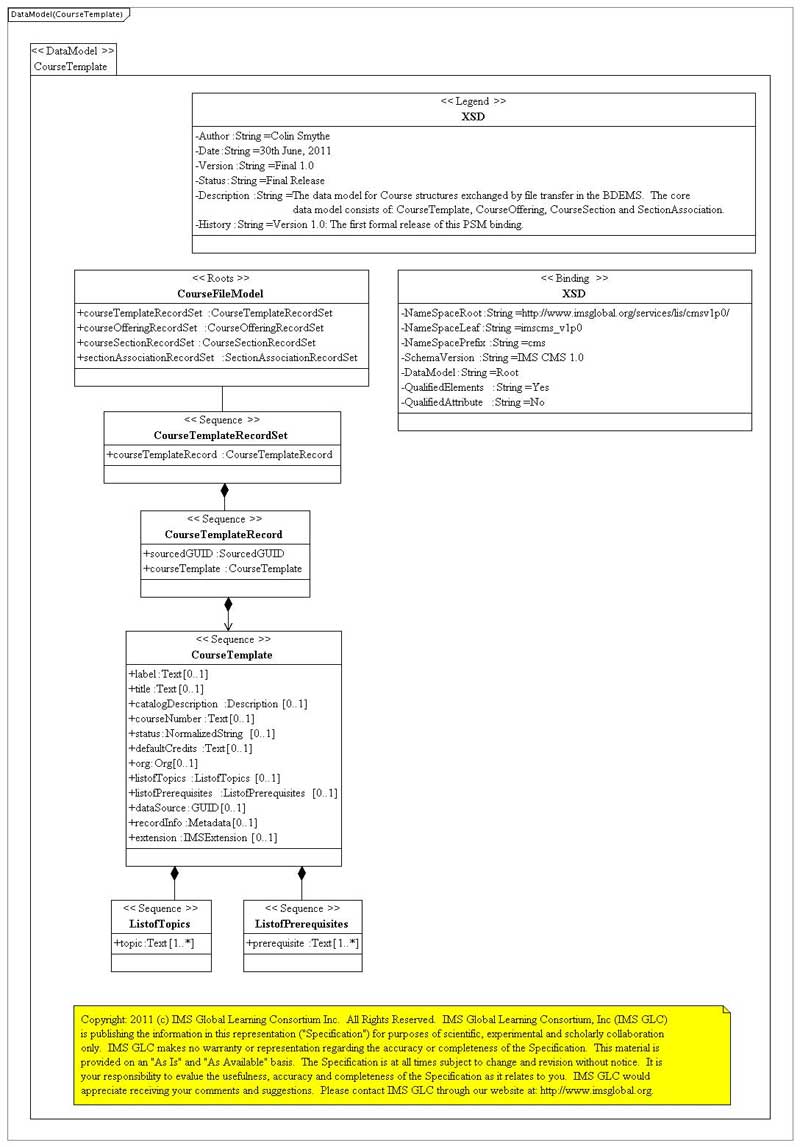

Figure 2.10 The PSM representation of the CourseTemplateRecord data model description for file storage in the CMS.

Figure 2.11 The PSM representation of the CourseOfferingRecord data model description for file storage in the CMS.

Figure 2.12 The PSM representation of the CourseSectionRecord data model description for file storage in the CMS.

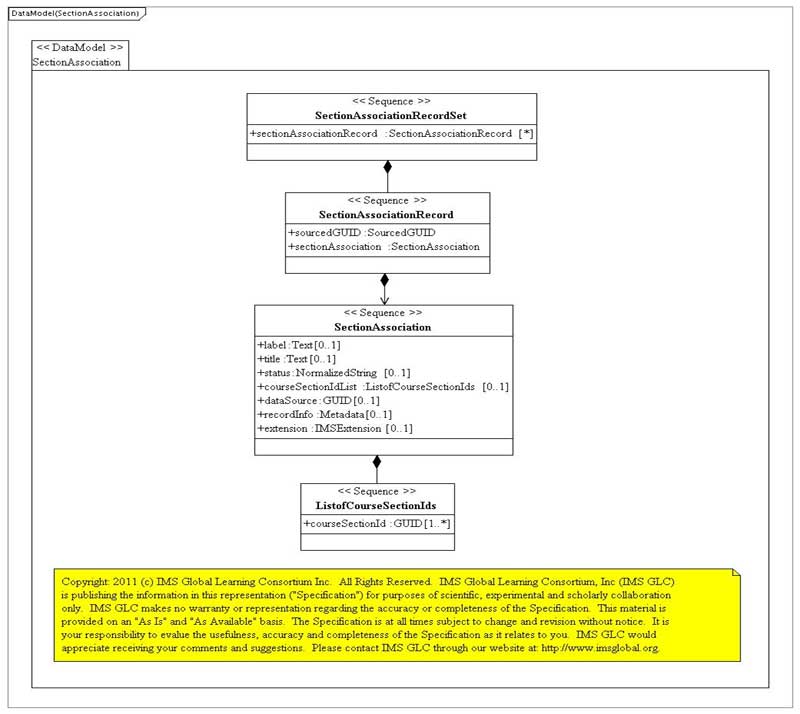

Figure 2.13 The PSM representation of the SectionAssociationRecord data model description for file storage in the CMS.

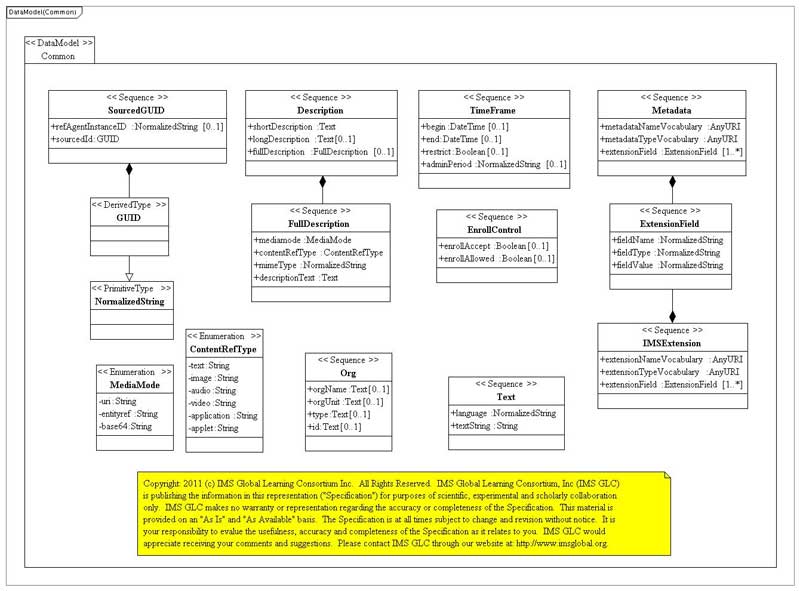

Figure 2.14 The PSM representation of the common data model description for file storage in the CMS.

3. Application of the Binding Guidelines

The WSDL/XSD bindings have been generated using the methodology documented in [GWS 06a] and [GWS, 06b]. Only the synchronous service binding has been created. The binding files are available in three forms:

  • A single combined WSDL/XSD – CourseManagementServicev1p0_SyncSingle_v1p0.wsdl;
  • As single combined WSDL/XSD for each interface – CourseManagementServicev1p0_CourseTemplateManagerSyncSingle_v1p0.wsdl, CourseManagementServicev1p0_CourseOfferingManagerSyncSingle_v1p0.wsdl, CourseManagementServicev1p0_CourseSectionManagerSyncSingle_v1p0.wsdl and CourseManagementServicev1p0_SectionAssociationManagerSyncSingle_v1p0.wsdl
  • Separated WSDL and XSD files – CourseManagementServicev1p0_SyncWSDL_v1p0.wsdl and CourseManagementServiceSyncXSD.xsd respectively.

It is recommended that only the combined form is used (many WSDL-based code generation tools do not process the 'import' instructions).

The mapping between the PIM and PSM descriptions is detailed in Table 3.1.

Table 3.1 Mapping between the PIM, PSM and XSD descriptions for the data models.

PSM Reference PIM Reference XSD Reference
Name UML Type Figure Type Table Name Type

CourseTemplateRecordSet

 Class 2.5 – – CourseTemplateRecordSet.Type ComplexType
  • courseTemplateRecord
 Attribute 2.5 CourseTemplateRecord – courseTemplateRecord Element

CourseTemplateRecord

 Class 2.5 – 5.2 CourseTemplateRecord.Type ComplexType
  • sourcedGUID
 Attribute 2.5 SourcedGUID 5.3 sourcedId Element
  • courseTemplate
 Attribute 2.5 CourseTemplate – courseTemplate Element

SourcedGUID

 Class 2.5 – 5.107 SourcedGUID.Type ComplexType
  • refAgentInstanceId
 Attribute 2.5 NormalizedString 5.108 refAgentInstanceId Element
  • sourcedId
 Attribute 2.5 SourcedId 5.109 sourcedId Element

CourseTemplate

 Class 2.5 – 5.10 CourseTemplate.Type ComplexType
  • label
 Attribute 2.5 Text 5.11 label Element
  • title
 Attribute 2.5 Text 5.12 title Element
  • catalogDescription
 Attribute 2.5 Description 5.13 catalogDescription Element
  • courseNumber
 Attribute 2.5 Text 5.14 courseNumber Element
  • status
 Attribute 2.6 External Vocabulary 5.15 status Element
  • defaultCredits
 Attribute 2.5 Text 5.16 defaultCredits Element
  • org
 Attribute 2.5 Org 5.17 org Element
  • listofTopics
 Attribute 2.5 ListofTopics 5.18 listofTopics Element
  • listofPrerequisites
 Attribute 2.5 ListofPrerequisites 5.19 listofPrerequisites Element
  • dataSource
 Attribute 2.5 GUID 5.20 dataSource Element
  • recordInfo
 Attribute 2.5 Metadata 5.21 recordInfo Element
  • extension
 Attribute 2.5 IMSExtension 5.22 extension Element

ListofPrerequisites

 Class 2.5 – 5.23 ListofPrerequisites.Type ComplexType
  • prerequisite
 Attribute 2.5 Text 5.24 prerequisite Element

ListofTopics

 Class 2.5 – 5.25 ListofTopics.Type ComplexType
  • topic
 Attribute 2.5 Text 5.26 topic Element

CourseOfferingRecordSet

 Class 2.6 – – CourseOfferingRecordSet.Type ComplexType
  • courseOfferingRecord
 Attribute 2.6 CourseOfferingRecord – courseOfferingRecord Element

CourseOfferingRecord

 Class 2.6 – 5.4 CourseOfferingRecord.Type ComplexType
  • sourcedGUID
 Attribute 2.5 SourcedGUID 5.5 sourcedId Element
  • courseOffering
 Attribute 2.6 CourseOffering – courseOffering Element

CourseOffering

 Class 2.6 – 5.27 CourseOffering.Type ComplexType
  • label
 Attribute 26 Text 5.28 label Element
  • title
 Attribute 2.6 Text 5.29 title Element
  • parentTemplateId
 Attribute 2.6 GUID 5.30 parentTemplateId Element
  • catalogDescription
 Attribute 2.6 Description 5.31 catalogDescription Element
  • defaultCredits
 Attribute 2.6 Text 5.32 defaultCredits Element
  • status
 Attribute 2.6 External Vocabulary 5.33 status Element
  • academicSession
 Attribute 2.6 External Vocabulary 5.34 academicSession Element
  • org
 Attribute 2.6 Org 5.35 org Element
  • timeFrame
 Attribute 2.6 TimeFrame 5.36 timeFrame Element
  • enrollControl
 Attribute 2.6 EnrollControl 5.37 enrollControl Element
  • dataSource
 Attribute 2.6 GUID 5.38 dataSource Element
  • recordInfo
 Attribute 2.6 Metadata 5.39 recordInfo Element
  • extension
 Attribute 2.6 IMSExtension 5.40 extension Element

CourseSectionRecordSet

 Class 2.7 – – CourseOfferingRecordSet.Type ComplexType
  • courseSectionRecord
 Attribute 2.7 CourseSectionRecord – courseSectionRecord Element

CourseSectionRecord

 Class 2.7 – 5.6 CourseSectionRecord.Type ComplexType
  • sourcedGUID
 Attribute 2.5 SourcedGUID 5.7 sourcedId Element
  • courseSection
 Attribute 2.7 CourseSection – courseSection Element

CourseSection

 Class 2.7 – 5.41 CourseSection.Type ComplexType
  • label
 Attribute 2.7 Text 5.42 label Element
  • title
 Attribute 2.7 Text 5.43 title Element
  • parentOfferingId
 Attribute 2.7 GUID 5.44 parentOfferingId Element
  • catalogDescription
 Attribute 2.7 Description 5.45 catalogDescription Element
  • status
 Attribute 2.7 External Vocabulary 5.46 status Element
  • defaultCredits
 Attribute 2.7 Text 5.47 defaultCredits Element
  • category
 Attribute 2.7 External Vocabulary 5.48 status Element
  • maxNumberofStudents
 Attribute 2.7 Integer 5.49 maxNumberofStudents Element
  • numberofStudents
 Attribute 2.7 Integer 5.50 numberofStudents Element
  • academicSession
 Attribute 2.7 External Vocabulary 5.51 academicSession Element
  • org
 Attribute 2.7 Org 5.52 org Element
  • timeFrame
 Attribute 2.7 TimeFrame 5.53 timeFrame Element
  • enrollControl
 Attribute 2.7 EnrollControl 5.54 enrollControl Element
  • location
 Attribute 2.7 Text 5.55 locaton Element
  • notes
 Attribute 2.7 Text 5.56 locaton Element
  • meeting
 Attribute 2.7 Text 5.57 locaton Element
  • dataSource
 Attribute 2.7 GUID 5.58 dataSource Element
  • recordInfo
 Attribute 2.7 Metadata 5.59 recordInfo Element
  • extension
 Attribute 2.7 IMSExtension 5.60 extension Element

SectionAssociationRecordSet

 Class 2.8 – – CourseOfferingRecordSet.Type ComplexType
  • sectionAssociationRecord
 Attribute 2.8 SectionAssociationRecord – sectionAssociationRecord Element

SectionAssociationRecord

 Class 2.8 – 5.8 CourseSectionAssociationRecord.Type ComplexType
  • sourcedGUID
 Attribute 2.5 SourcedGUID 5.9 sourcedId Element
  • sectionAssociation
 Attribute 2.8 SectionAssociation – sectionAssociation Element

SectionAssociation

 Class 2.8 – 5.61 SectionAssociation.Type ComplexType
  • label
 Attribute 2.8 Text 5.62 label Element
  • title
 Attribute 2.8 Text 5.63 title Element
  • status
 Attribute 2.8 External Vocabulary 5.64 status Element
  • courseSectionIdList
 Attribute 2.8 ListofCourseSectionIds 5.65 courseSectionIdList Element
  • dataSource
 Attribute 2.8 GUID 5.66 dataSource Element
  • recordInfo
 Attribute 2.8 Metadata 5.67 recordInfo Element
  • extension
 Attribute 2.8 IMSExtension 5.68 extension Element

ListofCourseSectionIds

 Class 2.8 – 5.69 ListofCourseSectionIds.Type ComplexType
  • courseSectionId
 Attribute 2.8 GUID 5.70 courseSectionId Element

EnrollControll

 Class 2.9 – 5.76 EnrollControll.Type ComplexType
  • enrollAccept
 Attribute 2.9 Boolean 5.77 enrollAccept Element
  • enrollAllowed
 Attribute 2.9 Boolean 5.78 enrollAllowed Element

Org

 Class 2.9 – 5.71 Org.Type ComplexType
  • orgName
 Attribute 2.9 Text 5.72 orgName Element
  • orgUnit
 Attribute 2.9 Text 5.73 orgUnit Element
  • type
 Attribute 2.9 Text 5.74 type Element
  • id
 Attribute 2.9 Text 5.75 id Element

TimeFrame

 Class 2.9 – 5.79 TimeFrame.Type ComplexType
  • begin
 Attribute 2.9 DateTime 5.80 begin Element
  • end
 Attribute 2.9 DateTime 5.81 end Element
  • restrict
 Attribute 2.9 Boolean 5.82 restrict Element
  • adminPeriod
 Attribute 2.9 Text 5.83 adminPeriod Element

Description

 Class 2.9 – 5.84 Description.Type ComplexType
  • shortDescription
 Attribute 2.9 Text 5.85 shortDescription Element
  • longDescription
 Attribute 2.9 Text 5.86 longDescription Element
  • fullDescription
 Attribute 2.9 FullDescription 5.87 fullDescription Element

FullDescription

 Class 2.9 – 5.88 FullDescription.Type ComplexType
  • mediamode
 Attribute 2.9 Enumerated 5.89 mediamode Element
  • contentRefType
 Attribute 2.9 Enumerated 5.90 contentRefType Element
  • mimeType
 Attribute 2.9 NormailzedString 5.91 mimeType Element
  • descriptionText
 Attribute 2.9 Text 5.92 descriptionText Element

Metadata

 Class 2.9 – 5.95 Metadata.Type ComplexType
  • metadataNameVocabulary
 Attribute 2.9 AnyURI 5.96 metadataNameVocabulary Element
  • metadataTypeVocabulary
 Attribute 2.9 AnyURI 5.97 metadataTypeVocabulary Element
  • metadataField
 Attribute 2.9 ExtensionField 5.98 metadataField Element

IMSExtension

 Class 2.9 – 5.100 IMSExtension.Type ComplexType
  • extensionNameVocabulary
 Attribute 2.9 AnyURI 5.101 extensionNameVocabulary Element
  • extensionTypeVocabulary
 Attribute 2.9 AnyURI 5.102 extensionTypeVocabulary Element
  • extensionField
 Attribute 2.9 ExtensionField TBD extensionField Element

ExtensionField

 Class 2.9 – 5.103 ExtensionField.Type ComplexType
  • fieldName
 Attribute 2.9 NormalizedString 5.104 fieldName Element
  • fieldType
 Attribute 2.9 NormalizedString 5.105 fieldType Element
  • fieldValue
 Attribute 2.9 NormalizedString 5.106 fieldValue Element

Text

 Class 2.9 – 5.93 Text.Type ComplexType
  • language
 Attribute 2.9 NormailzedString 5.94 language Element
  • textString
 Attribute 2.9 String 5.95 textString Element

imsx_StatusInfo

 Class 2.4 – See 1EdTech GWSv1.0 imsx_StatusInfo.Type ComplexType
  • imsx_codeMajor
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_codeMajor Element
  • imsx_severity
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_severity Element
  • imsx_messageRefIdentifier
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_messageRefIdentifier Element
  • imsx_operationRefIdentifier
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_operationRefIdentifier Element
  • imsx_description
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_description Element
  • imsx_codeMinor
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_codeMinor Element

imsx_CodeMinor

 Class 2.4 – See 1EdTech GWSv1.0 imsx_CodeMinor.Type ComplexType
  • imsx_codeMinorField
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_codeMinorField Element

imsx_CodeMinorField

 Class 2.4 – See 1EdTech GWSv1.0 imsx_CodeMinorField.Type ComplexType
  • imsx_codeMinorFieldName
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_codeMinorFieldName Element
  • imsx_codeMinorFieldValue
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_codeMinorFieldValue Element

imsx_StatusBinding

 Class 2.4 – See 1EdTech GWSv1.0 imsx_StatusBinding.Type ComplexType
  • imsx_syncRequestHeaderInfo
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_syncRequestHeaderInfo Element
  • imsx_syncResponseHeaderInfo
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_syncResponseHeaderInfo Element

imsx_RequestHeaderInfo

 Class 2.4 – See 1EdTech GWSv1.0 imsx_RequestHeaderInfo.Type ComplexType
  • imsx_version
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_version Element
  • imsx_messageIdentifier
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_messageIdentifier Element

imsx_ResponseHeaderInfo

 Class 2.4 – See 1EdTech GWSv1.0 imsx_ResponseHeaderInfo.Type ComplexType
  • imsx_version
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_version Element
  • imsx_messageIdentifier
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_messageIdentifier Element
  • imsx_statusInfo
 Attribute 2.4 n/a See 1EdTech GWSv1.0 imsx_statusInfo Element

Key:

  1. The 'PSM Reference' field refers to information in the PSM description (Section 2 in this document). The sub-fields are:
    1. Name – the name of the data structure in the PSM and PIM
    2. UML Type – the type of UML construct i.e. either Class or Attribute
    3. Figure – the reference Figure number in this document;
  2. The 'PIM Reference' field refers to infomation in the CMS Information Model [CMS, 11]. The sub-fields are:
    1. Type – the type of the data structure in the Information Model
    2. Table – the reference number of Tabular description in the corresponding Information Model document;
  3. The 'XSD Reference' field refers to information in the XSD descriptions (Section 5 in this document). The sub-fields are:
    1. Name – the name of the field in the XSD(s)
    2. Type – the type of XSD construct i.e. either a ComplexType or Element.

4. WSDL File Documentation

WSDL file: "CourseManagementServiceSyncSingle.wsdl"

Target namespace: /services/lis/cms1p0/wsdl11/sync/imscms_v1p0

4.1 Overview

Services
CourseManagementServiceSyncService
Bindings
CourseTemplateManagerSyncSoapBinding
CourseOfferingManagerSyncSoapBinding
CourseSectionManagerSyncSoapBinding
SectionAssociationManagerSyncSoapBinding
Port types
CourseTemplateManagerSyncPortType
CourseOfferingManagerSyncPortType
CourseSectionManagerSyncPortType
SectionAssociationManagerSyncPortType
Messages
createCourseTemplateRequest, createCourseTemplateResponse, createByProxyCourseTemplateRequest, createByProxyCourseTemplateResponse, deleteCourseTemplateRequest, deleteCourseTemplateResponse, readCourseTemplateRequest, readCourseTemplateResponse, readAllCourseTemplateIdsRequest, readAllCourseTemplateIdsResponse, readCourseTemplateIdsFromSavePointRequest, readCourseTemplateIdsFromSavePointResponse, readCourseTemplatesRequest, readCourseTemplatesResponse, readCourseTemplatesFromSavePointRequest, readCourseTemplatesFromSavePointResponse, readCourseOfferingIdsForCourseTemplateRequest, readCourseOfferingIdsForCourseTemplateResponse, updateCourseTemplateRequest, updateCourseTemplateResponse, replaceCourseTemplateRequest, replaceCourseTemplateResponse, discoverCourseTemplateIdsRequest, discoverCourseTemplateIdsResponse, changeCourseTemplateIdentifierRequest, changeCourseTemplateIdentifierResponse, createCourseOfferingRequest, createCourseOfferingResponse, createByProxyCourseOfferingRequest, createByProxyCourseOfferingResponse, createCourseOfferingFromCourseOfferingRequest, createCourseOfferingFromCourseOfferingResponse, deleteCourseOfferingRequest, deleteCourseOfferingResponse, readCourseOfferingRequest, readCourseOfferingResponse, readAllCourseOfferingIdsRequest, readAllCourseOfferingIdsResponse, readCourseOfferingIdsFromSavePointRequest, readCourseOfferingIdsFromSavePointResponse, readAllActiveCourseOfferingIdsForAcademicSessionRequest, readAllActiveCourseOfferingIdsForAcademicSessionResponse, readCourseSectionIdsForCourseOfferingRequest, readCourseSectionIdsForCourseOfferingResponse, readCourseOfferingsRequest, readCourseOfferingsResponse, readCourseOfferingsFromSavePointRequest, readCourseOfferingsFromSavePointResponse, updateCourseOfferingRequest, updateCourseOfferingResponse, updateCourseOfferingStatusRequest, updateCourseOfferingStatusResponse, replaceCourseOfferingRequest, replaceCourseOfferingResponse, discoverCourseOfferingIdsRequest, discoverCourseOfferingIdsResponse, changeCourseOfferingIdentifierRequest, changeCourseOfferingIdentifierResponse, createCourseSectionRequest, createCourseSectionResponse, createByProxyCourseSectionRequest, createByProxyCourseSectionResponse, createCourseSectionFromCourseSectionRequest, createCourseSectionFromCourseSectionResponse, deleteCourseSectionRequest, deleteCourseSectionResponse, readCourseSectionRequest, readCourseSectionResponse, readAllCourseSectionIdsRequest, readAllCourseSectionIdsResponse, readCourseSectionIdsFromSavePointRequest, readCourseSectionIdsFromSavePointResponse, readCourseSectionsRequest, readCourseSectionsResponse, readCourseSectionsFromSavePointRequest, readCourseSectionsFromSavePointResponse, updateCourseSectionRequest, updateCourseSectionResponse, updateCourseSectionStatusRequest, updateCourseSectionStatusResponse, replaceCourseSectionRequest, replaceCourseSectionResponse, discoverCourseSectionIdsRequest, discoverCourseSectionIdsResponse, changeCourseSectionIdentifierRequest, changeCourseSectionIdentifierResponse, createSectionAssociationRequest, createSectionAssociationResponse, createByProxySectionAssociationRequest, createByProxySectionAssociationResponse, deleteSectionAssociationRequest, deleteSectionAssociationResponse, readSectionAssociationRequest, readSectionAssociationResponse, readAllSectionAssociationIdsRequest, readAllSectionAssociationIdsResponse, readSectionAssociationIdsFromSavePointRequest, readSectionAssociationIdsFromSavePointResponse, readSectionAssociationsRequest, readSectionAssociationsResponse, readSectionAssociationsFromSavePointRequest, readSectionAssociationsFromSavePointResponse, addCourseSectionIdRequest, addCourseSectionIdResponse, removeCourseSectionIdRequest, removeCourseSectionIdResponse, updateSectionAssociationRequest, updateSectionAssociationResponse, replaceSectionAssociationRequest, replaceSectionAssociationResponse, discoverSectionAssociationIdsRequest, discoverSectionAssociationIdsResponse, changeSectionAssociationIdentifierRequest, changeSectionAssociationIdentifierResponse,

WSDL Definition
Name Documentation
CourseManagementServiceSyncServices

WSDL File Information

Services: CourseManagementService (Synchronous Communications)

Author: Colin Smythe

Date: 30 June 2011

Version: Final 1.0

Status: Final Release

Description: The Course Management Service. This is a part of the 1EdTech Learning Information Services (LIS) v2.0 specification.

History: Version 1.0: This is the first formal release of this service. This service was not a part of the 1EdTech Enterprise Services v1.0.

WSDL Binding: WSDL Binding is based upon the 1EdTech General Web Services Base Profile v1.0 The 1EdTech GWS Basic Profile is derived from the WS-I Basic Profile v1.1. This profile uses: WSDL 1.1, SOAP 1.1, HTTP 1.1 and XML 1.0. Extension profiles to the 1EdTech GWS Base Profile are available but are not supported using this tool version.

License: IPR, License and Distribution Notices

This machine readable file is derived from 1EdTech Consortium (GLC) specification 1EdTech GLC Course Management Service Version 1.0 found at /lis/cmsv1p0/imscmsv1p0_InfoPDv1.pdf and the original 1EdTech schema binding or code base /lis/cmsv1p0/imscmsv1p0_BindPDv1.html.

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. 1EdTech GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights.

Information on 1EdTech GLCs procedures with respect to rights in 1EdTech GLC specifications can be found at the 1EdTech GLC Intellectual Property Rights web page: /ipr/imsipr_policyFinal.pdf.

Copyright © 1EdTech Consortium 1999-2011. All Rights Reserved.

License Notice for Users

Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document.

Distribution Notice for Developers

Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than 1EdTech, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof.

Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the 1EdTech GLC community on the 1EdTech GLC website as described in the following two paragraphs:-

  • If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with 1EdTech and receive an email from 1EdTech granting the license. To register, follow the instructions on the 1EdTech website: /specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety;
  • If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with 1EdTech GLC and receive an email from 1EdTech GLC granting the license. To register, follow the instructions on the 1EdTech GLC website: /profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety.

The limited permissions granted above are perpetual and will not be revoked by 1EdTech GLC or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

UML Source File Information

Choreography: Sync

Transport: SOAPv1.1

Source XSLT File Information

XSL Generator: UMLtoWSDLTransformv0p9p5.xsl

XSLT Processor: Xalan

Release: 1.0 Beta 4

Date: 31st March, 2011

1EdTech GLC Auto-generation Binding Tool-kit (I-BAT)

This file was auto-generated using the 1EdTech GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. 1EdTech GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the 1EdTech GLC "I-BAT" Documentation available at the 1EdTech GLC web-site.

Tool Copyright: 2005-2011 (c) 1EdTech Consortium Inc. All Rights Reserved.

Services
Name Documentation
CourseManagementServiceSyncService

Service Information

Author: Colin Smythe

Date: 30 June 2011

Version: Final 1.0

Status: Final Release

Description: The Course Management Service is composed of four interfaces each of which has several operations.

History: Version 1.0: This is the first formal release of this service. This service is a part of the 1EdTech LIS v2.0 specification


Service : CourseManagementServiceSyncService
Port Name Binding Address Extensibility Documentation
CourseTemplateManagerSyncSoapPort CourseTemplateManagerSyncSoapBinding <soap11:address location="/lis/cmsv1p0/CourseTemplateManagerSyncSoap/"/>
N/A
CourseOfferingManagerSyncSoapPort CourseOfferingManagerSyncSoapBinding <soap11:address location="/lis/cmsv1p0/CourseOfferingManagerSyncSoap/"/>
N/A
CourseSectionManagerSyncSoapPort CourseSectionManagerSyncSoapBinding <soap11:address location="/lis/cmsv1p0/CourseSectionManagerSyncSoap/"/>
N/A
SectionAssociationManagerSyncSoapPort SectionAssociationManagerSyncSoapBinding <soap11:address location="/lis/cmsv1p0/SectionAssociationManagerSyncSoap/"/>
N/A


Binding : CourseTemplateManagerSyncSoapBinding
Port Type CourseTemplateManagerSyncPortType
Extensibility <soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>
Operations createCourseTemplate, createByProxyCourseTemplate, deleteCourseTemplate, readCourseTemplate, readAllCourseTemplateIds, readCourseTemplateIdsFromSavePoint, readCourseTemplates, readCourseTemplatesFromSavePoint, readCourseOfferingIdsForCourseTemplate, updateCourseTemplate, replaceCourseTemplate, discoverCourseTemplateIds, changeCourseTemplateIdentifier,


Binding : CourseOfferingManagerSyncSoapBinding
Port Type CourseOfferingManagerSyncPortType
Extensibility <soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>
Operations createCourseOffering, createByProxyCourseOffering, createCourseOfferingFromCourseOffering, deleteCourseOffering, readCourseOffering, readAllCourseOfferingIds, readCourseOfferingIdsFromSavePoint, readAllActiveCourseOfferingIdsForAcademicSession, readCourseSectionIdsForCourseOffering, readCourseOfferings, readCourseOfferingsFromSavePoint, updateCourseOffering, updateCourseOfferingStatus, replaceCourseOffering, discoverCourseOfferingIds, changeCourseOfferingIdentifier,


Binding : CourseSectionManagerSyncSoapBinding
Port Type CourseSectionManagerSyncPortType
Extensibility <soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>
Operations createCourseSection, createByProxyCourseSection, createCourseSectionFromCourseSection, deleteCourseSection, readCourseSection, readAllCourseSectionIds, readCourseSectionIdsFromSavePoint, readCourseSections, readCourseSectionsFromSavePoint, updateCourseSection, updateCourseSectionStatus, replaceCourseSection, discoverCourseSectionIds, changeCourseSectionIdentifier,


Binding : SectionAssociationManagerSyncSoapBinding
Port Type SectionAssociationManagerSyncPortType
Extensibility <soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>
Operations createSectionAssociation, createByProxySectionAssociation, deleteSectionAssociation, readSectionAssociation, readAllSectionAssociationIds, readSectionAssociationIdsFromSavePoint, readSectionAssociations, readSectionAssociationsFromSavePoint, addCourseSectionId, removeCourseSectionId, updateSectionAssociation, replaceSectionAssociation, discoverSectionAssociationIds, changeSectionAssociationIdentifier,


Port Type : CourseTemplateManagerSyncPortType
Operation Name Input message Output message Documentation
createCourseTemplate createCourseTemplateRequest createCourseTemplateResponse The 'createCourseTemplate' operation is responsible for creating a new CourseTemplate object on the service provider. The service consumer supplies the 'sourcedId' to be used to identify the new CourseTemplate.
createByProxyCourseTemplate createByProxyCourseTemplateRequest createByProxyCourseTemplateResponse
The 'createByProxyCourseTemplate' operation is responsible for creating a new CourseTemplate object on the service provider. The service provider supplies the 'sourcedId' to be used to identify the new CourseTemplate.
deleteCourseTemplate deleteCourseTemplateRequest deleteCourseTemplateResponse
The 'deleteCourseTemplate' operation deletes the identified CourseTemplate object. This means the 'sourcedId' can then be reused for another object.
readCourseTemplate readCourseTemplateRequest readCourseTemplateResponse
The 'readCourseTemplate' operation requests the service provider to return all of the data stored for the identified CourseTemplate object.
readAllCourseTemplateIds readAllCourseTemplateIdsRequest readAllCourseTemplateIdsResponse
The 'readAllCourseTemplateIds' operation requests the service provider to return the SourcedIds for all of the CourseTemplate objects.
readCourseTemplateIdsFromSavePoint readCourseTemplateIdsFromSavePointRequest readCourseTemplateIdsFromSavePointResponse
The 'readCourseTemplateIdsFromSavePoint' operation requests the service provider to return the SourcedIds for all of the CourseTemplate objects from the defined reference 'savePoint'.
readCourseTemplates readCourseTemplatesRequest readCourseTemplatesResponse
The 'readCourseTemplates' operation requests the service provider to return all of the data stored for the identified set of CourseTemplate objects.
readCourseTemplatesFromSavePoint readCourseTemplatesFromSavePointRequest readCourseTemplatesFromSavePointResponse
The 'readCourseTemplatesFromSavePoint' operation requests the service provider to return all of the data stored for the identified set of CourseTemplate objects from the defined reference 'savePoint'.
readCourseOfferingIdsForCourseTemplate readCourseOfferingIdsForCourseTemplateRequest readCourseOfferingIdsForCourseTemplateResponse
The 'readCourseOfferingIdsForCourseTemplate' operation requests the service provider to return the SourcedIds for all of the CourseOffering objects for the identified CourseTemplate.
updateCourseTemplate updateCourseTemplateRequest updateCourseTemplateResponse
The 'updateCourseTemplate' operation is responsible for changing the CourseTemplate object on the service provider by making an additive write to the previously stored data.
replaceCourseTemplate replaceCourseTemplateRequest replaceCourseTemplateResponse
The 'replaceCourseTemplate' operation is responsible for changing the CourseTemplate object on the service provider by making a destructive replacement of all the previously stored data. If the original object cannot be found, this operation acts as if it was a 'createCourseTemplate' operation call.
discoverCourseTemplateIds discoverCourseTemplateIdsRequest discoverCourseTemplateIdsResponse
The 'discoverCourseTemplateIds' operation requests the service provider to return the SourcedIds of all of the CourseTemplate objects that sustain the query criteria. At present, there is no defined format for the query i.e. the query is passed as a string.
changeCourseTemplateIdentifier changeCourseTemplateIdentifierRequest changeCourseTemplateIdentifierResponse
The 'changeCourseTemplateIdentifier' operation enables the service consumer to change the 'SourcedId' assigned to a CourseTemplate object on a service provider.


Port Type : CourseOfferingManagerSyncPortType
Operation Name Input message Output message Documentation
createCourseOffering createCourseOfferingRequest createCourseOfferingResponse
The 'createCourseOffering' operation is responsible for creating a new CourseOffering object on the service provider. The service consumer supplies the 'sourcedId' to be used to identify the new CourseOffering.
createByProxyCourseOffering createByProxyCourseOfferingRequest createByProxyCourseOfferingResponse
The 'createByProxyCourseOffering' operation is responsible for creating a new CourseOffering object on the service provider. The service provider supplies the 'sourcedId' to be used to identify the new CourseOffering.
createCourseOfferingFromCourseOffering createCourseOfferingFromCourseOfferingRequest createCourseOfferingFromCourseOfferingResponse
The 'createCourseOfferingFromCourseOffering' operation is responsible for creating a new CourseOffering object by using an existing CourseOffering as the base. The service consumer supplies the 'sourcedId' to be used to identify the new CourseOffering.
deleteCourseOffering deleteCourseOfferingRequest deleteCourseOfferingResponse
The 'deleteCourseOffering' operation deletes the identified CourseOffering object. This means the 'sourcedId' can then be reused for another object.
readCourseOffering readCourseOfferingRequest readCourseOfferingResponse
The 'readCourseOffering' operation requests the service provider to return all of the data stored for the identified CourseOffering object.
readAllCourseOfferingIds readAllCourseOfferingIdsRequest readAllCourseOfferingIdsResponse
The 'readAllCourseOfferingIds' operation requests the service provider to return the SourcedIds for all of the CourseOffering objects.
readCourseOfferingIdsFromSavePoint readCourseOfferingIdsFromSavePointRequest readCourseOfferingIdsFromSavePointResponse
The 'readCourseOfferingIdsFromSavePoint' operation requests the service provider to return the SourcedIds for all of the CourseOffering objects from the defined reference 'savePoint'.
readAllActiveCourseOfferingIdsForAcademicSession readAllActiveCourseOfferingIdsForAcademicSessionRequest readAllActiveCourseOfferingIdsForAcademicSessionResponse
The 'readAllActiveCourseOfferingIdsForAcademicSession' operation requests the service provider to return the SourcedIds for all of the CourseOffering objects which are 'active' and which are for the identified 'academic session'.
readCourseSectionIdsForCourseOffering readCourseSectionIdsForCourseOfferingRequest readCourseSectionIdsForCourseOfferingResponse
The 'readCourseSectionIdsForCourseOffering' operation requests the service provider to return the SourcedIds for all of the CourseSection objects from the identified CourseOffering.
readCourseOfferings readCourseOfferingsRequest readCourseOfferingsResponse The 'readCourseOffering' operation requests the service provider to return all of the data stored for the identified set of CourseOffering objects.
readCourseOfferingsFromSavePoint readCourseOfferingsFromSavePointRequest readCourseOfferingsFromSavePointResponse
The 'readCourseOfferingsFromSavePoint' operation requests the service provider to return all of the data stored for the identified set of CourseOffering objects from the defined reference 'savePoint'.
updateCourseOffering updateCourseOfferingRequest updateCourseOfferingResponse
The 'updateCourseOffering' operation is responsible for changing the CourseOffering object on the service provider by making an additive write to the previously stored data.
updateCourseOfferingStatus updateCourseOfferingStatusRequest updateCourseOfferingStatusResponse
The 'updateCourseOfferingStatus' operation is responsible for changing the CourseOffering status to the new supplied value.
replaceCourseOffering replaceCourseOfferingRequest replaceCourseOfferingResponse
The 'replaceCourseOffering' operation is responsible for changing the CourseOffering object on the service provider by making a destructive replacement of all the previously stored data. If the original object cannot be found, this operation acts as if it was a 'createCourseOffering' operation call.
discoverCourseOfferingIds discoverCourseOfferingIdsRequest discoverCourseOfferingIdsResponse
The 'discoverCourseOfferingIds' operation requests the service provider to return the SourcedIds of all of the CourseOffering objects that sustain the query criteria. At present, there is no defined format for the query i.e. the query is passed as a string.
changeCourseOfferingIdentifier changeCourseOfferingIdentifierRequest changeCourseOfferingIdentifierResponse
The 'changeCourseOfferingIdentifier' operation enables the service consumer to change the 'SourcedId' assigned to a CourseOffering object on a service provider.


Port Type : CourseSectionManagerSyncPortType
Operation Name Input message Output message Documentation
createCourseSection createCourseSectionRequest createCourseSectionResponse The 'createCourseSection' operation is responsible for creating a new CourseSection object on the service provider. The service consumer supplies the 'sourcedId' to be used to identify the new CourseSection.
createByProxyCourseSection createByProxyCourseSectionRequest createByProxyCourseSectionResponse The 'createByProxyCourseSection' operation is responsible for creating a new CourseSection object on the service provider. The service provider supplies the 'sourcedId' to be used to identify the new CourseSection.
createCourseSectionFromCourseSection createCourseSectionFromCourseSectionRequest createCourseSectionFromCourseSectionResponse
The 'createCourseSectionFromCourseSection' operation is responsible for creating a new CourseSection object by using an existing CourseSection as the base. The service consumer supplies the 'sourcedId' to be used to identify the new CourseSection.
deleteCourseSection deleteCourseSectionRequest deleteCourseSectionResponse
The 'deleteCourseSection' operation deletes the identified CourseSection object. This means the 'sourcedId' can then be reused for another object.
readCourseSection readCourseSectionRequest readCourseSectionResponse
The 'readCourseSection' operation requests the service provider to return all of the data stored for the identified CourseSection object.
readAllCourseSectionIds readAllCourseSectionIdsRequest readAllCourseSectionIdsResponse
The 'readAllCourseSectionIds' operation requests the service provider to return the SourcedIds for all of the CourseSection objects.
readCourseSectionIdsFromSavePoint readCourseSectionIdsFromSavePointRequest readCourseSectionIdsFromSavePointResponse
The 'readCourseSectionIdsFromSavePoint' operation requests the service provider to return the SourcedIds for all of the CourseSection objects from the defined reference 'savePoint'.
readCourseSections readCourseSectionsRequest readCourseSectionsResponse The 'readCourseSection' operation requests the service provider to return all of the data stored for the identified set of CourseSection objects.
readCourseSectionsFromSavePoint readCourseSectionsFromSavePointRequest readCourseSectionsFromSavePointResponse
The 'readCourseSectionsFromSavePoint' operation requests the service provider to return all of the data stored for the identified set of CourseSection objects from the defined reference 'savePoint'.
updateCourseSection updateCourseSectionRequest updateCourseSectionResponse
The 'updateCourseSection' operation is responsible for changing the CourseSection object on the service provider by making an additive write to the previously stored data.
updateCourseSectionStatus updateCourseSectionStatusRequest updateCourseSectionStatusResponse
The 'updateCourseSectionStatus' operation is responsible for changing the CourseSection status to the new supplied value.
replaceCourseSection replaceCourseSectionRequest replaceCourseSectionResponse
The 'replaceCourseSection' operation is responsible for changing the CourseSection object on the service provider by making a destructive replacement of all the previously stored data. If the original object cannot be found, this operation acts as if it was a 'createCourseSection' operation call.
discoverCourseSectionIds discoverCourseSectionIdsRequest discoverCourseSectionIdsResponse
The 'discoverCourseSectionIds' operation requests the service provider to return the SourcedIds of all of the CourseTemplate objects that sustain the query criteria. At present, there is no defined format for the query i.e. the query is passed as a string.
changeCourseSectionIdentifier changeCourseSectionIdentifierRequest changeCourseSectionIdentifierResponse
The 'changeCourseSectionIdentifier' operation enables the service consumer to change the 'SourcedId' assigned to a CourseSection object on a service provider.


Port Type : SectionAssociationManagerSyncPortType
Operation Name Input message Output message Documentation
createSectionAssociation createSectionAssociationRequest createSectionAssociationResponse
The 'createSectionAssociation' operation is responsible for creating a new SectionAssociation object on the service provider. The service consumer supplies the 'sourcedId' to be used to identify the new SectionAssociation.
createByProxySectionAssociation createByProxySectionAssociationRequest createByProxySectionAssociationResponse
The 'createByProxySectionAssociation' operation is responsible for creating a new CourseTemplate object on the service provider. The service provider supplies the 'sourcedId' to be used to identify the new SectionAssociation.
deleteSectionAssociation deleteSectionAssociationRequest deleteSectionAssociationResponse
The 'deleteSectionAssociation' operation deletes the identified SectionAssociation object. This means the 'sourcedId' can then be reused for another object.
readSectionAssociation readSectionAssociationRequest readSectionAssociationResponse
The 'readSectionAssociation' operation requests the service provider to return all of the data stored for the identified SectionAssociation object.
readAllSectionAssociationIds readAllSectionAssociationIdsRequest readAllSectionAssociationIdsResponse
The 'readAllSectionAssociationIds' operation requests the service provider to return the SourcedIds for all of the SectionAssociation objects.
readSectionAssociationIdsFromSavePoint readSectionAssociationIdsFromSavePointRequest readSectionAssociationIdsFromSavePointResponse
The 'readSectionAssociationIdsFromSavePoint' operation requests the service provider to return all of the identifiers for the set of SectionAssociation objects from the defined reference 'savePoint'.
readSectionAssociations readSectionAssociationsRequest readSectionAssociationsResponse
The 'readSectionAssociations' operation requests the service provider to return all of the data stored for the identified set of SectionAssociation objects.
readSectionAssociationsFromSavePoint readSectionAssociationsFromSavePointRequest readSectionAssociationsFromSavePointResponse
The 'readSectionAssociationsFromSavePoint' operation requests the service provider to return all of the data stored for the identified set of SectionAssociation objects from the defined reference 'savePoint'.
addCourseSectionId addCourseSectionIdRequest addCourseSectionIdResponse
The 'addCourseSectionId' operation requests the service provider to add a new CourseSection to the identified SectionAssociation.
removeCourseSectionId removeCourseSectionIdRequest removeCourseSectionIdResponse
The 'removeCourseSectionId' operation requests the service provider to remove a CourseSection from the identified SectionAssociation.
updateSectionAssociation updateSectionAssociationRequest updateSectionAssociationResponse
The 'updateSectionAssociation' operation is responsible for changing the SectionAssociation object on the service provider by making an additive write to the previously stored data.
replaceSectionAssociation replaceSectionAssociationRequest replaceSectionAssociationResponse
The 'replaceSectionAssociation' operation is responsible for changing the SectionAssociation object on the service provider by making a destructive replacement of all the previously stored data. If the original object cannot be found, this operation acts as if it was a 'createSectionAssociation' operation call.
discoverSectionAssociationIds discoverSectionAssociationIdsRequest discoverSectionAssociationIdsResponse
The 'discoverSectionAssociationIds' operation requests the service provider to return the SourcedIds of all of the SectionAssociation objects that sustain the query criteria. At present, there is no defined format for the query i.e. the query is passed as a string.
changeSectionAssociationIdentifier changeSectionAssociationIdentifierRequest changeSectionAssociationIdentifierResponse
The 'changeSectionAssociationIdentifier' operation enables the service consumer to change the 'SourcedId' assigned to a SectionAssociation object on a service provider.

4.2 Messages

createCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:createCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createCourseTemplateResponse

Part Name Element Type Documentation
Response tns:createCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createByProxyCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:createByProxyCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createByProxyCourseTemplateResponse

Part Name Element Type Documentation
Response tns:createByProxyCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

deleteCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:deleteCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

deleteCourseTemplateResponse

Part Name Element Type Documentation
Response tns:deleteCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:readCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseTemplateResponse

Part Name Element Type Documentation
Response tns:readCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readAllCourseTemplateIdsRequest

Part Name Element Type Documentation
Parameters tns:readAllCourseTemplateIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readAllCourseTemplateIdsResponse

Part Name Element Type Documentation
Response tns:readAllCourseTemplateIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseTemplateIdsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readCourseTemplateIdsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseTemplateIdsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readCourseTemplateIdsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseTemplatesRequest

Part Name Element Type Documentation
Parameters tns:readCourseTemplatesRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseTemplatesResponse

Part Name Element Type Documentation
Response tns:readCourseTemplatesResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseTemplatesFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readCourseTemplatesFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseTemplatesFromSavePointResponse

Part Name Element Type Documentation
Response tns:readCourseTemplatesFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseOfferingIdsForCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:readCourseOfferingIdsForCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseOfferingIdsForCourseTemplateResponse

Part Name Element Type Documentation
Response tns:readCourseOfferingIdsForCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:updateCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateCourseTemplateResponse

Part Name Element Type Documentation
Response tns:updateCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

replaceCourseTemplateRequest

Part Name Element Type Documentation
Parameters tns:replaceCourseTemplateRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

replaceCourseTemplateResponse

Part Name Element Type Documentation
Response tns:replaceCourseTemplateResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

discoverCourseTemplateIdsRequest

Part Name Element Type Documentation
Parameters tns:discoverCourseTemplateIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

discoverCourseTemplateIdsResponse

Part Name Element Type Documentation
Response tns:discoverCourseTemplateIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

changeCourseTemplateIdentifierRequest

Part Name Element Type Documentation
Parameters tns:changeCourseTemplateIdentifierRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

changeCourseTemplateIdentifierResponse

Part Name Element Type Documentation
Response tns:changeCourseTemplateIdentifierResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:createCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createCourseOfferingResponse

Part Name Element Type Documentation
Response tns:createCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createByProxyCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:createByProxyCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createByProxyCourseOfferingResponse

Part Name Element Type Documentation
Response tns:createByProxyCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createCourseOfferingFromCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:createCourseOfferingFromCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createCourseOfferingFromCourseOfferingResponse

Part Name Element Type Documentation
Response tns:createCourseOfferingFromCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

deleteCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:deleteCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

deleteCourseOfferingResponse

Part Name Element Type Documentation
Response tns:deleteCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:readCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseOfferingResponse

Part Name Element Type Documentation
Response tns:readCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readAllCourseOfferingIdsRequest

Part Name Element Type Documentation
Parameters tns:readAllCourseOfferingIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readAllCourseOfferingIdsResponse

Part Name Element Type Documentation
Response tns:readAllCourseOfferingIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseOfferingIdsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readCourseOfferingIdsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseOfferingIdsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readCourseOfferingIdsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readAllActiveCourseOfferingIdsForAcademicSessionRequest

Part Name Element Type Documentation
Parameters tns:readAllActiveCourseOfferingIdsForAcademicSessionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readAllActiveCourseOfferingIdsForAcademicSessionResponse

Part Name Element Type Documentation
Response tns:readAllActiveCourseOfferingIdsForAcademicSessionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseSectionIdsForCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:readCourseSectionIdsForCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseSectionIdsForCourseOfferingResponse

Part Name Element Type Documentation
Response tns:readCourseSectionIdsForCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseOfferingsRequest

Part Name Element Type Documentation
Parameters tns:readCourseOfferingsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseOfferingsResponse

Part Name Element Type Documentation
Response tns:readCourseOfferingsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseOfferingsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readCourseOfferingsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseOfferingsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readCourseOfferingsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:updateCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateCourseOfferingResponse

Part Name Element Type Documentation
Response tns:updateCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateCourseOfferingStatusRequest

Part Name Element Type Documentation
Parameters tns:updateCourseOfferingStatusRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateCourseOfferingStatusResponse

Part Name Element Type Documentation
Response tns:updateCourseOfferingStatusResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

replaceCourseOfferingRequest

Part Name Element Type Documentation
Parameters tns:replaceCourseOfferingRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

replaceCourseOfferingResponse

Part Name Element Type Documentation
Response tns:replaceCourseOfferingResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

discoverCourseOfferingIdsRequest

Part Name Element Type Documentation
Parameters tns:discoverCourseOfferingIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

discoverCourseOfferingIdsResponse

Part Name Element Type Documentation
Response tns:discoverCourseOfferingIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

changeCourseOfferingIdentifierRequest

Part Name Element Type Documentation
Parameters tns:changeCourseOfferingIdentifierRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

changeCourseOfferingIdentifierResponse

Part Name Element Type Documentation
Response tns:changeCourseOfferingIdentifierResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:createCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createCourseSectionResponse

Part Name Element Type Documentation
Response tns:createCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createByProxyCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:createByProxyCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createByProxyCourseSectionResponse

Part Name Element Type Documentation
Response tns:createByProxyCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createCourseSectionFromCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:createCourseSectionFromCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createCourseSectionFromCourseSectionResponse

Part Name Element Type Documentation
Response tns:createCourseSectionFromCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

deleteCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:deleteCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

deleteCourseSectionResponse

Part Name Element Type Documentation
Response tns:deleteCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:readCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseSectionResponse

Part Name Element Type Documentation
Response tns:readCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readAllCourseSectionIdsRequest

Part Name Element Type Documentation
Parameters tns:readAllCourseSectionIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readAllCourseSectionIdsResponse

Part Name Element Type Documentation
Response tns:readAllCourseSectionIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseSectionIdsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readCourseSectionIdsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseSectionIdsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readCourseSectionIdsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseSectionsRequest

Part Name Element Type Documentation
Parameters tns:readCourseSectionsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseSectionsResponse

Part Name Element Type Documentation
Response tns:readCourseSectionsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readCourseSectionsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readCourseSectionsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readCourseSectionsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readCourseSectionsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:updateCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateCourseSectionResponse

Part Name Element Type Documentation
Response tns:updateCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateCourseSectionStatusRequest

Part Name Element Type Documentation
Parameters tns:updateCourseSectionStatusRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateCourseSectionStatusResponse

Part Name Element Type Documentation
Response tns:updateCourseSectionStatusResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

replaceCourseSectionRequest

Part Name Element Type Documentation
Parameters tns:replaceCourseSectionRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

replaceCourseSectionResponse

Part Name Element Type Documentation
Response tns:replaceCourseSectionResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

discoverCourseSectionIdsRequest

Part Name Element Type Documentation
Parameters tns:discoverCourseSectionIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

discoverCourseSectionIdsResponse

Part Name Element Type Documentation
Response tns:discoverCourseSectionIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

changeCourseSectionIdentifierRequest

Part Name Element Type Documentation
Parameters tns:changeCourseSectionIdentifierRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

changeCourseSectionIdentifierResponse

Part Name Element Type Documentation
Response tns:changeCourseSectionIdentifierResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createSectionAssociationRequest

Part Name Element Type Documentation
Parameters tns:createSectionAssociationRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createSectionAssociationResponse

Part Name Element Type Documentation
Response tns:createSectionAssociationResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

createByProxySectionAssociationRequest

Part Name Element Type Documentation
Parameters tns:createByProxySectionAssociationRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

createByProxySectionAssociationResponse

Part Name Element Type Documentation
Response tns:createByProxySectionAssociationResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

deleteSectionAssociationRequest

Part Name Element Type Documentation
Parameters tns:deleteSectionAssociationRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

deleteSectionAssociationResponse

Part Name Element Type Documentation
Response tns:deleteSectionAssociationResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readSectionAssociationRequest

Part Name Element Type Documentation
Parameters tns:readSectionAssociationRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readSectionAssociationResponse

Part Name Element Type Documentation
Response tns:readSectionAssociationResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readAllSectionAssociationIdsRequest

Part Name Element Type Documentation
Parameters tns:readAllSectionAssociationIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readAllSectionAssociationIdsResponse

Part Name Element Type Documentation
Response tns:readAllSectionAssociationIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readSectionAssociationIdsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readSectionAssociationIdsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readSectionAssociationIdsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readSectionAssociationIdsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readSectionAssociationsRequest

Part Name Element Type Documentation
Parameters tns:readSectionAssociationsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readSectionAssociationsResponse

Part Name Element Type Documentation
Response tns:readSectionAssociationsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

readSectionAssociationsFromSavePointRequest

Part Name Element Type Documentation
Parameters tns:readSectionAssociationsFromSavePointRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

readSectionAssociationsFromSavePointResponse

Part Name Element Type Documentation
Response tns:readSectionAssociationsFromSavePointResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

addCourseSectionIdRequest

Part Name Element Type Documentation
Parameters tns:addCourseSectionIdRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

addCourseSectionIdResponse

Part Name Element Type Documentation
Response tns:addCourseSectionIdResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

removeCourseSectionIdRequest

Part Name Element Type Documentation
Parameters tns:removeCourseSectionIdRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

removeCourseSectionIdResponse

Part Name Element Type Documentation
Response tns:removeCourseSectionIdResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

updateSectionAssociationRequest

Part Name Element Type Documentation
Parameters tns:updateSectionAssociationRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

updateSectionAssociationResponse

Part Name Element Type Documentation
Response tns:updateSectionAssociationResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

replaceSectionAssociationRequest

Part Name Element Type Documentation
Parameters tns:replaceSectionAssociationRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

replaceSectionAssociationResponse

Part Name Element Type Documentation
Response tns:replaceSectionAssociationResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

discoverSectionAssociationIdsRequest

Part Name Element Type Documentation
Parameters tns:discoverSectionAssociationIdsRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

discoverSectionAssociationIdsResponse

Part Name Element Type Documentation
Response tns:discoverSectionAssociationIdsResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

changeSectionAssociationIdentifierRequest

Part Name Element Type Documentation
Parameters tns:changeSectionAssociationIdentifierRequest N/A
N/A
HeaderInfoParameters tns:imsx_syncRequestHeaderInfo N/A
N/A

changeSectionAssociationIdentifierResponse

Part Name Element Type Documentation
Response tns:changeSectionAssociationIdentifierResponse N/A
N/A
HeaderInfoResponse tns:imsx_syncResponseHeaderInfo N/A
N/A

5. XSD File Documentation

The XSD file documentation has been produced by the Oxygen XML Editing tool.

5.1 Service Data Model

Click on the Section header to access this documentation for the data models in the service description.

5.2 File Data Model

Click on the Section header to access this documentation for the data models for the exchange of Group objects in an external file.

6. Binding of the Vocabularies

The vocabularies in the CMS are:

  • Status values vocabulary – the set of data-types that are permitted for the status field. The PSM for the status vocabulary is shown in Figure 6.1;
  • Extension data-type vocabulary – the set of data-types that are permitted for extensions in the Course data model. The PSM for the extension data-type vocabulary is shown in Figure 6.2.

These vocabularies are the default set maintained under the 1EdTech GLC Vocabulary Registry [SDN11, 06].  It is the responsibility of an implementation to ensure that it is using the correct and latest versions of the vocabulary files.  Changes to the default vocabularies are permitted; this results in the creation of a new vocabulary that should be registered with 1EdTech GLC.  As part of a profiling process entirely new vocabularies may be defined to replace the default set.

Figure 6.1 The PSM representation of the status vocabulary for the CMS.

Figure 6.2 The PSM representation of the extension data-type vocabulary for the CMS.

Appendix A - Listing of the WSDLs

The WSDL bindings are for a Synchronous SOAP implementation only. The WSDL files, expressed using WSDLv1.1, are:

  • The combined WSDL/XSD file (this contains the WSDL and XSD descriptions in a single file) – CourseManagementServicev1p0_SyncSinglev1p0.wsdl
  • The single WSDL file (used in conjunction with the separate XSD file) is available to LIS Alliance members. Click here to join the Alliance. Also available to Alliance members are combined WSDL/XSD files but where each file describes a single interface/port.

These files were generated by the I-BATv0.9.5 tool using the PSM representation described in Section 2.

Appendix B - Listing of the XSDs

The XSD files are:

This file was generated by the I-BATv0.9.5 tool using the PSM representation described in Section 2. Documentation of the XSDs is supplied in Section 5.

Appendix C - Vocabulary VDEX Instance File Listings

The CMS vocabularies are:

These vocabularies are each expressed as an instance of the 1EdTech GLC Vocabulary Data Exchange (VDEX) v1.0 specification. Documentation of the vocabulary is supplied in Section 6. The online versions of these vocabularies are available in the directory: /vdex/lis/cmsv1p0/.

Appendix D - Example SOAP Messages

The set of examples for the SOAP messages are listed in Tables D.1 (CourseTemplate), D.2 (Course Offering), D.3 (Course Section) and D.4 (Section Association).

Table D.1 The set of SOAP message examples for each operation for the CourseTemplate port.

Operation Name Input (Request) SOAP Message Output (Response) SOAP Message
createCourseTemplate createCourseTemplateRequest createCourseTemplateResponse
createByProxyCourseTemplate createByProxyCourseTemplateRequest createByProxyCourseTemplateResponse
deleteCourseTemplate deleteCourseTemplateRequest deleteCourseTemplateResponse
readCourseTemplate readCourseTemplateRequest readCourseTemplateResponse
readAllCourseTemplateIds readAllCourseTemplateIdsRequest readAllCourseTemplateIdsResponse
readCourseTemplateIdsFromSavePoint readCourseTemplateIdsFromSavePointRequest readCourseTemplateIdsFromSavePointResponse
readCourseTemplates readCourseTemplatesRequest readCourseTemplatesResponse
readCourseTemplatesFromSavePoint readCourseTemplatesFromSavePointRequest readCourseTemplatesFromSavePointResponse
readCourseOfferingIdsForCourseTemplate readCourseOfferingIdsForCourseTemplateRequest readCourseOfferingIdsForCourseTemplateResponse
updateCourseTemplate updateCourseTemplateRequest updateCourseTemplateResponse
replaceCourseTemplate replaceCourseTemplateRequest replaceCourseTemplateResponse
discoverCourseTemplateIds discoverCourseTemplateIdsRequest discoverCourseTemplateIdsResponse
changeCourseTemplateIdentifier changeCourseTemplateIdentifierRequest changeCourseTemplateIdentifierResponse

Table D.2 The set of SOAP message examples for each operation for the CourseOffering port.

Operation Name Input (Request) SOAP Message Output (Response) SOAP Message
createCourseOffering createCourseOfferingRequest createCourseOfferingResponse
createCourseOfferingFromCourseOffering createCourseOfferingFromCourseOfferingRequest createCourseOfferingFromCourseOfferingResponse
createByProxyCourseOffering createByProxyCourseOfferingRequest createByProxyCourseOfferingResponse
deleteCourseOffering deleteCourseOfferingRequest deleteCourseOfferingResponse
readCourseOffering readCourseOfferingRequest readCourseOfferingResponse
readAllCourseOfferingIds readAllCourseOfferingIdsRequest readAllCourseOfferingIdsResponse
readCourseOfferingIdsFromSavePoint readCourseOfferingIdsFromSavePointRequest readCourseOfferingIdsFromSavePointResponse
readAllActiveCourseOfferingIdsForAcademicSession readAllActiveCourseOfferingIdsForAcademicSessionRequest readAllActiveCourseOfferingIdsForAcademicSessionResponse
readCourseSectionIdsForCourseOffering readCourseSectionIdsForCourseOfferingRequest readCourseSectionIdsForCourseOfferingResponse
readCourseOfferings readCourseOfferingsRequest readCourseOfferingsResponse
readCourseOfferingsFromSavePoint readCourseOfferingsFromSavePointRequest readCourseOfferingsFromSavePointResponse
updateCourseOffering updateCourseOfferingRequest updateCourseOfferingResponse
updateCourseOfferingStatus updateCourseOfferingStatusRequest updateCourseOfferingStatusResponse
replaceCourseOffering replaceCourseOfferingRequest replaceCourseOfferingResponse
discoverCourseOfferingIds discoverCourseOfferingIdsRequest discoverCourseOfferingIdsResponse
changeCourseOfferingIdentifier changeCourseOfferingIdentifierRequest changeCourseOfferingIdentifierResponse

Table D.3 The set of SOAP message examples for each operation for the CourseSection port.

Operation Name Input (Request) SOAP Message Output (Response) SOAP Message
createCourseSection createCourseSectionRequest createCourseSectionResponse
createCourseSectionFromCourseSection createCourseSectionFromCourseSectionRequest createCourseSectionFromCourseSectionResponse
createByProxyCourseSection createByProxyCourseSectionRequest createByProxyCourseSectionResponse
deleteCourseSection deleteCourseSectionRequest deleteCourseSectionResponse
readCourseSection readCourseSectionRequest readCourseSectionResponse
readAllCourseSectionIds readAllCourseSectionIdsRequest readAllCourseSectionIdsResponse
readCourseSectionIdsFromSavePoint readCourseSectionIdsFromSavePointRequest readCourseSectionIdsFromSavePointResponse
readCourseSections readCourseSectionsRequest readCourseSectionsResponse
readCourseSectionsFromSavePoint readCourseSectionsFromSavePointRequest readCourseSectionsFromSavePointResponse
updateCourseSection updateCourseSectionRequest updateCourseSectionResponse
updateCourseSectionStatus updateCourseSectionStatusRequest updateCourseSectionStatusResponse
replaceCourseSection replaceCourseSectionRequest replaceCourseSectionResponse
discoverCourseSectionIds discoverCourseSectionIdsRequest discoverCourseSectionIdsResponse
changeCourseSectionIdentifier changeCourseSectionIdentifierRequest changeCourseSectionIdentifierResponse

Table D.4 The set of SOAP message examples for each operation for the SectionAssociation port.

Operation Name Input (Request) SOAP Message Output (Response) SOAP Message
createSectionAssociation createSectionAssociationRequest createSectionAssociationResponse
createByProxySectionAssociation createByProxySectionAssociationRequest createByProxySectionAssociationResponse
deleteSectionAssociation deleteSectionAssociationRequest deleteSectionAssociationResponse
readSectionAssociation readSectionAssociationRequest readSectionAssociationResponse
readAllSectionAssociationIds readAllSectionAssociationIdsRequest readAllSectionAssociationIdsResponse
readSectionAssociationIdsFromSavePoint readSectionAssociationIdsFromSavePointRequest readSectionAssociationIdsFromSavePointResponse
readSectionAssociations readSectionAssociationsRequest readSectionAssociationsResponse
readSectionAssociationsFromSavePoint readSectionAssociationsFromSavePointRequest readSectionAssociationsFromSavePointResponse
addCourseSectionId addCourseSectionIdRequest addCourseSectionIdResponse
removeCourseSectionId removeCourseSectionIdRequest removeCourseSectionIdResponse
updateSectionAssociation updateSectionAssociationRequest updateSectionAssociationResponse
replaceSectionAssociation replaceSectionAssociationRequest replaceSectionAssociationResponse
discoverSectionAssociationIds discoverSectionAssociationIdsRequest discoverSectionAssociationIdsResponse
changeSectionAssociationIdentifier changeSectionAssociationIdentifierRequest changeSectionAssociationIdentifierResponse

About This Document

Title 1EdTech GLC Course Management Service WSDL/XSD Binding
Editor Colin Smythe (1EdTech GLC)
Co-Chairs Linda Feng (Oracle), Bill Lee (Desire2learn)
Version 1.0
Version Date 30 June 2011
Release Final 1.0
Status Final Release
Summary This document contains the description of the 1EdTech GLC Course Management Service v1.0 WSDL/XSD binding. This service is used to exchange information about Courses. The conceptual data model for a course consists of Templates, Offerings, Sections and Associations. The business transactions include the simple create, read, update and delete of the Course data model for a single instance. This document contains the definition of the corresponding Web Service based upon SOAP/HTTP messaging.
Revision Information Original release.
Purpose This document is made available for adoption by the public community at large.
Document Location /lis/

List of Contributors

The following individuals contributed to the development of this document:

Name Organization
Kerry Blinco DEEWR (Australia)
Kirk Bunte SungardHE (USA)
Angus Chan Desire2learn (Canada)
Adam Cooper JISC (UK)
Michael Feldstein Cengage (USA)
Linda Feng Oracle (USA)
John Fontaine Blackboard (USA)
Chris Hatton Pearson (USA)
Karen Kuffner University of Michigan (USA)
Zack Leavitt eCollege (USA)
Bill Lee Desire2learn (Canada)
Richard Moon SungardHE (USA)
Mike Parkhill Desire2learn (Canada)
Colin Smythe 1EdTech Consortium, Inc.
Reinhold Staudinger Blackboard (USA)
Nick Terrible University of Wisconsin (USA)
Jason Zhong SungardHE (USA)

Revision History

Version No. Release Date Comments
Final Release 1.0 30 June 2011 The first formal release of the Final Release version of this document.



1EdTech Consortium, Inc. (“1EdTech GLC”) is publishing the information contained in this document (“Specification”) for purposes of scientific, experimental, and scholarly collaboration only.

1EdTech GLC makes no warranty or representation regarding the accuracy or completeness of the Specification.

This material is provided on an “As Is” and “As Available” basis.

The Specification is at all times subject to change and revision without notice.

It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.

1EdTech GLC would appreciate receiving your comments and suggestions.

Please contact 1EdTech GLC through our website at .

Please refer to Document Name: 1EdTech GLC CMS v1.0 WSDL/XSD Binding Final Release v1.0

Date: 30 June 2011.

The names 1EdTech® and IMS Global Learning Consortium®, the 1EdTech logos, Better Learning From Better Learning Technology®, TrustEd Apps™, 1EdTech TrustEd Apps™, Learning Tools Interoperability®, LTI®, IMS LTI®, IMS Learning Tools Interoperability®, OneRoster®, Caliper Analytics®, Question & Test Interoperability (QTI)®, QTI®, Common Cartridge®, Competencies and Academic Standards Exchange®, CASE®, Competencies and Academic Standards Exchange (CASE)®, Accessible Portable Item Protocol (APIP)®, AccessForAll®, Badge Connect®, Comprehensive Learner Record Standard™, and CLR Standard™ are trademarks of 1EdTech Consortium, Inc. in the United States and/or other countries. All other trademarks and registered trademarks are the properties of their respective owners.

For information on the 1EdTech trademark usage policy, see our trademark policy page.

Connect on LinkedInX logo View 1EdTech on YouTube

© 2001-2023 1EdTech Consortium Inc. All Rights Reserved. Privacy Policy
