1EdTech GLC Outcomes Management Service WSDL/XSD Binding

Version 1.0 Public Draft Specification

Draft 2.0

Date Issued: 30 June 2011

Latest version: /lis/

IPR and Distribution Notices

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the specification set forth in this document, and to provide supporting documentation.

1EdTech takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on 1EdTech's procedures with respect to rights in 1EdTech specifications can be found at the 1EdTech Intellectual Property Rights web page: /imsipr_policyFinal.pdf.

If you wish to copy or distribute this document, you must complete a valid Registered User license registration with 1EdTech and receive an email from 1EdTech granting the license to distribute the specification. To register, follow the instructions on the 1EdTech website: /specificationdownload.cfm

This document may be copied and furnished to others by Registered Users who have registered on the 1EdTech website provided that the above copyright notice and this paragraph are included on all such copies. However, this document itself may not be modified in any way, such as by removing the copyright notice or references to 1EdTech, except as needed for the purpose of developing 1EdTech specifications, under the auspices of a chartered 1EdTech project group.

Use of this specification to develop products or services is governed by the license with 1EdTech found on the 1EdTech website: /license.html

The limited permissions granted above are perpetual and will not be revoked by 1EdTech or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTER'S OWN RISK, AND NEITHER THE CONSORTIUM, NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

top

1. Introduction

This document is a part of the 1EdTech GLC Outcomes Management Service (OMS) v1.0 specification. The binding details how the Outcomes Management Service Information Model is realised as a Web Service; in the form of a Web Services Description Language (WSDL) file. The OMS binding is contained in a set of WSDL, XSD and vocabulary files. The vocabulary files are instances of the 1EdTech Vocabulary Definition Exchange specification [VDEX, 04a], [VDEX, 04b]. The 1EdTech GLC Learning Information Services (LIS) Best Practice and Implementation Guide [LIS, 11b] provides non-normative guidance on how to use the Binding and Information Model. For a conceptual overview of the LIS Specification, please see the overall services description [LIS, 11a]. For a discussion of potential applications, see the Best Practice Guide.

1.1 Scope and Context

The 1EdTech GLC OMS WSDL Binding v1.0 is used in conjunction with the following documents:

1EdTech GLC Outcomes Management Service Information Model v1.0 [OMS, 011] – the behaviour and data model definition of the Outcomes Management Service;
1EdTech GLC Learning Information Services Best Practice and Implementation Guide v1.0 [LIS, 11b] – key information on how to adopt and implement the specification.

This is the frst version of the Outcomes Management Services specification..

This WSDL binding takes the Outcomes Management Service Information Model and produces an encoding of that description in WSDL. This WSDL binding is generated as recommended by the 1EdTech GLC General Web Services documents [GWS, 06a], [GWS, 06b]. The WSDL is created using the IMC GLC Binding Auto-generation Tool-kit (I-BAT) [I-BAT, 06].

1.2 Structure of this Document

The structure of this document is:

2. Platform Specific Model of the Binding	The description platform specific models in the form of the 1EdTech GLC UML-Profile service/data models representation of the 1EdTech GLC OMS specification information model. This representation is used by the 1EdTech GLC I-BAT tool to auto-generate the corresponding WSDL/XSDs;
3. Application of the Binding Guidelines	Explanation of how the platform specific model is realised as the WSDL/XSD binding. This addresses how the information model is realised as a Web Service;
4. WSDL File Documentation	The description of the Web Services used to realise the service model components of the binding. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 12.1 product;
5. XSD File Documentation	The description of the elements used within the data model components of the binding. This part of the binding document was created using the schema documentation tool provided as part of the Oxygen 12.1 product;
6. Vocabulary Binding Using VDEX Instances	Contains the description of how the set of external vocabulary files realised as VDEX files;
Appendix A - Listing of the WSDL Files	This is the full listing of the OMS WSDL files;
Appendix B - Listing of the XSD Files	This is the full listing of the OMS XSD files;
Appendix C - Vocabulary VDEX Instance File Listings	This is the full listing of the set of external vocabulary VDEX instance files.
Appendix D - Examples SOAP Messages	Examples of the SOAP messages that are exchanged to realise the service.

1.3 Nomenclature

HTTP	HyperText Transfer Protocol
I-BAT	1EdTech GLC Binding Auto-generation Tool-kit
1EdTech GLC	1EdTech Consortium
LIS	Learning Information Services
MDA	Model Driven Architecture
OMS	Outcomes Management Service
PIM	Protocol Independent Model
PSM	Platform Specific Model
UML	Unified Modelling Language
VDEX	Vocabulary Definition Exchange
W3C	World Wide Web Consortium
WSDL	Wed Services Description Language
XMI	XML Meta-data Interchange
XML	Extensible Mark-up Language
XSD	XML Schema Definition
XSL	Extensible Stylesheet Language
XSLT	XSL Transformations

1.4 References

[GWS, 06a]	1EdTech GLC General Web Services Base Profile Specification Final Release v1.0, C.Schroeder, J.Simon and C.Smythe, 1EdTech Consortium, January 2006.
[GWS, 06b]	1EdTech GLC General Web Services WSDL Binding Guidelines Final Release v1.0, C.Schroeder, J.Simon and C.Smythe, 1EdTech Consortium, January 2006.
[I-BAT, 06]	1EdTech Binding Auto-generation Toolkit Manual v1.0, C.Smythe, 1EdTech Consortium, July 2006.
[LIS, 11a]	1EdTech GLC Learning Information Services v2.0 Specification Final Release v1.0, L.Feng, B.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[LIS, 11b]	1EdTech GLC Learning Information Services v2.0 Best Practice and Implementation Guide Final Release v1.0, L.Feng, B.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[OMS, 11]	1EdTech GLC Outcomes Management Services v2.0 Information Model Specification Final Release v1.0, L.Feng, B.Lee and C.Smythe, 1EdTech Consortium, May 2011.
[SDN11, 06]	1EdTech GLC Specification Note 11: Vocabulary Definition, Registration & Maintenance Procedures, C.Smythe, 1EdTech Consortium, October 2006.
[VDEX, 04a]	1EdTech Vocabulary Definition Exchange Information Model Specification Final Release v1.0, A.Cooper, 1EdTech Consortium, February 2004.
[VDEX, 04b]	1EdTech Vocabulary Definition Exchange XML Binding Specification Final Release v1.0, A.Cooper, 1EdTech Consortium, February 2004.

top | toc

2. Platform Specific Model of the Binding

2.1 Service Description

Figure 2.1 is the PSM of the service group model description for the OMS. This information is used to establish the mapping to the binding flavors of WSDL.

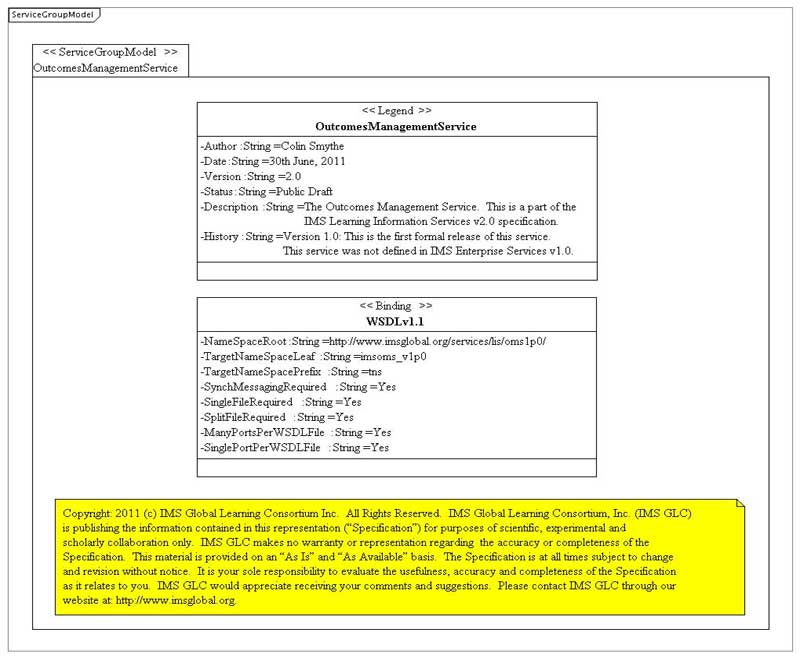

Figure 2.1 The PSM representation of the service group model description for the OMS.

Figure 2.2 is the PSM of the service model description for the OMS. The PSM is derived from the Platform Independent Model that was documented within the information model for the OMS specification [OMS, 10].

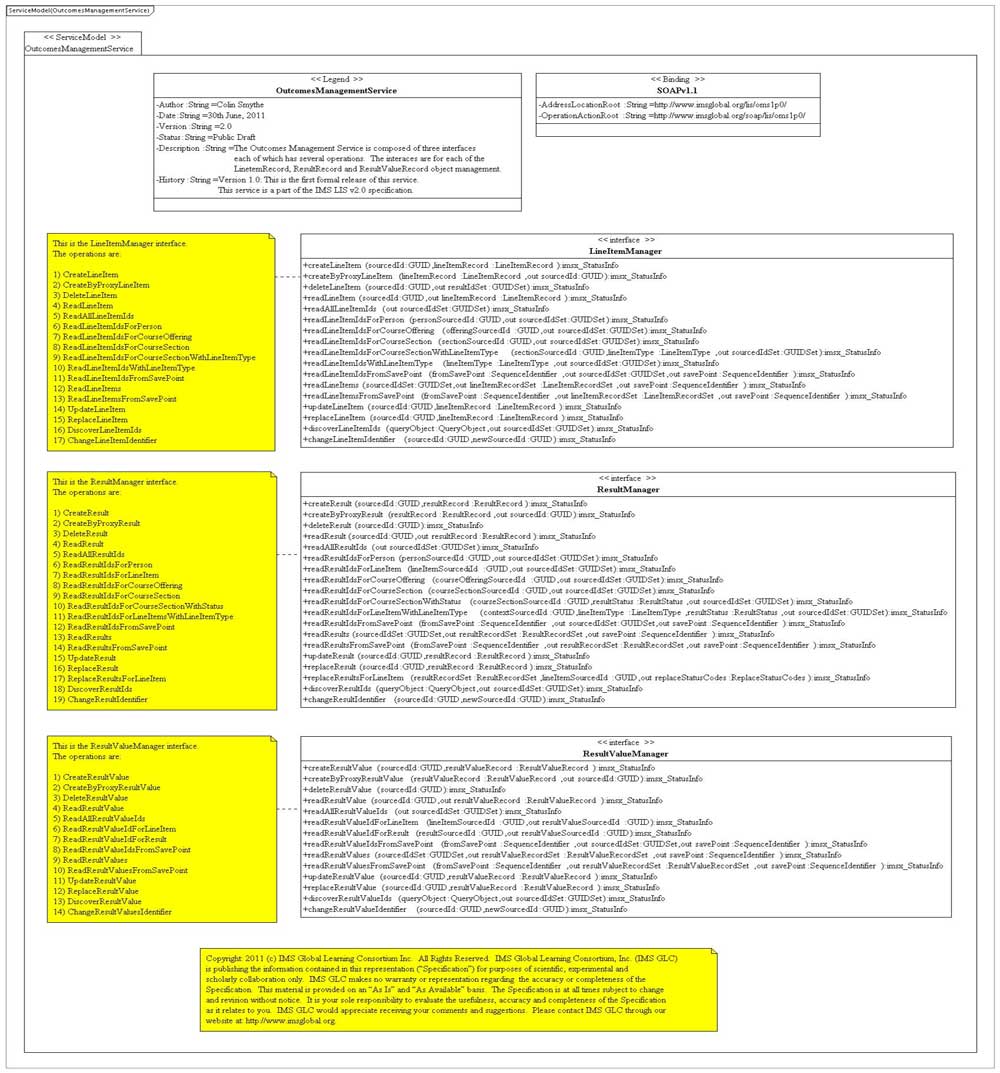

Figure 2.2 The PSM representation of the service model description for the OMS.

2.2 Data for the Service Operations

The data model for the service operations is shown in Figure 2.3 and 2.4. Figure 2.3 shows the data models for the set of parameters. Figure 2.4 is the data model for the Status Information and other WSDL-specific binding data structures.

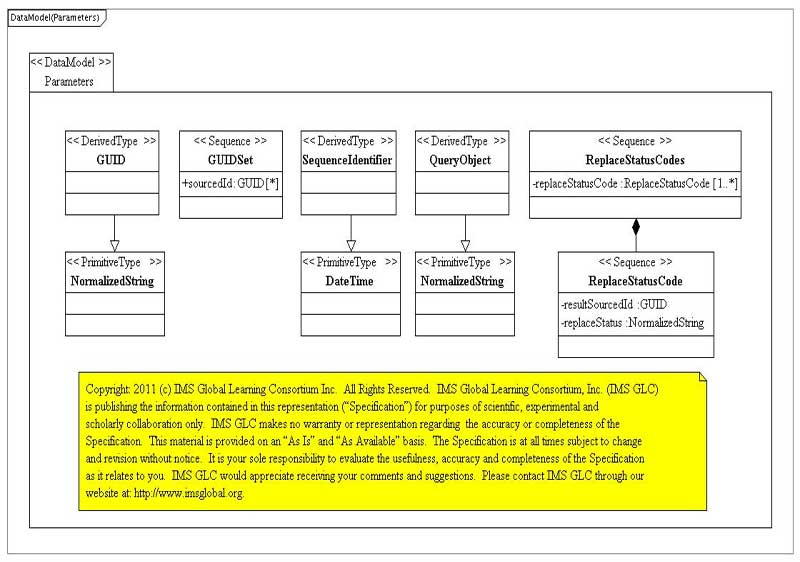

Figure 2.3 The PSM representation of the parameters data model description for the OMS.

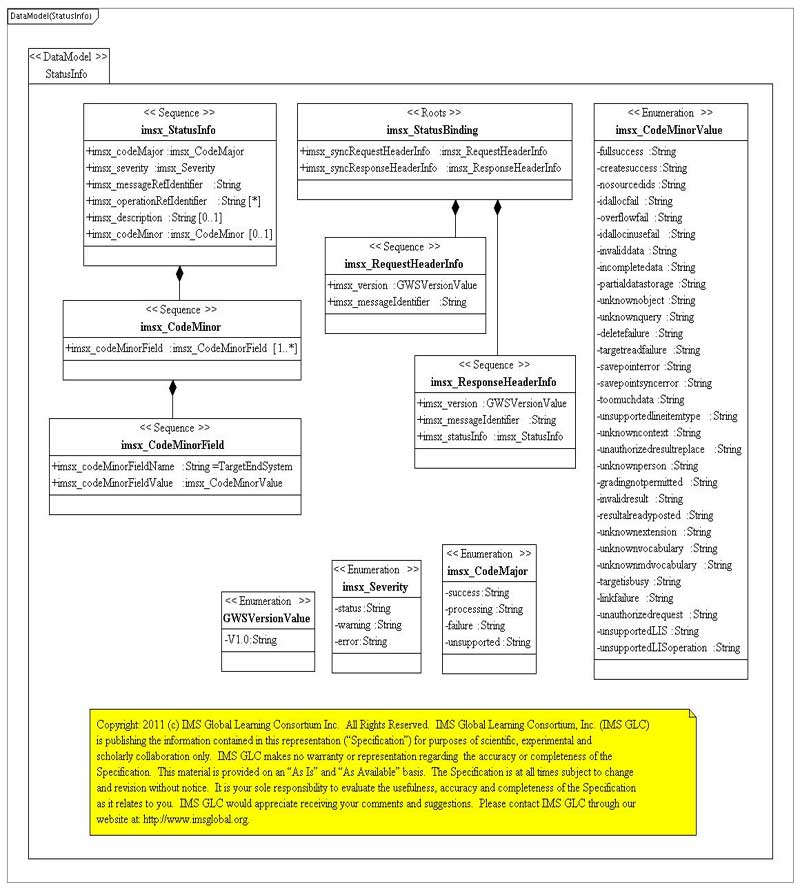

Figure 2.4 The PSM representation of the status information data model description for the OMS.

2.3 Outcomes Data Models

The PSM for the Outcomes data models are shown in Figures 2.5, 2.6, 2.7 and 2.8. Figure 2.5 is the LineItem data model, Figure 2.6 is the Result data model, Figure 2.7 is the ResultValue data model and Figure 2.8 contains the set of common data model classes.

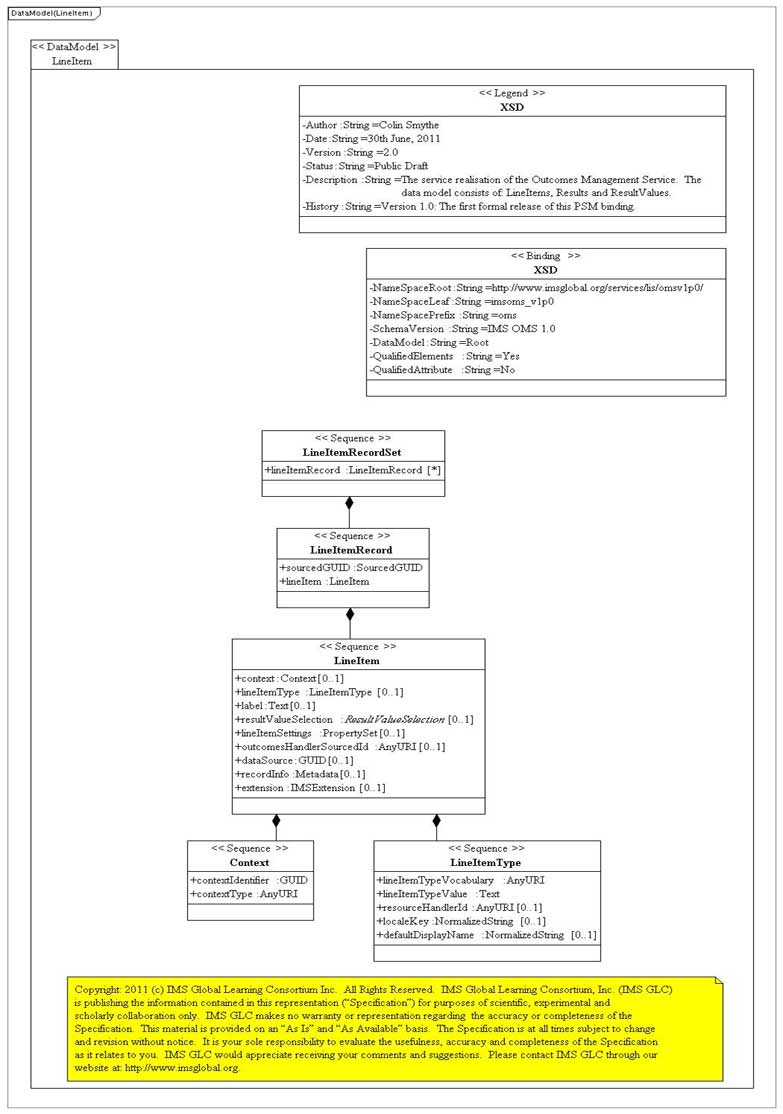

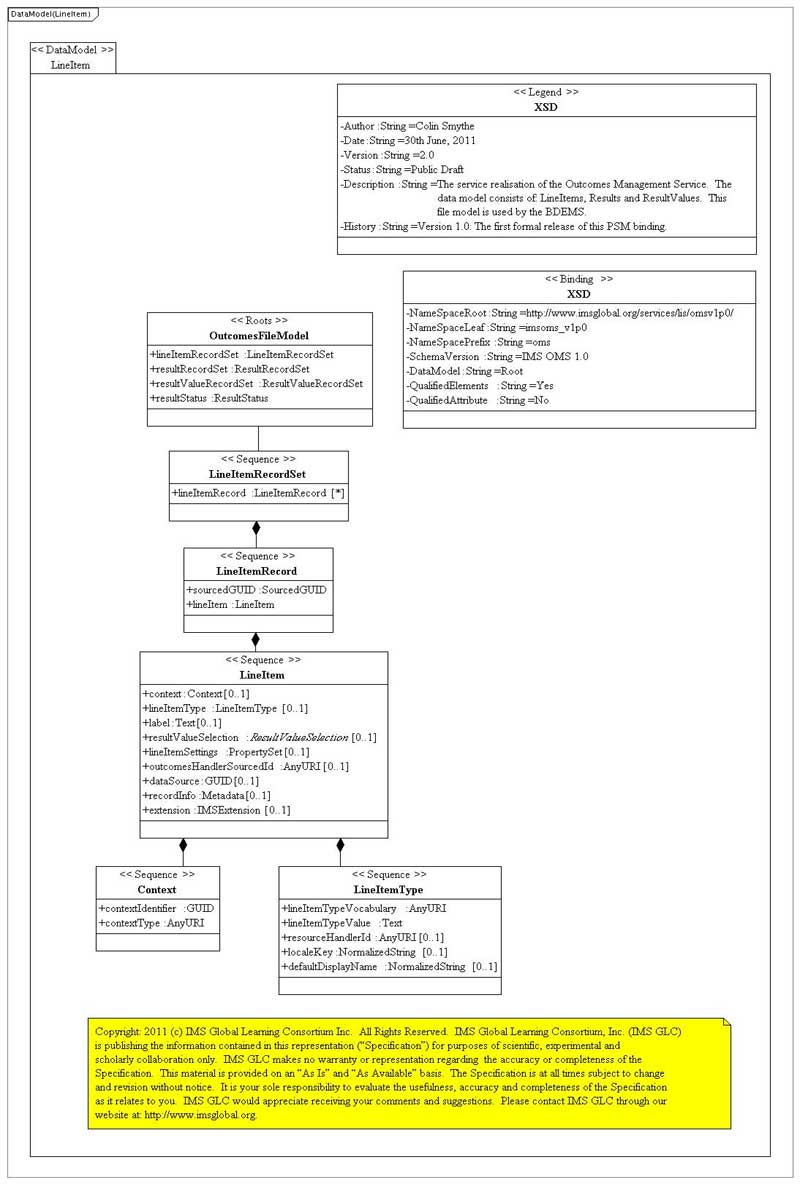

Figure 2.5 The PSM representation of the LineItem data model description for the OMS.

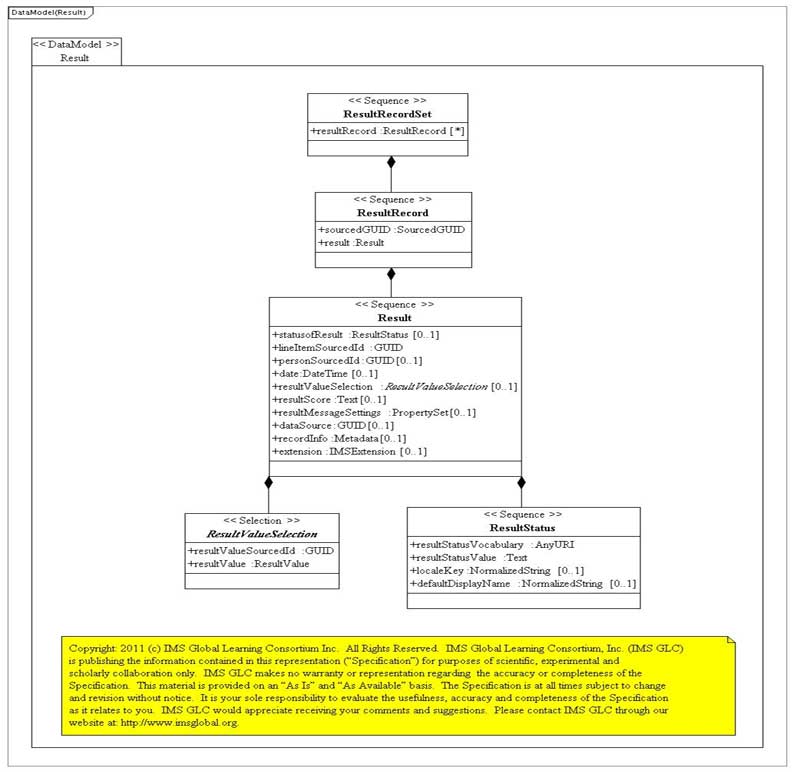

Figure 2.6 The PSM representation of the Result data model description for the OMS.

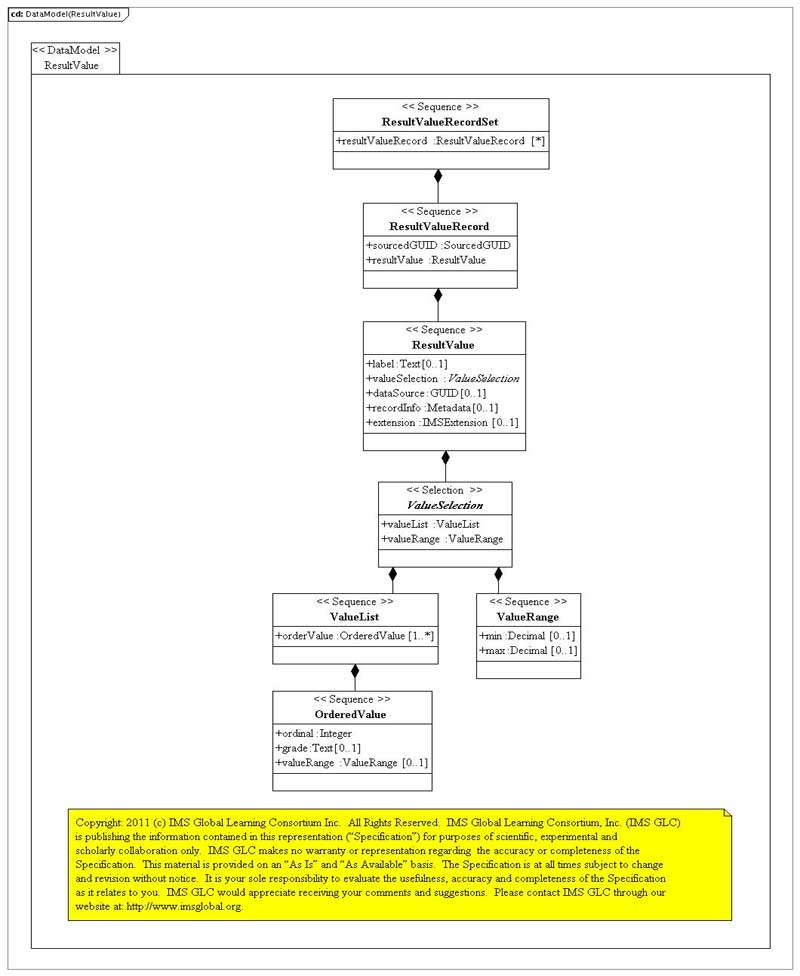

Figure 2.7 The PSM representation of the ResultValue data model description for the OMS.

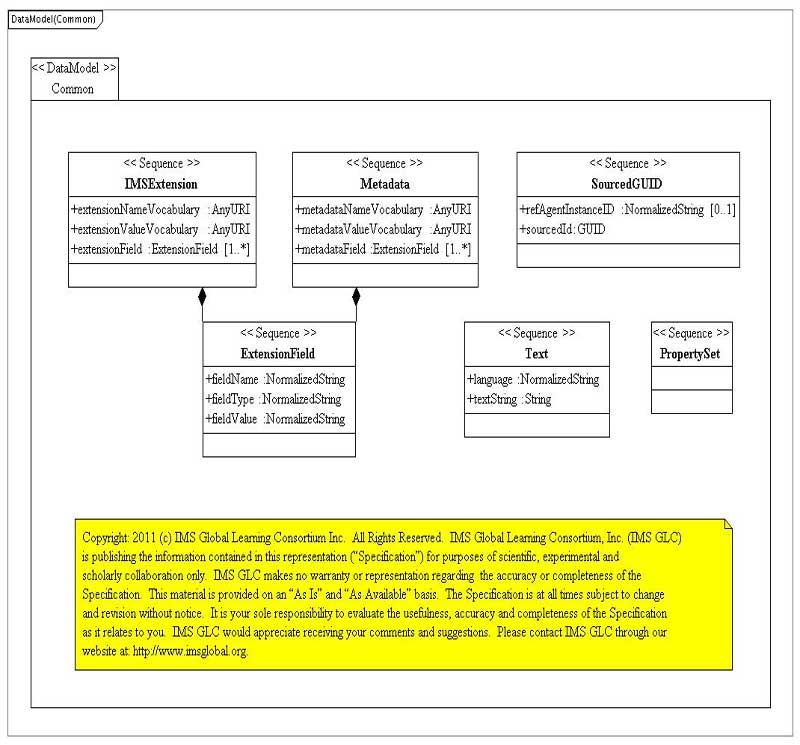

Figure 2.8 The PSM representation of the common data models description for the OMS.

2.4 File-based Data Exchange Data Model

The PSM for the file-based Outcomes data models are shown in Figures 2.9, 2.10, 2.11 and 2.12. Figure 2.9 is the LIneItemRecord data model, Figure 2.10 is the ResultRecord data model, Figure 2.11 is the ResultValueRecord data model and Figure 2.12 contains the set of common data model classes.

Figure 2.9 The PSM representation of the LineItemRecord data model description for file storage in the OMS.

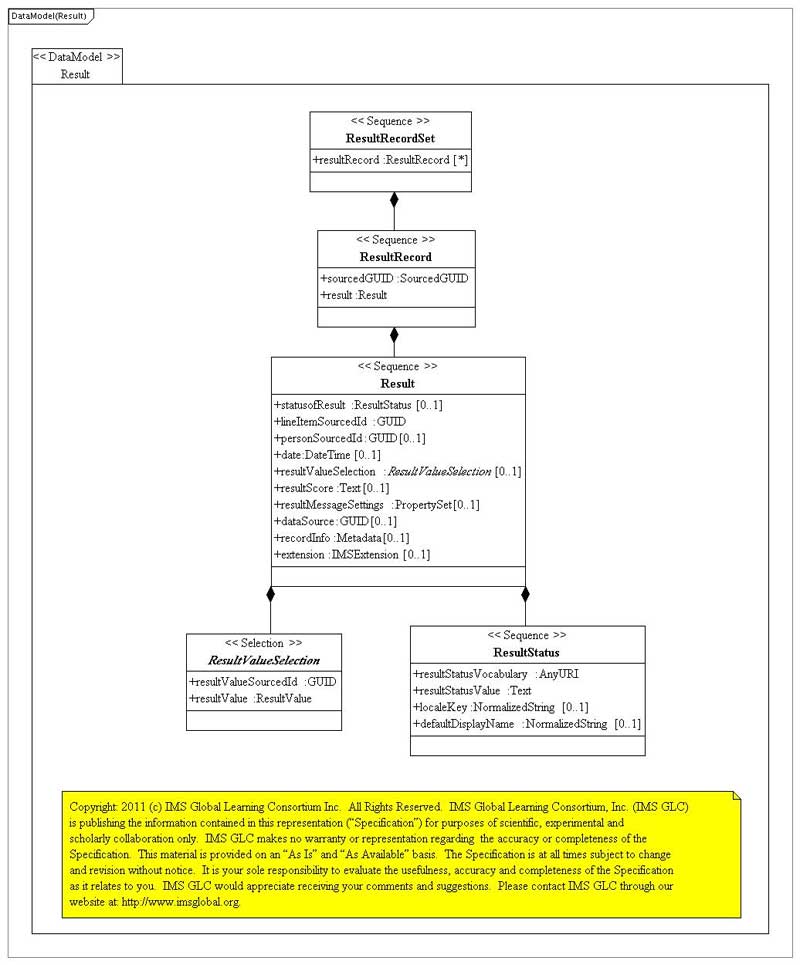

Figure 2.10 The PSM representation of the ResultRecord data model description for file storage in the OMS.

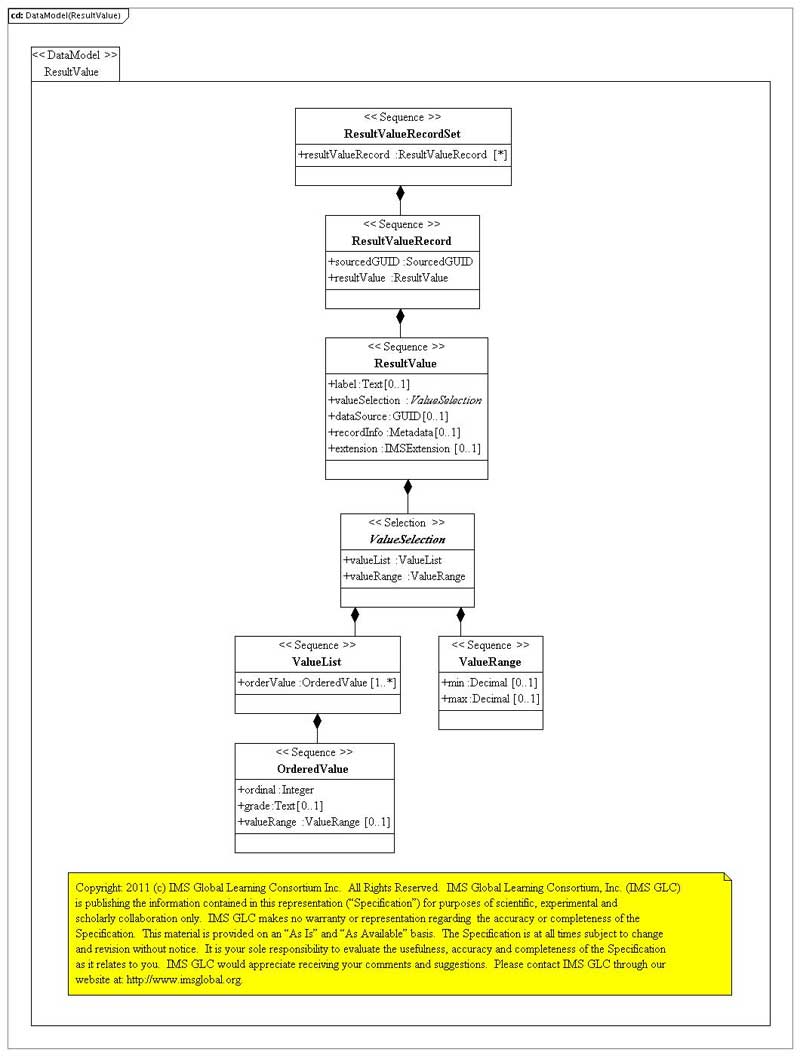

Figure 2.11 The PSM representation of the ResultValueRecord data model description for file storage in the OMS.

Figure 2.12 The PSM representation of the common data model description for file storage in the OMS.

top | toc

3. Application of the Binding Guidelines

The WSDL/XSD bindings have been generated using the methodology documented in [GWS 06a] and [GWS, 06b]. Only the synchronous service binding has been created. The binding files are available in three forms:

A single combined WSDL/XSD – OutcomesManagementServicev1p0_SyncSingle_v1p0.wsdl;
As single combined WSDL/XSD for each interface – OutcomesManagementServicev1p0_LineItemManagerSyncSingle_v1p0.wsdl, OutcomesManagementServicev1p0_ResultManagerSyncSingle_v1p0.wsdl and OutcomesManagementServicev1p0_ResultValueManagerSyncSingle_v1p0.wsdl
Separated WSDL and XSD files – OutcomesManagementServicev1p0_SyncWSDL_v1p0.wsdl and OutcomesManagementServiceSyncXSD.xsd respectively.

It is recommended that only the combined form is used (many WSDL-based code generation tools do not process the 'import' instructions).

The mapping between the PIM and PSM descriptions is detailed in Table 3.1.

Table 3.1 Mapping between the PIM, PSM and XSD descriptions for the data models.

PSM Reference			PIM Reference		XSD Reference
Name	UML Type	Figure	Type	Table	Name	Type
LineItemRecordSet	Class	2.5	–	_	LineItemRecordSet.Type	ComplexType
lineItemRecord	Attribute	2.5	LineItemRecord	5.3	lineItemRecord	Element
LineItemRecord	Class	2.5	–	5.6	LineItemRecord.Type	ComplexType
sourcedGUID	Attribute	2.5	SourcedGUID	5.7	sourcedGUID	Element
lineItem	Attribute	2.5	LineItem	5.8	lineItem	Element
LineItem	Class	2.5	–	5.23	LineItem.Type	ComplexType
context	Attribute	2.5	Context	5.24	context	Element
lineItemType	Attribute	2.5	LineItemType	5.25	lineItemType	Element
label	Attribute	2.5	NormalizedString	5.26	label	Element
resultValueSourcedId	Attribute	2.5	GUID	5.27	resultValueSourcedId	Element
resultValue	Attribute	2.5	ResultValue	5.28	resultValue	Element
lineItemMessageSettings	Attribute	2.5	PropertySet	5.29	lineItemMessageSettings	Element
outcomesHandlerSourcedId	Attribute	2.5	URI	5.30	outcomesHandlerSourcedId	Element
dataSource	Attribute	2.5	GUID	5.31	dataSource	Element
recordInfo	Attribute	2.5	Metadata	5.32	recordInfo	Element
extension	Attribute	2.5	IMSExtension	5.33	extension	Element
Context	Class	2.5	–	5.34	Context.Type	ComplexType
contextIdentifier	Attribute	2.5	GUID	5.35	contextIdentifier	Element
contextType	Attribute	2.5	URI	5.36	contextType	Element
LineItemType	Class	2.5	–	5.37	LineItemType.Type	ComplexType
lineItemTypeVocabulary	Attribute	2.5	URI	5.38	lineItemTypeVocabulary	Element
lineItemTypeValue	Attribute	2.5	Text	5.39	lineItemTypeValue	Element
resourceHandlerSourcedId	Attribute	2.5	URI	5.40	resourceHandlerSourcedId	Element
localKey	Attribute	2.5	NormalizedString	5.41	localKey	Element
defaultDisplayName	Attribute	2.5	NormalizedString	5.42	defaultDisplayName	Element
ResultRecordSet	Class	2.6	–	_	ResultRecordSet.Type	ComplexType
resultRecord	Attribute	2.6	resultRecord	5.4	resultRecord	Element
ResultRecord	Class	2.6	–	5.9	ResultRecord.Type	ComplexType
sourcedGUID	Attribute	2.5	SourcedGUID	5.10	sourcedGUID	Element
result	Attribute	2.6	Result	5.11	result	Element
Result	Class	2.6	–	5.43	Result.Type	ComplexType
statusofResult	Attribute	2.6	ResultStatus	5.44	statusofResult	Element
lineItemSourcedId	Attribute	2.6	GUID	5.45	lineItemSourcedId	Element
personSourcedId	Attribute	2.6	GUID	5.46	personSourcedId	Element
date	Attribute	2.6	DateTime	5.47	dateTime	Element
resultValueSourcedId	Attribute	2.6	GUID	5.48	resultValueSourcedId	Element
resultValue	Attribute	2.6	ResultValue	5.49	resultValue	Element
resultScore	Attribute	2.6	Text	5.50	resultScore	Element
resultMessageSettings	Attribute	2.5	PropertySet	5.51	resultMessageSettings	Element
dataSource	Attribute	2.6	GUID	5.52	dataSource	Element
recordInfo	Attribute	2.6	Metadata	5.53	recordInfo	Element
extension	Attribute	2.6	IMSExtension	5.54	extension	Element
ResultStatus	Class	2.6	–	TBD	ResultStatus.Type	ComplexType
resultStatusVocabulary	Attribute	2.5	URI	5.55	resultStatusVocabulary	Element
resultStatusValue	Attribute	2.5	Text	5.56	resultStatusValue	Element
localKey	Attribute	2.5	NormalizedString	5.57	localKey	Element
defaultDisplayName	Attribute	2.5	NormalizedString	5.58	defaultDisplayName	Element
ResultValueRecordSet	Class	2.7	–	_	ResultValueRecordSet.Type	ComplexType
resultValueRecord	Attribute	2.7	resultValueRecord	5.5	resultValueRecord	Element
ResultValueRecord	Class	2.7	–	5.12	ResultValueRecord.Type	ComplexType
sourcedGUID	Attribute	2.7	SourcedGUID	5.13	sourcedGUID	Element
resultValue	Attribute	2.7	ResultValue	5.14	resultValue	Element
ResultValue	Class	2.7	–	5.59	ResultValue.Type	ComplexType
label	Attribute	2.7	Text	5.60	label	Element
valueList	Attribute	2.7	ValueList	5.61	valueList	Element
valueRange	Attribute	2.7	ValueRange	5.62	valueRange	Element
dataSource	Attribute	2.7	GUID	5.63	dataSource	Element
recordInfo	Attribute	2.7	Metadata	5.64	recordInfo	Element
extension	Attribute	2.7	IMSExtension	5.65	extension	Element
ValueList	Class	2.7	–	5.66	ValueList.Type	ComplexType
orderedValue	Attribute	2.7	OrderedValue	5.67	orderedValue	Element
OrderedValue	Class	2.7	–	5.68	OrderedValue.Type	ComplexType
ordinal	Attribute	2.7	Integer	5.69	ordinal	Element
grade	Attribute	2.7	Text	5.70	grade	Element
valueRange	Attribute	2.7	ValueRange	5.71	valueRange	Element
ValueRange	Class	2.7	–	5.72	ValueList.Type	ComplexType
min	Attribute	2.7	Real	5.73	min	Element
max	Attribute	2.7	Real	5.74	max	Element
Metadata	Class	2.8	–	5.75	Metadata.Type	ComplexType
metadataNameVocabulary	Attribute	2.8	URI	5.76	metadataNameVocabulary	Element
metadataValueVocabulary	Attribute	2.8	URI	5.77	metadataValueVocabulary	Element
metadataField	Attribute	2.8	ExtensionField	5.78	metadataField	Element
IMSExtension	Class	2.8	–	5.79	IMSExtension.Type	ComplexType
extensionNameVocabulary	Attribute	2.8	URI	5.80	extensionNameVocabulary	Element
extensionValueVocabulary	Attribute	2.8	URI	5.81	extensionValueVocabulary	Element
extensionField	Attribute	2.8	ExtensionField	5.82	extensionField	Element
ExtensionField	Class	2.8	–	5.83	ExtensionField.Type	ComplexType
fieldName	Attribute	2.8	NormalizedString	5.84	fieldName	Element
fieldType	Attribute	2.8	NormalizedString	5.85	fieldType	Element
fieldValue	Attribute	2.8	NormalizedString	5.86	fieldValue	Element
Text	Class	2.8	–	5.87	Text.Type	ComplexType
language	Attribute	2.8	NormalizedString	5.88	language	Element
textString	Attribute	2.8	String	5.89	textString	Element
SourcedGUID	Class	2.8	–	5.90	SourcedGUID.Type	ComplexType
refAgentInstanceID	Attribute	2.8	NormalizedString	5.91	refAgentInstanceID	Element
sourcedId	Attribute	2.8	GUID	5.92	sourcedGUID	Element
imsx_StatusInfo	Class	2.4	–	See 1EdTech GWSv1.0	imsx_StatusInfo.Type	ComplexType
imsx_codeMajor	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_codeMajor	Element
imsx_severity	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_severity	Element
imsx_messageRefIdentifier	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_messageRefIdentifier	Element
imsx_operationRefIdentifier	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_operationRefIdentifier	Element
imsx_description	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_description	Element
imsx_codeMinor	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_codeMinor	Element
imsx_CodeMinor	Class	2.4	–	See 1EdTech GWSv1.0	imsx_CodeMinor.Type	ComplexType
imsx_codeMinorField	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_codeMinorField	Element
imsx_CodeMinorField	Class	2.4	–	See 1EdTech GWSv1.0	imsx_CodeMinorField.Type	ComplexType
imsx_codeMinorFieldName	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_codeMinorFieldName	Element
imsx_codeMinorFieldValue	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_codeMinorFieldValue	Element
imsx_StatusBinding	Class	2.4	–	See 1EdTech GWSv1.0	imsx_StatusBinding.Type	ComplexType
imsx_syncRequestHeaderInfo	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_syncRequestHeaderInfo	Element
imsx_syncResponseHeaderInfo	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_syncResponseHeaderInfo	Element
imsx_RequestHeaderInfo	Class	2.4	–	See 1EdTech GWSv1.0	imsx_RequestHeaderInfo.Type	ComplexType
imsx_version	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_version	Element
imsx_messageIdentifier	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_messageIdentifier	Element
imsx_ResponseHeaderInfo	Class	2.4	–	See 1EdTech GWSv1.0	imsx_ResponseHeaderInfo.Type	ComplexType
imsx_version	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_version	Element
imsx_messageIdentifier	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_messageIdentifier	Element
imsx_statusInfo	Attribute	2.4	n/a	See 1EdTech GWSv1.0	imsx_statusInfo	Element

Key:

The 'PSM Reference' field refers to information in the PSM description (Section 2 in this document). The sub-fields are:
1. Name – the name of the data structure in the PSM and PIM
2. UML Type – the type of UML construct i.e. either Class or Attribute
3. Figure – the reference Figure number in this document;
The 'PIM Reference' field refers to infomation in the OMS Information Model [OMS, 11]. The sub-fields are:
1. Type – the type of the data structure in the Information Model
2. Table – the reference number of Tabular description in the corresponding Information Model document;
The 'XSD Reference' field refers to infrmation in the XSD descriptions (Section 5 in this document). The sub-fields are:
1. Name – the name of the field in the XSD(s)
2. Type – the type of XSD construct i.e. either a ComplexType or Element.

top | toc

4. WSDL File Documentation

WSDL file: "WSDL file: "OutcomesManagementServicev1p0_SyncSingle_v1p0.wsdl"

Target namespace: /services/lis/oms1p0/wsdl11/sync/imsoms_v1p0

4.1 Overview

Services
OutcomesManagementServiceSyncService

Bindings
LineItemManagerSyncSoapBinding
ResultManagerSyncSoapBinding
ResultValueManagerSyncSoapBinding

Port types
LineItemManagerSyncPortType
ResultManagerSyncPortType
ResultValueManagerSyncPortType

Messages

WSDL Definition
Name	Documentation
OutcomesManagementServiceSyncServices	WSDL File Information Services: OutcomesManagementService (Synchronous Communications) Author: Colin Smythe Date: 30th June, 2011 Version: 2.0 Status: Public Draft Description: The Outcomes Management Service. History: Version 1.0: This is the first formal release of this service. WSDL Binding: WSDL Binding is based upon the 1EdTech General Web Services Base Profile v1.0 The 1EdTech GWS Basic Profile is derived from the WS-I Basic Profile v1.1. This profile uses: WSDL 1.1, SOAP 1.1, HTTP 1.1 and XML 1.0. Extension profiles to the 1EdTech GWS Base Profile are available but are not supported using this tool version. License: IPR, License and Distribution Notices This machine readable file is derived from 1EdTech Consortium (GLC) specification 1EdTech GLC Outcome Management Version 1.0 found at /lis/omsv1p0/imsoms_InfoModelCMv1.pdf and the original 1EdTech schema binding or code base /lis/omsv1p0/imsomsv1p0_BindingCMv1.html. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. 1EdTech GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on 1EdTech GLCs procedures with respect to rights in 1EdTech GLC specifications can be found at the 1EdTech GLC Intellectual Property Rights web page: /ipr/imsipr_policyFinal.pdf. Copyright © 1EdTech Consortium 1999-2011. All Rights Reserved. License Notice for Users Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document. Distribution Notice for Developers Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than 1EdTech, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof. Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the 1EdTech GLC community on the 1EdTech GLC website as described in the following two paragraphs:- If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with 1EdTech and receive an email from 1EdTech granting the license. To register, follow the instructions on the 1EdTech website: /specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety. If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with 1EdTech GLC and receive an email from 1EdTech GLC granting the license. To register, follow the instructions on the 1EdTech GLC website: /profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety. The limited permissions granted above are perpetual and will not be revoked by 1EdTech GLC or its successors or assigns. THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION. UML Source File Information Choreography: Sync Transport: SOAPv1.1 Source XSLT File Information XSL Generator: UMLtoWSDLTransformv0p9p5.xsl XSLT Processor: Xalan Release: 1.0 Beta 4 Date: 31st March, 2011 1EdTech GLC Auto-generation Binding Tool-kit (I-BAT) This file was auto-generated using the 1EdTech GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. 1EdTech GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the 1EdTech GLC "I-BAT" Documentation available at the 1EdTech GLC web-site. Tool Copyright: 2005-2011 (c) 1EdTech Consortium Inc. All Rights Reserved.

WSDL Definition

Name

Documentation

OutcomesManagementServiceSyncServices

WSDL File Information

Services: OutcomesManagementService (Synchronous Communications)

Author: Colin Smythe

Date: 30th June, 2011

Version: 2.0

Status: Public Draft

Description: The Outcomes Management Service.

History: Version 1.0: This is the first formal release of this service.

WSDL Binding: WSDL Binding is based upon the 1EdTech General Web Services Base Profile v1.0 The 1EdTech GWS Basic Profile is derived from the WS-I Basic Profile v1.1. This profile uses: WSDL 1.1, SOAP 1.1, HTTP 1.1 and XML 1.0. Extension profiles to the 1EdTech GWS Base Profile are available but are not supported using this tool version.

License: IPR, License and Distribution Notices

This machine readable file is derived from 1EdTech Consortium (GLC) specification 1EdTech GLC Outcome Management Version 1.0 found at /lis/omsv1p0/imsoms_InfoModelCMv1.pdf and the original 1EdTech schema binding or code base /lis/omsv1p0/imsomsv1p0_BindingCMv1.html.

1EdTech GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on 1EdTech GLCs procedures with respect to rights in 1EdTech GLC specifications can be found at the 1EdTech GLC Intellectual Property Rights web page: /ipr/imsipr_policyFinal.pdf.

License Notice for Users

Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document.

Distribution Notice for Developers

Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than 1EdTech, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof.

Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the 1EdTech GLC community on the 1EdTech GLC website as described in the following two paragraphs:-

If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with 1EdTech and receive an email from 1EdTech granting the license. To register, follow the instructions on the 1EdTech website: /specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety.
If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with 1EdTech GLC and receive an email from 1EdTech GLC granting the license. To register, follow the instructions on the 1EdTech GLC website: /profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety.

The limited permissions granted above are perpetual and will not be revoked by 1EdTech GLC or its successors or assigns.

THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

UML Source File Information

Choreography: Sync

Transport: SOAPv1.1

Source XSLT File Information

XSL Generator: UMLtoWSDLTransformv0p9p5.xsl

XSLT Processor: Xalan

Release: 1.0 Beta 4

Date: 31st March, 2011

1EdTech GLC Auto-generation Binding Tool-kit (I-BAT)

This file was auto-generated using the 1EdTech GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. 1EdTech GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the 1EdTech GLC "I-BAT" Documentation available at the 1EdTech GLC web-site.

Services

Name

Documentation

OutcomesManagementServiceSyncService

Service Information

Author: Colin Smythe

Date: 30th June, 2011

Version: 2.0

Status: Public Draft

Description: The Outcomes Management Service is composed of three interfaces each of which has several operations.

History: Version 1.0: This is the first formal release of this service. This service is a part of the 1EdTech LIS v2.0 specification.

Service : OutcomesManagementServiceSyncService

Port Name Binding Address Extensibility Documentation

LineItemManagerSyncSoapPort

LineItemManagerSyncSoapBinding

<soap11:address location="/lis/oms1p0/LineItemManagerSyncSoap/"/>

N/A

ResultManagerSyncSoapPort

ResultManagerSyncSoapBinding

<soap11:address location="/lis/oms1p0/ResultManagerSyncSoap/"/>

N/A

ResultValueManagerSyncSoapPort

ResultValueManagerSyncSoapBinding

<soap11:address location="/lis/oms1p0/ResultValueManagerSyncSoap/"/>

N/A

Binding : LineItemManagerSyncSoapBinding
Port Type	LineItemManagerSyncPortType
Extensibility	`<soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>`
Operations	createLineItem, createByProxyLineItem, deleteLineItem, readLineItem, readAllLineItemIds, readLineItemIdsForPerson, readLineItemIdsForCourseOffering, readLineItemIdsForCourseSection, readLineItemIdsForCourseSectionWithLineItemType, readLineItemIdsWithLineItemType, readLineItemIdsFromSavePoint, readLineItems, readLineItemsFromSavePoint, updateLineItem, replaceLineItem, discoverLineItemIds, changeLineItemIdentifier,

Binding : ResultManagerSyncSoapBinding
Port Type	ResultManagerSyncPortType
Extensibility	`<soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>`
Operations	createResult, createByProxyResult, deleteResult, readResult, readAllResultIds, readResultIdsForPerson, readResultIdsForLineItem, readResultIdsForCourseOffering, readResultIdsForCourseSection, readResultIdsForCourseSectionWithStatus, readResultIdsForLineItemWithLineItemType, readResultIdsFromSavePoint, readResults, readResultsFromSavePoint, updateResult, replaceResult, replaceResultsForLineItem, discoverResultIds, changeResultIdentifier,

Binding : ResultValueManagerSyncSoapBinding
Port Type	ResultValueManagerSyncPortType
Extensibility	`<soap11:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>`
Operations	createResultValue, createByProxyResultValue, deleteResultValue, readResultValue, readAllResultValueIds, readResultValueIdForLineItem, readResultValueIdForResult, readResultValueIdsFromSavePoint, readResultValues, readResultValuesFromSavePoint, updateResultValue, replaceResultValue, discoverResultValueIds, changeResultValueIdentifier,

Port Type : LineItemManagerSyncPortType

Operation Name

Input message

Output message

Documentation

createLineItem

createLineItemRequest

createLineItemResponse

The 'createLineItem' operation requests the service provider to create a new LineItem object with the supplied sourcedId value.

createByProxyLineItem

createByProxyLineItemRequest

createByProxyLineItemResponse

The 'createByProxyLineItem' operation requests the service provider to create a new LineItem object with a sourcedId allocated by the service provider itself.

deleteLineItem

deleteLineItemRequest

deleteLineItemResponse

The 'deleteLineItem' operation requests the service provider to delete the identified LineItem object.

readLineItem

readLineItemRequest

readLineItemResponse

The 'readLineItem' operation requests the service provider to supply the stored data for the identified LineItem object.

readAllLineItemIds

readAllLineItemIdsRequest

readAllLineItemIdsResponse

The 'readAllLineItemIds' operation requests the service provider to supply all of the SourcedIds that have been assigned to LineItem objects.

readLineItemIdsForPerson

readLineItemIdsForPersonRequest

readLineItemIdsForPersonResponse

The 'readLineItemIdsForPerson' operation requests the service provider to supply the SourcedIds of the LineItem objects that contain results for the identified Person.

readLineItemIdsForCourseOffering

readLineItemIdsForCourseOfferingRequest

readLineItemIdsForCourseOfferingResponse

The 'readLineItemIdsForCourseOffering' operation requests the service provider to supply the SourcedIds of the LineItem objects that contain results associated with the identified CourseOffering.

readLineItemIdsForCourseSection

readLineItemIdsForCourseSectionRequest

readLineItemIdsForCourseSectionResponse

The 'readLineItemIdsForCourseSection' operation requests the service provider to supply the SourcedIds of the LineItem objects that contain results associated with the identified CourseSection.

readLineItemIdsForCourseSectionWithLineItemType

readLineItemIdsForCourseSectionWithLineItemTypeRequest

readLineItemIdsForCourseSectionWithLineItemTypeResponse

The 'readLineItemIdsForCourseSectionWithLineItemType' operation requests the service provider to supply the SourcedIds of the LineItem objects for the identified CourseSection with the identified LineItemType.

readLineItemIdsWithLineItemType

readLineItemIdsWithLineItemTypeRequest

readLineItemIdsWithLineItemTypeResponse

The 'readLineItemIdsWithLineItemTypen' operation requests the service provider to supply the SourcedIds of the LineItem objects with the identified LineItemType.

readLineItemIdsFromSavePoint

readLineItemIdsFromSavePointRequest

readLineItemIdsFromSavePointResponse

The 'readLineItemIdsFromSavePoint' operation requests the service provider to supply the SourcedIds of the LineItem objects that have been altered after the defined reference point (SavePoint).

readLineItems

readLineItemsRequest

readLineItemsResponse

The 'readLineItems' operation requests the service provider to supply the LineItem objects that have been identified by the service consumer.

readLineItemsFromSavePoint

readLineItemsFromSavePointRequest

readLineItemsFromSavePointResponse

The 'readLineItemsFromSavePoint' operation requests the service provider to supply the LineItem objects that have been altered after the defined reference point (SavePoint).

updateLineItem

updateLineItemRequest

updateLineItemResponse

The 'updateLineItem' operation requests the service provider to write the new data into identified LineItem object (this is an additive write).

replaceLineItem

replaceLineItemRequest

replaceLineItemResponse

The 'replaceLineItem' operation requests the service provider to write the new data into identified LineItem object (this is an destructive overwrite of all the previously stored data). If the identified object does not exist, this becomes a 'createLineItem' operation.

discoverLineItemIds

discoverLineItemIdsRequest

discoverLineItemIdsResponse

The 'discoverLineItem' operation requests the service provider to supply the SourcedIds for all of the LineItem objects that comply to the supplied search criteria.

changeLineItemIdentifier

changeLineItemIdentifierRequest

changeLineItemIdentifierResponse

The 'changeLineItemIdentifier' operation requests the service provider to change the SourcedId for the identified LineItem object.

Port Type : ResultManagerSyncPortType

Operation Name

Input message

Output message

Documentation

createResult

createResultRequest

createResultResponse

The 'createLineItem' operation requests the service provider to create a new LineItem object with the supplied sourcedId value.

createByProxyResult

createByProxyResultRequest

createByProxyResultResponse

The 'createByProxyResult' operation requests the service provider to create a new LineItem object with a sourcedId allocated by the service provider itself.

deleteResult

deleteResultRequest

deleteResultResponse

The 'deleteResult' operation requests the service provider to delete the identified Result object.

readResult

readResultRequest

readResultResponse

The 'readResult' operation requests the service provider to supply the stored data for the identified Result object.

readAllResultIds

readAllResultIdsRequest

readAllResultIdsResponse

The 'readAllResultIds' operation requests the service provider to supply all of the SourcedIds that have been assigned to Result objects.

readResultIdsForPerson

readResultIdsForPersonRequest

readResultIdsForPersonResponse

The 'readResultIdsForPerson' operation requests the service provider to supply the SourcedIds of the Result objects for the identified Person.

readResultIdsForLineItem

readResultIdsForLineItemRequest

readResultIdsForLineItemResponse

The 'readResultIdsForLineItem' operation requests the service provider to supply the SourcedIds of the Result objects for the identified LineItem.

readResultIdsForCourseOffering

readResultIdsForCourseOfferingRequest

readResultIdsForCourseOfferingResponse

The 'readResultIdsForCourseOffering' operation requests the service provider to supply the SourcedIds of the Result objects for the identified CourseOffering.

readResultIdsForCourseSection

readResultIdsForCourseSectionRequest

readResultIdsForCourseSectionResponse

The 'readResultIdsForSection' operation requests the service provider to supply the SourcedIds of the Result objects for the identified CourseSection.

readResultIdsForCourseSectionWithStatus

readResultIdsForCourseSectionWithStatusRequest

readResultIdsForCourseSectionWithStatusResponse

The 'readResultIdsForSection' operation requests the service provider to supply the SourcedIds of the Result objects for the identified result status and for the identified CourseSection.

readResultIdsForLineItemWithLineItemType

readResultIdsForLineItemWithLineItemTypeRequest

readResultIdsForLineItemWithLineItemTypeResponse

The 'readResultIdsForLineItemsWithLineItemType' operation requests the service provider to supply the SourcedIds of the Result objects with the given result status for the identified LineItemObject and with the given LineItemType.

readResultIdsFromSavePoint

readResultIdsFromSavePointRequest

readResultIdsFromSavePointResponse

The 'readResultIdsFromSavePoint' operation requests the service provider to supply the SourcedIds of the Result objects that have been altered after the defined reference point (SavePoint).

readResults

readResultsRequest

readResultsResponse

The 'readResults' operation requests the service provider to supply the Result objects that have been identified by the service consumer.

readResultsFromSavePoint

readResultsFromSavePointRequest

readResultsFromSavePointResponse

The 'readResultsFromSavePoint' operation requests the service provider to supply the Result objects that have been altered after the defined reference point (SavePoint).

updateResult

updateResultRequest

updateResultResponse

The 'updateResult' operation requests the service provider to write the new data into identified Result object (this is an additive write).

replaceResult

replaceResultRequest

replaceResultResponse

The 'replaceResult' operation requests the service provider to write the new data into identified Result object (this is an destructive overwrite of all the previously stored data). If the identified object does not exist, this becomes a 'createResult' operation.

replaceResultsForLineItem

replaceResultsForLineItemRequest

replaceResultsForLineItemResponse

The 'replaceResultsForLineItem' operation sends the Result records all for PersonSourcedIds for a specific LIneItem object in one request message.

discoverResultIds

discoverResultIdsRequest

discoverResultIdsResponse

The 'discoverResult' operation requests the service provider to supply the SourcedIds for all of the Result objects that comply to the supplied search criteria.

changeResultIdentifier

changeResultIdentifierRequest

changeResultIdentifierResponse

The 'changeResultIdentifier' operation requests the service provider to change the SourcedId for the identified Result object.

Port Type : ResultValueManagerSyncPortType

Operation Name

Input message

Output message

Documentation

createResultValue

createResultValueRequest

createResultValueResponse

The 'createLineItem' operation requests the service provider to create a new LineItem object with the supplied sourcedId value.

createByProxyResultValue

createByProxyResultValueRequest

createByProxyResultValueResponse

The 'createByProxyResultValue' operation requests the service provider to create a new LineItem object with a sourcedId allocated by the service provider itself.

deleteResultValue

deleteResultValueRequest

deleteResultValueResponse

The 'deleteResultValue' operation requests the service provider to delete the identified ResultValue object.

readResultValue

readResultValueRequest

readResultValueResponse

The 'readResultValue' operation requests the service provider to supply the stored data for the identified Result object.

readAllResultValueIds

readAllResultValueIdsRequest

readAllResultValueIdsResponse

The 'readAllResultValueIds' operation requests the service provider to supply all of the SourcedIds that have been assigned to ResultValue objects.

readResultValueIdForLineItem

readResultValueIdForLineItemRequest

readResultValueIdForLineItemResponse

The 'readResultValueIdForLineItem' operation requests the service provider to supply the SourcedId of the ResultValue objects for the identified LineItem.

readResultValueIdForResult

readResultValueIdForResultRequest

readResultValueIdForResultResponse

The 'readResultValueIdForResult' operation requests the service provider to supply the SourcedId of the ResultValue objects for the identified Result.

readResultValueIdsFromSavePoint

readResultValueIdsFromSavePointRequest

readResultValueIdsFromSavePointResponse

The 'readResultValueIdsFromSavePoint' operation requests the service provider to supply the SourcedIds of the ResultValue objects that have been altered after the defined reference point (SavePoint).

readResultValues

readResultValuesRequest

readResultValuesResponse

The 'readResultValues' operation requests the service provider to supply the ResultValue objects that have been identified by the service consumer.

readResultValuesFromSavePoint

readResultValuesFromSavePointRequest

readResultValuesFromSavePointResponse

The 'readResultValuesFromSavePoint' operation requests the service provider to supply the ResultValue objects that have been altered after the defined reference point (SavePoint).

updateResultValue

updateResultValueRequest

updateResultValueResponse

The 'updateResultValue' operation requests the service provider to write the new data into identified ResultValue object (this is an additive write).

replaceResultValue

replaceResultValueRequest

replaceResultValueResponse

Part Name

Element

Type

Documentation

Response

tns:changeResultValueIdentifierResponse

N/A

HeaderInfoResponse

tns:imsx_syncResponseHeaderInfo

N/A

top | toc

5. XSD File Documentation

The XSD file documentation has been produced by the Oxygen XML Editing tool.

5.1 Service Data Model

Click on the Section header to access this documentation for the data models in the service description.

5.2 File Data Model

Click on the Section header to access this documentation for the data models for the exchange of Outcomes objects in an external file.

top | toc

6. Binding of the Vocabularies

The vocabularies in the OMS are:

Lineitemtype vocabulary – the set of permitted values for the type/status for a LineItem. The PSM for the extension data-type vocabulary is shown in Figure 6.1;
Statusofresult vocabulary – the set of permitted values for the status of a Result. The PSM for the extension data-type vocabulary is shown in Figure 6.2;
Replacestatuscode vocabulary - the set of permitted values for the 'replaceResultsForLineItem' operation. The PSM for the extension data-type vocabulary is shown in Figure 6.3;
Extension data-type vocabulary – the set of data-types that are permitted for extensions in the Outcomes data model. The PSM for the extension data-type vocabulary is shown in Figure 6.4.

This vocabulary is the default set maintained under the 1EdTech GLC Vocabulary Registry [SDN11, 06]. It is the responsibility of an implementation to ensure that it is using the correct and latest versions of the vocabulary files. Changes to the default vocabularies are permitted; this results in the creation of a new vocabulary that should be registered with 1EdTech GLC. As part of a profiling process entirely new vocabularies may be defined to replace the default set.

Figure 6.1 The PSM representation of the lineitemtype vocabulary for the OMS.

Figure 6.2 The PSM representation of the statusofresult vocabulary for the OMS.

Figure 6.3 The PSM representation of the replacestatuscode vocabulary for the OMS.

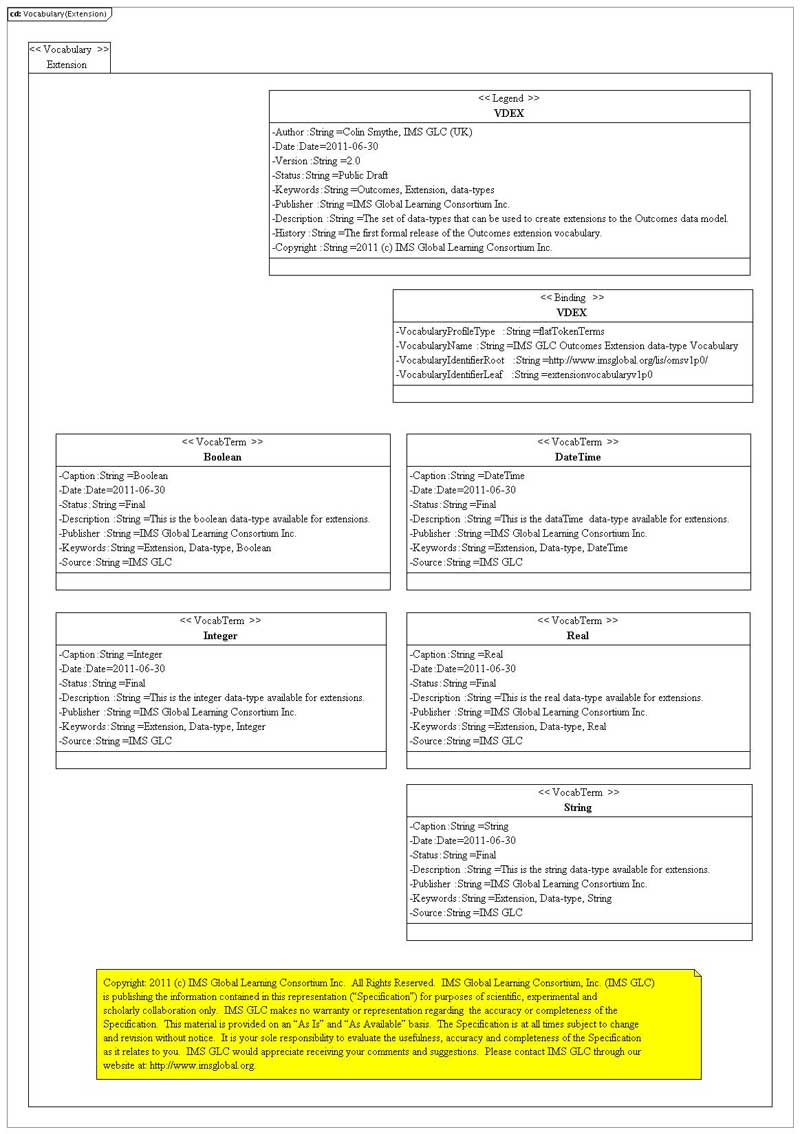

Figure 6.4 The PSM representation of the extension data-type vocabulary for the OMS.

top | toc

Appendix A - Listing of the WSDLs

The WSDL bindings are for a Synchronous SOAP implementation only. The WSDL files, expressed using WSDLv1.1, are:

The combined WSDL/XSD file (this contains the WSDL and XSD descriptions in a single file) – OutcomesManagementServicev1p0_SyncSingle_v1p0.wsdl
The single WSDL files (used either in conjunction with the separate XSD file or to provide a single interface per WSDL file) are available to LIS Alliance members. Click here to join the Alliance. Also available to Alliance members are combined WSDL/XSD files but where each file describes a single interface/port.

These files were generated by the I-BATv0.9.5 tool using the PSM representation described in Section 2.

top | toc

Appendix B - Listing of the XSDs

The XSD files are:

The stand-alone XSD is available to LIS Alliance members. Click here to join the Alliance;
The XSD for the external data file (exchanged as part of the BDEMS) – imsoms_filemodel_v1p0.xsd.

This file was generated by the I-BATv0.9.5 tool using the PSM representation described in Section 2. Documentation of the XSDs is supplied in Section 5.

top | toc

Appendix C - Vocabulary VDEX Instance File Listings

The OMS vocabularies are:

Types of LineItem vocabulary – lineitemtypevocabularyv1p0.xml;
Status of Result vocabulary – statusofresultvocabularyv1p0.xml;
Replace Status Code vocabulary – replacestatuscoesvocabularyv1p0.xml;
Exension data-types vocabulary – extensionvocabularyv1p0.xml;
Language codes – languagecodesvocabularyv1p0.xml. The set of codes used to identifiy the langage for a string (based upon RFC4646).

The online version of these vocabularies are available in the directory: /vdex/lis/omsv1p0. These vocabularies are expressed as an instance of the 1EdTech GLC Vocabulary Data Exchange (VDEX) v1.0 specification. Documentation of the vocabulary is supplied in Section 6.

top | toc

Appendix D - Example SOAP Messages

The set of examples for the SOAP messages are listed in Tables D.1 (for the LineItem port), D.2 (for the Result port) and D.3 (for the ResultValue port). The messaging pattern is a Request/Response exchange to support the Synchronous Service definition.

Table D.1 The set of SOAP message examples for each operation of the LineItem port.

Operation Name	Input (Request) SOAP Message	Output (Response) SOAP Message
createLineItem	createLineItemRequest	createLineItemResponse
createByProxyLineItem	createByProxyLineItemRequest	createByProxyLineItemResponse
deleteLineItem	deleteLineItemRequest	deleteLineItemResponse
readLineItem	readLineItemRequest	readLineItemResponse
readAllLineItemIds	readAllLineItemIdsRequest	readAllLineItemIdsResponse
readLineItemIdsForPerson	readLineItemIdsForPersonRequest	readLineItemIdsForPersonResponse
readLineItemIdsForCourseOffering	readLineItemIdsForCourseOfferingRequest	readLineItemIdsForCourseOfferingResponse
readLineItemIdsForCourseSection	readLineItemIdsForCourseSectionRequest	readLineItemIdsForCourseSectionResponse
readLineItemIdsForCourseSectionWithLineItemType	readLineItemIdsForCourseSectionWithLineItemTypeRequest	readLineItemIdsForCourseSectionWithLineItemTypeResponse
readLineItemIdsWithLineItemType	readLineItemIdsWithLineItemTypeRequest	readLineItemIdsWithLineItemTypeResponse
readLineItemIdsFromSavePoint	readLineItemIdsFromSavePointRequest	readLineItemIdsFromSavePointResponse
readLineItems	readLineItemsRequest	readLineItemsResponse
readLineItemsFromSavePoint	readLineItemsFromSavePointRequest	readLineItemsFromSavePointResponse
updateLineItem	updateLineItemRequest	updateLineItemResponse
replaceLineItem	replaceLineItemRequest	replaceLineItemResponse
discoverLineItemIds	discoverLineItemIdsRequest	discoverLineItemIdsResponse
changeLineItemIdentifier	changeLineItemIdentifierRequest	changeLineItemIdentifierResponse

Table D.2 The set of SOAP message examples for each operation of the Result port.

Operation Name	Input (Request) SOAP Message	Output (Response) SOAP Message
createResult	createResultRequest	createResultResponse
createByProxyResult	createByProxyResultRequest	createByProxyResultResponse
deleteResult	deleteResultRequest	deleteResultResponse
readResult	readResultRequest	readResultResponse
readAllResultIds	readAllResultIdsRequest	readAllResultIdsResponse
readResultIdsForPerson	readResultIdsForPersonRequest	readResultIdsForPersonResponse
readResultIdsForLineItem	readResultIdsForLineItemRequest	readResultIdsForLineItemResponse
readResultIdsForCourseOffering	readResultIdsForCourseOfferingRequest	readResultIdsForCourseOfferingResponse
readResultIdsForCourseSection	readResultIdsForCourseSectionRequest	readResultIdsForCourseSectionResponse
readResultIdsForCourseSectionWithStatus	readResultIdsForCourseSectionWithStatusRequest	readResultIdsForCourseSectionWithStatusResponse
readResultIdsForLineItemsWithLineItemType	readResultIdsForLineItemsWithLineItemTypeRequest	readResultIdsForLineItemsWithLineItemTypeResponse
readResultIdsFromSavePoint	readResultIdsFromSavePointRequest	readResultIdsFromSavePointResponse
readResults	readResultsRequest	readResultsResponse
readResultsFromSavePoint	readResultsFromSavePointRequest	readResultsFromSavePointResponse
updateResult	updateResultRequest	updateResultResponse
replaceResult	replaceResultRequest	replaceResultResponse
replaceResultsForLineItem	replaceResultsForLineItemRequest	replaceResultsForLineItemResponse
discoverResultIds	discoverResultIdsRequest	discoverResultIdsResponse
changeResultIdentifier	changeResultIdentifierRequest	changeResultIdentifierResponse

Table D.3 The set of SOAP message examples for each operation of the ResultValue port.

Operation Name	Input (Request) SOAP Message	Output (Response) SOAP Message
createResultValue	createResultValueRequest	createResultValueResponse
createByProxyResultValue	createByProxyResultValueRequest	createByProxyResultValueResponse
deleteResultValue	deleteResultValueRequest	deleteResultValueResponse
readResultValue	readResultValueRequest	readResultValueResponse
readAllResultValueIds	readAllResultValueIdsRequest	readAllResultValueIdsResponse
readResultValueIdForLineItem	readResultValueIdForLineItemRequest	readResultValueIdForLineItemResponse
readResultValueIdForResult	readResultValueIdForResultRequest	readResultValueIdForResultResponse
readResultValueIdsFromSavePoint	readResultValueIdsFromSavePointRequest	readResultValueIdsFromSavePointResponse
readResultValues	readResultValuesRequest	readResultValuesResponse
readResultValuesFromSavePoint	readResultValuesFromSavePointRequest	readResultValuesFromSavePointResponse
updateResultValue	updateResultValueRequest	updateResultValueResponse
replaceResultValue	replaceResultValueRequest	replaceResultValueResponse
discoverResultValueIds	discoverResultValueIdsRequest	discoverResultValueIdsResponse
changeResultValueIdentifier	changeResultValueIdentifierRequest	changeResultValueIdentifierResponse

top | toc

About This Document

Title	1EdTech GLC Outcomes Management Service WSDL/XSD Binding
Editor	Colin Smythe (1EdTech GLC)
Co-Chairs	Linda Feng (Oracle), Bill Lee (Desire2learn)
Version	2.0
Version Date	30 June 2011
Release	Final 1.0
Status	Public Draft
Summary	This document contains the description of the 1EdTech GLC Outcomes Management Service v1.0 WSDL/XSD binding. This service is used to exchange information about reporting Outcomes. An Outcome consists of LineItems, Results and ResultValues. The business transactions include the simple create, read, update and delete of the Outcomes data models for a single instance. This document contains the definition of the corresponding Web Service based upon SOAP/HTTP messaging.
Revision Information	Original release
Purpose	This document is made available for review by the public community at large.
Document Location	/lis/

top | toc

List of Contributors

The following individuals contributed to the development of this document:

Name	Organization
Kerry Blinco	DEEWR (Australia)
Kirk Bunte	SungardHE (USA)
Angus Chan	Desire2learn (Canada)
Adam Cooper	JISC (UK)
Michael Feldstein	Cengage (USA)
Linda Feng	Oracle (USA)
Jon Fontaine	Blackboard (USA)
Chris Hatton	Pearson (USA)
Karen Kuffner	University of Michigan (USA)
Zack Leavitt	eCollege (USA)
Bill Lee	Desire2learn (Canada)
Richard Moon	SungardHE (USA)
Mike Parkhill	Desire2learn (Canada)
Colin Smythe	1EdTech Consortium, Inc.
Reihold Staudinger	Blackboard (USA)
Nick Terrible	University of Wisconsin (USA)
Jason Zhong	SungardHE (USA)

top | toc

Revision History

Version No.	Release Date	Comments
Public Draft v1.0	30 June 2011	The first formal release of the Public Draft version of this document.

top | toc

1EdTech Consortium, Inc. (“1EdTech GLC”) is publishing the information contained in this document (“Specification”) for purposes of scientific, experimental, and scholarly collaboration only.

1EdTech GLC makes no warranty or representation regarding the accuracy or completeness of the Specification.

This material is provided on an “As Is” and “As Available” basis.

The Specification is at all times subject to change and revision without notice.

It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.

1EdTech GLC would appreciate receiving your comments and suggestions.

Please contact 1EdTech GLC through our website at .

Please refer to Document Name: 1EdTech GLC OMS v1.0 WSDL/XSD Binding Final Release v1.0
Date: 30 June 2011.

Table of Contents

1. Introduction

1.1 Scope and Context

1.2 Structure of this Document

1.3 Nomenclature

1.4 References

2. Platform Specific Model of the Binding

2.1 Service Description

2.2 Data for the Service Operations

2.3 Outcomes Data Models

2.4 File-based Data Exchange Data Model

3. Application of the Binding Guidelines

4. WSDL File Documentation

4.1 Overview

WSDL File Information

License Notice for Users

Distribution Notice for Developers

UML Source File Information

Source XSLT File Information

1EdTech GLC Auto-generation Binding Tool-kit (I-BAT)

Service Information

4.2 Messages

createLineItemRequest

createLineItemResponse

createByProxyLineItemRequest

createByProxyLineItemResponse

deleteLineItemRequest

deleteLineItemResponse

readLineItemRequest

readLineItemResponse

readAllLineItemIdsRequest

readAllLineItemIdsResponse

readLineItemIdsForPersonRequest

readLineItemIdsForPersonResponse

readLineItemIdsForCourseOfferingRequest

readLineItemIdsForCourseOfferingResponse

readLineItemIdsForCourseSectionRequest

readLineItemIdsForCourseSectionResponse

readLineItemIdsForCourseSectionWithLineItemTypeRequest

readLineItemIdsForCourseSectionWithLineItemTypeResponse

readLineItemIdsWithLineItemTypeRequest

readLineItemIdsWithLineItemTypeResponse

readLineItemIdsFromSavePointRequest

readLineItemIdsFromSavePointResponse

readLineItemsRequest

readLineItemsResponse

readLineItemsFromSavePointRequest

readLineItemsFromSavePointResponse

updateLineItemRequest

updateLineItemResponse

replaceLineItemRequest

replaceLineItemResponse

discoverLineItemIdsRequest

discoverLineItemIdsResponse

changeLineItemIdentifierRequest

changeLineItemIdentifierResponse

createResultRequest

createResultResponse

createByProxyResultRequest

createByProxyResultResponse

deleteResultRequest

deleteResultResponse

readResultRequest

readResultResponse

readAllResultIdsRequest

readAllResultIdsResponse

readResultIdsForPersonRequest

readResultIdsForPersonResponse

readResultIdsForLineItemRequest

readResultIdsForLineItemResponse

readResultIdsForCourseOfferingRequest

readResultIdsForCourseOfferingResponse

readResultIdsForCourseSectionRequest

readResultIdsForCourseSectionResponse

readResultIdsForCourseSectionWithStatusRequest

readResultIdsForCourseSectionWithStatusResponse

readResultIdsForLineItemWithLineItemTypeRequest

readResultIdsForLineItemWithLineItemTypeResponse

readResultIdsFromSavePointRequest

readResultIdsFromSavePointResponse
