4.4 Result Reporting XSD Documentation

Group by:

Main schema imsqti_result_v2p1.xsd


Namespace /xsd/imsqti_result_v2p1
Annotations

XSD Data File Information

Author: Colin Smythe Date: 12th May, 2012 Version: 2.1 Status: Final Release Description: This is the Platform Specific Model of the Assessment Result object in the IMS QTI v2.1 Specification Information Model. It is this representation that is used to produce the AssessmentResult XSD binding for IMS QTI v2.1. History: This version supercedes the full IMS QTI v1.2 and QTIv2.0 specifications. License: IPR, License and Distribution Notices This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS Question and Test Interoperability (QTI) Version 2.1 found at /qti and the original IMS GLC schema binding or code base /qti. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. IMS GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS GLCs procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property Rights web page: /ipr/imsipr_policyFinal.pdf. Copyright (c) IMS Global Learning Consortium 1999-2012. All Rights Reserved. License Notice for Users Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document. Distribution Notice for Developers Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than IMS, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof. Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the IMS GLC community on the IMS GLC website as described in the following two paragraphs:- * If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with IMS and receive an email from IMS granting the license. To register, follow the instructions on the IMS website: /specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety; * If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow the instructions on the IMS GLC website: /profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety. The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its successors or assigns. THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

Source UML File Information

The source file information must be supplied as an XMI file (without diagram layout information). The supported UML authoring tools are: (a) Poseidon - v6 (and later)

Source XSLT File Information

XSL Generator: UMLtoXSDTransformv1p0.xsl XSLT Processor: Xalan Release: 1.0 Date: 31st March, 2012 Autogen Engineer: Colin Smythe (IMS GLC, UK) Autogen Date: 2012-04-16

IMS GLC Auto-generation Binding Tool-kit (I-BAT)

This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. IMS GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site. Tool Copyright: 2005-2012 (c) IMS Global Learning Consortium Inc. All Rights Reserved.
Properties
attribute form default: unqualified
element form default: qualified
version: IMS QTI 2.1

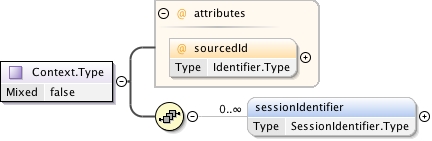

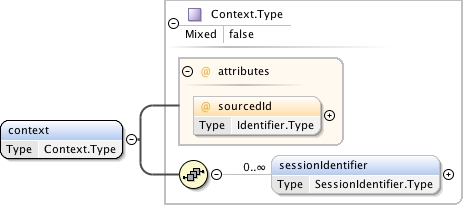

Element AssessmentResult.Type / context


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type Context.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model sessionIdentifier*
Children sessionIdentifier
Instance
<context sourcedId="" xmlns="/xsd/imsqti_result_v2p1">
  <sessionIdentifier identifier="" sourceID="">{0,unbounded}</sessionIdentifier>
</context>
Attributes
QName Type Fixed Default Use Annotation
sourcedId Identifier.Type     optional
Source
<xs:element name="context" type="Context.Type" minOccurs="1" maxOccurs="1"/>

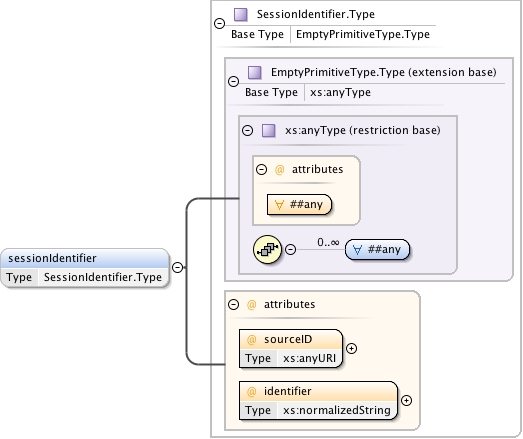

Element Context.Type / sessionIdentifier


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type SessionIdentifier.Type
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
identifier xs:normalizedString     required
sourceID xs:anyURI     required
Source
<xs:element name="sessionIdentifier" type="SessionIdentifier.Type" minOccurs="0" maxOccurs="unbounded"/>

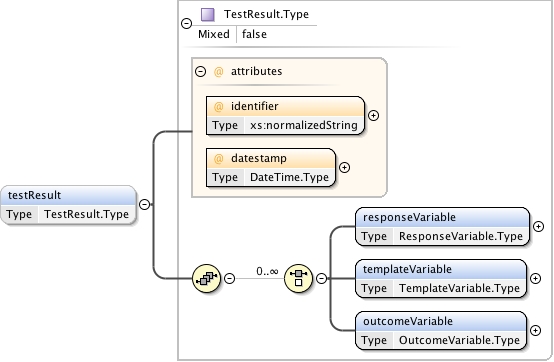

Element AssessmentResult.Type / testResult


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type TestResult.Type
Properties
content: complex
minOccurs: 0
maxOccurs: 1
mixed: false
Model (responseVariable | templateVariable | outcomeVariable)
Children outcomeVariable, responseVariable, templateVariable
Instance
<testResult datestamp="" identifier="" xmlns="/xsd/imsqti_result_v2p1">
  <responseVariable baseType="" cardinality="" choiceSequence="" identifier="">{1,1}</responseVariable>
  <templateVariable baseType="" cardinality="" identifier="">{1,1}</templateVariable>
  <outcomeVariable baseType="" cardinality="" identifier="" interpretation="" longInterpretation="" masteryValue="" normalMaximum="" normalMinimum="" view="">{1,1}</outcomeVariable>
</testResult>
Attributes
QName Type Fixed Default Use Annotation
datestamp DateTime.Type     required
identifier xs:normalizedString     required
Source
<xs:element name="testResult" type="TestResult.Type" minOccurs="0" maxOccurs="1"/>

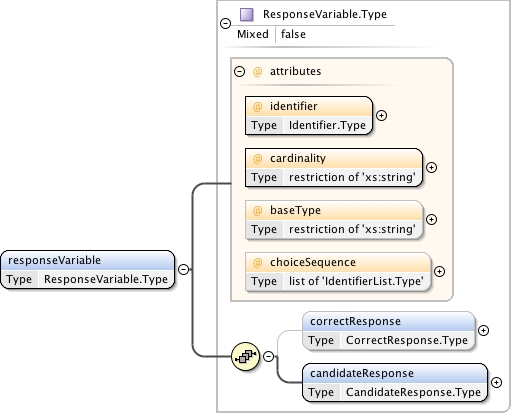

Element TestResult.Type / responseVariable


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type ResponseVariable.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model correctResponse{0,1} , candidateResponse
Children candidateResponse, correctResponse
Instance
<responseVariable baseType="" cardinality="" choiceSequence="" identifier="" xmlns="/xsd/imsqti_result_v2p1">
  <correctResponse interpretation="">{0,1}</correctResponse>
  <candidateResponse>{1,1}</candidateResponse>
</responseVariable>
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
choiceSequence list of IdentifierList.Type     optional
identifier Identifier.Type     required
Source
<xs:element name="responseVariable" type="ResponseVariable.Type" minOccurs="1" maxOccurs="1"/>


Element ResponseVariable.Type / correctResponse


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type CorrectResponse.Type
Properties
content: complex
minOccurs: 0
maxOccurs: 1
mixed: false
Model value+
Children value
Instance
<correctResponse interpretation="" xmlns="/xsd/imsqti_result_v2p1">
  <value baseType="" fieldIdentifier="">{1,unbounded}</value>
</correctResponse>
Attributes
QName Type Fixed Default Use Annotation
interpretation xs:string     optional
Source
<xs:element name="correctResponse" type="CorrectResponse.Type" minOccurs="0" maxOccurs="1"/>

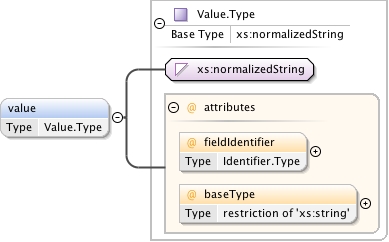

Element CorrectResponse.Type / value


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type Value.Type
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
fieldIdentifier Identifier.Type     optional
Source
<xs:element name="value" type="Value.Type" minOccurs="1" maxOccurs="unbounded"/>

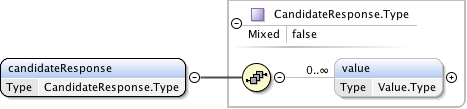

Element ResponseVariable.Type / candidateResponse


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type CandidateResponse.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model value*
Children value
Instance
<candidateResponse xmlns="/xsd/imsqti_result_v2p1">
  <value baseType="" fieldIdentifier="">{0,unbounded}</value>
</candidateResponse>
Source
<xs:element name="candidateResponse" type="CandidateResponse.Type" minOccurs="1" maxOccurs="1"/>


Element CandidateResponse.Type / value


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type Value.Type
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
fieldIdentifier Identifier.Type     optional
Source
<xs:element name="value" type="Value.Type" minOccurs="0" maxOccurs="unbounded"/>

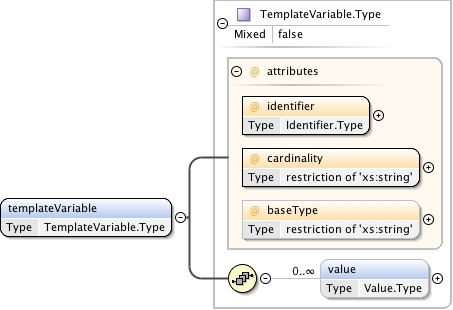

Element TestResult.Type / templateVariable


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type TemplateVariable.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model value*
Children value
Instance
<templateVariable baseType="" cardinality="" identifier="" xmlns="/xsd/imsqti_result_v2p1">
  <value baseType="" fieldIdentifier="">{0,unbounded}</value>
</templateVariable>
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
identifier Identifier.Type     required
Source
<xs:element name="templateVariable" type="TemplateVariable.Type" minOccurs="1" maxOccurs="1"/>


Element TemplateVariable.Type / value


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type Value.Type
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
fieldIdentifier Identifier.Type     optional
Source
<xs:element name="value" type="Value.Type" minOccurs="0" maxOccurs="unbounded"/>

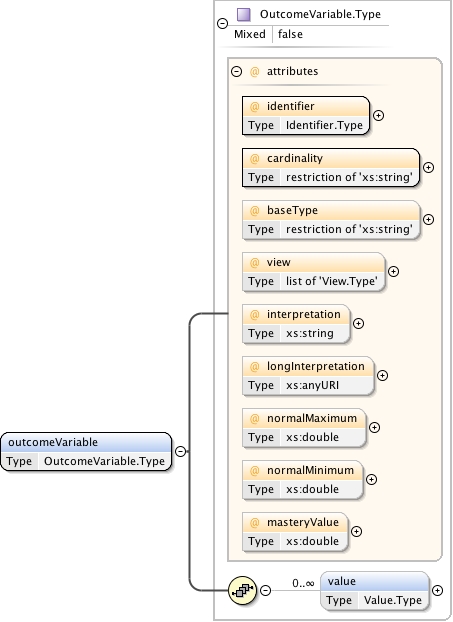

Element TestResult.Type / outcomeVariable


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type OutcomeVariable.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model value*
Children value
Instance
<outcomeVariable baseType="" cardinality="" identifier="" interpretation="" longInterpretation="" masteryValue="" normalMaximum="" normalMinimum="" view="" xmlns="/xsd/imsqti_result_v2p1">
  <value baseType="" fieldIdentifier="">{0,unbounded}</value>
</outcomeVariable>
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
identifier Identifier.Type     required
interpretation xs:string     optional
longInterpretation xs:anyURI     optional
masteryValue xs:double     optional
normalMaximum xs:double     optional
normalMinimum xs:double     optional
view list of View.Type     optional
Source
<xs:element name="outcomeVariable" type="OutcomeVariable.Type" minOccurs="1" maxOccurs="1"/>


Element OutcomeVariable.Type / value


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type Value.Type
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
fieldIdentifier Identifier.Type     optional
Source
<xs:element name="value" type="Value.Type" minOccurs="0" maxOccurs="unbounded"/>

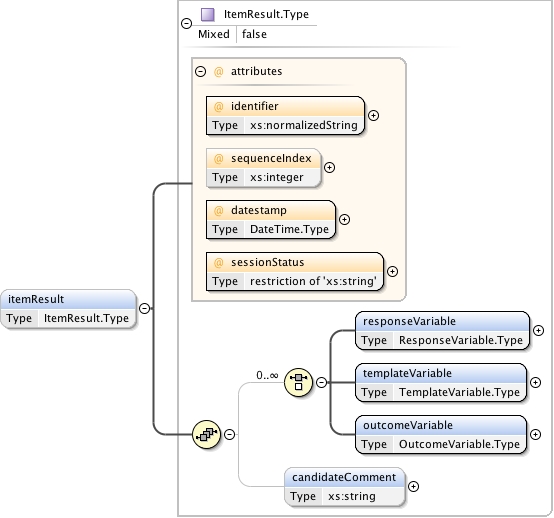

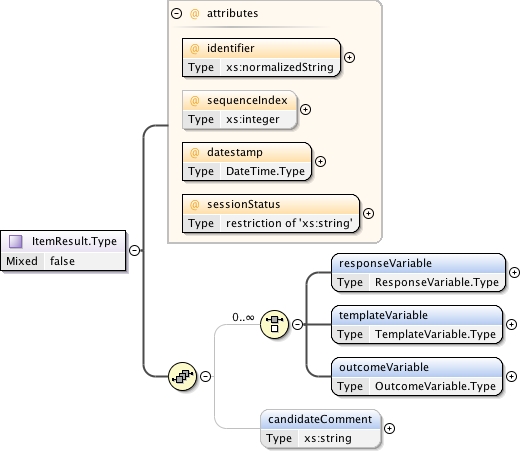

Element AssessmentResult.Type / itemResult


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type ItemResult.Type
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
mixed: false
Model (responseVariable | templateVariable | outcomeVariable) , candidateComment{0,1}
Children candidateComment, outcomeVariable, responseVariable, templateVariable
Instance
<itemResult datestamp="" identifier="" sequenceIndex="" sessionStatus="" xmlns="/xsd/imsqti_result_v2p1">
  <responseVariable baseType="" cardinality="" choiceSequence="" identifier="">{1,1}</responseVariable>
  <templateVariable baseType="" cardinality="" identifier="">{1,1}</templateVariable>
  <outcomeVariable baseType="" cardinality="" identifier="" interpretation="" longInterpretation="" masteryValue="" normalMaximum="" normalMinimum="" view="">{1,1}</outcomeVariable>
  <candidateComment>{0,1}</candidateComment>
</itemResult>
Attributes
QName Type Fixed Default Use Annotation
datestamp DateTime.Type     required
identifier xs:normalizedString     required
sequenceIndex xs:integer     optional
sessionStatus restriction of xs:string     required
Source
<xs:element name="itemResult" type="ItemResult.Type" minOccurs="0" maxOccurs="unbounded"/>


Element ItemResult.Type / responseVariable


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type ResponseVariable.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model correctResponse{0,1} , candidateResponse
Children candidateResponse, correctResponse
Instance
<responseVariable baseType="" cardinality="" choiceSequence="" identifier="" xmlns="/xsd/imsqti_result_v2p1">
  <correctResponse interpretation="">{0,1}</correctResponse>
  <candidateResponse>{1,1}</candidateResponse>
</responseVariable>
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
choiceSequence list of IdentifierList.Type     optional
identifier Identifier.Type     required
Source
<xs:element name="responseVariable" type="ResponseVariable.Type" minOccurs="1" maxOccurs="1"/>


Element ItemResult.Type / templateVariable


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type TemplateVariable.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model value*
Children value
Instance
<templateVariable baseType="" cardinality="" identifier="" xmlns="/xsd/imsqti_result_v2p1">
  <value baseType="" fieldIdentifier="">{0,unbounded}</value>
</templateVariable>
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
identifier Identifier.Type     required
Source
<xs:element name="templateVariable" type="TemplateVariable.Type" minOccurs="1" maxOccurs="1"/>


Element ItemResult.Type / outcomeVariable


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type OutcomeVariable.Type
Properties
content: complex
minOccurs: 1
maxOccurs: 1
mixed: false
Model value*
Children value
Instance
<outcomeVariable baseType="" cardinality="" identifier="" interpretation="" longInterpretation="" masteryValue="" normalMaximum="" normalMinimum="" view="" xmlns="/xsd/imsqti_result_v2p1">
  <value baseType="" fieldIdentifier="">{0,unbounded}</value>
</outcomeVariable>
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
identifier Identifier.Type     required
interpretation xs:string     optional
longInterpretation xs:anyURI     optional
masteryValue xs:double     optional
normalMaximum xs:double     optional
normalMinimum xs:double     optional
view list of View.Type     optional
Source
<xs:element name="outcomeVariable" type="OutcomeVariable.Type" minOccurs="1" maxOccurs="1"/>


Element ItemResult.Type / candidateComment


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="candidateComment" type="xs:string" minOccurs="0" maxOccurs="1"/>

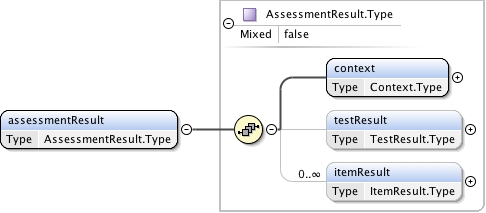

Element assessmentResult


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type AssessmentResult.Type
Properties
content: complex
mixed: false
Model context , testResult{0,1} , itemResult*
Children context, itemResult, testResult
Instance
<assessmentResult xmlns="/xsd/imsqti_result_v2p1">
  <context sourcedId="">{1,1}</context>
  <testResult datestamp="" identifier="">{0,1}</testResult>
  <itemResult datestamp="" identifier="" sequenceIndex="" sessionStatus="">{0,unbounded}</itemResult>
</assessmentResult>
Source
<xs:element name="assessmentResult" type="AssessmentResult.Type"/>


Simple Type IdentifierList.Type


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type xs:NCName
Source
<xs:simpleType name="IdentifierList.Type">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>


Simple Type View.Type


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration author
enumeration candidate
enumeration proctor
enumeration scorer
enumeration testConstructor
enumeration tutor
Source
<xs:simpleType name="View.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="author"/>
    <xs:enumeration value="candidate"/>
    <xs:enumeration value="proctor"/>
    <xs:enumeration value="scorer"/>
    <xs:enumeration value="testConstructor"/>
    <xs:enumeration value="tutor"/>
  </xs:restriction>
</xs:simpleType>

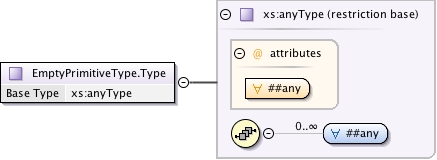

Complex Type EmptyPrimitiveType.Type


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Used by
Complex Type SessionIdentifier.Type
Source
<xs:complexType name="EmptyPrimitiveType.Type">
  <xs:complexContent>
    <xs:restriction base="xs:anyType"/>
  </xs:complexContent>
</xs:complexType>


Simple Type Identifier.Type


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type xs:NCName
Used by
Source
<xs:simpleType name="Identifier.Type">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>


Simple Type DateTime.Type


Namespace /xsd/imsqti_result_v2p1
Diagram
Diagram
Type restriction of xs:dateTime
Facets
pattern [0-9]{4}.*
Used by
Source
<xs:simpleType name="DateTime.Type">
  <xs:restriction base="xs:dateTime">
    <xs:pattern value="[0-9]{4}.*"/>
  </xs:restriction>
</xs:simpleType>

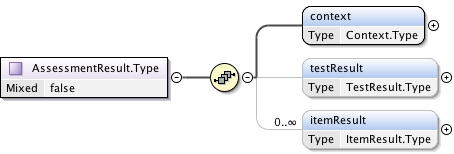

Complex Type AssessmentResult.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

This is the container for the set of results that can be reported using the QTI data structures. A result instance can contain information about a single AssessmentTest and one or more AssessmentItems.
Diagram
Diagram
Properties
mixed: false
Used by
Model context , testResult{0,1} , itemResult*
Children context, itemResult, testResult
Source
<xs:complexType name="AssessmentResult.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">This is the container for the set of results that can be reported using the QTI data structures. A result instance can contain information about a single AssessmentTest and one or more AssessmentItems.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="context" type="Context.Type" minOccurs="1" maxOccurs="1"/>
    <xs:element name="testResult" type="TestResult.Type" minOccurs="0" maxOccurs="1"/>
    <xs:element name="itemResult" type="ItemResult.Type" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>


Complex Type Context.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

This supples the conext informaion for the result information. Each result report has its own identifier. The session identifier during which the results were generated is also supplied.
Diagram
Diagram
Properties
mixed: false
Used by
Model sessionIdentifier*
Children sessionIdentifier
Attributes
QName Type Fixed Default Use Annotation
sourcedId Identifier.Type     optional
Source
<xs:complexType name="Context.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">This supples the conext informaion for the result information. Each result report has its own identifier. The session identifier during which the results were generated is also supplied.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="sessionIdentifier" type="SessionIdentifier.Type" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="sourcedId" use="optional" type="Identifier.Type"/>
</xs:complexType>


Complex Type SessionIdentifier.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

The identifier for the session during which the associated results were generated.
Diagram
Diagram
Type extension of EmptyPrimitiveType.Type
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
identifier xs:normalizedString     required
sourceID xs:anyURI     required
Source
<xs:complexType name="SessionIdentifier.Type">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The identifier for the session during which the associated results were generated.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="EmptyPrimitiveType.Type">
      <xs:attribute name="sourceID" use="required" type="xs:anyURI"/>
      <xs:attribute name="identifier" use="required" type="xs:normalizedString"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>


Complex Type TestResult.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

This is the container for the results for a single AssessmentTest. The result report consists of the information for the associated set of response varables, template variables and outcome variables. The report is date stamped.
Diagram
Diagram
Properties
mixed: false
Used by
Model (responseVariable | templateVariable | outcomeVariable)
Children outcomeVariable, responseVariable, templateVariable
Attributes
QName Type Fixed Default Use Annotation
datestamp DateTime.Type     required
identifier xs:normalizedString     required
Source
<xs:complexType name="TestResult.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">This is the container for the results for a single AssessmentTest. The result report consists of the information for the associated set of response varables, template variables and outcome variables. The report is date stamped.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element name="responseVariable" type="ResponseVariable.Type" minOccurs="1" maxOccurs="1"/>
      <xs:element name="templateVariable" type="TemplateVariable.Type" minOccurs="1" maxOccurs="1"/>
      <xs:element name="outcomeVariable" type="OutcomeVariable.Type" minOccurs="1" maxOccurs="1"/>
    </xs:choice>
  </xs:sequence>
  <xs:attribute name="identifier" use="required" type="xs:normalizedString"/>
  <xs:attribute name="datestamp" use="required" type="DateTime.Type"/>
</xs:complexType>


Complex Type ResponseVariable.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

The ResponseVariable complexType is the container for the definition of a response variable. Response variables are declared by response declarations and bound to interactions in the itemBody. Each response variable declared may be bound to one and only one interaction.
Diagram
Diagram
Properties
mixed: false
Used by
Model correctResponse{0,1} , candidateResponse
Children candidateResponse, correctResponse
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
choiceSequence list of IdentifierList.Type     optional
identifier Identifier.Type     required
Source
<xs:complexType name="ResponseVariable.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ResponseVariable complexType is the container for the definition of a response variable. Response variables are declared by response declarations and bound to interactions in the itemBody. Each response variable declared may be bound to one and only one interaction.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="correctResponse" type="CorrectResponse.Type" minOccurs="0" maxOccurs="1"/>
    <xs:element name="candidateResponse" type="CandidateResponse.Type" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="identifier" use="required" type="Identifier.Type"/>
  <xs:attribute name="cardinality" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="multiple"/>
        <xs:enumeration value="ordered"/>
        <xs:enumeration value="record"/>
        <xs:enumeration value="single"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="baseType" use="optional">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="boolean"/>
        <xs:enumeration value="directedPair"/>
        <xs:enumeration value="duration"/>
        <xs:enumeration value="file"/>
        <xs:enumeration value="float"/>
        <xs:enumeration value="identifier"/>
        <xs:enumeration value="integer"/>
        <xs:enumeration value="pair"/>
        <xs:enumeration value="point"/>
        <xs:enumeration value="string"/>
        <xs:enumeration value="uri"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="choiceSequence" use="optional">
    <xs:simpleType>
      <xs:list itemType="IdentifierList.Type"/>
    </xs:simpleType>
  </xs:attribute>
</xs:complexType>


Complex Type CorrectResponse.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

The CorrectResponse complexType is the container for information about the correct response for an interaction. A response declaration may assign an optional 'correctResponse'. This value may indicate the only possible value of the response variable to be considered correct or merely just a correct value. For responses that are being measured against a more complex scale than correct/incorrect this value should be set to the (or an) optimal value. Finally, for responses for hwich no such optimal value is defined the 'correctResponse' must be omitted. If a delivery system supports the display of a solution then it should display the correct values of responses (where defined) to the candidate's own responses (which may be hidden completely if necessary).
Diagram
Diagram
Properties
mixed: false
Used by
Model value+
Children value
Attributes
QName Type Fixed Default Use Annotation
interpretation xs:string     optional
Source
<xs:complexType name="CorrectResponse.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CorrectResponse complexType is the container for information about the correct response for an interaction. A response declaration may assign an optional 'correctResponse'. This value may indicate the only possible value of the response variable to be considered correct or merely just a correct value. For responses that are being measured against a more complex scale than correct/incorrect this value should be set to the (or an) optimal value. Finally, for responses for hwich no such optimal value is defined the 'correctResponse' must be omitted. If a delivery system supports the display of a solution then it should display the correct values of responses (where defined) to the candidate's own responses (which may be hidden completely if necessary).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="Value.Type" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="interpretation" use="optional" type="xs:string"/>
</xs:complexType>

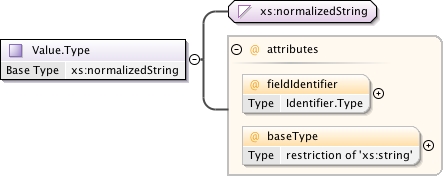

Complex Type Value.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

Comment TBA.
Diagram
Diagram
Type extension of xs:normalizedString
Used by
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
fieldIdentifier Identifier.Type     optional
Source
<xs:complexType name="Value.Type">
  <xs:annotation>
    <xs:documentation source="umldocumentation">Comment TBA.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:normalizedString">
      <xs:attribute name="fieldIdentifier" use="optional" type="Identifier.Type"/>
      <xs:attribute name="baseType" use="optional">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="boolean"/>
            <xs:enumeration value="directedPair"/>
            <xs:enumeration value="duration"/>
            <xs:enumeration value="file"/>
            <xs:enumeration value="float"/>
            <xs:enumeration value="identifier"/>
            <xs:enumeration value="integer"/>
            <xs:enumeration value="pair"/>
            <xs:enumeration value="point"/>
            <xs:enumeration value="string"/>
            <xs:enumeration value="uri"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>


Complex Type CandidateResponse.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

The CandidateResponse complexType is the container for the response(s) given by the candidate.
Diagram
Diagram
Properties
mixed: false
Used by
Model value*
Children value
Source
<xs:complexType name="CandidateResponse.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CandidateResponse complexType is the container for the response(s) given by the candidate.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="Value.Type" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>


Complex Type TemplateVariable.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

The TemplateVariable complexType contains the value(s) of a template variable.
Diagram
Diagram
Properties
mixed: false
Used by
Model value*
Children value
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
identifier Identifier.Type     required
Source
<xs:complexType name="TemplateVariable.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The TemplateVariable complexType contains the value(s) of a template variable.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="Value.Type" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="identifier" use="required" type="Identifier.Type"/>
  <xs:attribute name="cardinality" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="multiple"/>
        <xs:enumeration value="ordered"/>
        <xs:enumeration value="record"/>
        <xs:enumeration value="single"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="baseType" use="optional">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="boolean"/>
        <xs:enumeration value="directedPair"/>
        <xs:enumeration value="duration"/>
        <xs:enumeration value="file"/>
        <xs:enumeration value="float"/>
        <xs:enumeration value="identifier"/>
        <xs:enumeration value="integer"/>
        <xs:enumeration value="pair"/>
        <xs:enumeration value="point"/>
        <xs:enumeration value="string"/>
        <xs:enumeration value="uri"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
</xs:complexType>


Complex Type OutcomeVariable.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

The OutcomeVariable complexType is the container for the definition of an outcome variable. Outcome variables are declared by outcome declarations. Their value is set either from a default given in the declaration itself or by a responseRule during responseProcessing.Items that declare a numeric outcome variable representing the candidate's overall performance on the item should use the outcome name 'SCORE' for the variable.Items that declare a maximum score (in multiple response choice interactions, for example) can do so by declaring the 'MAXSCORE' variable.Items or tests that want to make the fact that the candidate scored above a predefined treshold available as a variable can use the 'PASSED' variable.

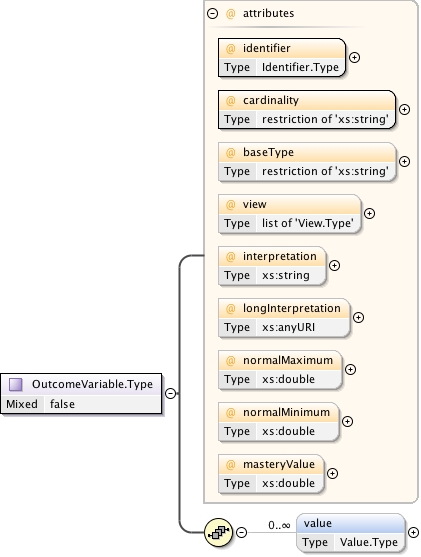

Diagram
Diagram
Properties
mixed: false
Used by
Model value*
Children value
Attributes
QName Type Fixed Default Use Annotation
baseType restriction of xs:string     optional
cardinality restriction of xs:string     required
identifier Identifier.Type     required
interpretation xs:string     optional
longInterpretation xs:anyURI     optional
masteryValue xs:double     optional
normalMaximum xs:double     optional
normalMinimum xs:double     optional
view list of View.Type     optional
Source
<xs:complexType name="OutcomeVariable.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The OutcomeVariable complexType is the container for the definition of an outcome variable. Outcome variables are declared by outcome declarations. Their value is set either from a default given in the declaration itself or by a responseRule during responseProcessing.Items that declare a numeric outcome variable representing the candidate's overall performance on the item should use the outcome name 'SCORE' for the variable.Items that declare a maximum score (in multiple response choice interactions, for example) can do so by declaring the 'MAXSCORE' variable.Items or tests that want to make the fact that the candidate scored above a predefined treshold available as a variable can use the 'PASSED' variable.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="Value.Type" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="identifier" use="required" type="Identifier.Type"/>
  <xs:attribute name="cardinality" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="multiple"/>
        <xs:enumeration value="ordered"/>
        <xs:enumeration value="record"/>
        <xs:enumeration value="single"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="baseType" use="optional">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="boolean"/>
        <xs:enumeration value="directedPair"/>
        <xs:enumeration value="duration"/>
        <xs:enumeration value="file"/>
        <xs:enumeration value="float"/>
        <xs:enumeration value="identifier"/>
        <xs:enumeration value="integer"/>
        <xs:enumeration value="pair"/>
        <xs:enumeration value="point"/>
        <xs:enumeration value="string"/>
        <xs:enumeration value="uri"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="view" use="optional">
    <xs:simpleType>
      <xs:list itemType="View.Type"/>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="interpretation" use="optional" type="xs:string"/>
  <xs:attribute name="longInterpretation" use="optional" type="xs:anyURI"/>
  <xs:attribute name="normalMaximum" use="optional" type="xs:double"/>
  <xs:attribute name="normalMinimum" use="optional" type="xs:double"/>
  <xs:attribute name="masteryValue" use="optional" type="xs:double"/>
</xs:complexType>


Complex Type ItemResult.Type


Namespace /xsd/imsqti_result_v2p1
Annotations

umldocumentation

This is the container for the results for an AssessmentItem. The result report consists of the information for the associated set of response varables, template variables and outcome variables. Any associated candidate comments are also stored. The report is date stamped.
Diagram
Diagram
Properties
mixed: false
Used by
Model (responseVariable | templateVariable | outcomeVariable) , candidateComment{0,1}
Children candidateComment, outcomeVariable, responseVariable, templateVariable
Attributes
QName Type Fixed Default Use Annotation
datestamp DateTime.Type     required
identifier xs:normalizedString     required
sequenceIndex xs:integer     optional
sessionStatus restriction of xs:string     required
Source
<xs:complexType name="ItemResult.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">This is the container for the results for an AssessmentItem. The result report consists of the information for the associated set of response varables, template variables and outcome variables. Any associated candidate comments are also stored. The report is date stamped.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element name="responseVariable" type="ResponseVariable.Type" minOccurs="1" maxOccurs="1"/>
      <xs:element name="templateVariable" type="TemplateVariable.Type" minOccurs="1" maxOccurs="1"/>
      <xs:element name="outcomeVariable" type="OutcomeVariable.Type" minOccurs="1" maxOccurs="1"/>
    </xs:choice>
    <xs:element name="candidateComment" type="xs:string" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="identifier" use="required" type="xs:normalizedString"/>
  <xs:attribute name="sequenceIndex" use="optional" type="xs:integer"/>
  <xs:attribute name="datestamp" use="required" type="DateTime.Type"/>
  <xs:attribute name="sessionStatus" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="final"/>
        <xs:enumeration value="initial"/>
        <xs:enumeration value="pendingResponseProcessing"/>
        <xs:enumeration value="pendingSubmission"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
</xs:complexType>


Attribute SessionIdentifier.Type / @sourceID


Namespace No namespace
Type xs:anyURI
Properties
use: required
Used by
Complex Type SessionIdentifier.Type
Source
<xs:attribute name="sourceID" use="required" type="xs:anyURI"/>


Attribute SessionIdentifier.Type / @identifier


Namespace No namespace
Type xs:normalizedString
Properties
use: required
Used by
Complex Type SessionIdentifier.Type
Source
<xs:attribute name="identifier" use="required" type="xs:normalizedString"/>


Attribute Context.Type / @sourcedId


Namespace No namespace
Type Identifier.Type
Properties
use: optional
Used by
Complex Type Context.Type
Source
<xs:attribute name="sourcedId" use="optional" type="Identifier.Type"/>


Attribute Value.Type / @fieldIdentifier


Namespace No namespace
Type Identifier.Type
Properties
use: optional
Used by
Complex Type Value.Type
Source
<xs:attribute name="fieldIdentifier" use="optional" type="Identifier.Type"/>


Attribute Value.Type / @baseType


Namespace No namespace
Type restriction of xs:string
Properties
use: optional
Facets
enumeration boolean
enumeration directedPair
enumeration duration
enumeration file
enumeration float
enumeration identifier
enumeration integer
enumeration pair
enumeration point
enumeration string
enumeration uri
Used by
Complex Type Value.Type
Source
<xs:attribute name="baseType" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="boolean"/>
      <xs:enumeration value="directedPair"/>
      <xs:enumeration value="duration"/>
      <xs:enumeration value="file"/>
      <xs:enumeration value="float"/>
      <xs:enumeration value="identifier"/>
      <xs:enumeration value="integer"/>
      <xs:enumeration value="pair"/>
      <xs:enumeration value="point"/>
      <xs:enumeration value="string"/>
      <xs:enumeration value="uri"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute CorrectResponse.Type / @interpretation


Namespace No namespace
Type xs:string
Properties
use: optional
Used by
Complex Type CorrectResponse.Type
Source
<xs:attribute name="interpretation" use="optional" type="xs:string"/>


Attribute ResponseVariable.Type / @identifier


Namespace No namespace
Type Identifier.Type
Properties
use: required
Used by
Complex Type ResponseVariable.Type
Source
<xs:attribute name="identifier" use="required" type="Identifier.Type"/>


Attribute ResponseVariable.Type / @cardinality


Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration multiple
enumeration ordered
enumeration record
enumeration single
Used by
Complex Type ResponseVariable.Type
Source
<xs:attribute name="cardinality" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="multiple"/>
      <xs:enumeration value="ordered"/>
      <xs:enumeration value="record"/>
      <xs:enumeration value="single"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute ResponseVariable.Type / @baseType


Namespace No namespace
Type restriction of xs:string
Properties
use: optional
Facets
enumeration boolean
enumeration directedPair
enumeration duration
enumeration file
enumeration float
enumeration identifier
enumeration integer
enumeration pair
enumeration point
enumeration string
enumeration uri
Used by
Complex Type ResponseVariable.Type
Source
<xs:attribute name="baseType" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="boolean"/>
      <xs:enumeration value="directedPair"/>
      <xs:enumeration value="duration"/>
      <xs:enumeration value="file"/>
      <xs:enumeration value="float"/>
      <xs:enumeration value="identifier"/>
      <xs:enumeration value="integer"/>
      <xs:enumeration value="pair"/>
      <xs:enumeration value="point"/>
      <xs:enumeration value="string"/>
      <xs:enumeration value="uri"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute ResponseVariable.Type / @choiceSequence


Namespace No namespace
Type list of IdentifierList.Type
Properties
use: optional
Used by
Complex Type ResponseVariable.Type
Source
<xs:attribute name="choiceSequence" use="optional">
  <xs:simpleType>
    <xs:list itemType="IdentifierList.Type"/>
  </xs:simpleType>
</xs:attribute>


Attribute TemplateVariable.Type / @identifier


Namespace No namespace
Type Identifier.Type
Properties
use: required
Used by
Complex Type TemplateVariable.Type
Source
<xs:attribute name="identifier" use="required" type="Identifier.Type"/>


Attribute TemplateVariable.Type / @cardinality


Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration multiple
enumeration ordered
enumeration record
enumeration single
Used by
Complex Type TemplateVariable.Type
Source
<xs:attribute name="cardinality" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="multiple"/>
      <xs:enumeration value="ordered"/>
      <xs:enumeration value="record"/>
      <xs:enumeration value="single"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute TemplateVariable.Type / @baseType


Namespace No namespace
Type restriction of xs:string
Properties
use: optional
Facets
enumeration boolean
enumeration directedPair
enumeration duration
enumeration file
enumeration float
enumeration identifier
enumeration integer
enumeration pair
enumeration point
enumeration string
enumeration uri
Used by
Complex Type TemplateVariable.Type
Source
<xs:attribute name="baseType" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="boolean"/>
      <xs:enumeration value="directedPair"/>
      <xs:enumeration value="duration"/>
      <xs:enumeration value="file"/>
      <xs:enumeration value="float"/>
      <xs:enumeration value="identifier"/>
      <xs:enumeration value="integer"/>
      <xs:enumeration value="pair"/>
      <xs:enumeration value="point"/>
      <xs:enumeration value="string"/>
      <xs:enumeration value="uri"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute OutcomeVariable.Type / @identifier


Namespace No namespace
Type Identifier.Type
Properties
use: required
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="identifier" use="required" type="Identifier.Type"/>


Attribute OutcomeVariable.Type / @cardinality


Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration multiple
enumeration ordered
enumeration record
enumeration single
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="cardinality" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="multiple"/>
      <xs:enumeration value="ordered"/>
      <xs:enumeration value="record"/>
      <xs:enumeration value="single"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute OutcomeVariable.Type / @baseType


Namespace No namespace
Type restriction of xs:string
Properties
use: optional
Facets
enumeration boolean
enumeration directedPair
enumeration duration
enumeration file
enumeration float
enumeration identifier
enumeration integer
enumeration pair
enumeration point
enumeration string
enumeration uri
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="baseType" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="boolean"/>
      <xs:enumeration value="directedPair"/>
      <xs:enumeration value="duration"/>
      <xs:enumeration value="file"/>
      <xs:enumeration value="float"/>
      <xs:enumeration value="identifier"/>
      <xs:enumeration value="integer"/>
      <xs:enumeration value="pair"/>
      <xs:enumeration value="point"/>
      <xs:enumeration value="string"/>
      <xs:enumeration value="uri"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>


Attribute OutcomeVariable.Type / @view


Namespace No namespace
Type list of View.Type
Properties
use: optional
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="view" use="optional">
  <xs:simpleType>
    <xs:list itemType="View.Type"/>
  </xs:simpleType>
</xs:attribute>


Attribute OutcomeVariable.Type / @interpretation


Namespace No namespace
Type xs:string
Properties
use: optional
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="interpretation" use="optional" type="xs:string"/>


Attribute OutcomeVariable.Type / @longInterpretation


Namespace No namespace
Type xs:anyURI
Properties
use: optional
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="longInterpretation" use="optional" type="xs:anyURI"/>


Attribute OutcomeVariable.Type / @normalMaximum


Namespace No namespace
Type xs:double
Properties
use: optional
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="normalMaximum" use="optional" type="xs:double"/>


Attribute OutcomeVariable.Type / @normalMinimum


Namespace No namespace
Type xs:double
Properties
use: optional
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="normalMinimum" use="optional" type="xs:double"/>


Attribute OutcomeVariable.Type / @masteryValue


Namespace No namespace
Type xs:double
Properties
use: optional
Used by
Complex Type OutcomeVariable.Type
Source
<xs:attribute name="masteryValue" use="optional" type="xs:double"/>


Attribute TestResult.Type / @identifier


Namespace No namespace
Type xs:normalizedString
Properties
use: required
Used by
Complex Type TestResult.Type
Source
<xs:attribute name="identifier" use="required" type="xs:normalizedString"/>


Attribute TestResult.Type / @datestamp


Namespace No namespace
Type DateTime.Type
Properties
use: required
Facets
pattern [0-9]{4}.*
Used by
Complex Type TestResult.Type
Source
<xs:attribute name="datestamp" use="required" type="DateTime.Type"/>


Attribute ItemResult.Type / @identifier


Namespace No namespace
Type xs:normalizedString
Properties
use: required
Used by
Complex Type ItemResult.Type
Source
<xs:attribute name="identifier" use="required" type="xs:normalizedString"/>


Attribute ItemResult.Type / @sequenceIndex


Namespace No namespace
Type xs:integer
Properties
use: optional
Used by
Complex Type ItemResult.Type
Source
<xs:attribute name="sequenceIndex" use="optional" type="xs:integer"/>


Attribute ItemResult.Type / @datestamp


Namespace No namespace
Type DateTime.Type
Properties
use: required
Facets
pattern [0-9]{4}.*
Used by
Complex Type ItemResult.Type
Source
<xs:attribute name="datestamp" use="required" type="DateTime.Type"/>


Attribute ItemResult.Type / @sessionStatus


Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration final
enumeration initial
enumeration pendingResponseProcessing
enumeration pendingSubmission
Used by
Complex Type ItemResult.Type
Source
<xs:attribute name="sessionStatus" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="final"/>
      <xs:enumeration value="initial"/>
      <xs:enumeration value="pendingResponseProcessing"/>
      <xs:enumeration value="pendingSubmission"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
