1. Introduction

This document contains examples of QTI Version 2 in action. Some of the examples are illustrated by screen shots. All screen shots are taken from a single delivery engine [SMITH] developed during the public draft review period of this specification. They are designed to illustrate how a system might implement the specification and are not designed to be prescriptive. Other types of rendering are equally valid.

2. References

SMITH
Development of an implementation of QTI Version 2.0
Dr Graham Smith, with support from CETIS and UCLES
XHTML
XHTML 1.1: The Extensible HyperText Markup Language
XML
Extensible Markup Language (XML), Version 1.0 (second edition)
Published: 2000-10
XML_ERRATA
XML 1.0 Specification Errata
http://www.w3.org/XML/xml-19980210-errata

3. Items

The main purpose of the QTI specification is to define an information model and associated binding that can be used to represent and exchange assessment items. For the purposes of QTI, an item is a set of interactions (possibly empty) collected together with any supporting material and an optional set of rules for converting the candidate's response(s) into assessment outcomes.

3.1. How Big is an Item?

The above definition covers a wide array of possibilities. At one extreme a simple one line question with a response box for entering an answer is clearly an item but at the other, an entire test comprising instructions, stimulus material and a large number of associated questions also satisfies the definition. In the first case, QTI is an appropriate specification to use for representing the information, in the second case it isn't.

To help determine whether or not a piece of assessment content that comprises multiple interactions should be represented as a single assessmentItem (known as a composite item in QTI) the strength of the relationship between the interactions should be examined. If they can stand alone then they may best be implemented as separate items, perhaps sharing a piece of stimulus material like a picture or a passage of text included as an object. If several interactions are closely related then they may belong in a composite item, but always consider the question of how easy it is for the candidate to keep track of the state of the item when it contains multiple related interactions. If the question requires the user to scroll a window on their computer screen just to see all the interactions then the item may be better re-written as several smaller related items. Consider also the difficulty faced by a user interacting with the item through a screen-reader, an item with many possible of points of interaction may be overwhelming in such an interface.

3.2. Simple Items

Simple items are items that contain just one point of interaction, for example a simple multi-choice or multi-response question. This section describes a set of examples illustrating simple items, one for each of the interaction types supported by the specification.

Unattended Luggage
examples/items/choice.xml

Unattended Luggage (Illustration)

This example illustrates the choiceInteraction being used to obtain a single response from the candidate.

Notice that the candidate's response is declared at the top of the item to be a single identifier and that the values this identifier can take are the values of the corresponding identifier attributes on the individual simpleChoices. The correct answer is included in the declaration of the response. In simple examples like this one there is just one response variable and one interaction but notice that the interaction must still be bound to the response declaration using the responseIdentifier attribute of choiceInteraction.

The item is scored using one of the standard response processing templates, Match Correct.

Unattended Luggage (DTD)
examples/items/choice_doctype.xml

This example is identical to Unattended Luggage except that it illustrates the use of the DTD binding instead of the XSD. The XSD form is preferred and the alternative binding method using the DTD is illustrated for this example only.

Composition of Water
examples/items/choice_multiple.xml

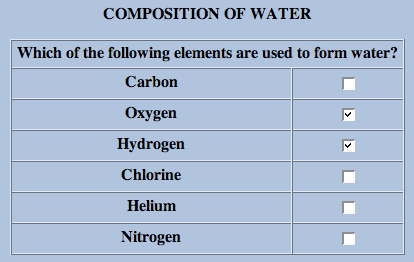

Composition of Water (Illustration)

This example illustrates the choiceInteraction being used to obtain multiple responses from the candidate.

Notice that the candidate's response is declared to have multiple cardinality and the correct value is therefore composed of more than one value. This example could have been scored in the same way as the previous one, with 1 mark being given for correctly identifying the two correct elements (and only the two correct elements) and 0 marks given otherwise, however, a method that gives partial credit has been adopted instead through the use of the standard response processing template Map Response. This template uses the RESPONSE's mapping to sum the values assigned to the individual choices. As a result, identifying the correct two choices (only) scores 2 points. Notice that selecting a third (incorrect) choice reduces the score by 2 (with the exception of Chlorine) resulting in 0 as unmapped keys are mapped to the defaultValue. To prevent an overall negative score bounds are specified too. The penalty for selecting Chlorine is less, perhaps to reflect its role as a common water additive.

Grand Prix of Bahrain
examples/items/order.xml

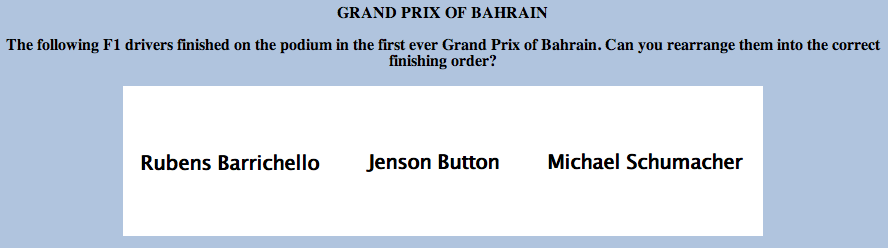

Grand Prix of Bahrain (Illustration)

This example illustrates the orderInteraction. The candidate's response is declared to have ordered and the correct value is therefore composed of an ordered list of value. The shuffle attribute tells the delivery engine to shuffle the order of the choices before displaying them to the candidate. Note that the fixed attribute is used to ensure that the initially presented order is never the correct answer. The question uses the standard response processing template Match Correct to score 1 for a completely correct answer and 0 otherwise.

Shakespearian Rivals
examples/items/associate.xml

Shakespearian Rivals (Illustration)

This example illustrates the associateInteraction. The candidate's response is declared to have pair because the task involves pairing up the choices. The maxAssociations attribute on associateInteraction controls the maximum number of pairings the candidate is allowed to make overall. Individually, each choice has a matchMax attribute that controls how many pairings it can be part of. The number of associations that can be made in an associateInteraction is therefore constrained by two methods - in this case they have the same overall effect but this needn't be the case.

The associations created by the candidate are not directed, the pair base-type is an undirected pair so when comparing responses "A P" would be treated as a match for "P A" - the distinction has no meaning to the interaction even though the physical process used by the candidate might be directional, for example, drawing a line between the choices.

Characters and Plays
examples/items/match.xml

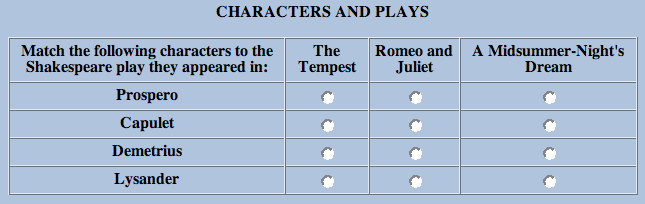

Characters and Plays (Illustration)

This example illustrates the matchInteraction. This time the candidate's response is declared to have directedPair because the task involves pairing up choices from a source set into a target set. In this case characters from plays with the names of the plays from which they are drawn. Notice that matchMax on the characters is one because each character can be in only one play (in fact, Shakespeare often reused character names but we digress) but it is four on the plays because each play could contain all the characters. For example, Demetrius and Lysander were both in A Midsummer-Night's Dream, so in the correct response that play has two associations. In the mapping used for response processing these two associations have been awarded only a half a mark each.

Richard III (Take 1)
examples/items/gap_match.xml

Richard III (Illustration 1)

This example illustrates the gapMatchInteraction. This interaction is similar to matchInteraction except that the choices in the second set are gaps in a given passage of text and the task involves selecting choices from the first set and using them to fill the gaps. The same attributes are involved in controlling which, and how many, pairings are allowed though there is no matchMax for the gaps because they can only ever have one associated choice. The scoring is again done with a mapping.

Richard III (Take 2)
examples/items/inline_choice.xml

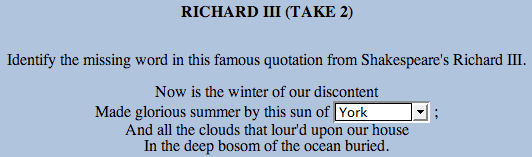

Richard III (Illustration 2)

The Richard III (Take 1) example above demonstrated the use of filling gaps from a shared stock of choices. In cases where you only have one gap, or where you have multiple gaps that are to be filled independently, each from its own list of choices, then you use an inlineChoice interaction.

Richard III (Take 3)
examples/items/text_entry.xml

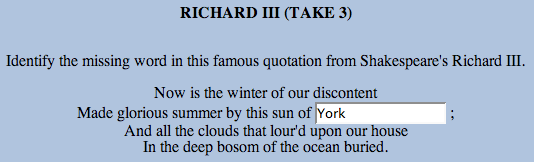

Richard III (Illustration 3)

The third, and final method of filling gaps is to use an textEntryInteraction which requires the candidate to construct their own response, typically by typing it in. Notice that a guide to the amount of text to be entered is given in the expectedLength attribute - though candidates should be allowed to enter more if desired.

The scoring for this item could have just matched the correct response but actually uses a mapping to enable partial credit for york (spelled without a capital letter). When mapping strings the mapping always takes place case sensitively. This example also illustrates the use of the mapping when the response only has single cardinality.

Writing a Postcard
examples/items/extended_text.xml

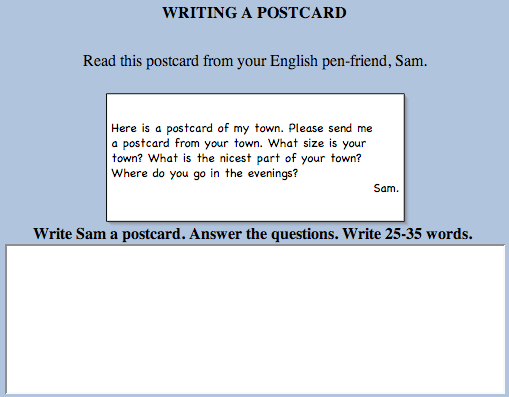

Writing a Postcard (Illustration)

If an extended response is required from the candidate then the extendedTextInteraction is appropriate. Notice that this example does not contain a responseProcessing section because the scoring of extended text responses is beyond the scope of this specification.

Olympic Games
examples/items/hottext.xml

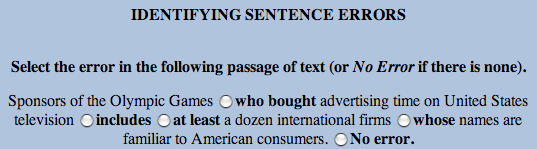

Olympic Games (Illustration)

This example illustrates the hottextInteraction. This interaction presents a passage of text with some hot words/phrases highlighted and selectable by the candidate. It differs from the choiceInteraction in that the choices have to be presented in the context of the surrounding text.

UK Airports
examples/items/hotspot.xml

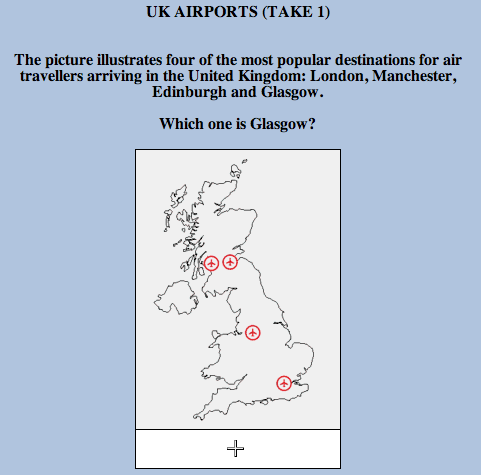

UK Airports in Unanswered State (Illustration)

UK Airports in Answered State (Illustration)

This example illustrates the hotspotInteraction. This is very similar to the hottextInteraction except that instead of having to select hot areas embedded in a passage of text the candidate has to select hotspots of a graphical image.

Note that the response is of type identifier and that each individual hotspotChoice associates an identifier with an area of the image.

Where is Edinburgh?
examples/items/select_point.xml

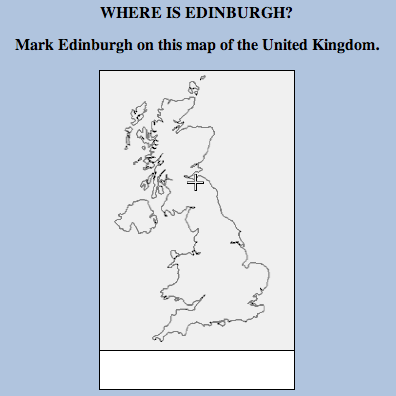

Where is Edinburgh? (Illustration)

This example illustrates the selectPointInteraction. The RESPONSE is declared to be a single point that records the coordinates of the point on the map marked by the candidate. The correctResponse is given in the declaration too, however, for this type of question it is clearly unreasonable to expect the candidate to click exactly on the correct point and there would be too many values to build a workable mapping. To get around this problem an areaMapping is used instead, this allows one or more areas of the coordinate space to be mapped to a numeric value (for scoring). In this example, just one area is defined: a circle with radius 8 pixels centered on the correct (optimal) response. The standard response processing template Map Response Point is used to set the score using the areaMapping.

Flying Home
examples/items/graphic_order.xml

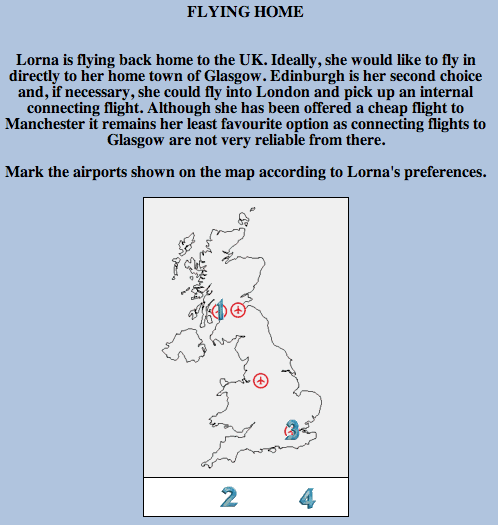

Flying Home (Illustration)

This example illustrates the graphicOrderInteraction. The task is similar to Grand Prix of Bahrain except that the choices are presented as hotspots on a graphic image.

Low-cost Flying
examples/items/graphic_associate.xml

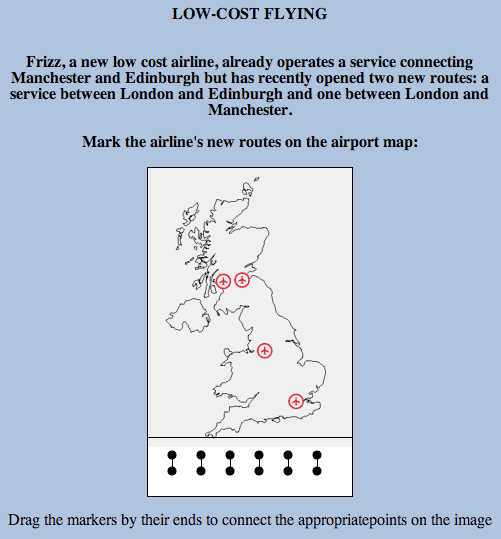

Low-cost Flying Unanswered State (Illustration)

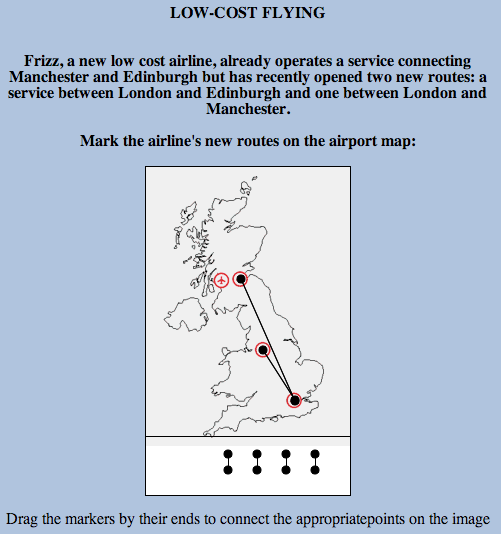

Low-cost Flying Answered State (Illustration)

This example illustrates the graphicAssociateInteraction. The task is similar to Shakespearian Rivals except that the choices are presented as hotspots on a graphic image. Notice that matchMax is set to three for each of the hotspots allowing the candidate to associate each hotspot up to three times (in other words, with all the other hotspots if desired).

Airport Tags
examples/items/graphic_gap_match.xml

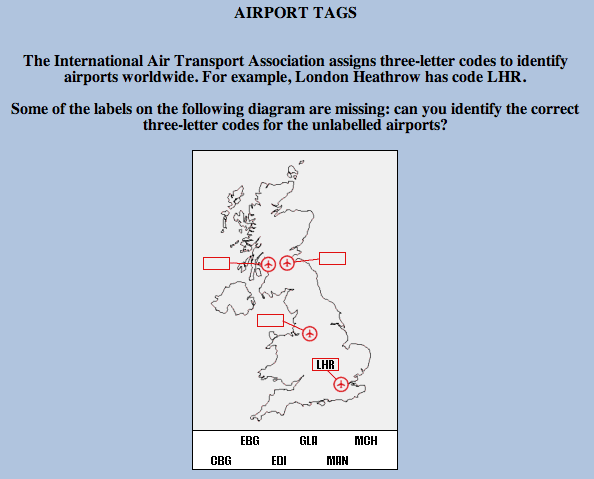

Airport Tags (Illustration)

This example illustrates the graphicGapMatchInteraction. The task is similar to Richard III (Take 1) except that the first set of choices are images and the second set are gaps within a larger background image. In graphical system that supports dragging this would typically be implemented using drag and drop.

Airport Locations
examples/items/position_object.xml

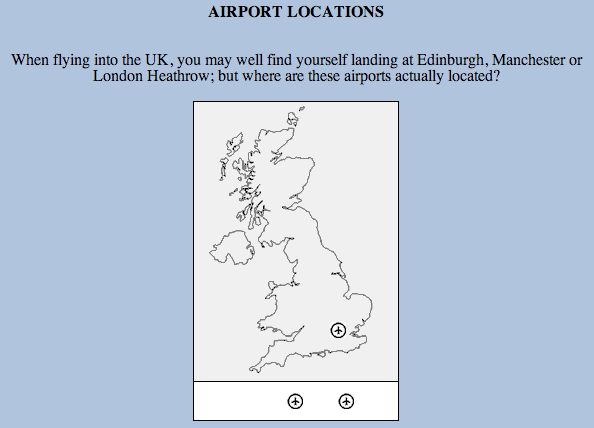

Airport Locations (Illustration)

This example illustrates the positionObjectInteraction. It has a lot in common with Where is Edinburgh? except that the 'point' is selected by positioning a given object on the image (the stage). Notice that the stage is specified outside of the interaction. This allows a single stage to be shared amongst multiple position object interactions.

Jedi Knights
examples/items/slider.xml

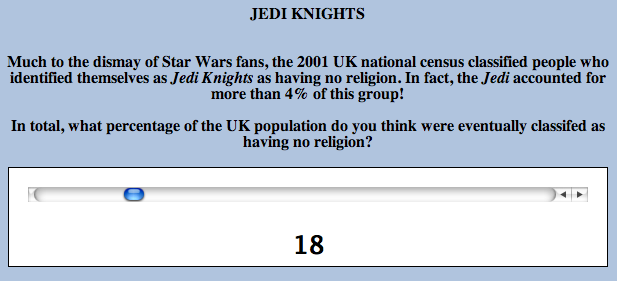

Jedi Knights (Illustration)

This example illustrates the sliderInteraction. It is used in this example to obtain a percentage estimate. The interaction is bound to an integer response which can then be scored using the standard Map Response response processor.

La casa di Giovanni
examples/items/drawing.xml

This example illustrates the drawingInteraction. Notice that the RESPONSE is declared to be of type file. The drawing takes place on a required pre-supplied canvas, in the form of an existing image, which is also used to determine the appropriate size, resolution and image type for the candidate's response.

The Chocolate Factory (Take 1)
examples/items/upload.xml

This example illustrates the uploadInteraction. The RESPONSE is again declared to be of type file. The candidate is provided with a mechanism to upload their own spreadsheet in response to the task, response processing for file-based questions is out of scope of this specification.

3.3. Composite Items

Composite items are items that contain more than one point of interaction. Composite items may contain multiple instances of the same type of interaction or have a mixture of interaction types.

The Chocolate Factory (Take 2)
examples/items/upload_composite.xml

This example extends The Chocolate Factory (Take 1) with an additional text response field that can be marked objectively.

3.4. Response Processing

So far, all the examples have been scored using one of the standard response processing templates, or have not been suitable for objective scoring. For simple scenarios, use of the response processing templates is encourage as they improve interoperability between systems that only cater for a limited number of fixed scoring methods.

Many items, particularly those involving feedback, will require the use of the more general response processing model defined by this specification. The standard templates are themselves defined using this more general response processing language.

Grand Prix of Bahrain (Partial Scoring)
examples/items/order_partial_scoring.xml

This example extends Grand Prix of Bahrain to include partial scoring. With three drivers to place on the podium there are 6 possible responses that the candidate can make, only one of which is correct. Previously, the correct answer scored 1 and all other responses scored 0. Now, the correct answer scores 2. Correctly placing Michael Schumacher first scores 1 if the other two drivers have been muddled up. Placing Barichello or Button first scores 0 (all other combinations).

Response processing consists of a sequence of rules that are carried out, in order, by the response processor. A responseCondition rule is a special type of rule which contains sub-sequences of rules divided into responseIf, responseElseIf and responseElse sections. The response processor evaluates the expressions in the responseIf and responseElseIf elements to determine which sub-sequence to follow. In this example, the responseIf section is followed only if the variable with identifier RESPONSE matches the correct response declared for it. The responseElseIf section is followed if RESPONSE matches the response explicitly given (which places the correct driver 1st but confuses the other two). Finally, the responseElse section is followed if neither of the previous two apply. The responseElse section has no corresponding expression of course. The setOutcomeValue element is just a responseRule that tells the processor to set the value of the specified outcomeVariable to the value of the expression it contains.

The variable, correct and baseValue elements are examples of simple expressions. In other words, expression that are indivisible. In contrast, the match and ordered elements are examples of operators. Operators are expressions that combine other expressions to form new values. For example, match is used to form a boolean depending on whether or not two expressions have matching values.

3.5. Feedback

Feedback consists of material presented to the candidate conditionally based on the result of responseProcessing. In other words, feedback is controlled by the values of outcomeVariables. There are two types of feedback material, modal and integrated. Modal feedback is shown to the candidate after response processing has taken place and before any subsequent attempt or review of the item. Integrated feedback is embedded into the itemBody and is only shown during subsequent attempts or review.

Mexican President
examples/items/feedback.xml

In this example, a straightforward multi-choice question declares an additional outcomeVariable called FEEDBACK which is used to control the visibility of both integrated feedback (the feedbackInline elements) and modalFeedback. The feedback shown depends directly on the response given by the candidate in this case so FEEDBACK is simply set to the value of RESPONSE directly.

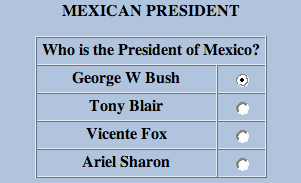

Mexican President Before Submission (Illustration)

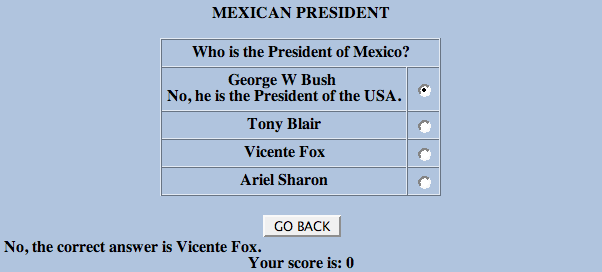

Mexican President After Submission (Illustration)

3.6. Adaptive Items

Adaptive items are a new feature of version 2 that allows an item to be scored adaptively over a sequence of attempts. This allows the candidate to alter their answer following feedback or to be posed additional questions based on their current answer. Response processing works differently for adaptive items. Normally (for non-adaptive items) each attempt is independent and the outcomeVariables are set to their default values each time responseProcessing is carried out. For adaptive items, the outcome variables retain their values across multiple attempts and are only updated by subsequent response processing. This difference is indicated by the value of the adaptive attribute of the assessmentItem. Adaptive items must of course provide feedback to the candidate in order to allow them to adjust their response(s).

Monty Hall (Take 1)
examples/items/adaptive.xml

This example takes a famous mathematical problem and presents it to the user as a game. The feedbackBlock element, in association with a number of outcomeVariables is used to control the flow of the story, from the opening gambit through to whether or not you have won a prize. When the story concludes you are asked about the strategy you adopted. Notice that the scoring for the question is based on the actual strategy you took (one mark) and your answer to the final question (two marks). If you choose a bad strategy initially you are always punished by losing the game. If you feel that this is cheating take a look at a more realistic version of the same question which combines adaptivity with the powerful feature of item templates: Monty Hall (Take 2).

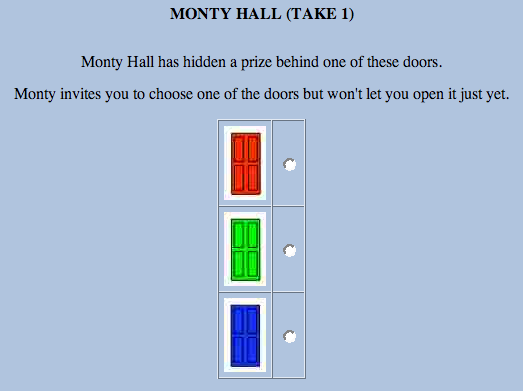

Monty Hall First Attempt (Illustration)

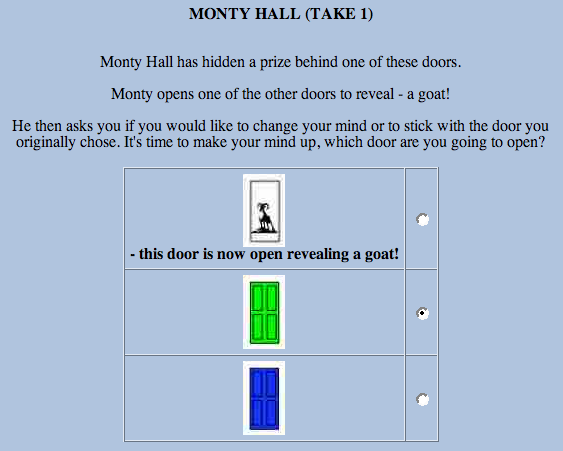

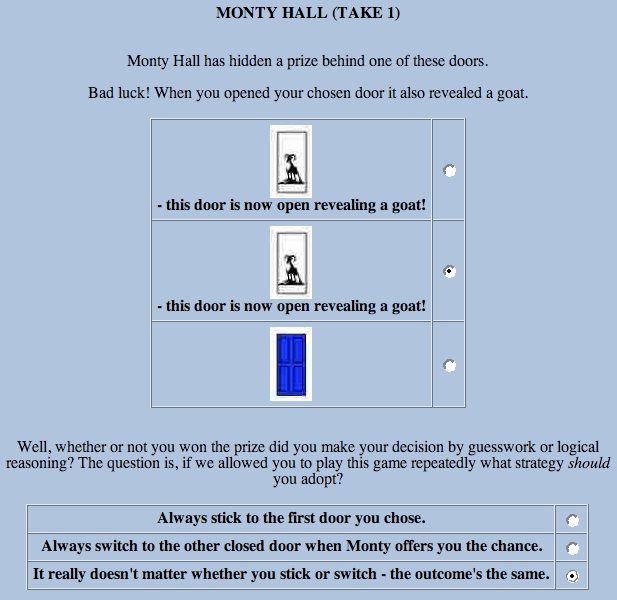

Monty Hall Second Attempt (Illustration)

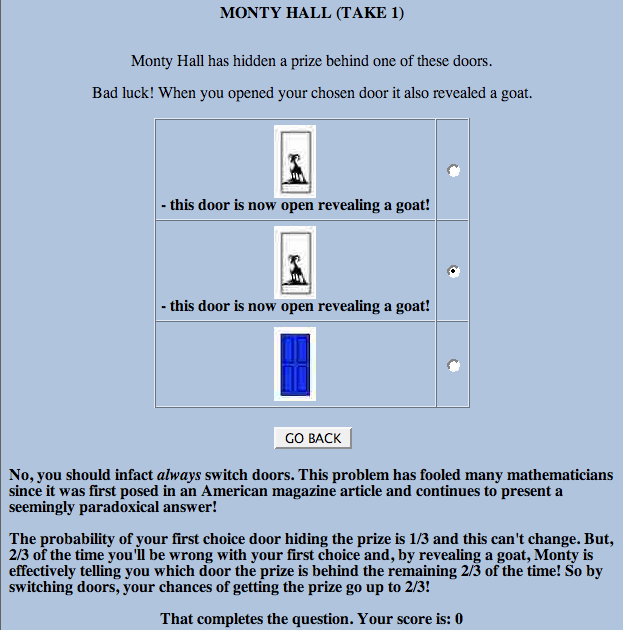

Monty Hall Third Attempt (Illustration)

Monty Hall Final Feedback (Illustration)

In the previous example, the default method of ending an attempt was used to progress through the item, however, sometimes it is desirable to provide alternative ways for the candidate to end an attempt. The most common requirement is the option of requesting a hint instead of submitting a final answer. QTI provides a flexible way to accommodate these alternative paths through the special purpose endAttemptInteraction.

Mexican President (Take 2)
examples/items/hint.xml

In this example, Mexican President is extended to provide both feedback and the option of requesting a hint. The endAttemptInteraction controls the value of the response variable HINTREQUEST - which is true if the attempt ended with a request for a hint and false otherwise.

3.7. Item Templates

Item templates are a new feature of version 2 that allows many similar items to be defined using the same assessmentItem.

Digging a Hole
examples/items/template.xml

This example contains a simple textEntryInteraction but the question (and the correct answer) varies for each itemSession. In addition to the usual RESPONSE and SCORE variables a number of templateVariables are declared. Their values are set by a set of templateProcessing rules. Template processing is very similar to response processing. The same condition model and expression language are used. The difference is that templateRules set the values of templateVariables and not outcomeVariables. Notice that the declaration of RESPONSE does not declare a value for the correctResponse because the answer varies depending on which values are chosen for A and B. Instead, a special rule is used, setCorrectResponse in the template processing section.

The randomInteger element represents a simple expression that selects a random integer from a specified range. The random element represents an operator that selects a random value from a container.

The itemBody displays the values of the template variables using the printedVariable element.

Mick's Travels
examples/items/template_image.xml

Sometimes it is desirable to vary some aspect of an item that cannot be represented directly by the value of a template variable. For example, in "Mick's Travels", the itemBody contains an illustration that needs to be varied according to the value chosen for a template variable. To achieve this three templateInline elements are used, each one enclosing a different img element. This element (along with the similar templateBlock) has attributes for controlling its visibility with template variables in the same way as outcome variables are used to control the visibility of feedback.

Item templates can be combined with adaptive items too.

Monty Hall (Take 2)
examples/items/adaptive_template.xml

In Monty Hall (Take 1) we cheated by fixing the game so that the wrong strategy always lost the candidate the prize (and the first mark). In this version we present a more realistic version of the game using an item template. The same outcome variables are defined to control the story and the feedback given but this time a templateDeclaration is used to declare the variable PRIZEDOOR. The templateProcessing rules are then used to preselect the winning door at random making the game more realistic. The responseProcessing rules are a little more complicated as the value of PRIZEDOOR must be checked (a) to ensure that Monty doesn't open the prize winning door after the candidate's first choice and (b) to see if the candidate has actually won the "fantastic prize".

In this example, using the correct strategy will still lose the candidate the prize 1/3 of the time (though they always get the mark). Do you think that the outcome of the game will effect the response to the final strategy question?

3.8. Miscellaneous Techniques

3.8.1. Shared Material Objects

It is often desirable to ask a number of questions all related to some common stimulus material such as a graphic or a passage of text. Graphic files are always stored separately and referenced within the markup using img or object elements making them easy to reference from multiple items but passages of text can also be treated this way. The object element allows externally defined passages (either as plain text files or HTML markup) to be included in the itemBody.

The following two example demonstrate this use of a shared material object.

Orkney Islands Q1
examples/items/orkney1.xml

Orkney Islands Q2
examples/items/orkney2.xml

3.8.2. Stylesheets

Associating a style sheet with an item simply involves using the stylesheet element within an assessmentItem. The Orkney Islands examples above use this element to associate a stylesheet written using the CSS2 language. Notice that the class attribute is used to divide the item's body into two divisions that are styled separately, the shared material appearing in a right-hand pane and the instructions and question appearing in a left-hand pane.

Orkney Islands Stylesheet
examples/items/shared/orkney.css

This stylesheet also demonstrates a possible approach to providing absolute positioning in QTI version 2 - something which is no longer supported directly by the item information model. In version 1, material elements could have their coordinates set explicitly (see the Migration Guide for more information about migrating content that used this feature).

3.8.3. Alternative Media

The XHTML object element is designed to support the graceful degradation of media objects. The HTML 4.01 specification (the basis for [XHTML]) says "If the user agent is not able to render the object for whatever reason (configured not to, lack of resources, wrong architecture, etc.), it must try to render its contents."

Writing a Postcard (Take 2)
examples/items/nested_object.xml

This example is the same as Writing a Postcard except that the picture of the postcard is provided in two different formats. Firstly as an encapsulated PostScript file (EPS) and then, alternatively, as a PNG bitmapped image. Finally, if the delivery engine is unable to handle both offered image types the text of the postcard can be displayed directly. Item authors should consider using this technique for maintaining images suitable for a variety of different output media, e.g., paper, high-resolution display, low-resolution display, etc.

3.8.4. Alternative Renderings for Interactions

The Orkney Islands Stylesheet illustrates the way styles can be applied to the XHTML elements that defined the structure of the item's body. The class attribute can also be applied to interactions and many of the common formatting concepts will still be applicable (font size, color, etc.). Delivery engines may also use this attribute to choose between multiple ways of presenting the interaction to the candidate - though the vocabulary for class attributes on interactions is currently beyond this specification.

The QTI Questionnaire
examples/items/likert.xml

This example illustrates an item that is used to present a set of choices commonly known as the likert scale used to obtain responses to attitude-based questions. The question is represented by a normal choiceInteraction but the class attribute of the itemBody is set to likert to indicate to the delivery engine that it should use an appropriate layout for the question, e.g., using a single line for the prompt and the choices with each choice at a fixed tab stop. By applying the style class to the whole of the item body, a delivery engine that renders multiple likert items together might be able choose a more compact rendering. Note that in this example the responseProcessing is absent, there is no right answer!

3.8.5. Using MathML

Relativity
examples/items/math.xml

This simple example illustrates the inclusion of a mathematical expression marked up with MathML into an item.

3.8.6. Number Formatting

The format attribute of printedVariable profiles the formatting rules described by the C standard. The following table illustrates the main features. Spaces are show as the '_' (underscore) character to improve readability

Format specification Input Formatted output Notes
%i -987 -987 Simple signed decimal format.
%.4i -987 -0987 Precision specifies the minimum number of digits in i, o, x and X formats and defaults to no minimum.
%.0i 0   When formatting zero with a precision of 0 no digits are output (i, o, x and X formats only).
%8i 987 _____987 Field-width set manually to 8 results in five leading spaces.
%2i 987 987 Field-width set manually to 2 is insufficient so ignored.
%-8f 987 987_____ Hyphen flag forces left field alignment resulting in five trailing spaces.
%08i 987 00000987 Zero flag forces zero-padding resulting in five leading zeros.
%+i 987 +987 Plus flag leads positive numbers with plus sign (excluding o, x and X formats).
%_i 987 _987 Space flag leads positive numbers with space (excluding o, x and X formats).
%o 987 1733 Octal format, number must be positive
%#o 987 01733 # flag ensures at least one leading 0 for o format.
%x 987 3db Hex format (lower case), number must be positive
%#x 987 0x3db # flag always displays leading 0x for x format.
%X 987 3DB Hex format (upper case), number must be positive
%#X 987 0X3DB # flag always displays leading 0X for X format.
%f 987.654 987.654000 The precision specifies number of decimal places to display for f format and defaults to 6.
%.2f 987.654 987.65 Precision set manually to 2.
%#.0f 987 987. # flag forces trailing point for f, e, E, g, G, r and R formats.
%e 987.654 9.876540e+02 Forces use of scientific notation. The precision specifies number of figures to the right of the point for e and E formats and defaults to 6.
%.2e 987.654 9.88e+02 Precision set manually to 2.
%E 987.654 9.876540E+02 Forces use of scientific notation (upper case form).
%g 987654.321 987654 Rounded to precision significant figures (default 6) and displayed in normal form when precision is greater than or equal to the number of digits to the left of the point.
%g 987 987 Trailing zeros to the right of the point are removed.
%g 987654321 9.87654e+08 Scientific form used when required.
%g 0.0000987654321 9.87654e-05 Scientific form also used when 4 or more leading zeros are required to the right of the point.
%#g 987 987.000 # flag also forces display of trailing zeros (up to precision significant figures) in g and G formats.
%G 0.0000987654321 9.87654E-05 As for g but uses upper case form.
%r 0.0000987654321 0.0000987654 The same as g except that leading zeros to the right of the point are not limited.
%R 0.0000987654321 0.0000987654 The same as G except that leading zeros to the right of the point are not limited.

4. Usage Data (Item Statistics)

Example Item Statistics
examples/usagedata/example.xml

This example demonstrates the construction of a usage-data file. When distributing usage data within a content package the usage-data should be stored in a separate file within the package and referred to in the manifest file by an appropriate cp:resource element. Note that references to the assessment items and other objects within the usage-data file itself are not considered to be dependencies of the resource. The resource type for usage-data files is imsqti_usagedata_xmlv2p0.

5. Packaged Items and Metadata

Simple Packaging Example
examples/package/imsmanifest.xml

This example demonstrates how a single item is packaged using the techniques described in the Integration Guide. The manifest file demonstrates the use of a resource element to associate meta-data (both LOM and QTI) with an item and the file element to reference the assessmentItem XML file and the associated image file.

Shared Image Example
examples/package_shared/imsmanifest.xml

This example demonstrates how multiple items are packaged. Note that where two items share a media object (such as an image) a dependency can be used to enable the object to be represented by its own resource element within the manifest.

Package with Response Processing Templates
examples/package_maxfiles/imsmanifest.xml

The response processing templates feature of QTI allows common sets of response processing rules to be documented in separate XML documents and simply referred to by the items that make use of them. The mechanism for identifying the template to use is the template attribute on the responseProcessing element. This attribute is a URI, but it is not required to be a URL that resolves directly to the appropriate XML document. To help systems that support general response processing find the rule definitions required to support new templates an additional templateLocation attribute is provided which may be used to provide a URL that resolves to the template's XML document. If this URL is given relative to the location of the item then the template should be included in the same content package and listed as a dependency for each of the items that refer to it.

This example package demonstrates the use of a relative URL to refer to response processing templates listed as separate resources within the package as described above. Note that the technique used is similar to that for locating XML schemas from the URIs used to refer to their namespaces, however, XML schemas included in content packages to assist with validation should not be described as separate resources (or file dependencies) in the manifest file.

Package with Externally Defined Response Processing Templates
examples/package_minfiles/imsmanifest.xml

This examples is the same as the one above (Package with Response Processing Templates) except that response processing templates are not included. The templateLocation attribute is used with absolute URLs of the templates.

6. Validation

The QTI schema file imports two externally defined auxiliary schemas, the built-in XML namespace and MathML. The schema imports these from their published locations on the web using absolute URLs. As a result, some XML validation tools may not be able to validate QTI documents when working offline.

There is also some confusion as to whether or not XML schemas that refer to components of the built-in XML namespace (such as the xml:lang attribute used by QTI) should (or even may) provide an associated namespace prefix declaration. This point was unclear in the first edition of the XML specification and not cleared up until the errata to that addition [XML_ERRATA] was published. The errata has itself now been superseded by the second edition [XML] which makes it clear that the declaration may be included provided it is bound to the reserved prefix xml but that it is not required. In keeping with the latest 1EdTech Content Packaging specification the QTI schema includes the declaration in the root of the schema. It is clear that some tools will still not validate documents against schemas that contain this prefix and a local copy of the QTI schema with the following attribute removed from the schema element may need to be used instead:

 xmlns:xml="http://www.w3.org/XML/1998/namespace"


About This Document



Title 1EdTech Question and Test Interoperability Implementation Guide
Editor Steve Lay (University of Cambridge)
Version 2.0
Version Date 24 January 2005
Status Final Specification
Summary This document describes the QTI Implementation Guide specification.
Revision Information 24 January 2005
Purpose This document has been approved by the 1EdTech Technical Board and is made available for adoption.
Document Location http://www.imsglobal.org/question/qti_v2p0/imsqti_implv2p0.html







To register any comments or questions about this specification please visit: http://www.imsglobal.org/developers/ims/imsforum/categories.cfm?catid=23





List of Contributors

The following individuals contributed to the development of this document:



Name Organization Name Organization
Niall Barr CETIS Joshua Marks McGraw-Hill
Sam Easterby-Smith Canvas Learning David Poor McGraw-Hill
Jeanne Ferrante ETS Greg Quirus ETS
Pierre Gorissen SURF Niall Sclater CETIS
Regina Hoag ETS Colin Smythe 1EdTech
Christian Kaefer McGraw-Hill GT Springer Texas Instruments
John Kleeman Question Mark Colin Tattersall OUNL
Steve Lay UCLES Rowin Young CETIS
Jez Lord Canvas Learning

Revision History



Version No. Release Date Comments
Base Document 2.0 09 March 2004 The first version of the QTI Item v2.0 specification.
Public Draft 2.0 07 June 2004 The Public Draft version 2.0 of the QTI Item Specification.
Final 2.0 24 January 2005 The Final version 2.0 of the QTI specification.







1EdTech Consortium, Inc. ("1EdTech/GLC") is publishing the information contained in this 1EdTech Question and Test Interoperability Implementation Guide ("Specification") for purposes of scientific, experimental, and scholarly collaboration only.

1EdTech/GLC makes no warranty or representation regarding the accuracy or completeness of the Specification.
This material is provided on an "As Is" and "As Available" basis.

The Specification is at all times subject to change and revision without notice.

It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.

1EdTech/GLC would appreciate receiving your comments and suggestions.

Please contact 1EdTech/GLC through our website at http://www.imsglobal.org

Please refer to Document Name:
1EdTech Question and Test Interoperability Implementation Guide Revision: 24 January 2005
