1. Introduction

1.1 Person Management Services Overview

The Person Management Services specification is the definition of how systems manage the exchange of information that describes people within the context of learning. The Person Management Services specification is constructed following the recommendations documented in the 1EdTech Abstract Framework (IAF) [AbsGloss, 03], [AbsASC, 03], [AbsWhite, 03]. This means that this specification is based upon the concepts of:

  • Interoperability - Person Management Services focuses on the exchange of Person(s) information between Enterprise systems. There are no assumptions in the specification on how the data is managed within the Enterprise systems;
  • Service-oriented - Person Management Services defines the exchange of information in terms of the services being supplied by the collaboration of the systems;
  • Component-based - the Person Management Services will be combined with the Group Management Services and Membership Management Services to provide the Enterprise Service. Other services will be added to it in later releases;
  • Layering - the Person Management Service is a part of the Application Services layer but it interacts with the services available in the Common Services layer, e.g., authentication;
  • Behaviors and Data Models - the Person Management Services are defined in terms of their behaviors and data models. The behaviors cause changes in the state of the data model and the state of the data model will only be altered as a result of a clearly defined behavior;
  • Multiple Bindings - the Person Management Services information model is to be defined using the Unified Modelling Language (UML). This enables reliable mapping of the information model into a range of different bindings. The bindings of immediate importance are to the Web Services Description Language (WSDL);
  • Adoption - the Person Management Services are based upon the original Enterprise specification data model. While there are significant changes the underlying data model has been maintained and the core Person structures remain.

1.2 Scope and Context

This document is the 1EdTech Person Management Services Information Model v1.0 and as such it is used as the basis for the development of the following documents:

  1. 1EdTech Person Management Services WSDL Binding v1.0 [PersonServices, 04] - there are many possible bindings of the Information Model but at the current time the only specified binding is based upon WSDL.

The core uses-cases for the Person Management Services are described as a subset of the Enterprise Services uses-cases [EntServices, 04a]. The Person Management Services specification supersedes the original Enterprise specifications:

  1. 1EdTech Enterprise Information Model Final Specification v1.1 [Enterprise, 02a].
  2. 1EdTech Enterprise XML Binding Final Specification v1.1 [Enterprise, 02b];
  3. 1EdTech Enterprise Services Best Practice and Implementation Guide Final Specification v1.1 [Enterprise, 02c].

This information model defines the Person Management Service Abstract Application Programming Interface (a-API). The original Enterprise specification was based upon the description of the data model for the information to be exchanged between communicating enterprise systems. The Enterprise Services specification, of which the Person Management Service is a component, extends this work by adding a series of behavioral models that define how the data models are to be manipulated. These behavioral models are described using UML and the syntax adopted for the description of the UML is given in the 1EdTech Specifications, Methods, and Best Practices document [SpecDev, 03].

1.3 Structure of this Document

The structure of this document is:


2. Person Management Service Description The description of the overall structure and operation of the Person Management Service. This includes the description of the architectural model and the domain object model;
3. Behavioral Model The definition of the operations of Person Management Service application service. This focuses on the description of the behaviors supported by the service;
4. Data Model The definition of the data models for the Person Management Service application service. This focuses on the description of the Person and related data structures;
5. Extending the Enterprise Service Identification of the ways in which the Person Management Service can be extended both in terms of the addition of new constituent services and proprietary extensions to a service;
Appendix A - Common Components Identification of the common data structures and services that are used by the Person Management Service;
Appendix B - Service Status Codes A summary list of the status codes, and their causes, that can be returned by each of the operations forming the Person Management Service.

1.4 Nomenclature


API Application Programming Interface
a-API Abstract Application Programming Interface
CRUD Create, Read, Update and Delete
HR Human Resources
HRMS Human Resources Management System
IAF 1EdTech Abstract Framework
LMS Learning Management System
LibMS Library Management System
MIS Management Information System
SIF Schools Interoperability Framework
SIS Student Information System
TMS Training Management System
UML Unified Modelling Language
URL Universal Resource Locator
VLE Virtual Learning Environment
W3C World Wide Web Consortium
WSDL Web Services Description Language
XML Extensible Mark-up Language

1.5 References


[AbsASCs, 03] 1EdTech Abstract Framework: Applications, Services & Components v1.0, Ed. C.Smythe, 1EdTech Consortium, Inc., July 2003.
[AbsGloss, 03] 1EdTech Abstract Framework: Glossary v1.0, Ed. C.Smythe, 1EdTech Consortium, Inc., July 2003.
[AbsWhite, 03] 1EdTech Abstract Framework: White Paper v1.0, Ed. C.Smythe, 1EdTech Consortium, Inc., July 2003.
[Cockburn, 01] Writing Effective Use-case, A.Cockburn, Addison-Wesley, 2001, ISBN 0-201-70225-8.
[Enterprise, 02a] 1EdTech Enterprise Information Model v1.1, G.Collier, C.Etesse, W.Veres and C.Smythe, 1EdTech Consortium, Inc., July 2002.
[Enterprise, 02b] 1EdTech Enterprise XML Binding v1.1, G.Collier, C.Etesse, W.Veres and C.Smythe, 1EdTech Consortium, Inc., July 2002.
[Enterprise, 02c] 1EdTech Enterprise Best Practice & Implementation Guide v1.1, G.Collier, C.Etesse, W.Veres and C.Smythe, 1EdTech Consortium, Inc., July 2002.
[EntServices, 04a] 1EdTech Enterprise Services Core Use Cases Description v1.0, C.Smythe and C.Vento, 1EdTech Consortium, Inc., June 2004.
[EntServices, 04b] 1EdTech Enterprise Services Best Practices & Implementation Guide v1.0, C.Smythe and C.Vento, 1EdTech Consortium, Inc., June 2004.
[EntServices, 04c] 1EdTech Enterprise Services Common Data Definitions v1.0, C.Smythe and C.Vento, 1EdTech Consortium, Inc., June 2004.
[PersonServices, 04] 1EdTech Person Management Services WSDL Binding v1.0, C.Smythe and C.Vento, 1EdTech Consortium, Inc., June 2004.
[SpecDev, 03] 1EdTech Specification Development Methods & Best Practices Draft 5.0, C.Smythe, 1EdTech Consortium, Inc., August 2003.

2. Person Management Service Description

2.1 An Abstract Representation

It is important to remember that this document is describing the underlying information model in terms of the abstract API. The manner in which this abstract representation is visualized is not intended to dictate the implementation form of a Person Management System. The breakdown of the service into its interface classes is a convenient way to document the set of behaviors. The internal organization of an implementation of the full abstract API is beyond the scope of this specification. The only constraint is that the external behavior of the abstract API complies with this specification. This means that a .NET, Java, etc. physical implementation of this abstract API does not have to represent the functionality using the same breakdown of operations/methods. This physical implementation is not subject to the conformance specification.

It is important to note that the UML representation of the interfaces is used to help develop and document the Person Management Services Information Model. It is not a requirement for an implementation to implement this interface as defined i.e., to use the same parameters, etc. Conformance against this specification will be confirmed by inspecting the appropriate binding of the information model and ensuring that the relevant information is present and that different sequences of activity result in the predicted and mandated behavior. It is essential that the behaviors described by each of the operations are fully supported and it is also essential that the behaviors described by different sequences are also maintained.

2.2 Person Management Service Architecture Model

The basic architectural model for the Person Management Services specification is shown in Figure 2.1.

Person Management service architecture model
Figure 2.1 Person Management service architecture model.

In this architecture the scope of the 1EdTech Person Management Services specification is shown as the dotted line. The scope of the interoperability is the data and behavioral models of the objects being exchanged.

The 1EdTech Person Management Services specification contains a very simple abstract messaging model that is assumed to underlie the exchange of the data between the communicating Enterprise systems. The basic data exchange mechanism is shown in Figure 2.2 in which the 'source' and 'target' Person Management systems exchange 'messages' using a 'Request/Response' transaction. This abstract messaging representation is adopted because the Person Management System architecture is based upon loosely coupled system and the primary 1EdTech binding of this information model is based upon the exchange of XML documents/messages.

It is important to remember that the structure of the exchanged information has NO bearing on how the same information is contained within the 'source' and 'target' Enterprise systems. It is simply a representation of the data used to facilitate exchange with other parties (the information that crosses the dotted line in Figure 2.2).

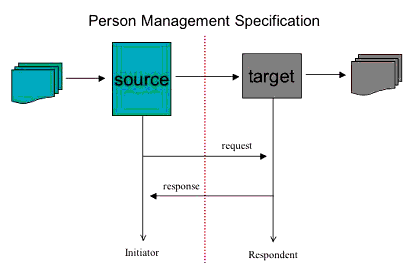

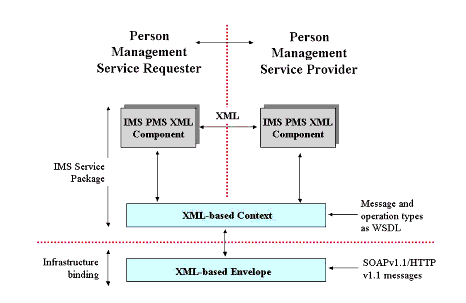

Person Management service abstract information exchange model
Figure 2.2 Person Management service abstract information exchange model.

The behavioral descriptions will describe:

  • The data that is to be exchanged between the communicating Person Management Systems;
  • The operations that can be invoked to support the exchange of the data between the communicating Person Management Systems;
  • The permitted sequence of operations that can be used to support the exchange of data between the communicating Person Management Systems.

2.3 Person Objects

It is important to note that this is an interoperability specification and as such it makes no statements about how information is stored within the exchanging end systems. The objects in the end-systems must be persistent otherwise sequences of operation on the same object will not be possible. Reference to these objects in the interface is through a 'sourcedId' however this identifier does not have to be the key stored within the end-systems. If different keys are used in the end-systems then it is the responsibility of the end-systems to maintain the mapping between that key and the 'sourcedId' i.e., the interface must never be exposed to the keys of the end-systems.

2.4 Synchronous and Asynchronous Services

Within the context of the Person Management Services the definition of synchronous and asynchronous services is:

  • Synchronous - the source service is blocked until the final response from the target service is received;
  • Asynchronous - the source service is not blocked and so more than one request can be outstanding at any moment in time.

The abstract-API does not differentiate between synchronous and asynchronous services1. The support for these two approaches is at the binding level only.

3. Behavioral Model

3.1 Service Definition

The PersonManagementService class is used to model the service responsible for manipulating information about people. The PersonManagementService package is shown in Figure 3.1.

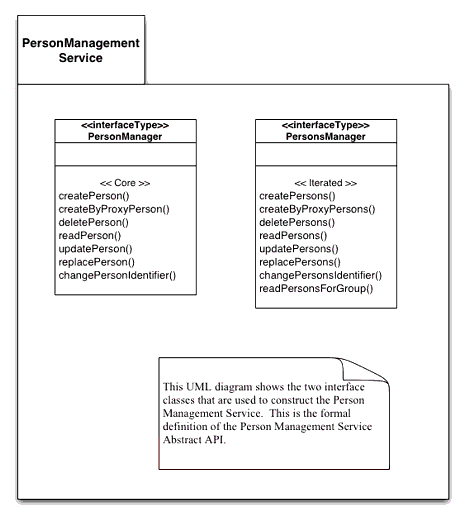

PersonManagementService class diagram
Figure 3.1 PersonManagementService class diagram.

The PersonManagementService is split into two interface classes: PersonManager that supports the manipulation of a single Person object; PersonsManager that supports the manipulation of two or more Person objects bound in a single transaction. The manipulation of multiple Person objects can also be supported by the iteration over the PersonManager however this will result in multiple independent transactions. The data-types used to support the PersonsManager class are derived as sets of the equivalent data-types used for the PersonManager class.

3.2 PersonManager Interface Class Description

3.2.1 Structure

The PersonManager interface class describes the operations that are permitted on a single 'person' object as shown in Figure 3.2. These operations are based upon the classic Create/Read/Update/Delete model with variations defined to differentiate subtleties of functionality. The interface stereotype indicates that there are no attributes for this class.

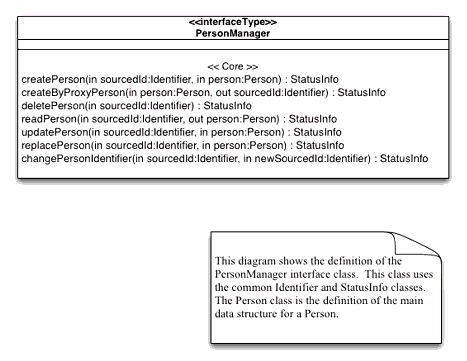

PersonManager interface class diagram
Figure 3.2 PersonManager interface class diagram.

The PersonManager operations use the following data types and common classes:

  • Person - the data structure for the Person information;
  • Identifier - the container for the unique identifier of the 'person' object;
  • StatusInfo - the container for the status information that describes the completion state of the operation.

3.2.2 Operations

The core CRUD operations are summarized in Table 3.1.

Table 3.1 Summary of operations for PersonManager.


Operation Description
createPerson To request the creation of a populated 'person' record on the target system where the source is responsible for the allocation of the unique identifier.
createByProxyPerson To request the creation of a populated 'person' record on the target system where the target is responsible for the allocation of the unique identifier.
deletePerson To request the deletion of a 'person' record. The 'person' record is deleted and all of its associated relationships.
readPerson To read the full contents of the identified 'person' record. The target must return all of the data it has for the identified 'person' record.
updatePerson To write new content into the identified 'person' record. The target must write the new data into the 'person' record. This is an additive operation.
replacePerson To replace the content of the identified 'person' record. The target must write the new data into the 'person' record. This is a destructive write-over of all of the original information.
changePersonIdentifier To change the sourcedId of the 'person' record. The completion of this operation will result in later actions using the original sourcedId reporting an unknown identifier status.

3.2.2.1 createPerson()


Name: createPerson
Return Function Parameter: StatusInfo - the status of the creation request. The permitted status codes are defined in Appendix B.
Supplied (in) Parameters: sourcedId:Identifier - the sourcedId allocated by the source system. This is the identifier that must also be assigned within the target system.
person:Person - the Person data that is to be stored in the new record.
Returned (out) Parameters: None.
Behavior: When the source issues the 'createPerson' request the target is instructed to create the populated Person data structure and to allocate that structure the 'sourcedId' passed by the source. If the supplied 'SourcedId' has already been allocated to another object then the request is rejected and the appropriate failure code is returned.
Notes: This request contains the initial content for the Person record. More content can be added/replaced using the 'updatePerson' and/or 'replacePerson' requests.

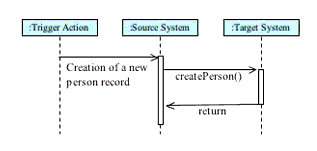

The associated interaction sequence diagram is shown in Figure 3.3. The 'TriggerAction' results in the 'Source System' issuing the 'createPerson()' request. At some time later the 'Target System' responds.

The 'createPerson' operation sequence diagram
Figure 3.3 The 'createPerson' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.2.2.2 createByProxyPerson()


Name: createByProxyPerson
Return Function Parameter: StatusInfo - the status of the creation request. The permitted status codes are defined in Appendix B.
Supplied (in) Parameters: person:Person - the Person data that is to be stored in the new record.
Returned (out) Parameters: sourcedId:Identifier - the identifier allocated by the target to the newly created 'person' record.
Behavior: When the source issues the 'createByProxyPerson' request the target is instructed to create the populated Person record and to allocate that record a unique 'identifier'.
Notes: This request contains the initial content for the Person record. More content can be added/replaced using the 'updatePerson' and/or 'replacePerson' requests.

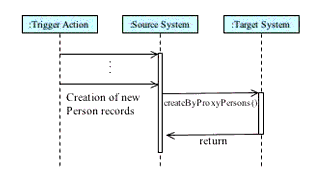

The associated interaction sequence diagram is shown in Figure 3.4. The 'TriggerAction' results in the 'Source System' issuing the 'createByProxyPerson()' request. At some time later the 'Target System' responds.

The 'createByProxyPerson' operation sequence diagram
Figure 3.4 The 'createByProxyPerson' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.2.2.3 deletePerson()


Name: deletePerson
Return Function Parameter: StatusInfo - the status of the creation request. The permitted status codes are defined in Appendix B.
Supplied (in) Parameters: sourcedId:Identifier - the identifier to be used by the target to identify the 'person' object.
Returned (out) Parameters: None.
Behavior: When the source issues the 'deletePerson' request the target is instructed to delete the identified Person record and to remove the reference to the 'person' from any of the related Membership records. This is a hard cascaded delete from which there is no recovery. If the object identified by the supplied 'sourcedId' cannot be located then the request is rejected and the appropriate failure code is returned.
Notes: Deletion of the 'person' record does not necessarily result in the destruction of the data within the server. The true state of the data in the target is unknown.

The associated interaction sequence diagram is shown in Figure 3.5. The 'TriggerAction' results in the 'Source System' issuing the 'deletePerson()' request. At some time later the 'Target System' responds.

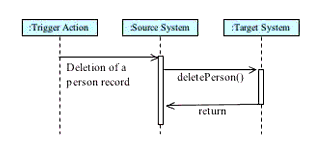

The 'deletePerson' operation sequence diagram
Figure 3.5 The 'deletePerson' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.2.2.4 readPerson()


Name: readPerson
Return Function Parameter: StatusInfo - the status of the read request. The permitted status codes are given in Appendix B.
Supplied (in) Parameters: sourcedId:Identifier - the identifier of the 'person' object to be read.
Returned (out) Parameters: person:Person - the Person data that is read from the record.
Behavior: When the source issues the 'readPerson' request the target is charged with retrieving the identified record from its database and returning this data to the source. The target is responsible for ensuring that the record contains valid data. If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned.
Notes: The returned Person record can only be trusted if the corresponding status code is 'success'.

The associated interaction sequence diagram is shown in Figure 3.6. The 'TriggerAction' results in the 'Source System' issuing the 'readPerson()' request. At some time later the 'Target System' responds.

The 'readPerson' operation sequence diagram
Figure 3.6 The 'readPerson' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.2.2.5 updatePerson()


Name: updatePerson
Return Function Parameter: StatusInfo - the status of the read request. The permitted status codes are given in Appendix B.
Supplied (in) Parameters: sourcedId:Identifier - the identifier of the 'person' object to be updated.
person:Person - the Person data that is to be stored in the record.
Returned (out) Parameters: None.
Behavior: When the source issues the 'updatePerson' request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is an additive write operation of all the data fields supplied in the update request and fields not supplied remain unchanged. If a field is constrained with a multiplicity of one then the 'updatePerson' request acts as a replacePerson' request for that field.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned.
Notes: The source is responsible for determining the reason of the failure.

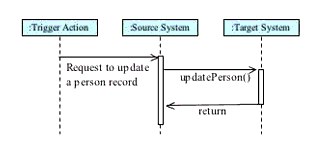

The associated interaction sequence diagram is shown in Figure 3.7. The 'TriggerAction' results in the 'Source System' issuing the 'updatePerson()' request. At some time later the 'Target System' responds.

The 'updatePerson' operation sequence diagram
Figure 3.7 The 'updatePerson' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.2.2.6 replacePerson()


Name: replacePerson
Return Function Parameter: statusInfo:StatusInfo - the status of the update request. The permitted status codes are given in Appendix B.
Supplied (in) Parameters: sourcedId:Identifier - the identifier of the 'person' object to be updated.
person:Person - the Person data that is to be stored in the record.
Returned (out) Parameters: None.
Behavior: When the source issues the 'replacePerson' request the target is charged with writing the supplied information into the identified record. If any part of the write fails e.g., due to partial invalid data then the whole request is rejected and the record is left in its original state. This is a destructive write-over operation of the entire 'person' object. This is equivalent to a 'createPerson' but for an object that already exists.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned.
Notes: The source is responsible for determining the reason of the failure.

The associated interaction sequence diagram is shown in Figure 3.8. The 'TriggerAction' results in the 'Source System' issuing the 'replacePerson()' request. At some time later the 'Target System' responds.

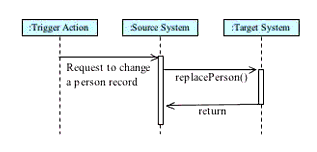

The 'replacePerson' operation sequence diagram
Figure 3.8 The 'replacePerson' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.2.2.7 changePersonIdentifier()


Name: changePersonIdentifier
Return Function Parameter: StatusInfo - the status of the update request. The permitted status codes are given in Appendix B.
Supplied (in) Parameters: sourcedId:Identifier - the identifier of the 'person' object to be updated.
newSourcedId:Identifier - the new identifier to be allocated to the identified 'person' object.
Returned (out) Parameters: None.
Behavior: When the source issues the 'changePersonIdentifier' request the target is charged with replacing the original 'sourcedId' with the new supplied 'sourcedId'. All membership entries must be similarly changed. All further references to the object must use the new 'sourcedId' otherwise an 'unknown' object failure status code is returned.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned.
Notes: The source is responsible for determining the reason of the failure.

The associated interaction sequence diagram is shown in Figure 3.9. The 'TriggerAction' results in the 'Source System' issuing the 'changePersonIdentifier()' request. At some time later the 'Target System' responds.

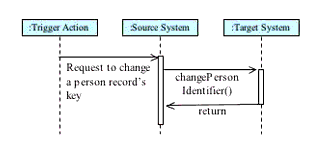

The 'changePersonIdentifier' operation sequence diagram
Figure 3.9 The 'changePersonIdentifier' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3 PersonsManager Interface Class Description

3.3.1 Structure

The PersonsManager interface class describes the operations that are permitted on sets of 'person' objects, as shown in Figure 3.10. These operations are based upon the classic Create/Read/Update/Delete model with variations defined to differentiate subtleties of functionality. The interface stereotype means that there are no attributes for this class.

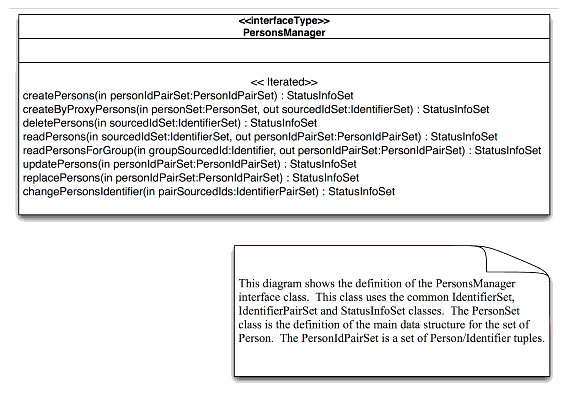

PersonsManager Interface class diagram
Figure 3.10 PersonsManager Interface class diagram.

This interface allows many individual transactions to be exchanged as a single communications exchange. The PersonsManager operations use the following data types and common classes:

  • PersonSet - the set of data structures for the Person information;
  • PersonIdPairSet - the set of Person and sourcedId tuples;
  • IdentifierSet - the containers for the set of unique identifiers of the 'person' or 'group' objects;
  • IdentifierPairSet - the set of tuples of identifiers of the 'person' objects;
  • StatusInfoSet - the container for the set of codes that describe the completion states of the operation for each record.

3.3.2 Operations

The core CRUD operations are summarized in Table 3.2.

Table 3.2 Summary of operations for PersonsManager.


Operation Description
createPersons To request the creation of a set of populated 'person' records on the target system and the source is responsible for the allocation of each of the unique identifiers.
createByProxyPersons To request the creation of a set of populated 'person' records on the target system and the target is responsible for the allocation of each the unique identifiers.
deletePersons To request the deletion of a set of 'person' record. The 'person' records and all their associated relationships are deleted.
readPersons To read the full contents of the set of identified 'person' records. The target must return all of the data it has for each of the identified 'person' records.
readPersonsForGroup To retrieve the 'person' records for a particular Group. This returns the person record for every person that is a member of the Group i.e., for whom there is a membership record that associates the Person with this Group.
updatePersons To write new content into the set of identified 'person' records. The target must write the new data into each of the 'person' records. These are additive operations.
replacePersons To replace the content of a set of identified 'person' records. The target must write the new data into the 'person' records. These are destructive write-overs of all of the original information.
changePersonsIdentifier To change the sourcedId of the set of 'person' records. The completion of this operation will result in later actions using the original sourcedId reporting an unknown identifier status.
createPerson To request the creation of a populated 'person' record on the target system where the source is responsible for the allocation of the unique identifier.

3.3.2.1 createPersons()


Name: createPersons
Return Function Parameter: StatusInfoSet - the status for each of the creation requests. The permitted status codes (one of these must be returned for each 'person' object supplied) are given in Appendix B.
Supplied (in) Parameters: personIdPairSet:PersonIdPairSet - the set of Person and Identifier tuples provided by the source and to be allocated by the target to each of the created 'person' records. The Identifier is the 'sourcedId' of the supplied Person record.
Returned (out) Parameters: None.
Behavior: When the source issues the 'createPersons' request the target is instructed to create the set of populated Person records and to allocate to each record the 'sourcedId' provided. If a supplied 'SourcedId' has already been allocated to another object then that request is rejected and the appropriate failure code is returned. The target should attempt to successfully complete as much of the request as possible. Status information must be returned for every attempted create request.
Notes: This request contains the initial content for each of the Person records. More content can be added/replaced using the 'updatePersons', 'replacePersons', 'updatePerson' and 'replacePerson' requests.

The associated interaction sequence diagram is shown in Figure 3.11. A set of 'TriggerAction' events results in the 'Source System' issuing the 'changePersons()' request. At some time later the 'Target System' responds.

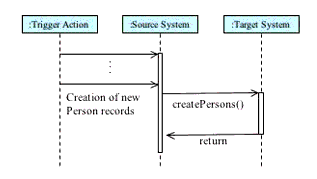

The 'createPersons' operation sequence diagram
Figure 3.11 The 'createPersons' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.2 createByProxyPersons()


Name: createByProxyPersons
Return Function Parameter: StatusInfoSet - the status for each of the creation requests. The permitted status codes (one of these must be returned for each 'person' object supplied) are given in Appendix B.
Supplied (in) Parameters: personSet:PersonSet - the set of Persons data that is to be stored in the new set of records.
Returned (out) Parameters: sourcedIdSet:IdentifierSet - the set of identifiers allocated by the target to the newly created set of 'person' records.
Behavior: When the source issues the 'createByProxyPersons' request the target is instructed to create the set of populated Person records and to allocate to each record a unique 'identifier'. The target should attempt to successfully complete as much of the request as possible. Status information must be returned for every attempted create request.
Note: This request contains the initial content for each of the Person records. More content can be added/replaced using the 'updatePersons', 'replacePersons', 'updatePerson' and 'replacePerson' requests.
The order in which the identifiers are returned must match the order in which the original data records are supplied. Identifiers are only supplied when the operation is successfully completed and so the 'void' identifier is placed in the set of identifiers to ensure consistency.

The associated interaction sequence diagram is shown in Figure 3.12. A set of 'TriggerAction' events results in the 'Source System' issuing the 'changeByProxyPersons()' request. At some time later the 'Target System' responds.

The 'createByProxyPersons' operation sequence diagram
Figure 3.12 The 'createByProxyPersons' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.3 deletePersons()


Name: deletePersons
Return Function Parameter: StatusInfoSet - the status for each of the deletion requests. The permitted status codes (one of these must be returned for each 'person' object identified) are given in Appendix B.
Supplied (in) Parameters: sourcedIdSet:IdentifierSet - the set of identifiers of the 'person' records to be deleted.
Returned (out) Parameters: None.
Behavior: When the source issues the 'deletePersons' request the target is instructed to delete the set of identified Person records and to remove the 'person' from any of the related Membership records. This is a hard cascaded delete from which there is no recovery. If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned. The target should attempt to successfully complete as much of the request as possible.
Notes: Deletion of the 'person' record does not necessarily result on the destruction of the data within the target. The true state of the data in the target is unknown.

The associated interaction sequence diagram is shown in Figure 3.13. A set of 'TriggerAction' events results in the 'Source System' issuing the 'deletePersons()' request. At some time later the 'Target System' responds.

The 'deletePersons' operation sequence diagram
Figure 3.13 The 'deletePersons' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.4 readPersons()


Name: readPersons
Return Function Parameter: StatusInfoSet - the status for each of the read requests. The permitted status codes (one of these must be returned for each 'person' object identified) are given in Appendix B.
Supplied (in) Parameters: sourdedIdSet:IdentifierSet - the set of identifiers of the 'person' records to be read.
Returned (out) Parameters: personIdSet:PersonIdSet - the set of Person and Identifier tuples read by the target. The Identifier is the 'sourcedId' of the read Person record.
Behavior: When the source issues the 'readPersons' request the target is charged with retrieving the identified set of records from its database and returning this data to the source. If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned for this part of the operation. The target is responsible for ensuring that the records contain valid data. The target should attempt to successfully complete as much of the request as possible.
Notes: A returned Person record is only present if the corresponding status code is 'success'.

The associated interaction sequence diagram is shown in Figure 3.14. A set of 'TriggerAction' events results in the 'Source System' issuing the 'readPersons()' request. At some time later the 'Target System' responds.

The 'readPersons' operation sequence diagram
Figure 3.14 The 'readPersons' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.5 readPersonsForGroup()


Name: readPersonsForGroup
Return Function Parameter: StatusInfoSet - the status for each of the read requests. The permitted status codes (one of these must be returned for each 'group' object identified) are given in Appendix B.
Supplied (in) Parameters: groupSourcedId:Identifier - the set identifiers for the 'group' record to be searched for the person memberships.
Returned (out) Parameters: personIdSet:PersonIdSet - the set of Person and Identifier tuples read by the target. The Identifier is the 'sourcedId' of the read Person record.
Behavior: When the source issues the 'readPersonsForGroup' request the target is charged with retrieving all the 'person' records that are members of the identified 'group' record i.e., there exist membership records between the 'group' record identified and the 'person' records returned.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned for this part of the operation. The target is responsible for ensuring that the records contain valid data. The target should attempt to successfully complete as much of the request as possible.
Notes: Person records are only present if the corresponding status code is 'success'.

The associated interaction sequence diagram is shown in Figure 3.15. A set of 'TriggerAction' events results in the 'Source System' issuing the 'readPersonsForGroup()' request. At some time later the 'Target System' responds.

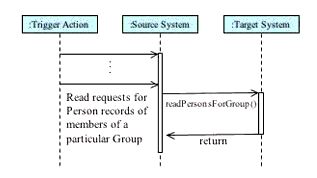

The 'readPersonsForGroup' operation sequence diagram
Figure 3.15 The 'readPersonsForGroup' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.6 updatePersons()


Name: updatePersons
Return Function Parameter: StatusInfoSet - the status for each of the update requests. The permitted status codes (one of these must be returned for each 'person' object identified) are given in Appendix B.
Supplied (in) Parameters: personIdSet:PersonIdSet - the set of Person and Identifier tuples provided by the source and to define the record updates to be made. The Identifier is the 'sourcedId' of the supplied Person record.
Returned (out) Parameters: None.
Behavior: When the source issues the 'updatePersons' request the target is charged with writing the supplied information into the set of identified records. If any part of the write fails for a record e.g., due to partial invalid data, then the whole request for that record is rejected and the record is left in its original state. This is an additive operation of all the data fields supplied for the record in the update request and fields not supplied remain unchanged. If a field is constrained with a multiplicity of one then the 'updatePerson' request acts as a 'replacePerson' request for that field.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned for this part of the operation. The target should attempt to successfully complete as much of the request as possible.
Notes: The source is responsible for determining the detailed cause of a failure.

The associated interaction sequence diagram is shown in Figure 3.16. A set of 'TriggerAction' events results in the 'Source System' issuing the 'updatePersons()' request. At some time later the 'Target System' responds.

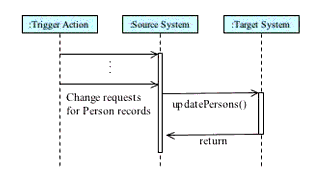

The 'updatePersons' operation sequence diagram
Figure 3.16 The 'updatePersons' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.7 replacePersons()


Name: replacePersons
Return Function Parameter: StatusInfoSet - the status for each of the replace requests. The permitted status codes (one of these must be returned for each 'person' object identified) are given in Appendix B.
Supplied (in) Parameters: personIdSet:PersonIdSet - the set of Person and Identifier tuples provided by the source and to define the record changes to be made. The Identifier is the 'sourcedId' of the supplied Person record.
Returned (out) Parameters: None.
Behavior: When the source issues the 'replacePersons' request the target is charged with writing the supplied information into the set of identified records. If any part of the write fails for a record e.g., due to partial invalid data, then the whole request for that record is rejected and the record is left in its original state. This is a destructive write-over operation of all the data fields supplied in the replace request. This is equivalent to the 'createPersons' operation except for the prior existence of the objects.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned for this part of the operation. The target should attempt to successfully complete as much of the request as possible.
Notes: The source is responsible for determining the detailed cause of a failure.

The associated interaction sequence diagram is shown in Figure 3.17. A set of 'TriggerAction' events results in the 'Source System' issuing the 'replacePersons()' request. At some time later the 'Target System' responds.

The 'replacePersons' operation sequence diagram
Figure 3.17 The 'replacePersons' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.3.2.8 changePersonsIdentifiers()


Name: changePersonsIdentifiers
Return Function Parameter: StatusInfoSet - the status for each of the key change requests. The permitted status codes (one of these must be returned for each 'person' object identified) are given in Appendix B.
Supplied (in) Parameters: pairSourcedIdSet:IdentifierPairSet - the set of identifier tuples that are used to identify the current 'sourcedId' of the Person record and the new 'sourcedId' to be allocated to that Person record. Each tuple is passed as original 'sourcedId' and then new 'sourcedId'.
Returned (out) Parameters: None.
Behavior: When the source issues the 'changePersonsIdentifier' request the target is charged with replacing the set of original 'sourcedIds' with the new supplied 'sourcedIds'. All membership entries must be similarly changed. All further references to the objects must use their new 'SourcedId' otherwise an 'unknown' object failure status code is returned.
If the object identified by the supplied 'SourcedId' cannot be located then the request is rejected and the appropriate failure code is returned for this part of the operation. The target should attempt to successfully complete as much of the request as possible.
Notes: The source is responsible for determining the detailed cause of a failure.

The associated interaction sequence diagram is shown in Figure 3.18. A set of 'TriggerAction' events results in the 'Source System' issuing the 'changePersonsIdentifier()' request. At some time later the 'Target System' responds.

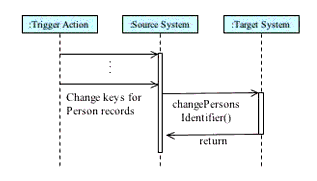

The 'changePersonsIdentifiers' operation sequence diagram
Figure 3.18 The 'changePersonsIdentifiers' operation sequence diagram.

Both synchronous and asynchronous interaction modes are supported using this model.

3.4 Permitted State Sequence

The permitted state activity on an object is shown in Figure 3.19. This state diagram has three states:

  • 'No Object' state - no Person object exits with a particular sourcedId ;
  • 'Object with Target-created sourcedId' - a Person object exists with the sourcedId allocated by the Target system;
  • 'Object with Source-created sourcedId' - a Person object exists with the sourcedId allocated by the Source system.

The state diagram for the behaviors on a Person object
Figure 3.19 The state diagram for the behaviors on a Person object2.

The start state is 'No Object' i.e., the Person record has not yet been created. Only the 'createPerson()' and 'createByProxy()' operations are possible. Once the Person object has been created then it persists until a successful 'deletePerson()' operation is completed. The 'createPerson()' operation takes the system into the 'Object with Source-created sourcedId' state whereas the 'createByProxyPerson()' takes the system into the 'Object with Target-created sourcedId' state.

The system can be moved from the 'Object with Target-created sourcedId' state into the 'Object with Source-created sourcedId' state by the successful completion of the 'changePersonIdentifier()' operation.

Once the system is in the 'Object with Source-created sourcedId' or the 'Object with Target-created sourcedId' states then the 'readPerson()', 'updatePerson()', 'replacePerson()' and 'readPersonsForGroup()' operations are now possible.

4. Data Model

4.1 Person Class Description

4.1.1 Description

The Person class diagram is shown in Figure 4.1. This representation describes the data model that must be supported by the end-systems.

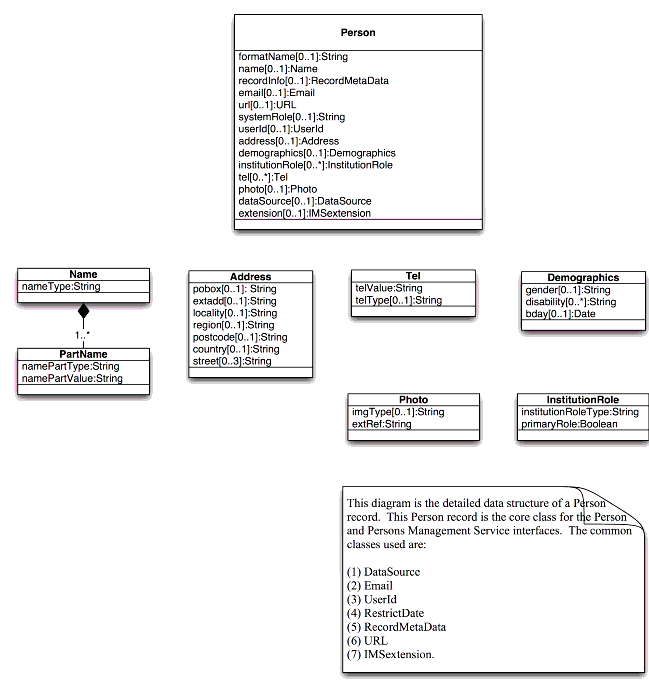

Person class diagram
Figure 4.1 Person class diagram.

4.1.2 Attributes

The set of attributes for the Person class are summarized in Table 4.1 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.1 Summary of attributes for the Person class.


Attribute Name Type Multiplicity Description
formatName String 1 The formatted name of the 'Person'.
recordInfo RecordMetaData 0..1 This is the associated commentary on the Person instance. This is defined within the Common Definitions document [EntServices, 04c].
email Email 0..1 Email address used to contact a Person.
This is defined within the Common Definitions document [EntServices, 04c].
url URL 0..1 The web address of the Person.
This is defined within the Common Definitions document [EntServices, 04c].
systemRole String 0..1 The role of the Person within the software environment.
userId UserId 0..1 The Person's user ID to access the LMS environment. This is defined within the Common Definitions document [EntServices, 04c].
dataSource DataSource 0..1 An identifier of the source system of the Person object. This is defined within the Common Definitions document [EntServices, 04c].
extension IMSextension 0..1 The permitted Person data model extension facility. This is defined within the Common Definitions document [EntServices, 04c].

4.1.3 Associations

The set of associations for the Person class are summarized in Table 4.2 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.2 Summary of associations for the Person class.


Association Class Name Multiplicity Description
Name 0..1 The detailed name of the party. The name is supplied in its individual constituent parts.
Demographics 0..1 The mechanisms by which the individual can be recognized for learning.
Address 0..1 The detailed address of the individual or organization.
Tel 0..* The set of telephone numbers associated with the Person.
InstitutionRole 0..* The set of institution roles of the Person.
Photo 0..1 Meta-data that defines the privacy, lifetime and indexing information for the record.

4.1.3.1 Name Class

The Name class attributes are described in Table 4.3 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.3 Attribute definitions for the 'Name' class.


Attribute Name Type Multiplicity Description
nameType String 1 The type of name e.g., 'Full', 'Pseudonym', etc.

The associations for the Name class are listed in Table 4.4 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.4 Summary of associations for the Name class.


Association Class Name Multiplicity Description
PartName 1..* The representation of the name in its individual component part names.

The PartName class attributes are described in Table 4.5 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.5 Attribute definitions for the 'PartName' class.


Attribute Name Type Multiplicity Description
namePartType String 1 The type component of the name. Examples of this open vocabulary include: 'Last', First', 'Middle', 'Maternal', 'Paternal', 'Initials', etc.
namePartValue String 1 The name part entry itself.

4.1.3.2 Demographics Class

The Demographics class attributes are described in Table 4.6 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.6 Attribute definitions for the 'Demographics' class.


Attribute Name Type Multiplicity Description
gender String 0..1 Gender of the Person.
disability String 0..* An indication of the disability category of the individual. This information is NOT used to define the computer-based preferences of the Person.
bday Date 0..1 Date the person was born. The ISO 8601 sub-structure to be adopted is: YYYY-MM-DD.

4.1.3.3 Address Class

The Address class attributes are described in Table 4.7 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.7 Attribute definitions for the 'Address' class.


Attribute Name Type Multiplicity Description
pobox String 0..1 Post Office Box.
extadd String 0..1 Extra address space. Any non-street components of the address e.g., suite number, company name, etc.
locality String 0..1 Locality. City is one example of locality.
region String 0..1 Region. State and Province are examples of region.
postcode String 0..1 Postal code. This format varies from country to country.
country String 0..1 Country. Codes specified in ISO3166.
street String 0..3 Street address.

4.1.3.4 Tel Class

The Tel class attributes are described in Table 4.8 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.8 Attribute definitions for the 'Tel' class.


Attribute Name Type Multiplicity Description
telValue String 1 The telephone entry itself.
telType String 0..1 Indicates what type of phone number is being specified.

4.1.3.5 Institution Class

The Institution class attributes are described in Table 4.9 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.9 Attribute definitions for the 'Institution' class.


Attribute Name Type Multiplicity Description
institutionRoleType String 1 The type of role that the Person has within the institution supporting the learning activity.
primaryRole Boolean 1 Identifies if the associated role is the primary one for the Person in the institution.

4.1.3.6 Photo Class

The Photo class attributes are described in Table 4.10 (see sub-section 4.1.4 for the formal definition of the associated constraints on these attributes).

Table 4.10 Attribute definitions for the 'Photo' class.


Attribute Name Type Multiplicity Description
imgType String 0..1 The type of image referenced. Should contain the MIME type e.g., image/bmp, image/jpg, etc.
extRef String 1 The reference to an external location. Typically this will be a URL.

4.1.4 OCL Definitions

package PersonManagementService
context Person
inv: formatName.size <= 256
inv: Set{'SysAdmin', 'SysSupport', 'Creator', 'AccountAdmin', 'User', 'Administrator', 'None'}.includes(systemRole)


context Name
inv: nameType.size <= 32


context PartName
inv: namePartType.size <= 32
inv: namePartValue.size <= 256


context Address
inv: pobox.size <= 32
inv: extadd.size <= 128
inv: locality.size <= 64
inv: region.size <= 64
inv: postcode.size <= 32
inv: country.size <= 64
inv: street.size <= 128


context InstitutionRole
inv: Set{'Student', 'Faculty', 'Member ', 'Learner', 'Instructor', 'Mentor', 'Staff', 'Alumni', 'ProspectiveStudent', 'Guest', 'Other', 'Administrator', 'Observer'}.includes(institutionRoleType )


context Demographics
inv: Set {Male, Female, Unknown}.includes(gender)
inv: disability.size <= 32


context Tel
inv: Set{'1', '2', '3', '4', 'Voice', 'Fax', 'Mobile', 'Pager'}.includes(telType)
inv: telValue.size <= 32


context Photo
inv: imgType.size <= 32
-- extRef could take the form of a URL
inv: extRef.size <= 1024


4.2 PersonSet Class Description

4.2.1 Description

The PersonSet class diagram is shown in Figure 4.2.

The PersonSet class diagram
Figure 4.2 The PersonSet class diagram.

4.2.2 Attributes

The PersonSet class attributes are described in Table 4.11

Table 4.11 Attribute definitions for the 'PersonSet' class.


Attribute Name Type Multiplicity Description
person Person 1..* The details of the person (see Person class described in sub-section 4.1).

4.3 PersonIdPairSet Class Description

4.3.1 Description

The PersonIdPairSet class diagram is shown in Figure 4.3. This is the container for the set of PersonIdPair objects.

The PersonIdPairSet class diagram
Figure 4.3 The PersonIdPairSet class diagram.

4.3.2 Attributes

None.

4.3.3 Associations

The associations for the PersonIdPairSet class are listed in Table 4.12.

Table 4.12 Summary of associations for the PersonIdPairSet class.


Association Class Name Multiplicity Description
PersonIdPair 0..* This is the pair container for the sourcedId of the 'person' object and the object itself. This ensures that the object and its reference key do not become separated when supplied as a list.

The PersonIdPair class attributes are described in Table 4.13.

Table 4.13 Attribute definitions for the 'PersonIdPair' class.


Attribute Name Type Multiplicity Description
sourcedId Identifier 1 The unique identifier for the Person record. This is defined within the Common Definitions document [EntServices, 04c].
person Person 1 The details of the person (see Person class described in sub-section 4.1).

5. Extending the Service

5.1 Proprietary Extensions

The proprietary extensions of the specification are based upon two approaches:

  1. The extension of the data models being manipulated by the current set of operations;
  2. The inclusion of new operations to support new proprietary functionality.

It is NOT permitted to change the behavior of the current set of operations. Such changes MUST be supported by the creation of new operations.

5.1.1 Proprietary Operations

The definition of new operations should follow the same format as adopted herein. The new operations should be defined using a new interface type. Every operation must have a returned status code that is the returned value of the operation.

An example of creating such an extension is given in the accompanying Best Practices document [EntServices, 04b].

5.1.2 Proprietary Data Elements

The addition of proprietary data elements is only permitted directly under the Person class. This extension must use the IMSextension class. The format of the extension is limited to a repeated name/type/value three-tuple.

An example of creating such an extension is given in the accompanying Best Practices document [EntServices, 04b].

5.2 Further Work

The Person Management Services Specification and is based on the composition of other clearly defined and functionally discrete operations. This means that the addition of new operations can be achieved without compatibility problems. The areas of work that will be addressed in new versions of the Person Management Services are:

  1. Inclusion of operations that provide more definitive control over the full set of 'person' records e.g., 'readAllPersons()', 'deleteAllPersons()', etc.
  2. Inclusion of the 'queryPerson()' operation. This will enable the service to be queried to supply details of the objects that conform to the set of search criteria;
  3. Inclusion of discovery operations that allow a system to discover what person records exist e.g., 'discoverPersons()'. This would return the list of the sourcedIds of all of the existing Person objects;
  4. Inclusion of operations that support direct manipulation of some of the sub-objects within the main services e.g., the ability to add/delete/read/change a name without recourse to the manipulation of the full Person object. The corresponding operations for all aggregated parts of the Person data model will be considered.

Appendix A - Common Components

The set of common classes that are used throughout this specification are listed in Table A.1. The definitions of these classes can be found in the 1EdTech Enterprise Common Classes specification [EntServices, 04c].

Table A.1 The set of common classes used by the Person Management Service.


Class Name Description
DataSource An identifier of the source system of the object.
Email Email address.
Identifier The unique identification key for a single object.
IdentifierPairSet The set of unique identification tuples (related pairs of identification keys) that are used to identify a set of objects. The usage of each tuple depends upon the form of the operation.
IdentifierSet The unique identification keys for a set of objects.
IMSextension The standardized extension mechanism for all 1EdTech data model extensions. This is a repeated name/type/value three-tuple structure.
RecordMetaData Data structure specific descriptive information. This takes the form of a comment string.
StatusInfo The container for the detailed status information that is returned by the target to the source in response to a request for action on a single record.
StatusInfoSet The container for the set of detailed status information that is returned by the target to the source in response to a request for action on a set of records.
TimeFrame Information that constrains the begin, end ad administrative times for access to particular activities, systems, services, etc.
URL The web address.
UserId User identification information that is used by a system to support access control to the system.

Appendix B - Service Status Codes

B1 - Summary List of Codes

The summary list of status codes that can be returned by the different operations through the StatusInfo object is given in Table B.1 (a detailed description of these codes is given in Section B2). The key to the entries is: 'Y' denotes the code may be returned by that operation. A blank entry means that the code cannot be returned by that operation.

Table B.1 Status codes for the PersonManager and PersonsManager class operations.


Status Code create createByProxy delete read update replace changeIdentifier readPersonsForGroup
'fullsuccess' Y Y Y Y Y Y Y Y
'idallocfail'

Y











'overflowfail' Y Y











'idallocinusefail' Y









Y

'invaliddata' Y Y



Y Y

Y
'incompletedata' Y Y

Y Y Y

Y
'partialdatastorage' Y Y



Y Y



'unknownobject'



Y Y Y Y Y Y
'deletefailure'



Y









'targetreadfailure'





Y





Y
'linkfailure' Y Y Y Y Y Y Y Y
'unsupported' Y Y Y Y Y Y Y Y

B2 - Explanation of Operation Specific Codes

B2.1 - 'create' Operation


Status Code Explanation of the Cause of the Code
'fullsuccess' The creation request has been fully and successfully implemented by the target system and the 'person' record has been created with a unique identifier.
'idallocinusefail' The target could not allocate the unique 'identifier' to the 'person' record as the identifier is already in use.
'overflowfail' The target could not create the 'person' record due to lack of target allocation memory.
'invaliddata' Part or all of the supplied data was detected as invalid by the target system.
'incompletedata' Some mandatory part of the data has been detected as missing by the target system.
'partialdatastorage' The target has only stored a subset of the sent data record, e.g., only the mandatory parts.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.2 - 'createByProxy' Operation


Status Code Explanation of the Cause of the Code
'fullsuccess' The creation request has been fully and successfully implemented by the target system and the 'person' record has been created with the identifier supplied by the source.
'idallocfail' The target could not allocate a unique 'identifier' to the 'person' record as there are no more spare identifiers available.
'overflowfail' The target could not create the 'person' record due to lack of target allocation memory.
'invaliddata' Part or all of the supplied data was detected as invalid by the source system.
'incompletedata' Some mandatory part of the data has been detected as missing by the target system.
'partialdatastorage' The target has only stored a subset of the sent data record, e.g., only the mandatory parts.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.3 - 'delete' Operation


Status Code Explanation of the Cause of the Code
'fullsuccess' The deletion request has been fully and successfully implemented by the target system and the 'person' record has been deleted. The corresponding membership records have also been deleted.
'unknownobject' The 'sourcedId' identifier is unknown in the target system and so the object could not be deleted.
'deletefailure' The target system has not been able to delete the identified Person object.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.4 - 'read' Operations


Status Code Explanation of the Cause of the Code
'fullsuccess' The read request has been fully and successfully implemented by the target system and the identified 'person' record has been returned to the source.
'unknownobject' The 'sourcedId' identifier is unknown in the target system and so the object data could not be read.
'targetreadfailure' The target system has detected an error in the stored Person record and so cannot return the data.
'invaliddata' Part or all of the returned data was detected as invalid by the source system.
'incompletedata' Some mandatory part of the data has been detected as missing by the source system.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.5 - 'update' Operations


Status Code Explanation of the Cause of the Code
'fullsuccess' The update request has been fully and successfully implemented by the target system and the identified 'person' record has been changed on the target system.
'unknownobject' The 'sourcedId' identifier is unknown in the target system and so the object could not be updated.
'invaliddata' Part or all of the returned data was detected as invalid by the target system.
'incompletedata' Some mandatory part of the data has been detected as missing by the target system.
'partialdatastorage' The target has only stored a subset of the sent data record, e.g., only the mandatory parts.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.6 - 'replace' Operations


Status Code Explanation of the Cause of the Code
'fullsuccess' The replace request has been fully and successfully implemented by the target system and the identified 'person' record has been changed on the target system.
'unknownobject' The 'sourcedId' identifier is unknown in the target system and so the object could not be changed.
'invaliddata' Part or all of the returned data was detected as invalid by the target system.
'incompletedata' Some mandatory part of the data has been detected as missing by the target system.
'partialdatastorage' The target has only stored a subset of the sent data record, e.g., only the mandatory parts.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.7 - 'changeIdentifier' Operations


Status Code Explanation of the Cause of the Code
'fullsuccess' The change identifier request has been fully and successfully implemented by the target system and the 'person' object 'sourcedId' has been changed on the target system.
'idallocinusefail' The target could not allocate the new unique 'identifier' to the 'person' record as the identifier is already in use.
'unknownobject' The current Person 'sourcedId' identifier is unknown in the target system and so the object identifier could not be changed.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

B2.8 - 'readPersonsForGroup' Operations


Status Code Explanation of the Cause of the Code
'fullsuccess' The read request has been fully and successfully implemented by the target system and the 'person' objects for the identified 'group' have been returned to the source system.
'unknownobject' The 'sourcedId' identifier for the Group is unknown in the target system and so the object information could not be returned.
'targetreadfailure' The target system has detected an error in the stored Person record and so cannot return the data.
'invaliddata' Part or all of the returned data was detected as invalid by the source system.
'incompletedata' Some mandatory part of the data has been detected as missing by the source system.
'linkfailure' There has been a failure in the end-to-end system communications mechanism and so the request has not been delivered.
'unsupported' This operation is not supported by the target system.

About This Document


Title 1EdTech Person Management Services Information Model
Editor Colin Smythe (1EdTech)
Team Co-Lead Chris Vento (WebCT Inc.)
Version 1.0
Version Date 11 June 2004
Status Final Specification
Summary This document presents the 1EdTech Person Management Services Information Model. The original Enterprise specification was based upon the description of the data model for the information to be exchanged between communicating enterprise systems. The Person Management Services specification extends this work by adding a series of behavioral models that define how the Person data model must be manipulated. The core operations are the creation, deletion, reading and updating of Person objects. This information is the definition of the abstract application-programming interface for the Person Management Service. This version supersedes the Person parts within the 1EdTech Enterprise v1.1 specifications.
Revision Information 11 June 2004
Purpose This document has been approved by the 1EdTech Technical Board and is made available for adoption.
Document Location http://www.imsglobal.org/es/esv1p0/imsperson_infov1p0.html


To register any comments or questions about this specification please visit: http://www.imsglobal.org/developers/ims/imsforum/categories.cfm?catid=20

List of Contributors

The following individuals contributed to the development of this document:


Name Organization Name Organization
Scott Baker Oracle Inc. Les Smith SCT Inc.
Fred Beshears UC Berkeley, USA Colin Smythe Dunelm Services Ltd.
Kerry Blinco 1EdTech Australia Chris Vento WebCT Inc.
Chris Etesse Blackboard Inc. Kimberley Voltero WebCT Inc.
John Hallet WebCT Inc. Scott Wilson JISC (CETIS), UK
Cathy Schroeder Microsoft Inc. Nathaniel Zinn Blackboard Inc.

Revision History


Version No. Release Date Comments
Public Draft 1.0 12 January 2004 The final approved Public Draft Document for the 1EdTech Person Management Services Specification.
Final Specification 1.0 11 June 2004 This is the formal Final Release of the 1EdTech Person Management Services specification.

Index

A
Abstract Framework 1, 2, 3
API 1, 2
Attributes
Address


country 1, 2

extadd 1, 2

locality 1, 2

pobox 1, 2

postcode 1, 2

region 1, 2

street 1, 2 Common


dataSource 1

email 1

extension 1, 2, 3

recordInfo 1

sourcedId 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17

url 1

userId 1 Demographics bday 1
Demographics disability 1, 2
Demographics gender 1, 2
InstitutionRole


institutionRoleType 1, 2

primaryRole 1 Membership


membership 1, 2, 3, 4, 5 Memebrship


groupSourcedId 1 Name


nameType 1, 2 Org


type 1, 2, 3 PartName


namePartType 1, 2 Person


dataSource 1

email 1

formatName 1, 2

systemRole 1, 2

url 1 Photo


extRef 1, 2

imgType 1, 2 Result


result 1, 2, 3, 4, 5, 6, 7 Role


status 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17 StatusInfo


description 1, 2, 3, 4 Tel


telType 1, 2

telValue 1, 2 TimeFrame


begin 1

end 1, 2 TypeValue


level 1

type 1, 2, 3 UserId


authentication 1 Values


list 1, 2, 3, 4

B
Binding technologies
WSDL 1, 2


C
Classes
Common


DataSource 1

Email 1

Identifier 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

IdentifierPairSet 1, 2, 3

IdentifierSet 1, 2, 3, 4, 5

IMSextension 1, 2, 3

RecordMetaData 1, 2

StatusInfo 1, 2, 3, 4, 5, 6, 7, 8

StatusInfoSet 1, 2, 3, 4, 5, 6, 7, 8, 9

TimeFrame 1

UserId 1, 2 Group 1, 2, 3


Description 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Member 1
Membership 1, 2, 3
Name


PartName 1, 2 Person 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31


Address 1, 2, 3

Demographics 1, 2, 3

Name 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18

Photo 1, 2, 3 PersonIdPair 1
PersonIdPairSet 1, 2, 3
PersonSet 1, 2, 3, 4
Common Services 1
Conformance 1


E
Enterprise Service 1, 2, 3

G
Group Management Service 1

I
InstitutionRole 1, 2
Interface Class
PersonManager 1, 2, 3
PersonsManager 1, 2, 3, 4


M
Membership Management Service 1

O
Operations
Person


changePersonIdentifier 1, 2, 3

changePersonsIdentifier 1, 2

createByProxyPerson 1, 2, 3, 4

createByProxyPersons 1, 2, 3

createPerson 1, 2, 3, 4, 5

createPersons 1, 2, 3, 4

deletePerson 1, 2, 3, 4

deletePersons 1, 2

readPerson 1, 2, 3

readPersons 1, 2, 3

readPersonsForGroup 1, 2, 3, 4, 5, 6

replacePerson 1, 2, 3, 4, 5, 6, 7, 8, 9

replacePersons 1, 2, 3, 4

updatePerson 1, 2, 3, 4, 5, 6, 7, 8, 9

updatePersons 1, 2, 3, 4

P
Person Management Service 1, 2, 3, 4, 5, 6, 7, 8, 9

S
Schools Interoperability Framework 1
Services
Group Management 1
Membership Management 1
Person Management 1, 2, 3, 4, 5, 6, 7, 8, 9
Specifications
Other


Schools Interoperability Framework 1 Status Codes 1, 2, 3, 4, 5
deletefailure 1, 2
fullsuccess 1, 2, 3, 4
idallocfail 1, 2
idallocinusefail 1, 2
incompletedata 1, 2, 3, 4
invaliddata 1, 2, 3, 4
linkfailure 1, 2, 3, 4
overflowfail 1, 2
targetreadfailure 1, 2, 3
unknownobject 1, 2, 3, 4
unsupported 1, 2, 3


W
WDSL 1, 2, 3

1 In many implementations of the abstract-API the synchronous and asynchronous services would be require different operation calls. This is just one example where an implementation does not match the definition of the abstract-API.
2 From the point of view of the state diagram the he iterated operations i.e., 'createPersons()', 'readPersons()', etc. are treated as the sequential application of the corresponding single equivalent operations.







1EdTech Consortium, Inc. ("1EdTech") is publishing the information contained in this 1EdTech Person Management Services Information Model ("Specification") for purposes of scientific, experimental, and scholarly collaboration only.

1EdTech makes no warranty or representation regarding the accuracy or completeness of the Specification.
This material is provided on an "As Is" and "As Available" basis.

The Specification is at all times subject to change and revision without notice.

It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.

1EdTech would appreciate receiving your comments and suggestions.

Please contact 1EdTech through our website at http://www.imsglobal.org

Please refer to Document Name:
1EdTech Person Management Services Information Model Revision: 11 June 2004
