4.2 Metadata XSD Documentation




Showing:

Annotations
Diagrams
Facets
Instances
Properties
Source
Used by



4.2 Metadata XSD Documentation

Main schema imsqti_metadata_v2p1.xsd


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Annotations



XSD Data File Information

Author: Colin Smythe Date: 12th May, 2012 Version: 2.1 Status: Final Release Description: This is the Platform Specific Model of the Metadata object in the IMS QTI v2.1 Specification Information Model. It is this representation that is used to produce the XSD binding for the Metadata IMS QTI v2.1. History: This version supercedes the full IMS QTI v1.2 and QTIv2.0 specifications. License: IPR, License and Distribution Notices This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS Question and Test Interoperability (QTI) Version 2.1 found at http://www.imsglobal.org/qti and the original IMS GLC schema binding or code base http://www.imsglobal.org/qti. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. IMS GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS GLCs procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf. Copyright (c) IMS Global Learning Consortium 1999-2012. All Rights Reserved. License Notice for Users Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document. Distribution Notice for Developers Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than IMS, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof. Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the IMS GLC community on the IMS GLC website as described in the following two paragraphs:- * If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with IMS and receive an email from IMS granting the license. To register, follow the instructions on the IMS website: http://www.imsglobal.org/specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety; * If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow the instructions on the IMS GLC website: http://www.imsglobal.org/profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety. The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its successors or assigns. THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

Source UML File Information

The source file information must be supplied as an XMI file (without diagram layout information). The supported UML authoring tools are: (a) Poseidon - v6 (and later)

Source XSLT File Information

XSL Generator: UMLtoXSDTransformv1p0.xsl XSLT Processor: Xalan Release: 1.0 Date: 31st March, 2012 Autogen Engineer: Colin Smythe (IMS GLC, UK) Autogen Date: 2012-04-16

IMS GLC Auto-generation Binding Tool-kit (I-BAT)

This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. IMS GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site. Tool Copyright: 2005-2012 (c) IMS Global Learning Consortium Inc. All Rights Reserved.
Properties
attribute form default: unqualified
element form default: qualified
version: IMS QTI 2.1



Element QTIMetadata.Type / itemTemplate


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="itemTemplate" type="xs:boolean" minOccurs="0" maxOccurs="1"/>



Element QTIMetadata.Type / timeDependent


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="timeDependent" type="xs:boolean" minOccurs="0" maxOccurs="1"/>



Element QTIMetadata.Type / composite


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="composite" type="xs:boolean" minOccurs="0" maxOccurs="1"/>



Element QTIMetadata.Type / interactionType


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type restriction of xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: unbounded
Facets
enumeration associateInteraction

enumeration choiceInteraction

enumeration customInteraction

enumeration drawingInteraction

enumeration endAttemptInteraction

enumeration extendedTextInteraction

enumeration gapMatchInteraction

enumeration graphicAssociateInteraction

enumeration graphicGapMatchInteraction

enumeration graphicOrderInteraction

enumeration hotspotInteraction

enumeration hottextInteraction

enumeration inlineChoiceInteraction

enumeration matchInteraction

enumeration orderInteraction

enumeration positionObjectInteraction

enumeration selectionPointInteraction

enumeration sliderInteraction

enumeration textEntryInteraction

enumeration uploadInteraction

Source
<xs:element name="interactionType" minOccurs="0" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="associateInteraction"/>
      <xs:enumeration value="choiceInteraction"/>
      <xs:enumeration value="customInteraction"/>
      <xs:enumeration value="drawingInteraction"/>
      <xs:enumeration value="endAttemptInteraction"/>
      <xs:enumeration value="extendedTextInteraction"/>
      <xs:enumeration value="gapMatchInteraction"/>
      <xs:enumeration value="graphicAssociateInteraction"/>
      <xs:enumeration value="graphicGapMatchInteraction"/>
      <xs:enumeration value="graphicOrderInteraction"/>
      <xs:enumeration value="hotspotInteraction"/>
      <xs:enumeration value="hottextInteraction"/>
      <xs:enumeration value="inlineChoiceInteraction"/>
      <xs:enumeration value="matchInteraction"/>
      <xs:enumeration value="orderInteraction"/>
      <xs:enumeration value="positionObjectInteraction"/>
      <xs:enumeration value="selectionPointInteraction"/>
      <xs:enumeration value="sliderInteraction"/>
      <xs:enumeration value="textEntryInteraction"/>
      <xs:enumeration value="uploadInteraction"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>



Element QTIMetadata.Type / feedbackType


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type restriction of xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
enumeration adaptive

enumeration nonadaptive

enumeration none

Source
<xs:element name="feedbackType" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="adaptive"/>
      <xs:enumeration value="nonadaptive"/>
      <xs:enumeration value="none"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>



Element QTIMetadata.Type / solutionAvailable


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="solutionAvailable" type="xs:boolean" minOccurs="0" maxOccurs="1"/>



Element QTIMetadata.Type / toolName


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram${cfn).tmp#String256.Type
Type String256.Type
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
whiteSpace preserve

maxLength 256

Source
<xs:element name="toolName" type="String256.Type" minOccurs="0" maxOccurs="1"/>



Element QTIMetadata.Type / toolVersion


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram${cfn).tmp#String256.Type
Type String256.Type
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
whiteSpace preserve

maxLength 256

Source
<xs:element name="toolVersion" type="String256.Type" minOccurs="0" maxOccurs="1"/>



Element QTIMetadata.Type / toolVendor


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram${cfn).tmp#String256.Type
Type String256.Type
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
whiteSpace preserve

maxLength 256

Source
<xs:element name="toolVendor" type="String256.Type" minOccurs="0" maxOccurs="1"/>

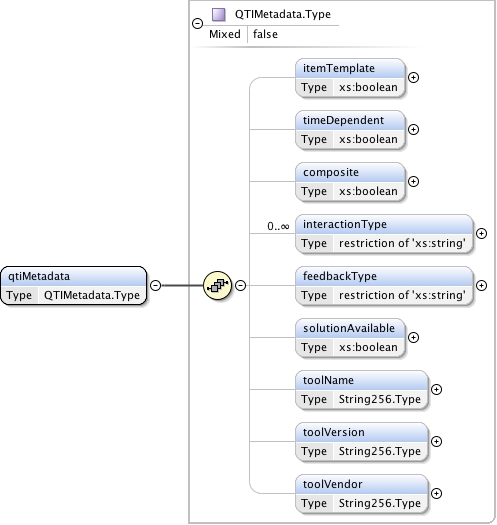

Element qtiMetadata


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram${cfn).tmp#QTIMetadata.Type_itemTemplate ${cfn).tmp#QTIMetadata.Type_timeDependent ${cfn).tmp#QTIMetadata.Type_composite ${cfn).tmp#QTIMetadata.Type_interactionType ${cfn).tmp#QTIMetadata.Type_feedbackType ${cfn).tmp#QTIMetadata.Type_solutionAvailable ${cfn).tmp#QTIMetadata.Type_toolName ${cfn).tmp#QTIMetadata.Type_toolVersion ${cfn).tmp#QTIMetadata.Type_toolVendor ${cfn).tmp#QTIMetadata.Type
Type QTIMetadata.Type
Properties
content: complex
mixed: false
Model itemTemplate{0,1} , timeDependent{0,1} , composite{0,1} , interactionType* , feedbackType{0,1} , solutionAvailable{0,1} , toolName{0,1} , toolVersion{0,1} , toolVendor{0,1}
Children composite, feedbackType, interactionType, itemTemplate, solutionAvailable, timeDependent, toolName, toolVendor, toolVersion
Instance
<qtiMetadata xmlns="http://www.imsglobal.org/xsd/imsqti_metadata_v2p1">
  <itemTemplate>{0,1}</itemTemplate>
  <timeDependent>{0,1}</timeDependent>
  <composite>{0,1}</composite>
  <interactionType>{0,unbounded}</interactionType>
  <feedbackType>{0,1}</feedbackType>
  <solutionAvailable>{0,1}</solutionAvailable>
  <toolName>{0,1}</toolName>
  <toolVersion>{0,1}</toolVersion>
  <toolVendor>{0,1}</toolVendor>
</qtiMetadata>
Source
<xs:element name="qtiMetadata" type="QTIMetadata.Type"/>



Simple Type String256.Type


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Diagram
Diagram
Type restriction of xs:string
Facets
whiteSpace preserve

maxLength 256

Used by
Source
<xs:simpleType name="String256.Type">
  <xs:restriction base="xs:string">
    <xs:maxLength value="256"/>
    <xs:whiteSpace value="preserve"/>
  </xs:restriction>
</xs:simpleType>



Complex Type QTIMetadata.Type


Namespace http://www.imsglobal.org/xsd/imsqti_metadata_v2p1
Annotations

umldocumentation

<p align="left">This is the container for QTI-specific meta-data. This structure is designed to be used as an extension to the top-level categories within the IEEE LOM. All of its child elements are defined as local.</p>
Diagram
Diagram${cfn).tmp#QTIMetadata.Type_itemTemplate ${cfn).tmp#QTIMetadata.Type_timeDependent ${cfn).tmp#QTIMetadata.Type_composite ${cfn).tmp#QTIMetadata.Type_interactionType ${cfn).tmp#QTIMetadata.Type_feedbackType ${cfn).tmp#QTIMetadata.Type_solutionAvailable ${cfn).tmp#QTIMetadata.Type_toolName ${cfn).tmp#QTIMetadata.Type_toolVersion ${cfn).tmp#QTIMetadata.Type_toolVendor
Properties
mixed: false
Used by
Element qtiMetadata
Model itemTemplate{0,1} , timeDependent{0,1} , composite{0,1} , interactionType* , feedbackType{0,1} , solutionAvailable{0,1} , toolName{0,1} , toolVersion{0,1} , toolVendor{0,1}
Children composite, feedbackType, interactionType, itemTemplate, solutionAvailable, timeDependent, toolName, toolVendor, toolVersion
Source
<xs:complexType name="QTIMetadata.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">
      <p align="left">This is the container for QTI-specific meta-data. This structure is designed to be used as an extension to the top-level categories within the IEEE LOM. All of its child elements are defined as local.</p>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="itemTemplate" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="timeDependent" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="composite" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="interactionType" minOccurs="0" maxOccurs="unbounded">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="associateInteraction"/>
          <xs:enumeration value="choiceInteraction"/>
          <xs:enumeration value="customInteraction"/>
          <xs:enumeration value="drawingInteraction"/>
          <xs:enumeration value="endAttemptInteraction"/>
          <xs:enumeration value="extendedTextInteraction"/>
          <xs:enumeration value="gapMatchInteraction"/>
          <xs:enumeration value="graphicAssociateInteraction"/>
          <xs:enumeration value="graphicGapMatchInteraction"/>
          <xs:enumeration value="graphicOrderInteraction"/>
          <xs:enumeration value="hotspotInteraction"/>
          <xs:enumeration value="hottextInteraction"/>
          <xs:enumeration value="inlineChoiceInteraction"/>
          <xs:enumeration value="matchInteraction"/>
          <xs:enumeration value="orderInteraction"/>
          <xs:enumeration value="positionObjectInteraction"/>
          <xs:enumeration value="selectionPointInteraction"/>
          <xs:enumeration value="sliderInteraction"/>
          <xs:enumeration value="textEntryInteraction"/>
          <xs:enumeration value="uploadInteraction"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="feedbackType" minOccurs="0" maxOccurs="1">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="adaptive"/>
          <xs:enumeration value="nonadaptive"/>
          <xs:enumeration value="none"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="solutionAvailable" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
    <xs:element name="toolName" type="String256.Type" minOccurs="0" maxOccurs="1"/>
    <xs:element name="toolVersion" type="String256.Type" minOccurs="0" maxOccurs="1"/>
    <xs:element name="toolVendor" type="String256.Type" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
