IMS Global Learning Tools Interoperability 1.2 Implementation Guide

IMS Final Release

IMS Global Logo


IMS Global Learning Tools Interoperability® Implementation Guide

Version 1.2 Final Specification


Date Issued:            5 January 2015

Latest version:

IPR and Distribution Notices

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the specification set forth in this document, and to provide supporting documentation.

IMS takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS's procedures with respect to rights in IMS specifications can be found at the IMS Intellectual Property Rights web page:

Copyright © 2015 IMS Global Learning Consortium. All Rights Reserved.

Use of this specification to develop products or services is governed by the license with IMS found on the IMS website:

Permission is granted to all parties to use excerpts from this document as needed in producing requests for proposals.

The limited permissions granted above are perpetual and will not be revoked by IMS or its successors or assigns.


Join the discussion and post comments on the LTI Public Forum:


© 2015 IMS Global Learning Consortium, Inc.
All Rights Reserved.

Trademark information:
Document Name:  IMS Global Learning Tools Interoperability Implementation Guide v1.2 Final
Revision: 5 January 2015


1                  Introduction

IMS is developing the Learning Tools Interoperability® (LTI®) specifications to allow remote tools and content to be integrated into a Learning Management System (LMS).  This document brings a subset of those specifications together into this implementation guide that defines a profile of LTI and is the next iteration of the Basic LTI [BLTI, 10] specification that was released in May 2010.

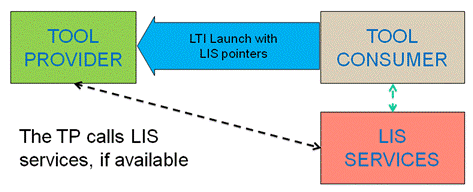

Figure 1.1 Overview of LTI.

Throughout this document, we use specific terminology to describe the two main pieces of software involved in LTI.   What we traditionally think of as the "Learning Management System" (LMS) is referred to as the "Tool Consumer" (TC) as it "consumes" the tool.  The external tool or content is called the "Tool Provider" (TP) as it "provides" the tool for use in the Tool Consumer. Example Tool Providers might include an externally hosted testing system or a server that contains externally hosted premium content.

This document uses the term "context" where you might expect to see "course".  A context is roughly equivalent to a course, project, or other collection of resources with a common set of users and roles.  The word "context" is used instead of "course" because a course is only one kind of context (another type of context would be "group").

Typically within a context (e.g., a course), users can author many LTI content items, sometimes arranging them into folders like "Week 1" or "Pre-Work".  LTI links are intended to be used like any other resource within the structure of a context.  In particular, there is an expectation that there will often be multiple links scattered through the content structure for the context.   LTI allows the TP to differentiate amongst those links using the concept of a resource_link_id. While all of the links from within a context will share the same context_id, each link within the context will be given a unique resource_link_id. This allows the TP to differentiate the content/features it shows on a resource-by-resource basis within a context by providing configuration options such as a resource picker to the instructor or administrator after the link has been launched.

This document uses the message signing approach from OAuth 1.0a protocol [OAuth, 10] to secure its message interactions between the TC and TP.   OAuth signing requires a key and shared secret to sign messages.  The key is transmitted with each message, as well as an OAuth-generated signature based on the key.  The TP looks up the secret based on the provided key and re-computes the signature and compares the recomputed signature with the transmitted signature to verify the sender's credentials.

The TC can make choices as to how it manages credentials (keys and secrets) within its system. LTI has three patterns for the credentials: (1) the TC-wide credential for a particular TP domain which is set by the TC administrator and used for all launches to a particular TP domain, or (2) the TC-wide credential for a particular TP URL which is set by the TC administrator and used for all launches to a particular TP URL, or (3) each LTI link is protected by its own credential.  The first and second patterns allow for a more seamless integration between a TC-instance and TP-instance from an instructor’s perspective. The third pattern allows instructors to "mashup" LTI links.

LTI has support for the TP to call IMS Learning Information Services (LIS) when those services can be made available to the TP.   LTI does not require LIS services, but the TC can send LIS key information to the TP using values in the basic launch request.

Note on terminology: Version 1.0 of this specification was titled "Basic Learning Tools Interoperability" to indicate that it was a subset of overall planned LTI functionality.  The version 1.1 of this document is renamed "Learning Tools Interoperability" to reflect that it adds functionality which future versions of this document will continue to expand on.  At times within this document, you will find references to "basic" (e.g. "basic launch").  In the case of the basic launch message, it is simply one of many types of messages that will ultimately be described in future versions of this document. The basic terminology continues to be used  in describing the particular launch message, in the IMS Common Cartridge resource schema to represent these basic launches, and in the security patterns for these basic launches.  This terminology reflects the fact that these "basic" capabilities will be a subset of the overall LTI capabilities going forward.


1.1            Structure of this Document

The structure of this document is:

2      Use Cases for LTI

A listing of the use cases describing the core usage scenarios of the LTI specification;

3.     Basic Launch Data

A description of the data items that are passed as part of the POST data when a basic launch is performed;

4.     LTI Security Model

The definition of the security environment for LTI;

5.     Representing  Basic Launch  Links in a Cartridge

A description of the LTI link for inclusion in an IMS Common Cartridge;

6.     Using Learning Information Services with LTI

A description of how to use LTI with IMS Learning Information Services;

Appendix A LTI Standard Vocabularies

A reference to the LTI specification’s standard vocabularies;

Appendix B Implementation Practice

A non-normative discussion and recommendations to help guide implementations.

Appendix C Custom Parameter Substitution

A reference to the LTI specification’s custom parameter vocabularies.


1.2            References

This LTI v1.1 specification marks the convergence of the Basic LTI v1.0 spec with the LTI v1.0 Internal Draft documents (formerly known as full LTI).

[BLTI, 10]                     IMS Global Basic Learning Tools Interoperability v1.0, IMS Global Learning Consortium, C.Severance, May 2010.

[CC, 08a]                      IMS Global Common Cartridge v1.0, IMS Global Learning Consortium, K.Riley, October 2008.

[GWS, 06]                     IMS Global General Web Services WSDL Binding Guidelines v1.0, C.Schroeder, J.Simon and C.Smythe, IMS Global Learning Consortium, January 2006.

[IETF, 12]                     URI Template, J Gregorio. Retrieved 5 January 2015 from

[LIS, 11]                        IMS Global Learning Information Services v2.0, L.Feng, W.Lee and C.Smythe, IMS Global Learning Consortium, June 2011.

[LIS, 11 OMS]              IMS Outcomes Management Service Information Model v1.0, L.Feng and C.Smythe, IMS Global Learning Consortium, March 2010,

[LTI, 14 OM]                IMS Outcomes Management v1.0, S Vickers, IMS Global Learning Consortium, December 2014,

[OAuth, 10]                   The OAuth 1.0 Protocol, E. Hammer-Lahav. Retrieved 5 January 2015 from

[OBH, 11]                     OAuth Request Body Hash, B. Eaton, E. Hammer-Lahav. Retrieved 5 January 2015 from


2         Use Cases for LTI

This section describes common scenarios for the LTI v1.1 specification.


Use Case Title:

Setting TP Domain Credentials (Basic Launch)

Use Case Local ID:


Brief Description:

The TC administrator configures TP domain credentials for a particular TP.  These credentials apply to LTI links authored directly in the TC system and also to LTI links imported from a Common Cartridge (see Use Case LTIv1p1-03).




·         TC Administrator

·         TP Administrator

Basic Flow of Events:

1.       Generate credentials. The TP Administrator creates the key and secret combination for the TC (where the TC administrator may request a particular key, often the TC domain name).

2.       Exchange the credentials. The TC Administrator obtains the key, secret and TP domain name from the TP administrator.  The LTI specification does not prescribe any particular method for this exchange.

3.       Persist the credentials in the TC. The TC Administrator associates the credentials with TP’s domain and persists this information using a TC-provided dialog or configuration mechanism.



Use Case Title:

Setting Link Level Credentials (Basic Launch)

Use Case Local ID:


Brief Description:

  An instructor authors an LTI link and sets the key/password for that link.




·         Instructor

·         Tool Provider (TP)



Basic Flow of Events:

1.       Exchange Link Level Credentials. The Instructor contacts the TP to obtain access to a provider tool or content.  The TP provides the Instructor with (1) an LTI launch URL or XML snippet for the content or tool, (2) a key that will be used to access this content/tool, and (3) a secret associated with the key. The LTI specification does not prescribe any mechanism for this exchange.

2.       Persist Link Level Credentials in the TC system. The Instructor enters the three values (URL or XML snippet, Key, Secret) into an LTI authoring dialog in the TC system.



Use Case Title:

Managing Credentials for LTI Links Imported from a Cartridge

Use Case Local ID:


Brief Description:

An Instructor imports a Common Cartridge containing LTI link descriptors into their context, and users use the content.




·         Instructor

·         TC User (typically a Student or Instructor)


·         A cartridge creator has authored a Common Cartridge that contains one or more LTI Link descriptors.  These descriptors specify the launch URL(s) and other data associated with the links, but they do not contain keys or secrets.

·         In accordance with Use Case LTIv1p1-01, the TC Administrator has set the domain credentials to particular TP(s) that are referenced in the cartridge.

Basic Flow of Events:

1.       Import the cartridge. The Instructor obtains the Common Cartridge and imports it into a learning context within the TC system.

2.       Use domain credentials during Tool Launch. When a TC User launches an LTI link imported from the Common Cartridge, the TC signs the launch request using the pre-configured credentials associated with the TP address.  In particular, as long as the TC-wide credentials are already installed, the Instructor does not need to take any further action to secure the launch request beyond importing a cartridge.

Alternative Flows:

A.      Domain Credentials are not predefined

If the domain credentials are not predefined within the TC system (i.e., the preconditions to this use case are not satisfied) then at Step 2 the launch requests will not be signed. In this case, the TC may (at its discretion) refuse to allow the Tool Launch to proceed. If an unsigned tool launch does occur, the TP may (at its discretion) refuse to honor the request. To correct such launch failures, it is possible to add domain or link level credentials (in accordance with Use Cases LTIv1p1-01 and LTIv1p1-02 respectively) after the cartridge has been imported.



Use Case Title:

Launching an Authored Basic Launch Link from a Context

Use Case Local ID:


Brief Description:

A non-Instructor user selects a basic launch link from a context in the TC.


·         TC User


An Instructor has properly authored or imported a basic launch Link and there are appropriate credentials in place.

Basic Flow of Events:

1.       The TC User clicks on the link in the TC UI.

2.       The tool or content from the TP appears in the TC UI or in another window.  If JavaScript is turned off – the TC User will need to click on a "continue" button to send the POST data to the TP.




Use Case Title:

Launching Basic Launch Link Imported from a Cartridge (with secret)

Use Case Local ID:


Brief Description:

An Instructor imports a Common Cartridge containing basic launch link descriptors into their context and users use the content.


·         Cartridge Creator

·         Instructor

·         TC User


The TC Administrator has received and installed the appropriate credentials for the particular TP(s) that are referenced in the cartridge.

Basic Flow of Events:

1.       The Cartridge Creator authors a cartridge and includes one or more basic launch link descriptors in the cartridge. The basic launch link descriptors in the cartridge contain a launch URL(s) and other data but do not contain keys or secrets.

2.       The Instructor obtains the Common Cartridge and imports it into their context in the TC system.

3.       When a TC User follows the basic launch link imported from the Common Cartridge, the TC uses the pre-configured credentials associated with the TP domain or URLs.
In particular, as long as the TC-wide credentials are already installed, the Instructor does not need to take any further action to launch the content beyond importing a cartridge.

Alternate Path

A.      If the preconditions are not satisfied, it is also possible to set the credentials after the cartridge import has taken place. If a launch occurs before credentials have been defined, it is the responsibility of the TP to notify the user that credentials are required.



Use Case Title:

Launching Basic Link Imported from a Cartridge (no secret)

Use Case Local ID:


Brief Description:

An Instructor imports a Common Cartridge containing basic launch link descriptors into their context and users use the content.  Note that this scenario is optional – the TC and/or TP may decide that basic launches without secrets are treated as an error.


·         Cartridge Creator

·         Instructor

·         TC User



Basic Flow of Events:

1.       The Cartridge Creator authors a cartridge and includes one or more basic launch link descriptors in the cartridge. The basic launch link descriptors in the cartridge contain a launch URL(s) and other data but do not contain keys or secrets.

2.       The Instructor obtains the Common Cartridge and imports it into their context in the TC system.

3.       When a TC User follows the basic launch link from the Common Cartridge, the TC launches the basic launch link with no authentication or signature information.



Use Case Title:

Returning a Decimal Score (0.0-1.0) from the TP to the TC

Use Case Local ID:


Brief Description:

An instructor creates a resource link in a course and indicates that it is to receive scores from the TP and sets up any necessary routing between the LTI link and the grade book.  Whether or not the TC accepts scores for a particular user/context/link is up to some combination of the TC Admin and TC Instructor.


·         TC Admin

·         Instructor

·         TC User


The TC admin enables support for score routing in the TC (either universally or per TP).

Basic Flow of Events:

1.       The Instructor authors a link and indicates that a line item is associated with the link.

2.       The TC user launches the link and the TC includes the service endpoint for the LIS Basic Outcomes Service and the lis_result_sourcedid to allow the TP to make service calls to set, read, and delete scores.

3.       The TP system makes calls to the TC’s Outcomes Service to set, read, and/or delete scores as needed. These service operations can be done at any time as it is a server to server trust (i.e., not just during the launch period).


3         Basic Launch Data

This section describes the data items that are passed as part of the POST data when a basic launch is performed.  Very few of the fields are technically required as each Tool Provider may have different requirements.  Some TPs may see the fields in the launch as information to be gathered for tracking and others may need highly detailed and precise information to perform high-stakes activities and reliably and securely return high-stakes results from those activities.

TC systems should provide as much data as possible in each launch to maximize the chance that the TP will have the data it needs to function properly.  TC systems may have sandboxing features that limit the sending of certain LTI data elements only to "approved" TPs.  It is outside the scope of the specification to define the nature of the TC sandboxing of LTI launches. TPs should be prepared to work with partial information – either because the TC does not have the information or the TC has been configured not to share the information with the TP.

If a profile wants to extend these fields, they should prefix all fields not described herein with "ext_".

lti_message_type=basic-lti-launch-request                                                                                                              (Required)
This indicates that this is a basic launch message.  This allows a TP to accept a number of different LTI message types at the same launch URL.

lti_version=LTI-1p0                                                                                                                                                      (Required)
This indicates which version of the specification is being used for this particular message.  Since launches for version 1.1 are upwards compatible with 1.0 launches, this value is not advanced for LTI 1.1.

resource_link_id=88391-e1919-bb3456                                                                                                                   (Required)
This is an opaque unique identifier that the TC guarantees will be unique within the TC for every placement of the link.   If the tool / activity is placed multiple times in the same context, each of those placements will be distinct. This value will also change if the item is exported from one system or context and imported into another system or context.

resource_link_title=My Weekly Wiki                                                                                                             (Recommended)
A plain text[1] title for the resource. This is the clickable text that appears in the link.

A plain text description of the link’s destination, suitable for display alongside the link. Typically no more than a few lines long. This parameter is optional.

user_id=0ae836b9-7fc9-4060-006f-27b2066ac545                                                                                     (Recommended)
Uniquely identifies the user.  This should not contain any identifying information for the user.  Best practice is that this field should be a TC-generated long-term “primary key” to the user record – not the “logical key".  At a minimum, this value needs to be unique within a TC.

This attribute specifies the URI for an image of the user who launches this request.  This image is suitable for use as a "profile picture" or an avatar representing the user.  It is expected to be a relatively small graphic image file using a widely supported image format (i.e., PNG, JPG, or GIF) with a square aspect ratio.  This parameter is optional.

roles=Instructor                                                                                                                                                     (Recommended)
A comma-separated list of URN values for roles.  If this list is non-empty, it should contain at least one role from the LIS System Role, LIS Institution Role, or LIS Context Role vocabularies (see Appendix A).  The assumed namespace of these URNs is the LIS vocabulary of LIS Context Roles so TCs can use the handles when the intent is to refer to an LIS context role.  If the TC wants to include a role from another namespace, a fully-qualified URN should be used.  Usage of roles from non-LIS vocabularies is discouraged as it may limit interoperability.

lis_person_name_full=Jane Q. Public

These fields contain information about the user account that is performing this launch.  The names of these data items are taken from LIS [LIS, 11].  The precise meaning of the content in these fields is defined by LIS. These parameters are recommended unless they are suppressed because of privacy settings.

role_scope_mentor= f5b2cc6c-8c5c-24e8-75cc-fac504df920f,dc19e42c-b0fe-68b8-167e-4b1a8f2b367e
A comma separated list of the user_id values which the current user can access as a mentor.  The typical use case for this parameter is where the Mentor role represents a parent, guardian or auditor.  It may be used in different ways by each TP, but the general expectation is that the mentor will be provided with access to tracking and summary information, but not necessarily the user’s personal content or assignment submissions.  In order to accommodate user_id values which contain a comma, each user_id should be url-encoded. This also means that each user_id from the comma separated list should url-decoded before a TP uses it.  This parameter is optional and should only be used when one of the roles passed for the current user is for urn:lti:role:ims/lis/Mentor.

context_id=8213060-006f-27b2066ac545                                                                                                      (Recommended)
This is an opaque identifier that uniquely identifies the context that contains the link being launched.

This string is a comma-separated list of URN values that identify the type of context.  At a minimum, the list MUST include a URN value drawn from the LIS vocabulary (see Appendix A). The assumed namespace of these URNs is the LIS vocabulary so TCs can use the handles when the intent is to refer to an LIS context type.  If the TC wants to include a context type from another namespace, a fully-qualified URN should be used. This parameter is optional.

context_title=Design of Personal Environments                                                                                           (Recommended)
A plain text  title of the context – it should be about the length of a line.

context_label=SI182                                                                                                                                             (Recommended)
A plain text  label for the context – intended to fit in a column.

Language, country and variant as represented using the IETF Best Practices for Tags for Identifying Languages (BCP-47) available at This parameter is optional.

launch_presentation_document_target=iframe                                                                                           (Recommended)
This field communicates the kind of browser container into which the TC has launched the tool.  The TP can ignore this parameter and try to detect its environment through JavaScript, but this parameter gives the TP the information without requiring the use of JavaScript if the tool prefers.  The possible values for this parameter are:

·         frame – opened in the same frame as the resource link;

·         iframe –  opened within an iframe placed inside the same page/frame as the resource link;

·         window – opened in a new window (or tab);

·         popup – opened in a popup window;

·         overlay – opened over the top of the page where the link exists (for example, using a lightbox);

·         embed – the TP page is inserted directly into the TC page; this option is not expected to be a common use case but could be used, for example, when the launch request is performed on behalf of the user by the TC (server-to-server) and the response rendered within its page (e.g. within a portal-like interface).


This is a URL to an LMS-specific CSS URL.  There are no standards that describe exactly what CSS classes, etc. should be in this CSS.  The TC could send its standard CSS URL that it would apply to its local tools.  The TC should include styling for HTML tags to set font, color, etc. and also include its proprietary tags used to style its internal tools.  This parameter is optional.
Someday perhaps we will come up with a cross-LMS standard for CSS classes to allow a tool to look "built-in" with only one set of markup, but until that happens, the launch_presentation_css_url  allows tools a chance to adapt their look and feel across LMS systems to some degree.


launch_presentation_width=320                                                                                                                       (Recommended)
The width of the window or frame where the content from the tool will be displayed. The tool can ignore this parameter and detect its environment through JavaScript, but this parameter gives the TP the information without requiring the use of JavaScript if the tool prefers.

launch_presentation_height=240                                                                                                                      (Recommended)
The height of the window or frame where the content from the tool will be displayed. The tool can ignore this parameter and detect its environment through JavaScript, but this parameter gives the TP the information without requiring the use of JavaScript if the tool prefers.

launch_presentation_return_url=                                (Recommended)
Fully qualified URL where the TP can redirect the user back to the TC interface.  This URL can be used once the TP is finished or if the TP cannot start or has some technical difficulty.  In the case of an error, the TP may add a parameter called lti_errormsg that includes some detail as to the nature of the error.  The lti_errormsg value should make sense if displayed to the user.  If the tool has displayed a message to the end user and only wants to give the TC a message to log, use the parameter lti_errorlog instead of lti_errormsg. If the tool is terminating normally, and wants a message displayed to the user it can include a text message as the lti_msg parameter to the return URL. If the tool is terminating normally and wants to give the TC a message to log, use the parameter lti_log. This data should be sent on the URL as a GET – so the TP should take care to keep the overall length of the parameters small enough to fit within the limitations of a GET request.

tool_consumer_info_product_family_code=desire2learn                                                                        (Recommended)
In order to better assist tools in using extensions and also making their user interface fit into the TC's user interface that they are being called from, each TC is encouraged to include the this parameter.   Possible example values for this field might be:








tool_consumer_info_version=9.2.4                                                                                                                  (Recommended)
This field should have a major release number followed by a period.  The format of the minor release is flexible.  Possible values for this field might be:





The TP should be flexible when parsing this field.
This is a unique identifier for the TC.  A common practice is to use the DNS of the organization or the DNS of the TC instance.  If the organization has multiple TC instances, then the best practice is to prefix the domain name with a locally unique identifier for the TC instance.  In the single-tenancy case, the tool consumer data can be often be derived from the oauth_consumer_key. In a multi-tenancy case this can be used to differentiate between the multiple tenants within a single installation of a Tool Consumer. This parameter is strongly recommended in systems capable of multi-tenancy.

tool_consumer_instance_name=SchoolU                                                                                                       (Recommended)
This is a plain text user visible field – it should be about the length of a column.

tool_consumer_instance_description=University of School (LMSng)
This is a plain text user visible field – it should be about the length of a line. This parameter is optional.

This is the URL of the consumer instance.  This parameter is optional.                                                    (Recommended)
An email contact for the TC instance.

The creator of an LTI link can add custom key/value parameters to a launch which are to be included with the launch of the LTI link. The Common Cartridge section below describes how these parameters are represented when storing custom parameters in a Common Cartridge.

When there are custom name / value parameters in the launch, a POST parameter is included for each custom parameter.  The parameter names are mapped to lower case and any character that is neither a number nor letter in a parameter name is replaced with an "underscore".  So if a custom entry was as follows:



it would be mapped to:


Creators of LTI links would be well served to limit their parameter names to lower case and to use no punctuation other than underscores.

If these custom parameters are included in the LTI link, the TC must include them in the launch data or the TP may fail to function.

TC implementations may have the ability to make value substitutions for custom parameters as described in Appendix C. For example if a custom parameter was:


the parameter would be:


Note that a DateTime data type in IMS LIS represents a combined date and time in the format of ISO 8601 i.e., ‘YYYY-MM-DDThh:mm:ssTZD’. The time is denoted in Coordinated Universal Time (UTC) with TZD denoting the time zone offset in hours and minutes with respect to UTC.

It is important for a TP not to depend on the TC supporting any particular parameter substitution.  If a TC that did not support parameter substitution were to see the above custom parameter, it would simply send:


as the parameter (i.e., send the parameter unsubstituted). It is the responsibility of the TP to deal with both kinds of launches from TCs (i.e., with and without substitution available).

In addition to these data items for the LTI launch, the next section describes additional security parameters which are to be included with the launch.

4         LTI Security Model

4.1       Basic Launch Credential Management

The security environment for basic launches must be set up using out-of-band interactions between the TP administrator and either the TC administrator or an Instructor who will be authoring a basic launch link.

As a best practice, the TP should isolate data based on the key. The TP must decide exactly how the key is used to isolate data. For example, the TP might maintain a table that maps multiple keys into a single data silo. Or, the TP might arrange to use the same key repeatedly in all cases where data are to belong to the same data silo.

There are two possible credentials associated with a particular basic launch.

1.       TC-wide instance guid and secret associated with a particular TP.  The TC-wide instance guid establishes the identity of the TC for launches to a particular TP.  Once the TC-wide secret is established for a TP, all basic launches to the TP’s domain will use this same secret.  Using a TC-wide secret gives TPs the option of trusting user information and context information across multiple contexts within a particular TC instance as being maintained properly by the TC.

In order to select the TC-wide password to be used for a particular basic launch link, the TC examines the domain name in the launch URL for the basic launch link. The TC-wide password is looked up in the list of TC-wide passwords scanning the domain name of the launch URL from right to left.  So for example, if the launch URL was:

The TC would look up the following TC-wide secret keys in order from specific to general:,, and then So when TPs are generating link URLs and giving them to an instructor or embedding those links in a cartridge, it is important to use consistent domain names in those launch URLs so as to be able to match a TC-wide secret for a particular TP with the appropriate launches.

2.       Link-level key and secret associated with a particular link.  This will occur when the basic launch link is directly authored by the instructor within the TC.  This secret will often be produced when the Instructor creates or gains access to a TP content/tool and the TP content/tool provides the instructor with a key and secret associated with the TP link.

Basic launches can happen from the TC with any combination of TC-wide and link-level credentials including one or the other, both, or neither being present. When both are present the launch uses the TC-wide secret to sign the request.

If there is no key/secret combination available for this launch and the TC wants to perform the launch, the TC should not sign the launch data using OAuth. The TC can decide if it wants to send unsigned requests and the TP can decide if it wants to accept unsigned requests. A TC may also choose to treat the lack of key/secret values as an error and refuse to perform the launch.


4.2       OAuth Message Signing for x-www-form-urlencoded Messages

OAuth signing is a security mechanism designed to protect POST and GET requests.  This section only applies to protecting launch and other messages that are being serialized and sent using POST.

The OAuth 1.0 specification [OAuth, 10] specifies how to construct a base message string and then sign that string using a secret. The signature is then sent as part of the POST request and is validated by the TP using OAuth. The website contains the specification for OAuth 1.0 and sample source code for implementing OAuth signing.

Per the OAuth specification, the signing process produces a number of values that are to be added to the launch request including the oauth_consumer_key:








The important values for signing a message using OAuth are the oauth_consumer_key and oauth_consumer_secret.  The oauth_consumer_key is passed in the message as plain text and identifies which TC (e.g., LMS) is sending the message allowing the TP (i.e., application) to look up the appropriate secret for validation.   The oauth_consumer_secret is used to sign the message.

The oauth_callback is really not used in a signing-only scenario (OAuth 1.0 documentation section 6.2.3 [OAuth, 10]) so if your OAuth library demands it, you can set it to any value such as "about:blank".  Also note that launch_presentation_return_url serves a very different purpose from oauth_callback.

Since we are using OAuth in a signing-only scenario (i.e., we are not using OAuth to transfer third-party identity), there is no need for an oauth_token.

Tool Providers must support at a minimum the HMAC-SHA1 signing method with OAuth data passed as POST data.

Upon receipt of the POST, the TP will perform the OAuth validation utilizing the shared secret it must have stored locally for the relationship with the TC in the oauth_consumer_key.  The timestamp should also be validated to be within a specific time interval.  This time interval can be TP defined, but should be small (on the order of a few minutes if you do not record nonces or a few hours if you do).  It does rely on the time on the TC and the TP being in sync though.

The TP should keep a record of nonces received and only allow the use of any nonce a single time.  Combined with the timestamp, this means that they only have to keep track of nonces for a period of time equal to their acceptable time interval.  Recommended practice would be to have a time interval of 90 minutes so that you keep a record of nonces for 90 minutes.

NOTE that this security profile requires the TC and TP to have synchronized clocks.  The use of a configurable time interval can adjust for slightly-off clocks, but setting the interval too large is discouraged.


4.3       Security for application/xml Messages

These services follow a "Plain Old XML" (POX) pattern and the messages are signed using OAuth body signing to insure message integrity and establish the identity of the calling system (i.e., the TP).

The body of the message is XML that follows the schema for the particular service operation requested, and the message is signed using the oauth_consumer_key and oauth_consumer_secret that was used to do the launch of the tool for the particular user/course/resource.

The procedure for signing a body using OAuth [OBH, 11] is described on this website:

It is important that all messages using these services must use a content type of application/xml. The services may legitimately reject any other content type.  In particular, the OAuth body signing specification specifically prohibits the combination of oauth_body_hash and x-www-form-urlencoded data in any request.

As per the OAuth body hashing specification, all of the OAuth parameters must be sent as part of the Authorization header. In particular, OAuth parameters from the request URL and POST body will be ignored.

The oauth_body_hash [OBH, 11] is computed using a SHA-1 hash of the body contents and added to the Authorization header. All of the OAuth parameters, HTTP method, and URL are signed like any other OAuth signed request.  Other than in producing the body hash value, the actual POST data is not involved in the computation of the oauth_signature.

Most OAuth libraries can produce and verify the signatures for these messages as most libraries already support sending OAuth parameters in the Authorization header.

A sample signed request is shown below. The line-breaks in the Authorization header are there to make it easier to read the values. The oauth_signature is not valid for the data below, it is just an example signature.




Content-Length: 757

Authorization: OAuth realm="",oauth_version="1.0",






Content-type: application/xml


<?xml version = "1.0" encoding = "UTF-8"?>

<imsx_POXEnvelopeRequest xmlns = "">

















Please consult the IMS General Web Services for details about the fields within the ims_POXHeader. These definition and values for the header items are taken directly from IMS General Web Services.  See "Table A1.2 Interpretation of the 'CodeMajor/severity' matrix" from IMS General Web Services WSDL Binding Guidelines [GWS, 06] for further details on header values for 'unsupported' and 'failure' responses.

Each service will define its own XML Schema for the imsx_POXBody Request and Response content for a particular operation within a particular service.

5         Representing Basic Launch Links in a Cartridge

Since there are no changes to these formats in LTI v1.1, we are not advancing the version of the name spaces in this section.

A Basic LTI link is a simplified and self-contained LTI link. A basic launch link is defined in the resource section of an IMS Common Cartridge as follows:


       <resource identifier="I_00010_R" type="imsbasiclti_xmlv1p0">

              <file href="I_00001_R/BasicLTI.xml"/>


The href in the resource entry refers to a file path in the cartridge that contains an XML description of the basic launch link.


<?xml version="1.0" encoding="UTF-8"?>

<cartridge_basiclti_link xmlns=""

    xmlns:blti = ""

    xmlns:lticm =""

    xmlns:lticp =""

    xmlns:xsi = ""

    xsi:schemaLocation = "">

    <blti:title>Grade Book</blti:title>

    <blti:description>Grade Book with many column types</blti:description>


        <lticm:property name="keyname">value</lticm:property>


    <blti:extensions platform="">

        <lticm:property name="keyname">value</lticm:property>


    <blti:launch_url>url to the basiclti launch URL</blti:launch_url>

    <blti:secure_launch_url>secure url to the basiclti launch URL</blti:secure_launch_url>

    <blti:icon>url to an icon for this tool (optional)</blti:icon>

    <blti:secure_icon>secure url to an icon for this tool (optional)></blti:secure_icon>




        <lticp:description>This is a vendor of learning tools.</lticp:description>






    <cartridge_bundle identifierref="BLTI001_Bundle"/>

    <cartridge_icon identifierref="BLTI001_Icon"/>



The launch_url contains the URL to which the LTI Launch is to be sent.   The secure_launch_url is the URL to use if secure http is required.  One of either the launch_url or the secure_launch_url must be specified. It is acceptable to specify both and if both are specified, the TC decides which to use. Typically, the TC will use a secure_launch_url when embedding the Tool in a secure page and the launch_url when embedding the tool in a non-secure page. So, it’s important that the TP provides the same functionality whether the launch_url or secure_launch_url is used.


The icon and secure_icon are both optional and indicate a URL to be used for an icon to the tool.

Once the basic launch link is defined in the resources section of the cartridge manifest, it can be referenced in the organization section of the manifest as needed:


<item identifier="BasicLTI1" identifierref="I_00010_R">
        <title>Homework Problems</title>



The TC will generally display the title in the item entry in the user interface rather than title in the basic_lti_link entry.

The optional custom section can contain a set of key value pairs that were placed in the link in the system that originally authored the link.  For example if the link were a section in an eTextbook, there might be a setting like:

<parameter key="section">1.2.7</parameter>

These parameters are sent back to the external tool when the tool is launched.  If a basic launch link is imported and then exported the custom should be maintained across the import/export process unless the intent is to re-author the link.

The extensions section allows the hosting TC to add its own key/value pairs to the link. The TC may use extensions to store information that the TC or authoring environment might use across an export-import cycle. In order to allow multiple sets of extensions to be contained in the same basic launch descriptor, authoring environments should add the platform attribute and include an identifier that identifies the authoring environment.

It is possible to include the icon for the link in the cartridge instead of including it as a URL using the cartridge_icon entry in the descriptor.  The identifierref attribute points to a link that includes the icon image and a dependency is added to the resource section of the basic launch resource entry in the manifest as shown below.


       <resource identifier="I_00010_R" type="imsbasiclti_xmlv1p0">

              <file href="I_00001_R/BasicLTI.xml"/>

<dependency identifierref="BLTI001_Icon"/>



<resource identifier="BLTI001_Icon"


              <file href="BLTI001_Media/learning_icon.gif"/>


6         Using Learning Information Services with LTI

A TP may be given access to a subset of IMS Learning Information Services (LIS) [LIS, 11] by a TC including additional parameters in launch requests.  The LIS services do not need to be provided by the TC, a third system such as a Student Information System may be the endpoint supplied for these services.

Figure 6.1 The TP taking advantage of LIS services.

Support by a TC of LIS-related services is optional.  The Outcomes service introduced in LTI 1.1 is described in a separate document [LTI, 14 OM].

In order to interact with LIS services provided to the TP or another system by mechanisms outside the scope of this document, the TC may include the following additional launch parameters if the data is available to the TC for the particular launch:                                                                                                            (Recommended)
This parameter contains the LIS identifier for the user account that is performing this launch.    The example syntax of "school:user" is not the required format – lis_person_sourcedid is simply a unique identifier (i.e., a normalized string). This field is recommended and its content and meaning are defined by LIS [LIS, 11].                                                                               (Recommended)                                                                         (Recommended)
These parameters contain LIS course identifiers associated with the context of this launch.  These fields are recommended and their content and meaning are defined by LIS [LIS, 11].


7                  Tool Consumer Profile

A Tool Consumer may provide a profile to a tool provider to disclose the services which are available.  The profile follows the same format as LTI 2 and hence replicates some information which is provided as part of a basic launch request.  Supporting this facility is recommended.

In order to support the tool consumer profile described in this section, a custom parameter substitution variable named $ToolConsumerProfile.url should be defined which is substituted for the URL from which a tool consumer profile may be requested when processing a basic LTI launch request (see Appendix C – Custom Parameter Substitution).  This URL should be no more than 1023 characters long and should specify the version of LTI by adding an lti_version query parameter to the URL.  The value should not normally change from one launch to the next and in general, the Tool Provider can expect that there is a one-to-one mapping between the URL and a particular oauth_consumer_key.  This value might change if there was a significant re-configuration of the Tool Consumer system or if the Tool Consumer moved from one domain to another.  The Tool Consumer may use the Expires header to indicate the period of validity for the profile being returned.  It may also provide a unique profile URL for each Tool provider.

Unless there is a reason to name the parameter differently, it is recommended that a custom parameter name of tc_profile_url when a TP requests the TC profile URL.  That is, use a custom parameter setting of:


This convention can be used by Tool Consumers to implement a simple checkbox interface to indicate that this URL should be generated and passed on each launch, rather than expecting the custom parameter to be specified in full.

Figure 7.1 provides a complete example Tool Consumer profile, which is be a JSON document with a media type of application/vnd.ims.lti.v2.toolconsumerprofile+json.

















        "default_value":"Omega LMS",





        "default_value":"A fictitious Learning Management System",




        "default_value":"LTI 1.2 compliant",








            "default_value":"LMS Corporation",




            "default_value":"A fictitious vendor of a Learning Management System",














      "service_owner_name" : {

        "default_value":"State University",




        "default_value":"A fictitious university.",















        "default_value":"Your Application Service Provider",




        "default_value":"YASP is a fictitious application service provider",

























Figure 7.1 Sample Tool Consumer profile

The following tables identifies the correspondence between elements in the profile and parameters passed in a basic launch request.

Profile name

Launch parameter name















The capability element is used to declare the message types supported by the Tool Consumer; for LTI 1 this should  include at least “basic-lti-launch-request”.

Text Box: {











        "default_value":"Omega LMS"








            "default_value":"LMS Corporation",











Figure 7.2 contains an example profile which contains only the required elements.

Figure 7.2 - Minimal example of a Tool Consumer Profile

7.1            Requests for a Tool Consumer Profile

A request for a Tool Consumer profile is made by sending a GET request to the URL provided in the requested custom parameter from a basic launch request for the same Tool Consumer.  A query parameter should be added to the URL to specify the LTI version for which the profile is being requested; in this case a value of LTI-1p2 should be used.  For example:

GET /lti/ToolConsumerProfile?lti_version=LTI-1p2 HTTP/1.0
Accept: application/vnd.ims.lti.v2.toolconsumerprofile+json

The response should be a JSON document that conforms to the application/vnd.ims.lti.v2.toolconsumerprofile+json media type (see Figure 7.1), for example:

HTTP/1.0 200 OK
Date: Tue, 18 Oct 2013 12:34:56 GMT
Content-Type: application/vnd.ims.lti.v2.toolconsumerprofile+json
Content-Length: 2447
Expires: Tue, 18 Nov 2013 12:34:56 GMT

The period of validity for the profile may be specified via the Expires header in the response.

If the request received is not for a valid URL then an appropriate HTTP erorr response code should be returned.  For example,

HTTP/1.0 403 Forbidden
Date: Tue, 18 Oct 2013 12:34:56 GMT

7.2            LTI Services Offered

The “service_offered” object  of the profile is used to declare the availability of LTI services offered by the Tool Consumer to the Tool Provider.  It comprises the following name/value pairs:

  • @type – the type of service, at present only REST services are supported;
  • @id – a URI which identifies this service instance;
  • endpoint – a URI template defining the REST endpoint for resource requests being made via this service (the URI should conform to the syntax in the proposed IETF standard [IETF, 12]);
  • format – the content (media) type(s) of resources which can accessed from this service;
  • action – the HTTP request actions supported by this service.

See Figure 7.1 for an example of a service declaration.

Appendix A – LTI Standard Vocabularies

The LTI standard uses URN values to identify certain entities. This section contains URN vocabularies for ContextType and Role values.

A.1  ContextType Vocabularies

A.1.1  LIS vocabulary for ContextType


Full URN









A.2  Role Vocabularies

A.2.1  LIS vocabulary for System Role

The following table lists URN values for system role as defined by the LIS standard.


Full URN
















A.2.2  LIS vocabulary for Institution Role

The following table lists URN values for institution roles as defined by the LIS standard


Full URN






























A.2.3  LIS vocabulary for Context Role

Roles within the LIS standard consist of a RoleType and an optional SubRoleType.  The handle for the corresponding URN value contains both elements, separated by a slash.


Full URN










































































































Appendix B – Implementation Practice

This section includes non-normative discussion and recommendations to help guide implementations.

B.1    Authoring Basic Links with Link-Level Credentials

If the TC chooses to support link-level credentials, they are supporting the ability for the Instructor to author LTI links inside of the TC. The minimal authoring screen is very simple.

Figure B.2 Authoring screen for Basic LTI links inside of the TC. .

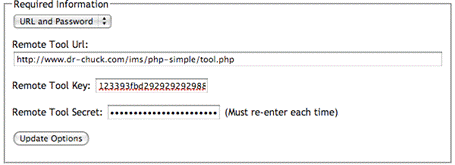

Figure B.1 Authoring screen for basic links inside of the TC.


Another possible authoring interface might be to allow the pasting of the XML basic_lti_link descriptor into an input field.

Text Box: <?xml version="1.0" encoding="UTF-8"?>

<basic_lti_link xmlns=""

    xmlns:lticm =""

    xmlns:lticp =""

    xmlns:xsi = ""

    xsi:schemaLocation = "



    <title>Grade Book</title>

    <description>Grade Book with many column types</description>


        <lticm:property  data-cke-saved-name="keyname">value</lticm:property>



    <extensions platform="">

        <lticm:property  data-cke-saved-name="keyname">value</lticm:property>



    <launch_url>url to the basiclti launch URL</launch_url>

    <secure_launch_url>secure url to the basiclti launch URL</secure_launch_url>

    <icon>url to an icon for this tool (optional)</icon>

    <secure_icon>secure url to an icon for this tool (optional)></secure_icon>




        <lticp:description>This is a vendor of learning tools.</lticp:description>

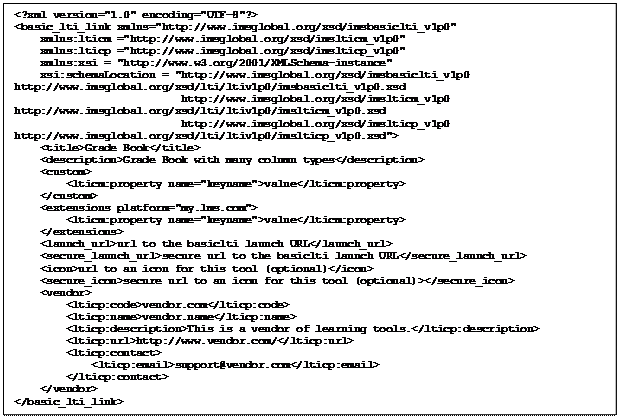

Figure B.2 Sample pasting of an LTI link in XML.


As a best practice, TC systems should support both the URL/Key/Secret and XML/Key/Secret of authoring an LTI link. The user interface for these options and how and where these options are shown to the user is up to the TC.

The TC might add other features like frame height, "open in new window" or add a title field to the link entry.

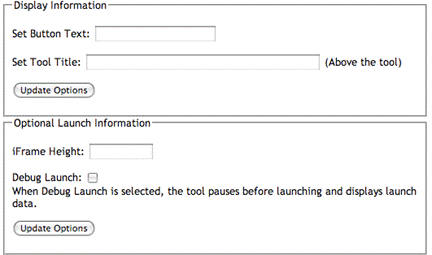

Figure B.4 Sample interface for including various options inside the TC.

Figure B.3 Sample interface for including various options inside the TC.


These screens will be available in the TC where the Instructor is creating the course organization and adding a new link.  A typical approach is to make creating an LTI launch just one more type of TC link in the course structure.

B.2    Security Policy / SandBoxing Launch Requests

TC systems will likely implement a number of security policy related features that can be controlled by both the TC administrator and the Instructor.  These are some considerations:

  • TC systems will likely limit the transmission of identifying information for users such as name and E-Mail to a trusted set of TPs.
  • TC Administrators may want to allow only certain approved/trusted Instructors to be allowed to author their own LTI links.
  • The TC system may want the ability of an Instructor to further reduce/sandbox the data items transmitted to a TP.

It is out of the scope of this document to specify how the TC system controls which instructors can author LTI links or which URLs can be launched using LTI or which data is shared with particular TPs.

B.3    Roles

Some of the commonly used roles from LIS include Learner, Instructor, Administrator, TeachingAssistant, ContentDeveloper, and Mentor.  Multiple roles can be included, separated by commas.  TC systems should include as many roles as appropriate for the user (i.e., more roles are better).  TC systems should be aware that simple TPs will key off the presence or absence of the Instructor role and group users into those with the Instructor role (read-write-configure) and those without the Instructor role (read).


B.4    Non-Context LTI Launches

While the typical use of an LTI link is in a context, it is also possible to use LTI to launch a link that is not part of a context.  One example of a non-context launch might be a menu item that is part of the portal or part of a global menu in the TC.

Supporting non-context launches is optional for both the TP and TC.

If an LTI launch is coming from a non-context placement, the context information is simply omitted and the launch will contain the user and organization information but no context information.

B.5    LTI Sample Launch

The LTI launch protocol is a POST to the launch URL with the LTI parameters described above, properly signed using OAuth signing.

The most common launch approach will be for the TC to emit a form to the browser and then include code to automatically submit the form to the launch URL.  The TP will assume that it is in a browser, process the input parameters, setting session information if necessary and optionally redirecting.

Here is a sample of an HTML form using a password of "secret" and oauth_consumer_key of "12345".

<form action=
name="ltiLaunchForm" method="post"

<input type="hidden" name="context_id" value="456434513"/>

<input type="hidden" name="context_label" value="SI182"/>

<input type="hidden" name="context_title" value="Design of Personal Environments"/>

<input type="hidden" name="launch_presentation_css_url" value=""/>

<input type="hidden" name="launch_presentation_document_target" value="frame"/>

<input type="hidden" name="launch_presentation_locale" value="en-US"/>

<input type="hidden" name="launch_presentation_return_url" value=""/>

<input type="hidden" name="lis_outcome_service_url" value="

<input type="hidden" name="lis_person_contact_email_primary" value=""/>

<input type="hidden" name="lis_person_name_family" value="Public"/>

<input type="hidden" name="lis_person_name_full" value="Jane Q. Public"/>

<input type="hidden" name="lis_person_name_given" value="Given"/>

<input type="hidden" name="lis_person_sourcedid" value=""/>

<input type="hidden" name="lis_result_sourcedid" value="feb-123-456-2929::28883"/>

<input type="hidden" name="lti_message_type" value="basic-lti-launch-request"/>

<input type="hidden" name="lti_version" value="LTI-1p0"/>

<input type="hidden" name="oauth_callback" value="about:blank"/>

<input type="hidden" name="oauth_consumer_key" value="12345"/>

<input type="hidden" name="oauth_nonce" value="93ac608e18a7d41dec8f7219e1bf6a17"/>

<input type="hidden" name="oauth_signature" value="QWgJfKpJNDrpncgO9oXxJb8vHiE="/>

<input type="hidden" name="oauth_signature_method" value="HMAC-SHA1"/>

<input type="hidden" name="oauth_timestamp" value="1348093590"/>

<input type="hidden" name="oauth_version" value="1.0"/>

<input type="hidden" name="resource_link_description" value="A weekly blog."/>

<input type="hidden" name="resource_link_id" value="120988f929-274612"/>

<input type="hidden" name="resource_link_title" value="Weekly Blog"/>

<input type="hidden" name="roles" value="Instructor"/>

<input type="hidden" name="tool_consumer_info_product_family_code" value="ims"/>

<input type="hidden" name="tool_consumer_info_version" value="1.1"/>

<input type="hidden" name="tool_consumer_instance_description"
value="University of School (LMSng)"/>

<input type="hidden" name="tool_consumer_instance_guid" value=""/>

<input type="hidden" name="user_id" value="292832126"/>

<input type="submit" value="Press to continue to external tool"/>


<script language="javascript">





This form is designed to work even if JavaScript is turned off in the browser – the user simply presses the submit button.  If JavaScript is on, the button is quickly hidden and the form is automatically submitted.

The following is the base string prior to the OAuth signature computation:















In the above string, all line wrapping should be removed. Notice that all of the POST values are included in the base string (i.e., the string signed by OAuth).

B.6    Conformance

Conformance for LTI is granted through the IMS CC-LTI Alliance and consists of certification testing for TC and TP implementations. For additional information about conformance, visit the CC LTI Alliance here:


B.7     Administrator / Instructor User Interfaces / Custom Parameters

While the user interface is completely up to the TC, there are several user interface patterns that have evolved to be quite effective in practice.  There are two primary use case patterns described below.

B.7.1    Instructor Creates New Tools

In the case that the TC decides to allow the instructor to place tools without administrator action by getting a URL, key, and secret from a TP and plugging them into a course structure, it is a good practice to allow the instructor to enter custom parameters without requiring administrator assistance.  Some TPs will need custom parameters to function properly.  Also if the instructor is using a TC to produce an IMS Common Cartridge with LTI links in the cartridge, often setting custom parameters for a tool placement is an essential part of authoring a cartridge.


B.7.2    Admin Creates New Tools, Instructor Only Places Tools

Another common case is to only allow the administrator to create new tools (i.e., key/secret/url) and then let the instructor place those pre-configured tools in their courses.  In this use case, instructors never handle url/key/secret values.  Even in this use case it is important to allow the instructor to be able to set or augment custom parameters for each placement.  These parameters may be necessary for the TP to function and/or may be necessary if the instructor is building a course in the TC to be exported into an IMS Common Cartridge.  It is not necessary to always give the instructor the option to configure custom parameters, but it should be possible for the administrator to make a choice to reveal a user interface to set custom parameters.

Appendix C – Custom Parameter Substitution

Support for substitutable custom parameters is optional and the TP should anticipate that these parameters may come from the TC in their unsubstituted form.


C.1    LTI User variables

Message Variable Name



LaunchMixin.user_id  (This is the local identifier for the user within the TC.)


The URL that contains an image of the user suitable for use as a profile picture or avatar.


The username by which the user is known to the LMS; this will typically be the name entered by the user when they log in


A URI describing the user's organisational properties; for example, an ldap:// URI.  Multiple URIs can be separated using commas.


A comma-separated list of user ID values which the current user can access as a mentor.


C.2    LIS Person variables

Message Variable Name

XPath for value from LIS Database




personRecord/person/formname/[formnameType/instanceValue/text="Full"] /formattedName/text












personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="NonFieldedStreetAddress1"]/instanceValue /text[2]


personRecord/person/address/[addressType/instanceValue/text="Preferred"] addressPart /nameValuePair[instanceName/text="NonFieldedStreetAddress2"] /instanceValue/text


personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="NonFieldedStreetAddress3"] /instanceValue/text


personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="NonFieldedStreetAddress3"] /instanceValue/


personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="Locality"]/instanceValue/text


personRecord/person/address/[addressType/instanceValue/text="Preferred "]addressPart /nameValuePair /[instanceName/text="Statepr"]/instanceValue/text


personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="Country"]/instanceValue/text


personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="Postcode"]/instanceValue/text


personRecord/person/address/[addressType/instanceValue/text="Preferred"]addressPart /nameValuePair /[instanceName/text="Timezone"]/instanceValue/text


personRecord/person/contactinfo[contactinfoType/instanceValue/text="Mobile"] /contactInfoValue/text


personRecord/person/contactinfo [contactinfoType/instanceValue/text="Telephone_Primary"]/contactinfoValue /text


personRecord/person/contactinfo [contactinfoType/instanceValue/text="Telephone_Home"]/contactinfoValue /text


personRecord/person/contactinfo [contactinfoType/instanceValue/text="Telephone_Work"]/contactinfoValue /text


personRecord/person/contactinfo [contactinfoType/instanceValue/text="Email_Primary"] /contactinfoValue /text


person/contactinfo[contactinfoType/instanceValue/text="Email_Personal"] /contactinfoValue /text


personRecord/person/contactinfo[contactinfoType/instanceValue/text="Web­‑Address"] /contactinfoValue/text


personRecord/person/contactinfo[contactinfoType/instanceValue/text="SMS"] /contactinfoValue/text


C.3    LTI Context Variable

Message Variable Name



The local identifier for the context within the Tool Consumer system.


A comma-separated list of URN values that identify the type of context.


A short label for the context.


The title for the context.


A URI describing the context's organisational properties; for example, an ldap:// URI.  Multiple URIs can be separated using commas.


A comma-separated list of URL-encoded context ID values representing previous copies of the context; the ID of most recent copy should appear first in the list followed by any earlier IDs in reverse chronological order. If context was created from scratch, not as a copy of an existing context, then this variable should have an empty value.


C.4    LTI ResourceLink Variables

Message Variable Name

XPath for value from LIS Database


This is the local identifier for the resource link within the Tool Consumer system from which the launch occurred.


A plain text title for the resource.


A plain text description of the link’s destination, suitable for display alongside the link.


A comma-separated list of URL-encoded resource link ID values representing the ID of the link from a previous copy of the context; the most recent copy should appear first in the list followed by any earlier IDs in reverse chronological order. If the link was first added to the current context then this variable should have an empty value.


C.5    LIS Course Template Variables

Message Variable Name

XPath for value from LIS Database
















C.6    LIS Course Offering Variables

Message Variable Name

XPath for value from LIS Database


















C.7    LIS Course Section Variables

Message Variable Name

XPath for value from LIS Database




















courseSectionRecord/courseSection/org[type/textString="Dept"] /orgName/textString














C.8    LIS Group Variables

Message Variable Name

XPath for value from LIS Database




























C.9    LIS Membership Variables

Message Variable Name

XPath for value from LIS Database
















C.10 Tool Consumer Variable

Message Variable Name

Corresponding LTI value


URL for requests for the tool consumer profile


About This Document


Title:                                                      IMS Global Learning Tools Interoperability Implementation Guide

Editor:                                                  Greg McFall (Pearson), Mark McKell (IMS Global), Lance Neumann (Blackboard), Stephen Vickers (IMS Global)

Version:                                                1.2

Version Date:                                      5 January 2015

Release:                                                Final Release

Summary:                                            This document offers implementation guidance for the IMS Global Learning Tools Interoperability (LTI) specification, which defines how remote tools and content can be integrated into a Learning Management System.

Purpose:                                               This document is made available for adoption by the public community at large.

Document Location:
Join the discussion and post comments on the LTI Public Forum:


List of Contributors

The following individuals contributed to the development of this document:

Greg McFall                          Pearson

Matthew Stoelting               Cengage

Mark McKell                        IMS Global

John Tibbetts                        VitalSource

Lance Neumann                  Blackboard

Stephen Vickers                   IMS Global

Charles Severance               University of Michigan

Alan Zaitchik                       Jenzabar

Colin Smythe                       IMS Global














Revision History


Version No.

Release Date


Final Release v1.0

30 June 2011

The first formal release of the Final Release version of this document.

Public Draft v1.1

21 November 2011

The Public Draft release of the v1.1 for comment and evaluation.

Final Release v1.1

13 March 2012

The formal release of the Final v1.1 specification.

Final Release v1.1.1

12 June 2012

The formal release of the Final v1.1.1 specification which adds the role_scope_mentor launch parameter.

Final Release v1.1.1 (Revised)

20 September 2012

Appendix section B.5 revised to correct the sample launch code.

Public Draft v1.2

7 April 2014

The Public Draft  release of the v1.2 specification for comment and evaluation.

Final v1.2

5 January 2015

Updated custom parameter substitution variables.




IMS Global Learning Consortium, Inc. (“IMS Global”) is publishing the information contained in this document (“Specification”) for purposes of scientific, experimental, and scholarly collaboration only.

IMS Global makes no warranty or representation regarding the accuracy or completeness of the Specification.

This material is provided on an “As Is” and “As Available” basis.

The Specification is at all times subject to change and revision without notice.

It is your sole responsibility to evaluate the usefulness, accuracy, and completeness of the Specification as it relates to you.

IMS Global would appreciate receiving your comments and suggestions.

Please contact IMS Global through our website at

Please refer to Document Name: IMS Global Learning Tools Interoperability Implementation Guide v1.2 Final

Date: 5 January 2015

[1] Plain text means that the Tool Provider will treat the parameter value as text/plain and not text/html.   If the TC includes characters such as less-than or greater-than in plain text fields, those characters are to be escaped and displayed.  In particular, the TC should not embed HTML tags in plain text fields with the expectation that the HTML will be handed directly to the browser.  For example, if a plaintext field contains the string "Building <strong> Interoperability", the TP should escape the data so the user sees the less-than, greater-than, and text between them literally rather than switching the word "Interoperability" to be in bold font.

[2] The “Preferred” instanceName is not part of the default LIS vocabulary.  We are proposing to add this term in the LTI Profile of LIS so that we can support a single address instead of dealing with multiple address types as prescribed by the full LIS standard.
